2. Using J 35468 and a hammer, install the crankshaft front oil seal. See Special Tools.
3. Ensure the crankshaft front oil seal is flush and square to the engine front cover.
4. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement.
ENGINE FRONT COVER REPLACEMENT
Removal Procedure
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
Fig. 211: View Of Engine Protection Shield
Courtesy of GENERAL MOTORS CORP.
1. Remove the water pump. Refer to Water Pump Replacement (LU3) .
2. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement.
3. Remove the oil pan. Refer to Oil Pan Replacement.
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
4. Remove the engine shield bolts and shield.

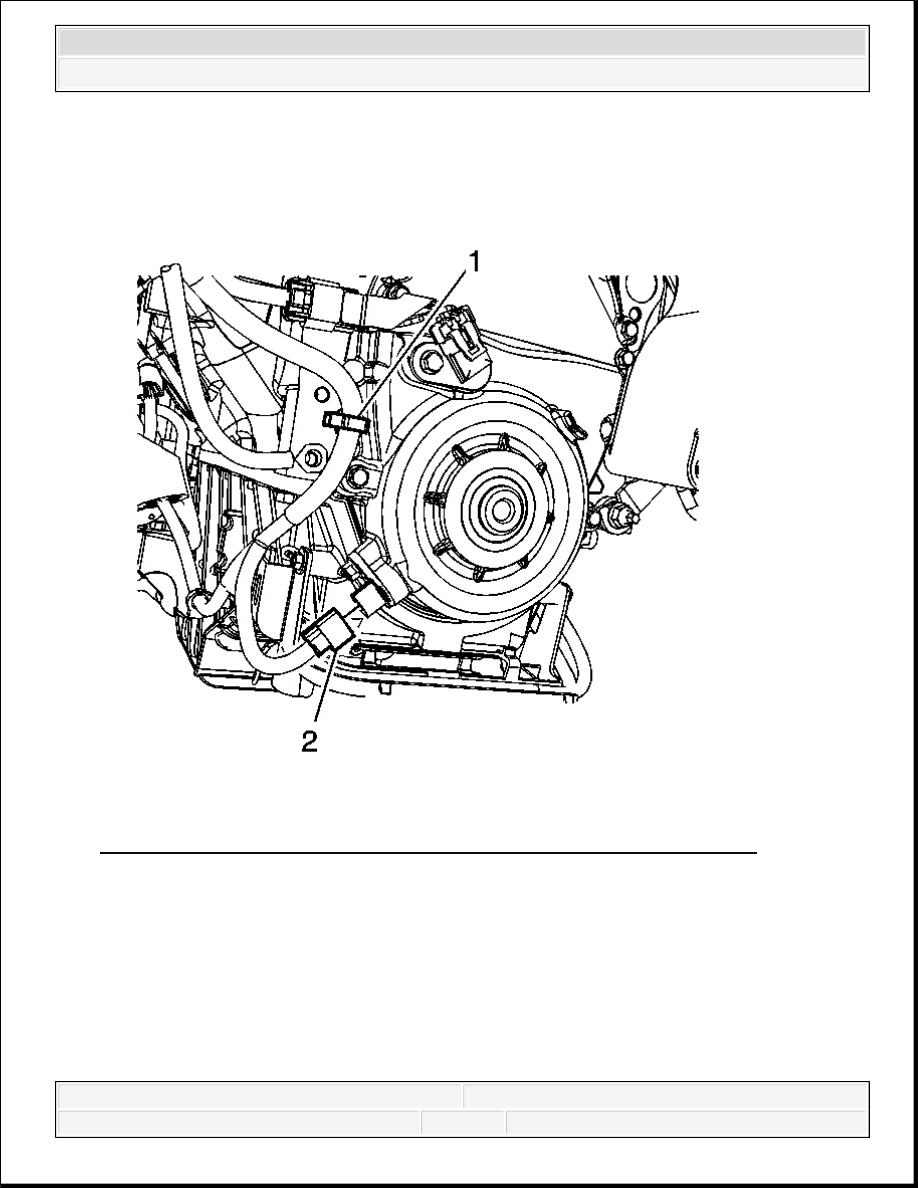

Fig. 212: Crankshaft Position (CKP) Sensor Electrical Connector & Clip
Courtesy of GENERAL MOTORS CORP.
5. Remove engine wire harness clip (1) from front cover.
6. Disconnect the crankshaft position (CKP) sensor electrical connector (2).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado
