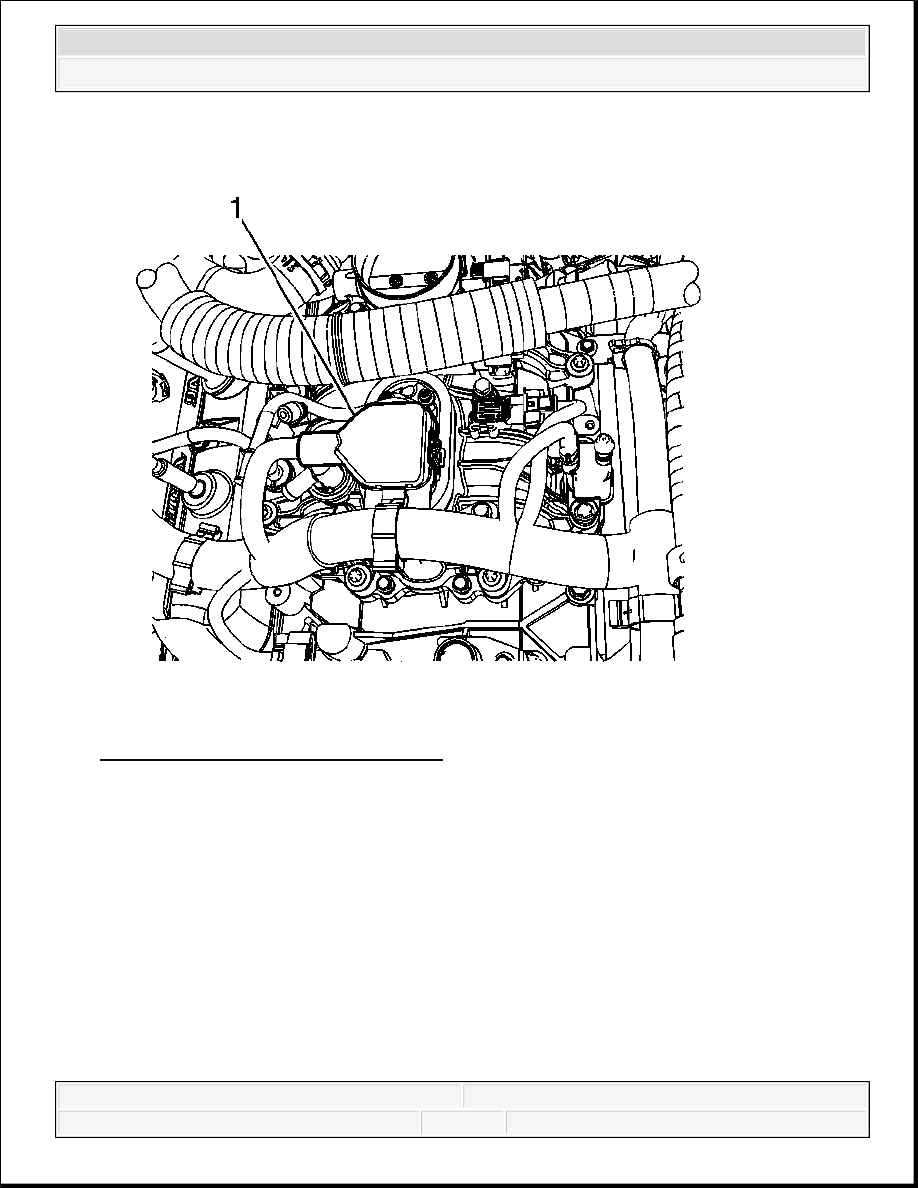

Fig. 82: Control Port Injector Module
Courtesy of GENERAL MOTORS CORP.
11. Disconnect the control port injector module (1).
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

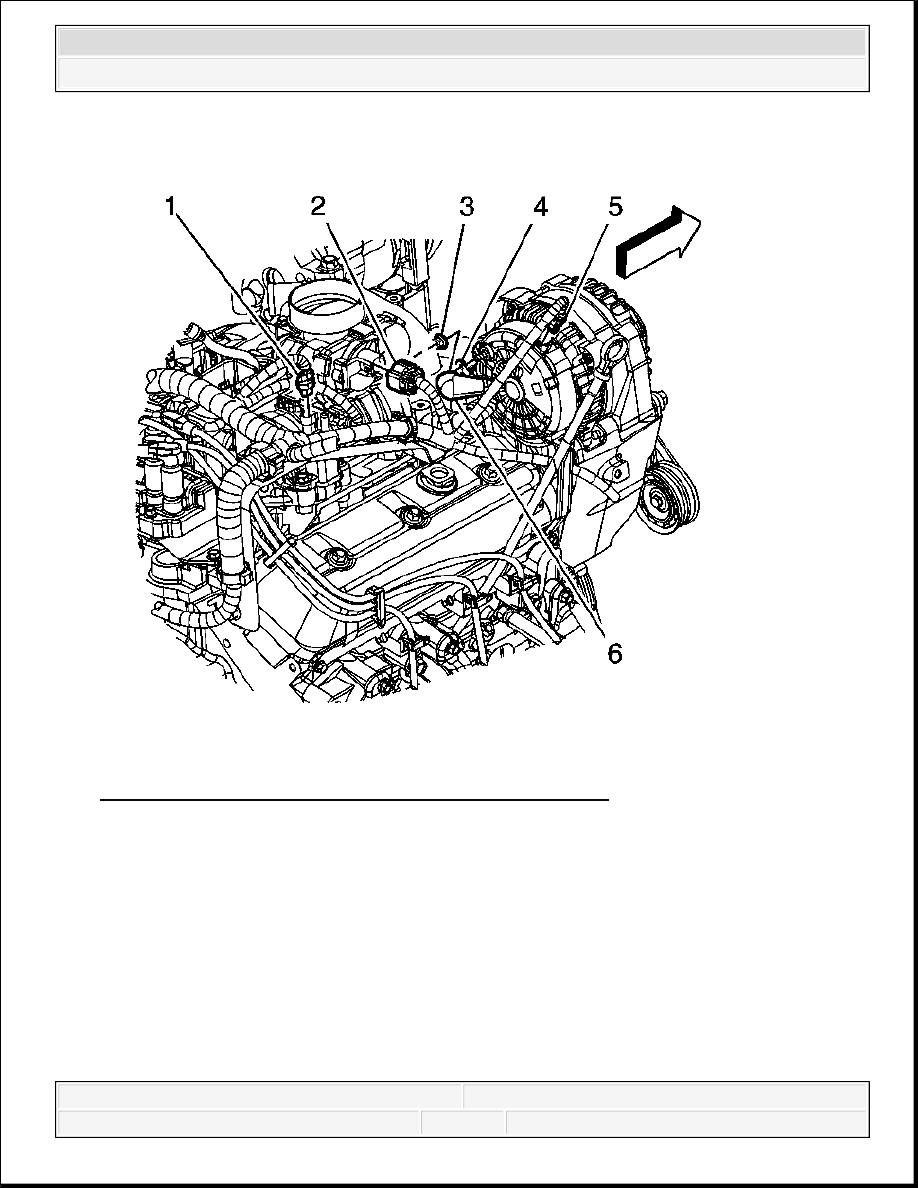

Fig. 83: View Of Engine Wiring Harness & Components
Courtesy of GENERAL MOTORS CORP.
12. Disconnect the following electrical connectors:
The EVAP canister purge solenoid valve (1)
The manifold absolute pressure (MAP) sensor
2008 Chevrolet Silverado 1500
2008 ENGINE Engine Mechanical - 4.3L - Sierra & Silverado

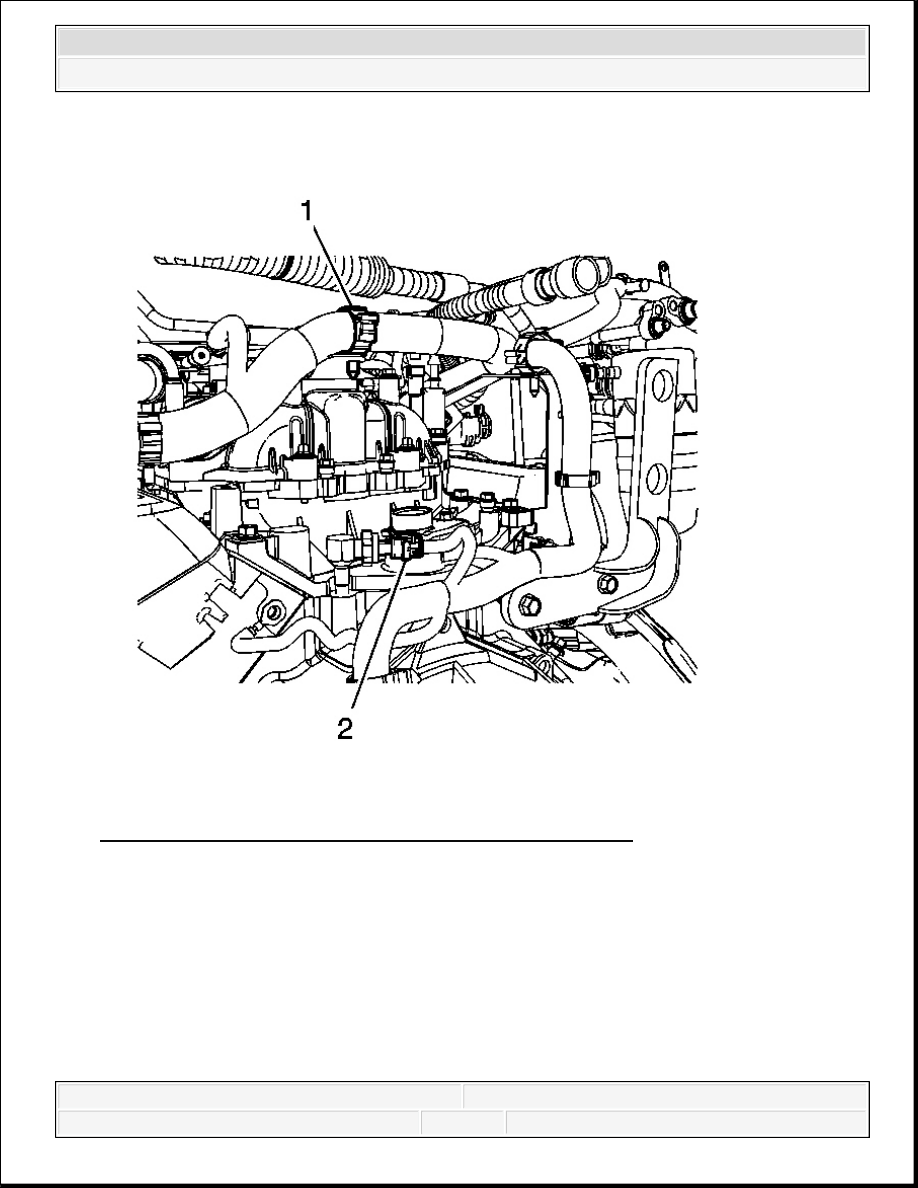

Fig. 84: Oil Pressure Sensor Electrical Connector & Clamp
Courtesy of GENERAL MOTORS CORP.
13. Remove the engine harness clamp (1) from the bracket.
14. Disconnect the oil pressure sensor electrical connector (2).
