Chery Tiggo 5 (T21). Manual - part 528

49–

23

49

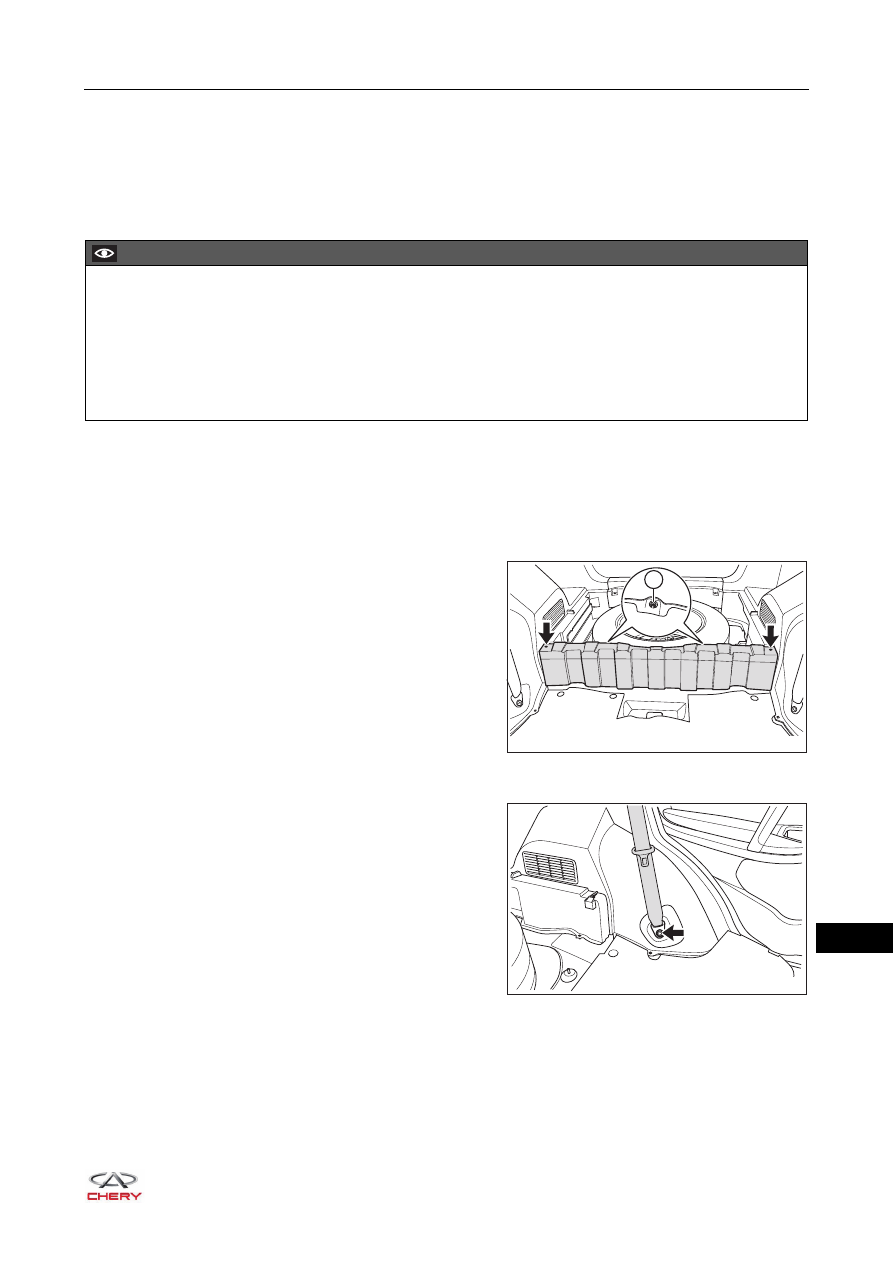

C-pillar Lower Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the rear left doorsill pressure plate assembly (

See page 49-11

).

2. Remove the rear left door opening weatherstrip (

See page 49-14

).

3. Remove the luggage compartment carpet assembly (

See page 49-12

).

4. Remove the rear left seat assembly (

See page 49-15

).

5. Remove the back door baffle plate assembly.

a. Remove 2 fixing nuts (1) from the back door baffle

plate assembly.



(Tightening torque: 1.5 ± 1 N·m)

b. Remove 2 fixing screws (arrow) from the back door

baffle plate assembly and remove the back door baffle
plate assembly.



(Tightening torque: 1.5 ± 1 N·m)

6. Remove the left C-pillar lower protector assembly.

a. Remove the fixing bolt (arrow) from the lower part of

front seat belt.



(Tightening torque: 50 ± 5 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the C-pillar lower protector

assembly.

 Appropriate force should be applied when removing the C-pillar lower protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the C-pillar lower protector

assembly.

RT21490141

1

RT21490140

49–

24

49

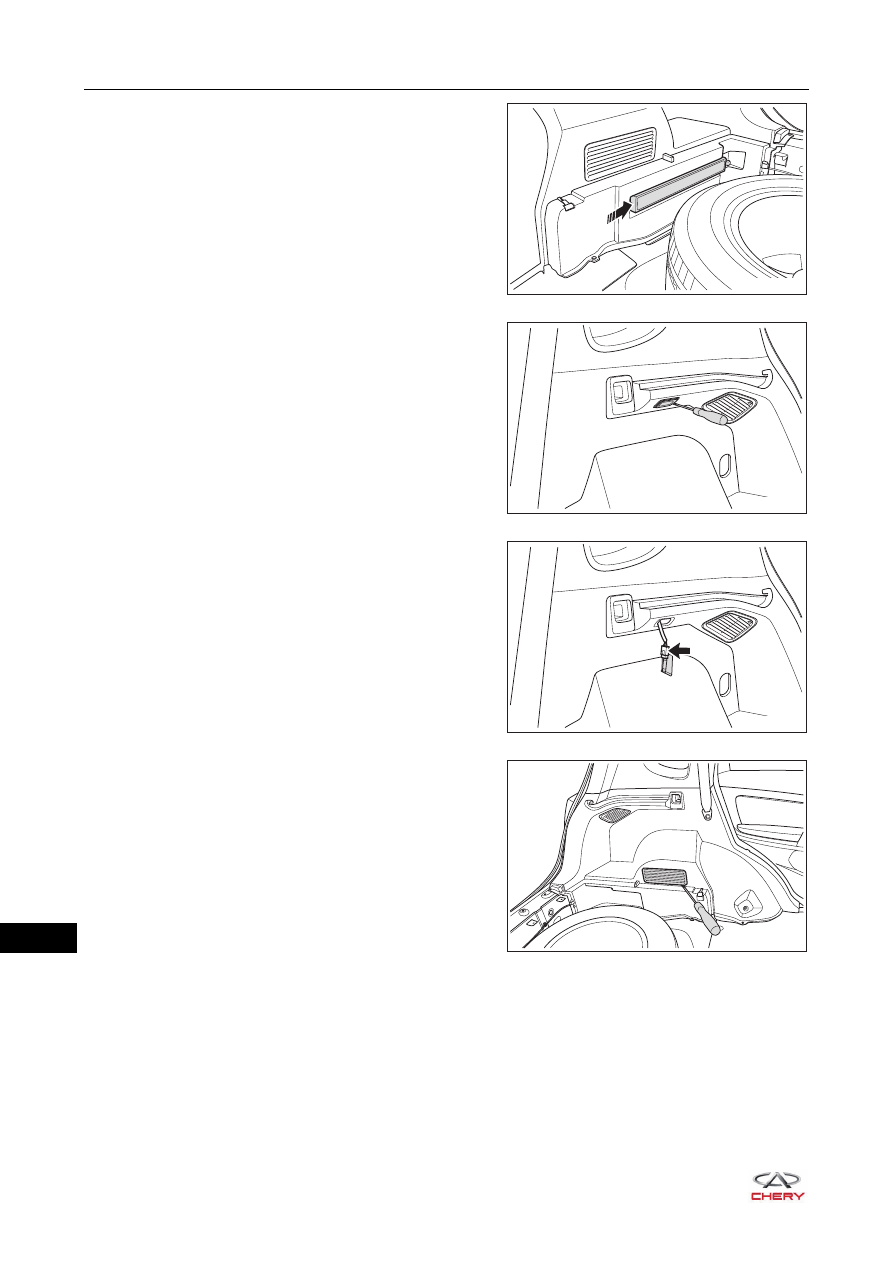

b. Remove the warning triangle box (for right side) in the

direction of arrow as shown in the illustration.

c. Using a screwdriver wrapped with protective tape, pry

off the back door light cover (for right side).

d. Disconnect the back door light connector (arrow) and

remove the back door light.

e. Using a screwdriver wrapped with protective tape, pry

off the rear shock absorber service cover and remove
the rear shock absorber service cover.

RT21490161

RT21490162

RT21490163

RT21490152

49–

25

49

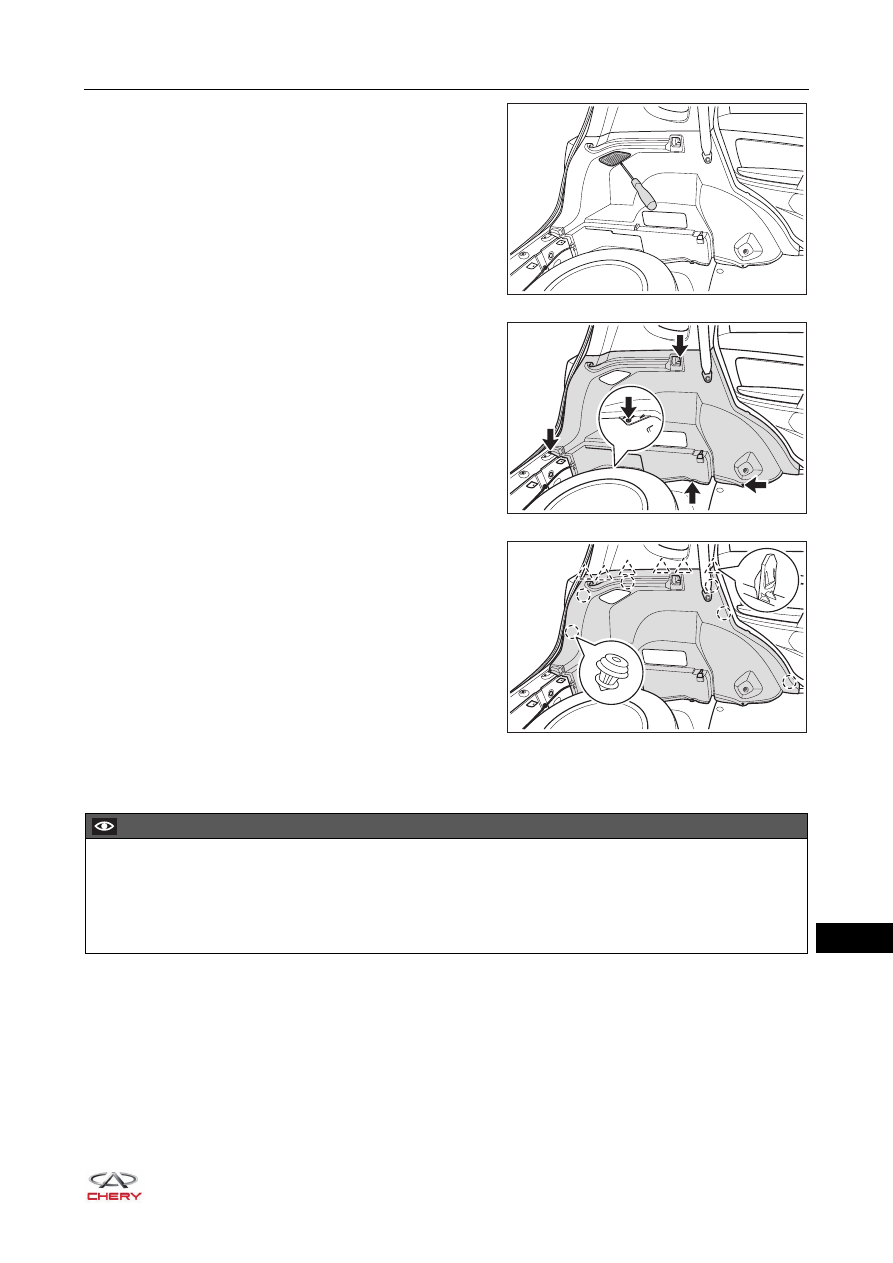

f. Using a screwdriver wrapped with protective tape, pry

off the rear combination light service cover and
remove the rear combination light service cover.

g. Remove 5 fixing screws (arrow) from the C-pillar

lower protector assembly.



(Tightening torque: 1.5 ± 1 N·m)

h. Using an interior crow plate, pry off the clips from the

C-pillar lower protector assembly, and remove the left
C-pillar lower protector assembly.

Installation

Installation is in the reverse order of removal.

RT21490153

RT21490150

RT21490151

CAUTION

 Make sure the damaged clips are replaced and the C-pillar lower protector assembly is installed in place

when installing the C-pillar lower protector assembly.

 The C-pillar lower protector assembly, C-pillar upper protector and rear door opening weatherstrip should

be fitted closely after installing the C-pillar lower protector assembly.

49–

26

49

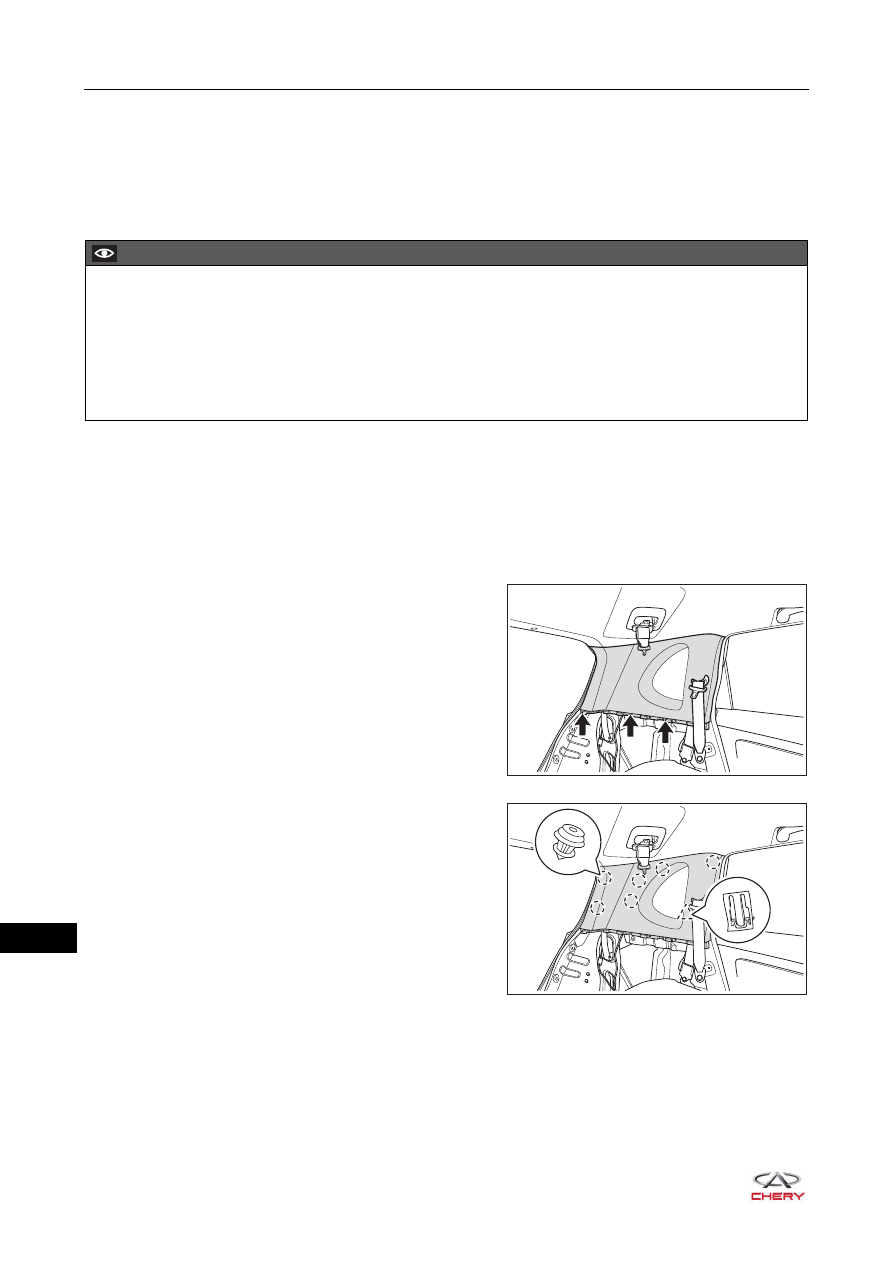

C-pillar Upper Protector Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Remove the rear left doorsill pressure plate assembly (

See page 49-12

).

2. Remove the rear left door opening weatherstrip (

See page 49-15

).

3. Remove the luggage compartment carpet assembly (

See page 49-36

).

4. Remove the rear left seat assembly (

See page 46-25

).

5. Remove the left C-pillar lower protector assembly (

See page 49-23

).

6. Remove the left C-pillar upper protector assembly.

a. Remove 3 fixing screws (arrow) from the C-pillar

upper protector assembly.



(Tightening torque: 1.5 ± 1 N·m)

b. Using an interior crow plate, pry off the clips from the

C-pillar upper protector assembly, pull out the rear
seat belt from the C-pillar upper protector assembly,
and remove the left C-pillar upper protector assembly.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the C-pillar upper protector

assembly.

 Appropriate force should be applied when removing the C-pillar upper protector assembly. Be careful not

to operate roughly.

 Prevent interior and body paint from being scratched when removing the C-pillar upper protector

assembly.

RT21490160

RT21490170
