Chery Tiggo 5 (T21). Manual - part 521

48–

42

48

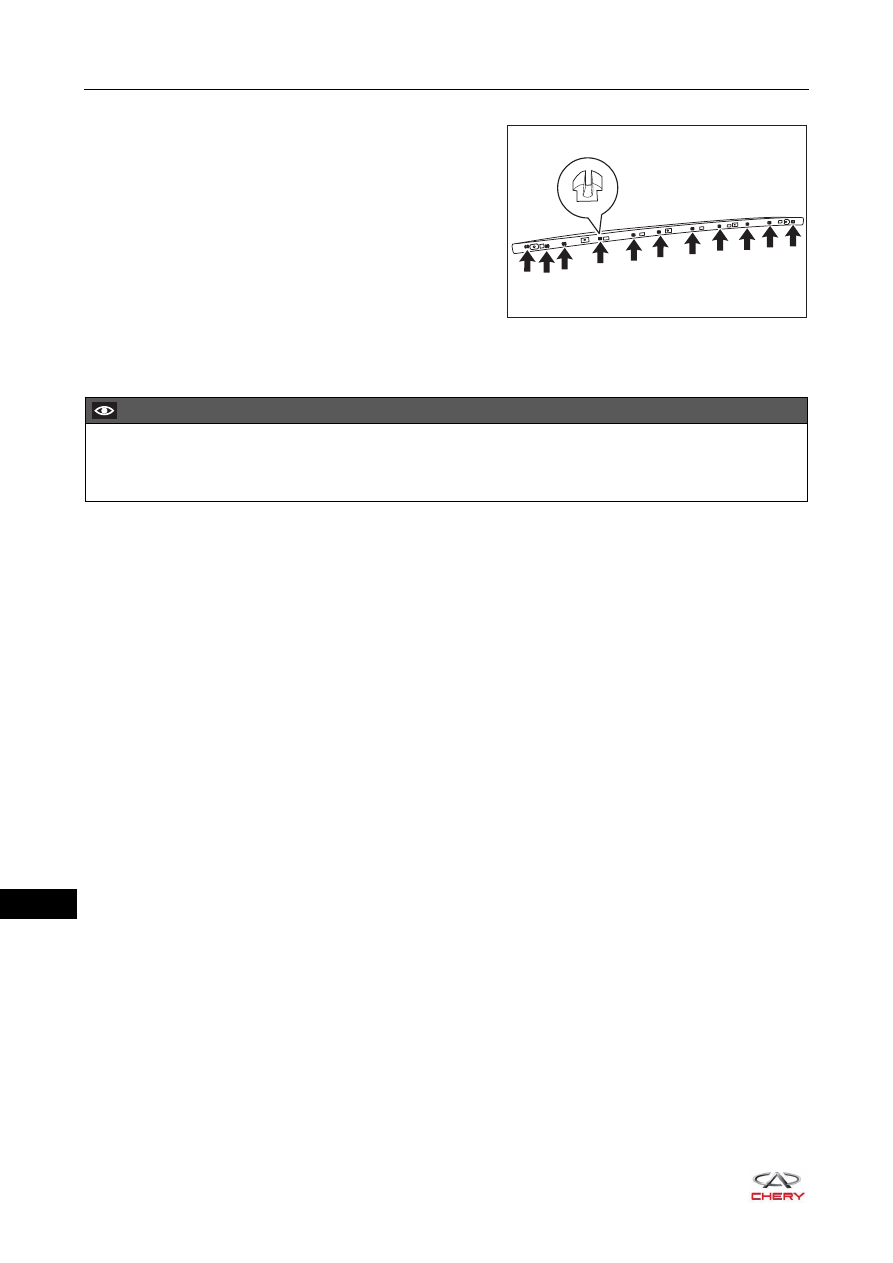

2. Remove the roof rack front cushion.

a. Using a screwdriver wrapped with protective tape, pry

up the claws (arrow) on roof rack front cushion.

b. Remove the roof rack front cushion from the roof rack

assembly.

Installation

Installation is in the reverse order of removal.

RT21480531

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing roof rack assembly.
 Try to prevent body paint surface from being scratched when installing roof rack assembly.

48–

43

48

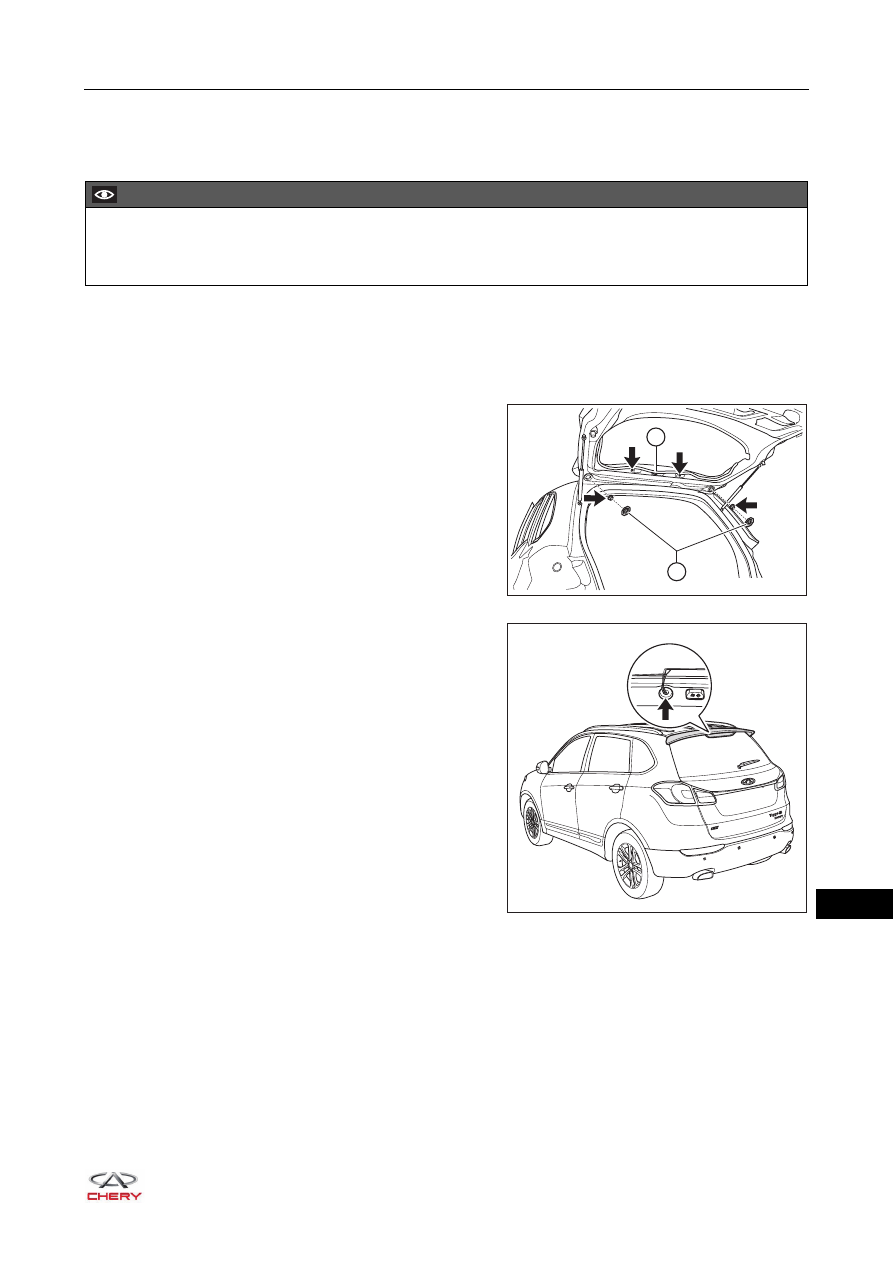

Rear Spoiler Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door protector assembly (

See page 47-47

).

4. Remove the rear spoiler assembly.

a. Disconnect the high mounted stop light connector (1).
b. Using a screwdriver wrapped with protective tape, pry

up the inside rubber covers (2).

c. Remove 4 fixing nuts (arrow) from the rear spoiler

assembly.



(Tightening torque: 5 ± 1 N·m)

d. Using a screwdriver wrapped with protective tape, pry

up the outside rubber covers (arrow) and remove the
rear spoiler assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing rear spoiler assembly.
 Try to prevent body paint surface from being scratched when removing rear spoiler assembly.

1

RT21480540

2

RT21480541

48–

44

48

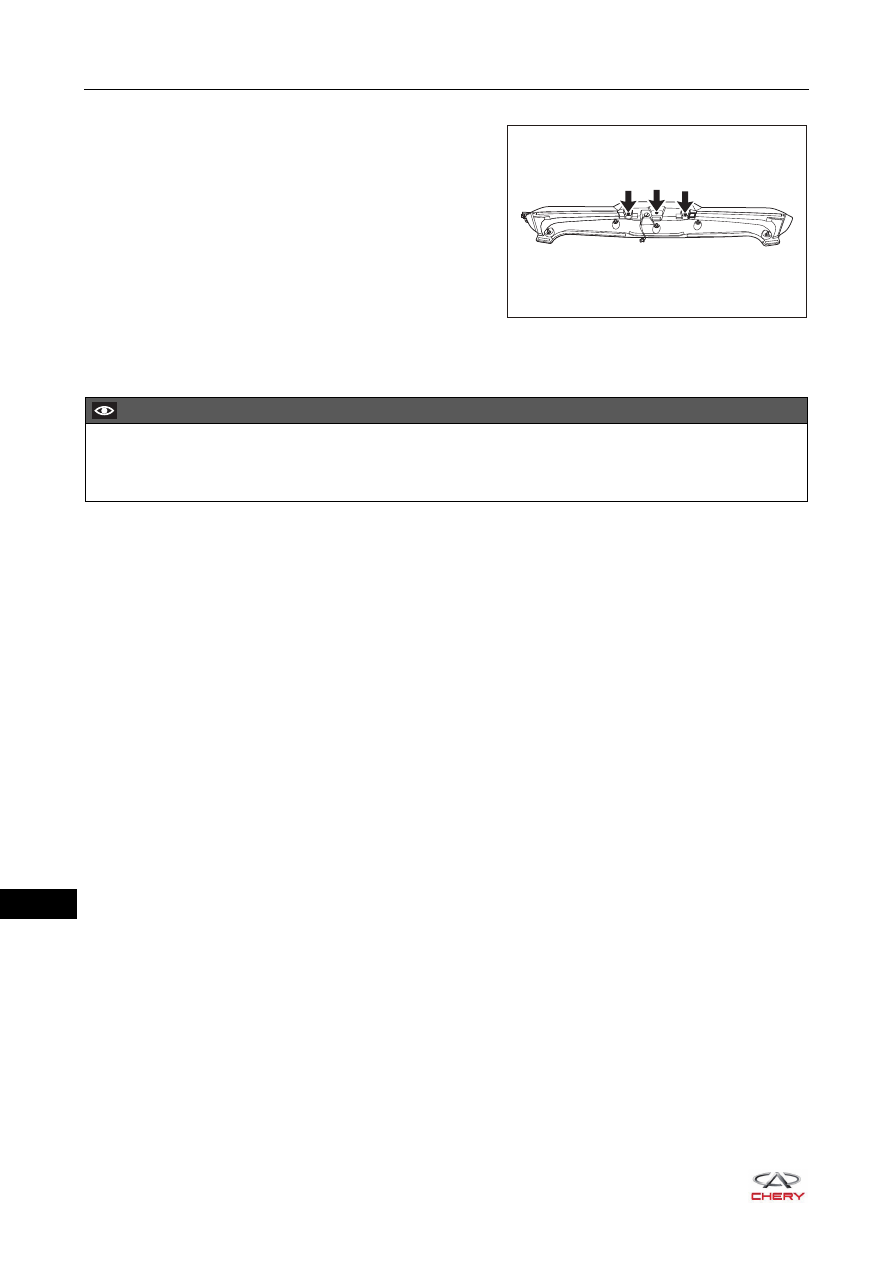

5. Remove the high mounted stop light.

a. Remove 3 fixing nuts (arrow) from the high mounted

stop light.



(Tightening torque: 3.5 ± 0.5 N·m)

b. Remove the high mounted stop light from the rear

spoiler assembly.

Installation

Installation is in the reverse order of removal.

RT21480542

CAUTION

 Be sure to wear safety equipment to prevent accidents when installing rear spoiler assembly.
 Try to prevent body paint surface from being scratched when installing rear spoiler assembly.

48–

45

48

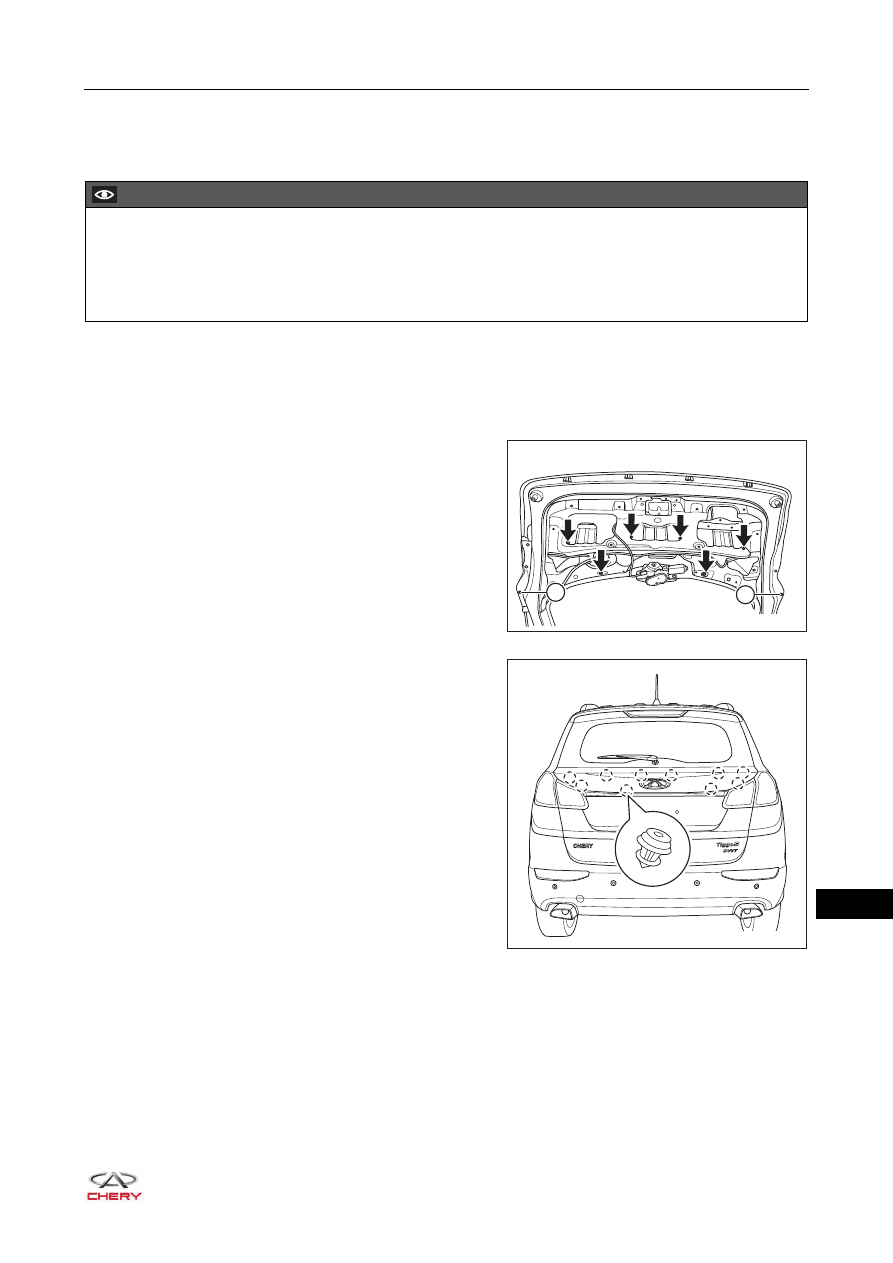

Back Door Upper Trim Board Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door protector assembly (

See page 47-47

).

4. Remove the back door upper trim board assembly.

a. Remove 2 fixing screws (1) from the back door upper

trim board assembly.



(Tightening torque: 3 ± 1 N·m)

b. Remove 6 fixing nuts (arrow) from the back door

upper trim board assembly.



(Tightening torque: 5 ± 1 N·m)

c. Using a screwdriver wrapped with protective tape, pry

off the clips from the back door upper trim board
assembly.

CAUTION

 Be sure to wear safety equipment to prevent accidents when removing back door upper trim board

assembly.

 Try to prevent body paint surface from being scratched when removing back door upper trim board

assembly.

RT21370270

1

1

RT21370280
