 47–

3

47

ENGINE HOOD/DOOR

GENERAL INFORMATION

Description

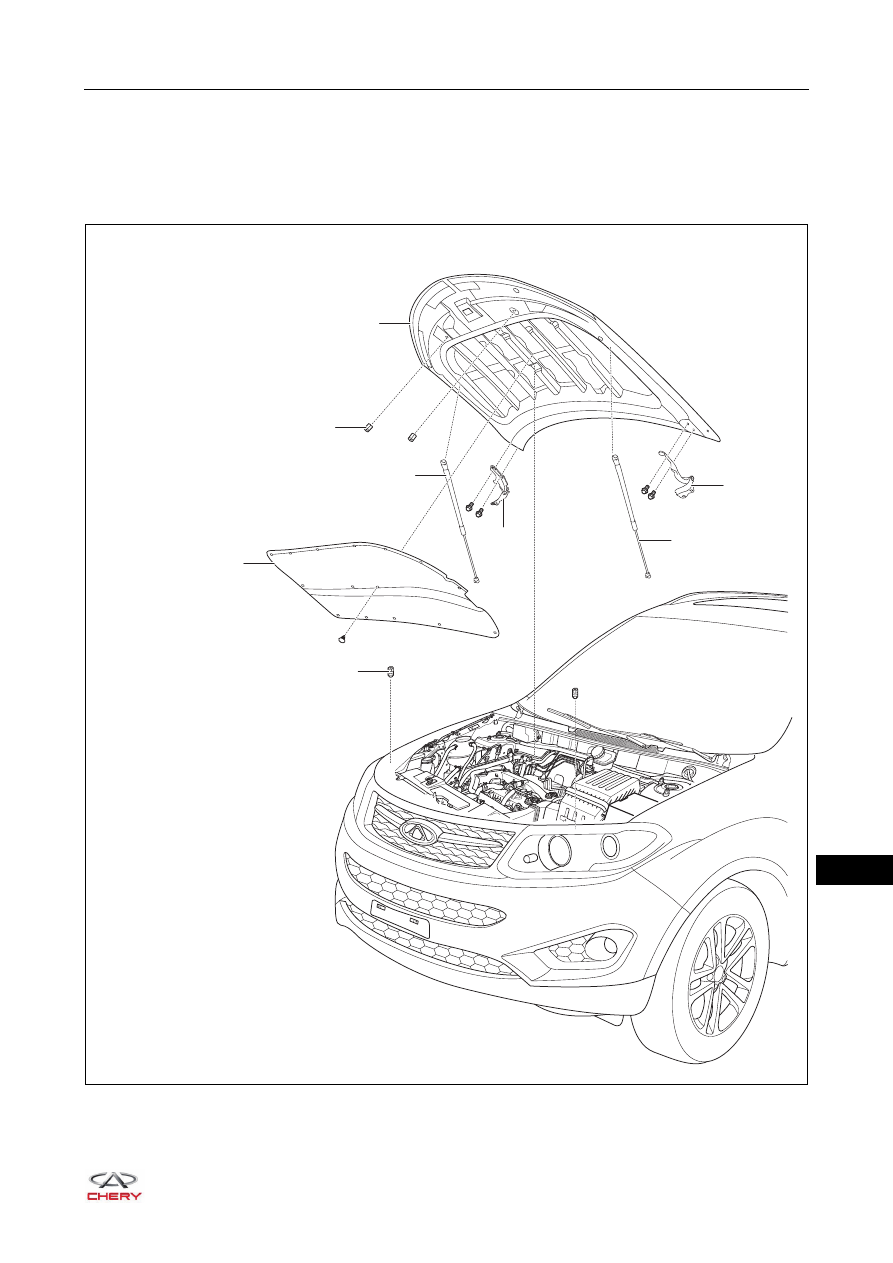

Hood Assembly

RT21470010

MAX

MAX

MIN

MIN

×14

6

5

7

8

1

2

3

4

 47–

4

47

1 - Hood Assembly

2 - Hood Upper Adjustment Block

3 - Hood Right Air Spring Assembly

4 - Hood Right Hinge Assembly

5 - Hood Left Hinge Assembly

6 - Hood Left Air Spring Assembly

7 - Hood Sound-absorbing Pad

8 - Hood Lower Adjustment Block

 47–

5

47

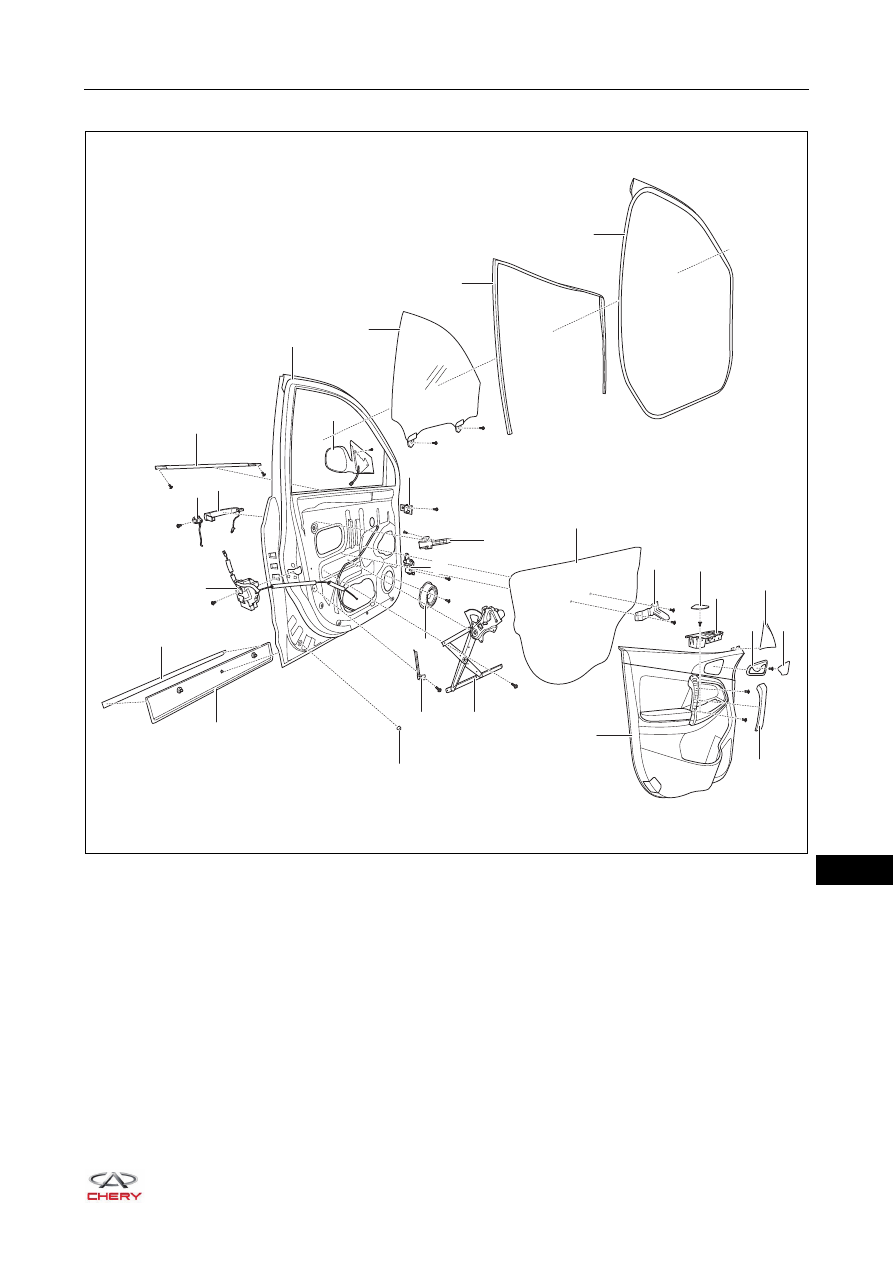

Front Left Door Assembly

RT21470020

×3

×3

×6

×3

×2

2

3

9

1

4

6

10

7

8

21

22

24

25

20

19

18

5

17

26

12

13

14

15

11

27

16

23

 47–

6

47

1 - Front Door Frame Weatherstrip

2 - Front Door Glass Run

3 - Front Door Glass Assembly

4 - Front Door Assembly

5 - Outside Rear View Mirror Assembly

6 - Front Door Outer Weather Bar Assembly

7 - Front Door Key Cylinder Protective Cover

8 - Front Door Outside Handle

9 - Front Door Lock Assembly

10 - Front Door Trim Board Garnish

11 - Front Door Trim Board Assembly

12 - Front Door Buffer Block

13 - Front Door Glass Rear Guide Rail Assembly

14 - Front Door Power Glass Regulator Assembly

15 - Front Door Low Pitched Speaker

16 - Front Door Lower Hinge Assembly

17 - Front Door Outside Handle Base Assembly

18 - Front Door Upper Hinge Assembly

19 - Front Door Protective Film Assembly

20 - Front Door Assist Grip Mounting Bracket

Assembly

21 - Rubber Cushion

22 - Power Glass Regulating Control Master Switch

Assembly

23 - Front Door Inside Handle Assembly

24 - Front Door Inner Triangular Block Assembly

25 - Front Door Inside Handle Screw Cover

26 - Front Door Assist Grip Cover

27 - Front Door Protector Assembly
