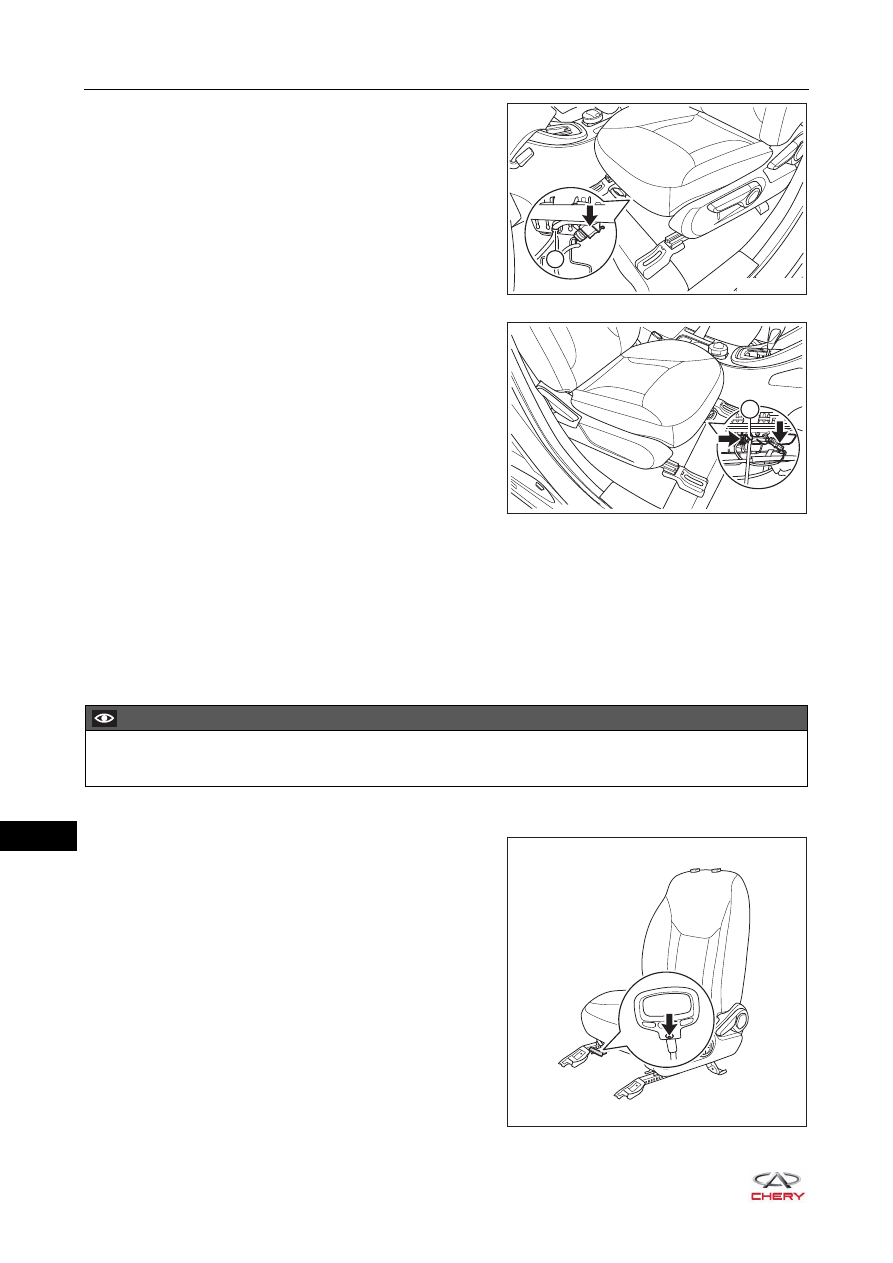

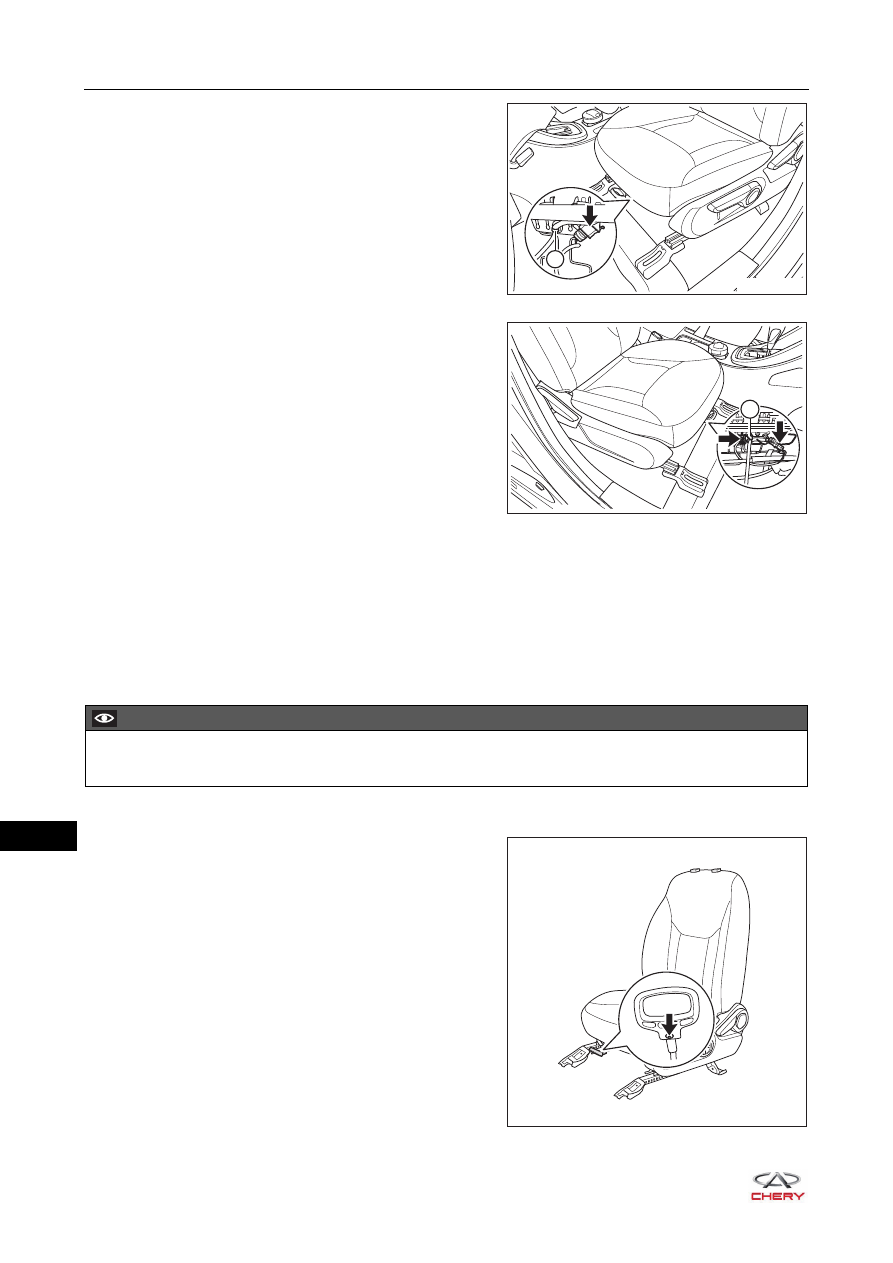

g. Disconnect the wire harness connector (arrow) and

clip (1) under the seat assembly (for driver seat
assembly).

h. Disconnect the wire harness connectors (arrow) and

clip (1) under the seat assembly (for front passenger
seat assembly).

i. Pull up the seat track unlock handle and move the seat assembly to the mid-position. At the same time,

operate the seat reclining adjuster handle and move the seatback to the upright position, and remove
the driver seat assembly.

Disassembly

HINT:

 Use the same procedures for the front passenger seat assembly and driver seat assembly.

 Procedures listed below are for the driver seat assembly.

1. Remove the driver seat track unlock handle.

a. Remove the fixing screw (arrow) from the seat track

unlock handle, and remove the driver seat track
unlock handle.



(Tightening torque: 4.8 ± 0.5 N·m)

RT21330080

1

RT21460100

1

CAUTION

 Be sure to wear safety equipment to prevent accidents when disassembling seat assembly.

RT21460101

46–

15

46

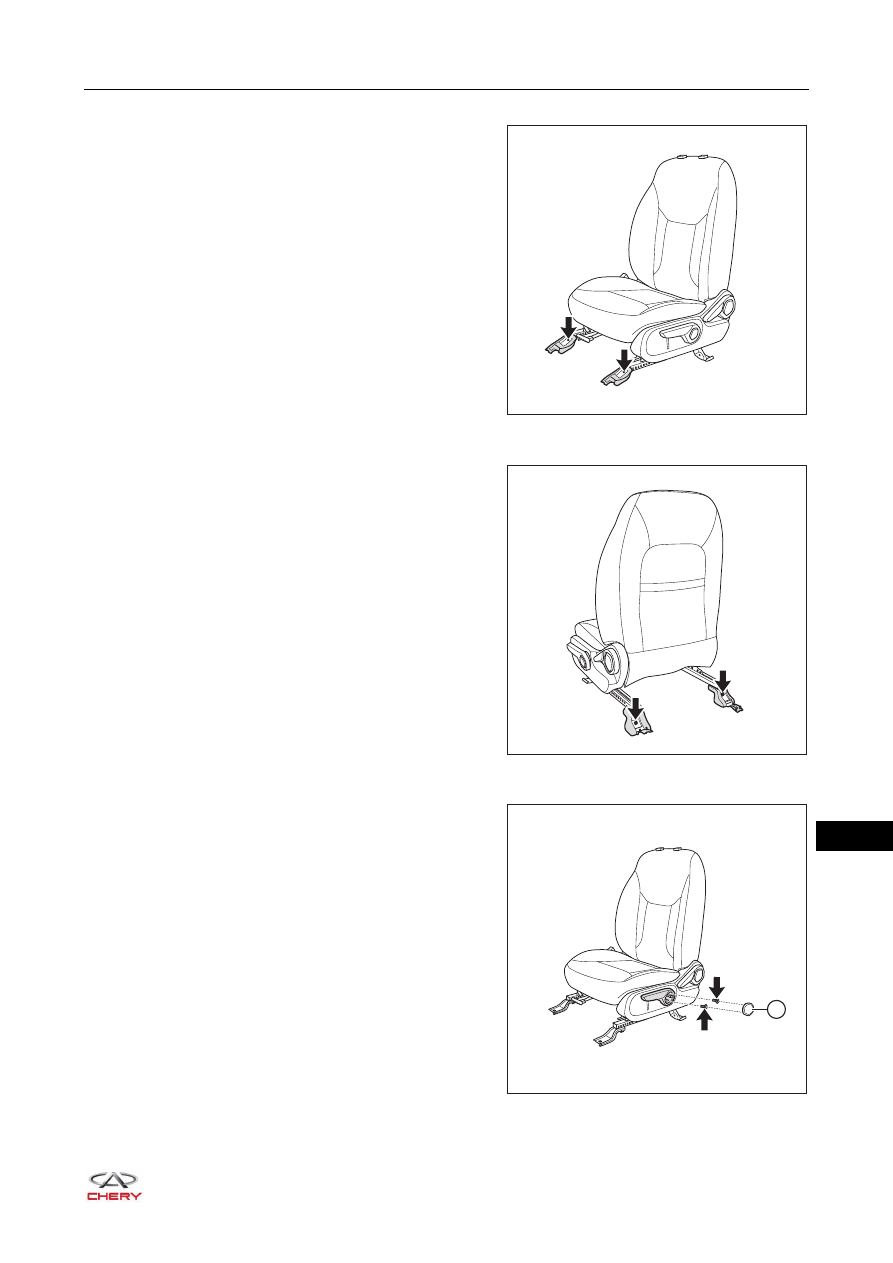

2. Remove the driver seat front mounting foot cover assembly.

a. Remove 2 fixing screws (arrow) from the seat front

mounting foot cover assembly, and remove the driver
seat front mounting foot cover assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

3. Remove the driver seat rear mounting foot cover assembly.

a. Remove 2 fixing screws (arrow) from the seat rear

mounting foot cover assembly, and remove the driver
seat rear mounting foot cover assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

4. Remove the seat height adjuster handle (for driver side).

a. Using a screwdriver wrapped with protective tape, pry

up the seat height adjuster handle cover (1).

b. Remove 2 fixing screws (arrow) from the seat height

adjuster handle, and remove the seat height adjuster
handle.



(Tightening torque: 4.8 ± 0.5 N·m)

RT21460110

RT21460120

RT21460130

1

46–

16

46

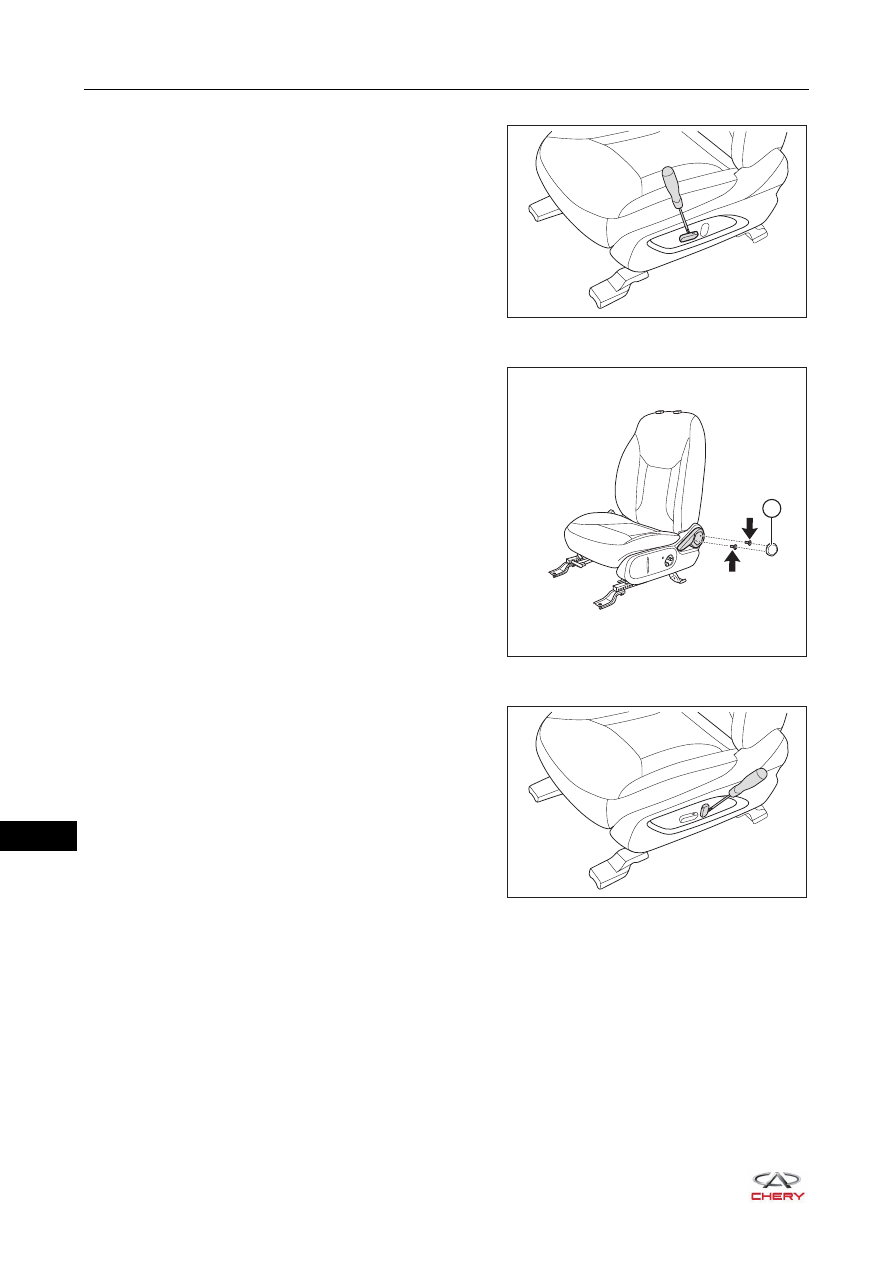

5. Remove the power seat position adjust switch (for driver side) (if equipped).

a. Using a screwdriver wrapped with protective tape, pry

up the claw on the power seat position adjust switch,
and remove the power seat position adjust switch.

6. Remove the driver seat reclining adjuster handle.

a. Using a screwdriver wrapped with protective tape, pry

up the seat reclining adjuster handle cover (1).

b. Remove 2 fixing screws (arrow) from the seat

reclining adjuster handle, and remove the driver seat
reclining adjuster handle.



(Tightening torque: 4.8 ± 0.5 N·m)

7. Remove the power seat reclining adjust switch (for driver side) (if equipped).

a. Using a screwdriver wrapped with protective tape, pry

up the claw on the power seat reclining adjust switch,
and remove the power seat reclining adjust switch.

RT21460630

1

RT21460140

RT21460620

46–

17

46

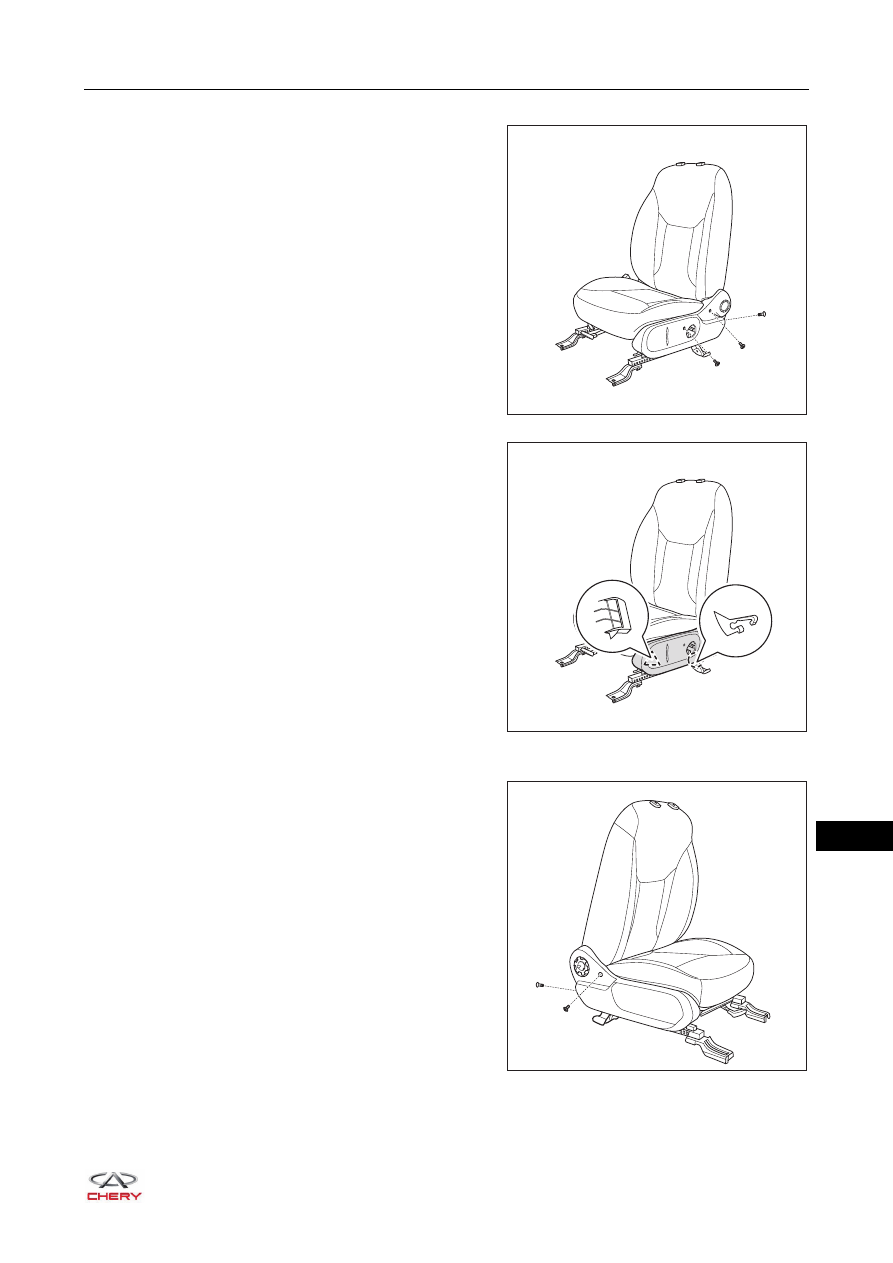

8. Remove the seat outer shield assembly (for driver side).

a. Remove 3 fixing screws from the seat outer shield

assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

b. Using a screwdriver wrapped with protective tape, pry

up the claws on the seat outer shield assembly, and
remove the seat outer shield assembly.

9. Remove the seat outer shield assembly (for front passenger side).

a. Remove 2 fixing screws from the seat outer shield

assembly.



(Tightening torque: 4.8 ± 0.5 N·m)

RT21460152

RT21460150

RT21460153
