Chery Tiggo 5 (T21). Manual - part 467





43–

48

43

Installation

Installation is in the reverse order of removal.

43–

49

43

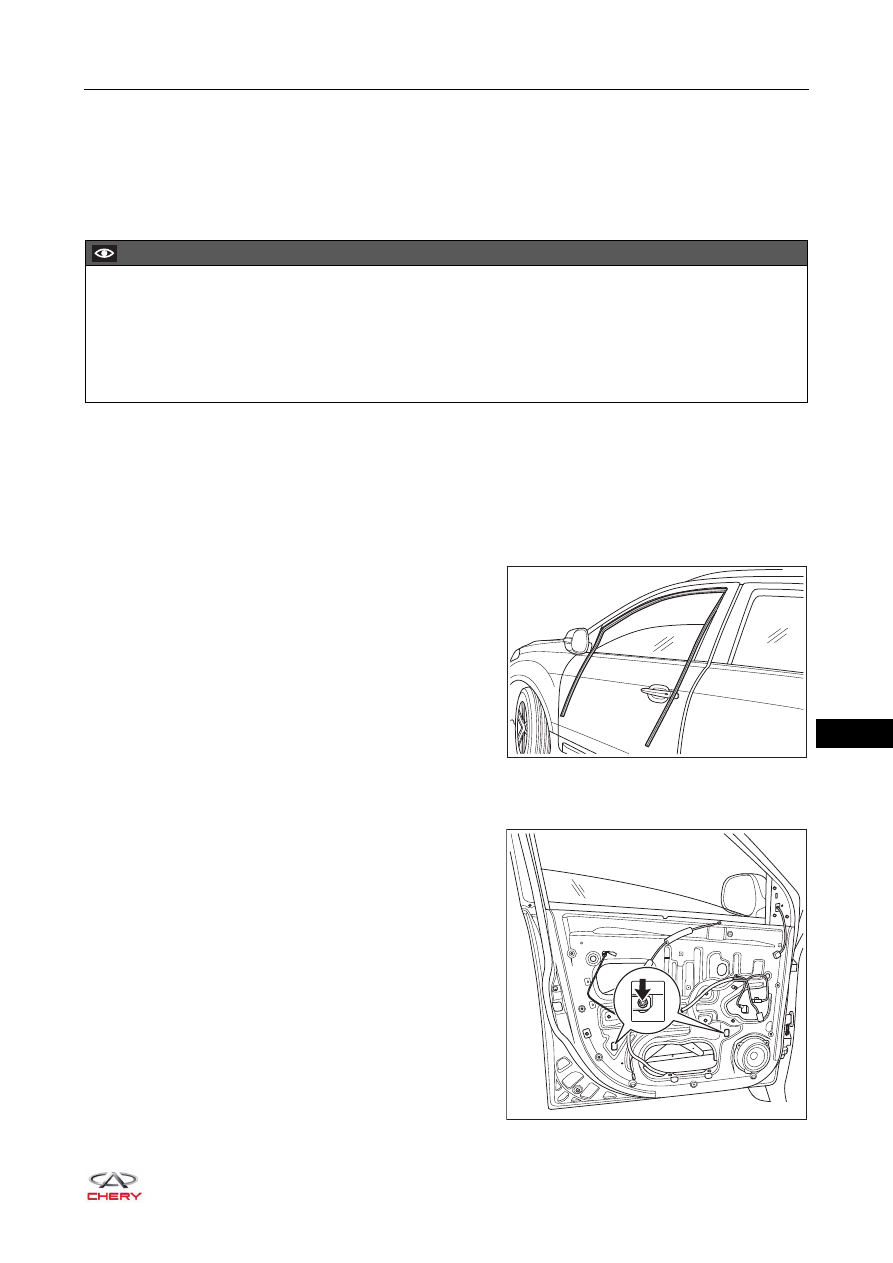

Front Door Glass Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front left door protector assembly (

See page 47-23

).

4. Remove the front left door assist grip mounting bracket assembly (

See page 47-28

).

5. Remove the front left door protective film assembly (

See page 47-28

).

6. Remove the front left door glass run.

a. Lower the front door glass assembly and pull out the

front left door glass run from the slot.

7. Remove the front left door glass assembly.

a. Raise the front door glass assembly to the proper position.
b. Remove 2 fixing bolts (arrow) from front left door glass

assembly, and remove the front left door glass
assembly.

(Tightening torque: 9 ± 1 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing front door glass assembly.
 Appropriate force should be applied when removing front door glass assembly. Be careful not to operate

roughly.

 When removing front door glass assembly, avoid the window glass from dropping and becomes

damaged.

RT21430100

RT21430110

43–

50

43

Installation

Installation is in the reverse order of removal.

43–

51

43

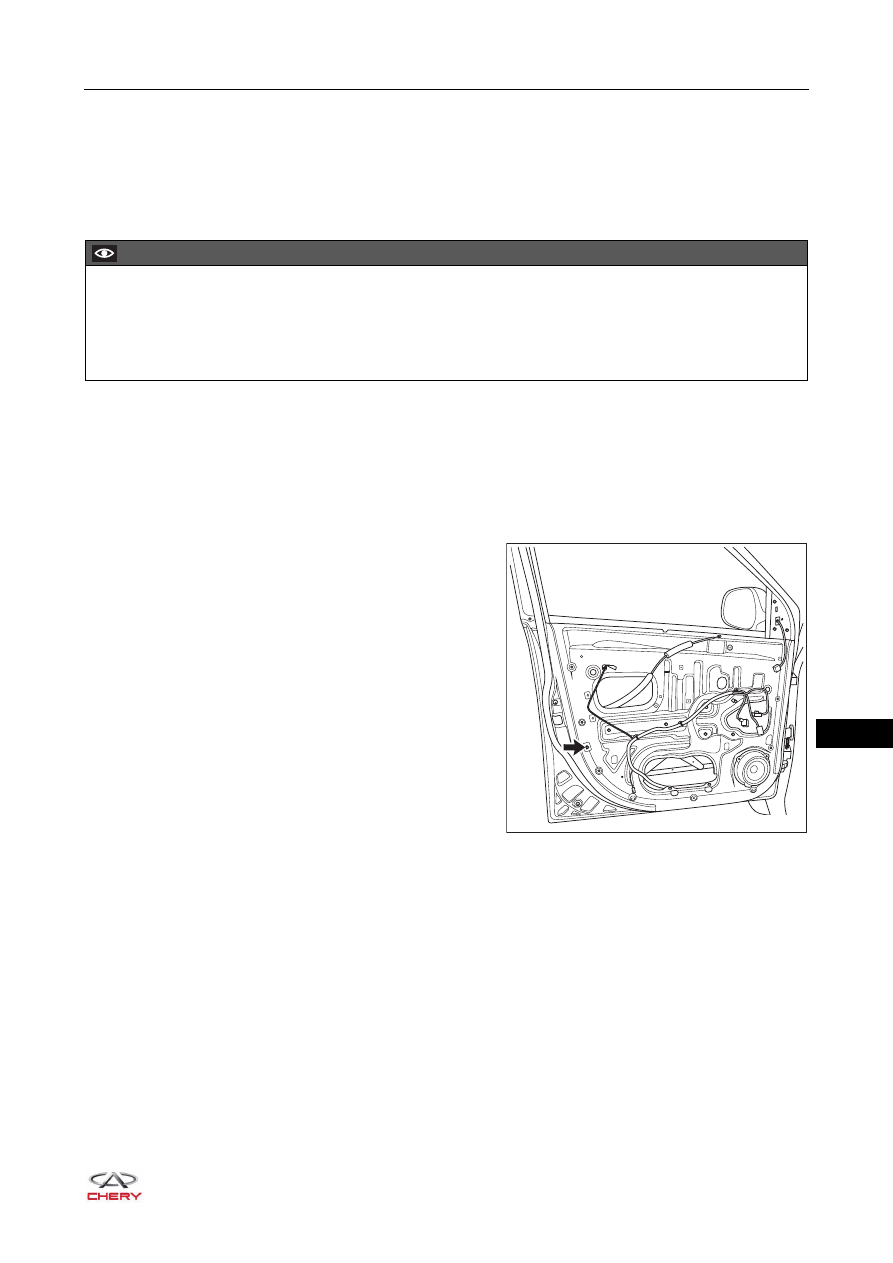

Front Door Glass Rear Guide Rail Assembly

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front left door protector assembly (

See page 47-23

).

4. Remove the front left door assist grip mounting bracket assembly (

See page 47-28

).

5. Remove the front left door protective film assembly (

See page 47-28

).

6. Remove the front left door glass rear guide rail assembly.

a. Remove the fixing bolt (arrow) from front door glass

rear guide rail assembly.

(Tightening torque: 9 ± 1 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing front door glass rear guide rail

assembly.

 Appropriate force should be applied when removing front door glass rear guide rail assembly. Be careful

not to operate roughly.

RT21430120
