Self-diagnosis Detection Logic

Diagnosis Procedure

a. Remove the power glass regulating switch from malfunctioning vehicle, and install it to a new vehicle to

perform a test.

a. Remove the rear left door power glass regulator assembly from malfunctioning vehicle, and install it to a

new vehicle to perform a test.

DTC Code

DTC Definition

DTC Detection

Condition

Warning Light

Condition

Possible Cause

B101013

RL Window Up Control
Circuit Circuit Open

Ignition switch ON

ON

 Glass regulating

switch

 Power glass

regulator assembly

 Wire harness or

connector

 Body Control

Module (BCM)

B101071

RL Window Up Control
Circuit Actuator Stuck

B101113

RL Window Down
Control Circuit Circuit
Open

B101171

RL Window Down
Control Circuit
Actuator Stuck

CAUTION

 When performing the circuit diagnosis and test, always refer to the circuit diagram for specific circuit and

component information.

1

Check power glass regulating switch

Replace power glass regulating switch

NG

2

Check rear left door power glass regulator assembly

OK

Replace rear left door power glass
regulator assembly

NG

OK

43–

33

43

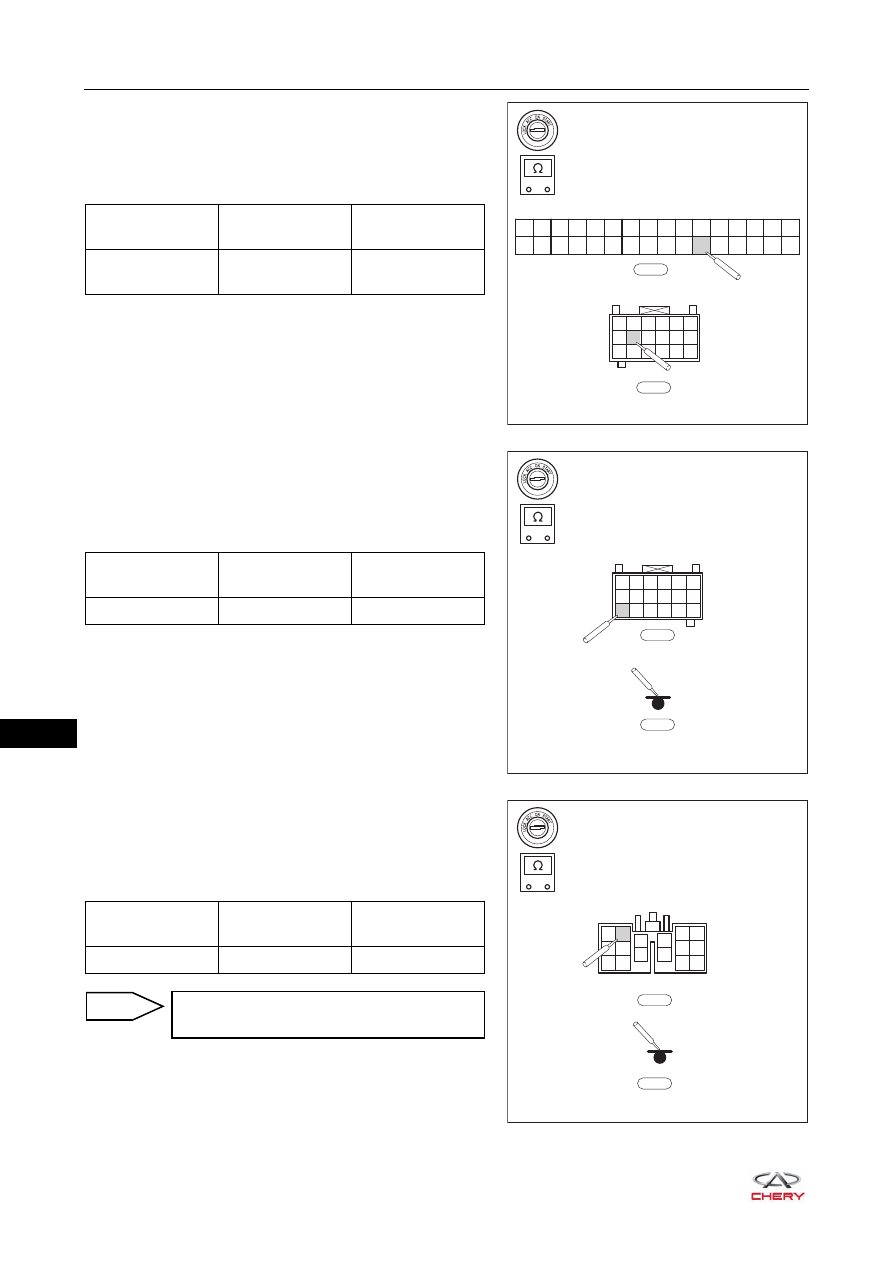

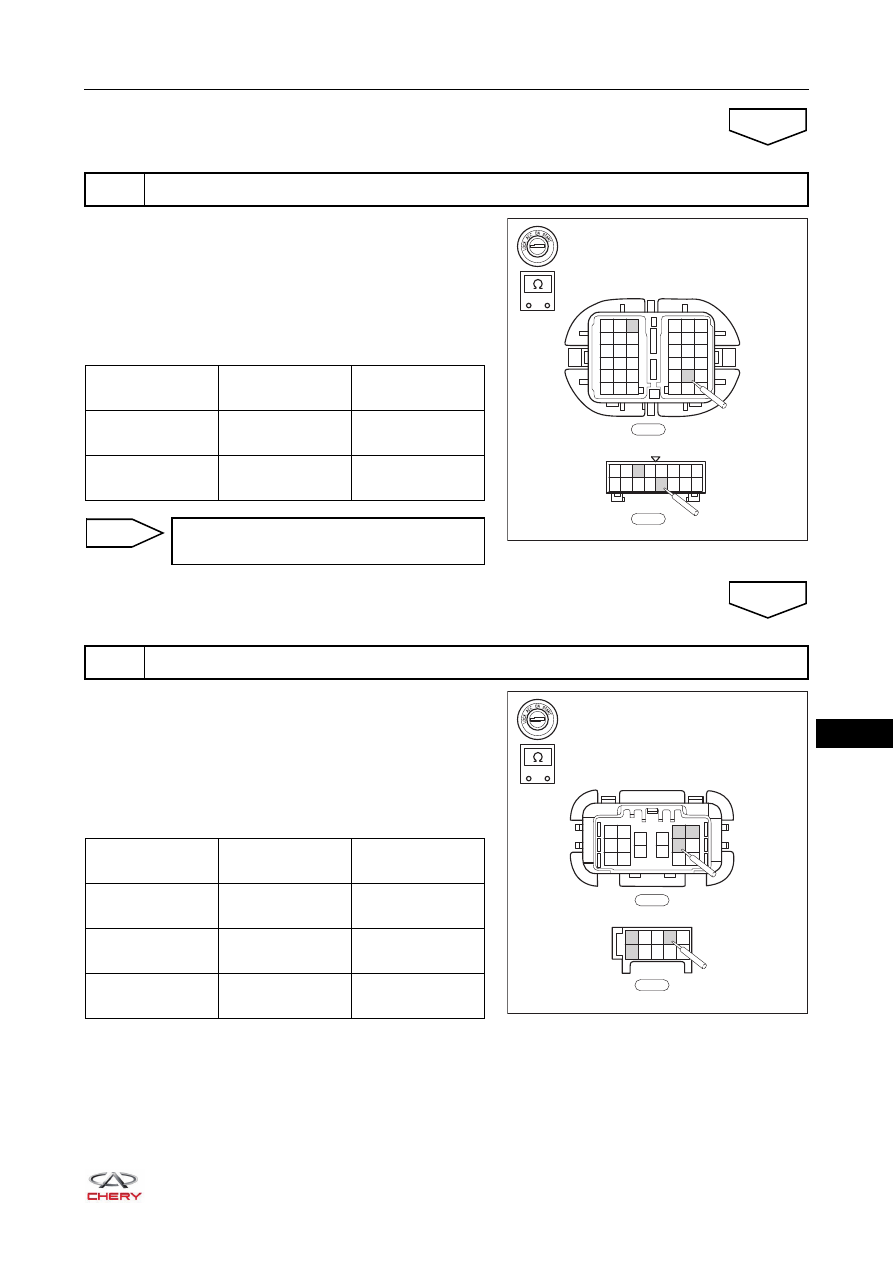

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the body wire harness connectors B-044 and

B-026.

d. Using a digital multimeter, check for continuity between

body wire harness connectors B-044 and B-026
according to the table below.

e. Disconnect the body wire harness connectors B-047 and

B-026.

f. Using a digital multimeter, check for continuity between

body wire harness connectors B-047 and B-026
according to the table below.

3

Check body wire harness and connector

-

+

RT21430600

D1

D6 D7 D8 D9 D10 D11D12

D2 D3

D4 D5

B-044

1

2

7

13

14

8

3

9

4

10

11

12

15

16

5

6

B-026

Multimeter

Connection

Condition

Specified

Condition

B-044 (D6) -

B-026 (4)

Always

Continuity

B-044 (D8) -

B-026 (10)

Always

Continuity

-

+

RT21430610

1

2

7

13

14

8

3

9

4

10

11

12

15

16

5

6

B-026

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

B-047

Multimeter

Connection

Condition

Specified

Condition

B-047 (B14) -

B-026 (6)

Always

Continuity

43–

34

43

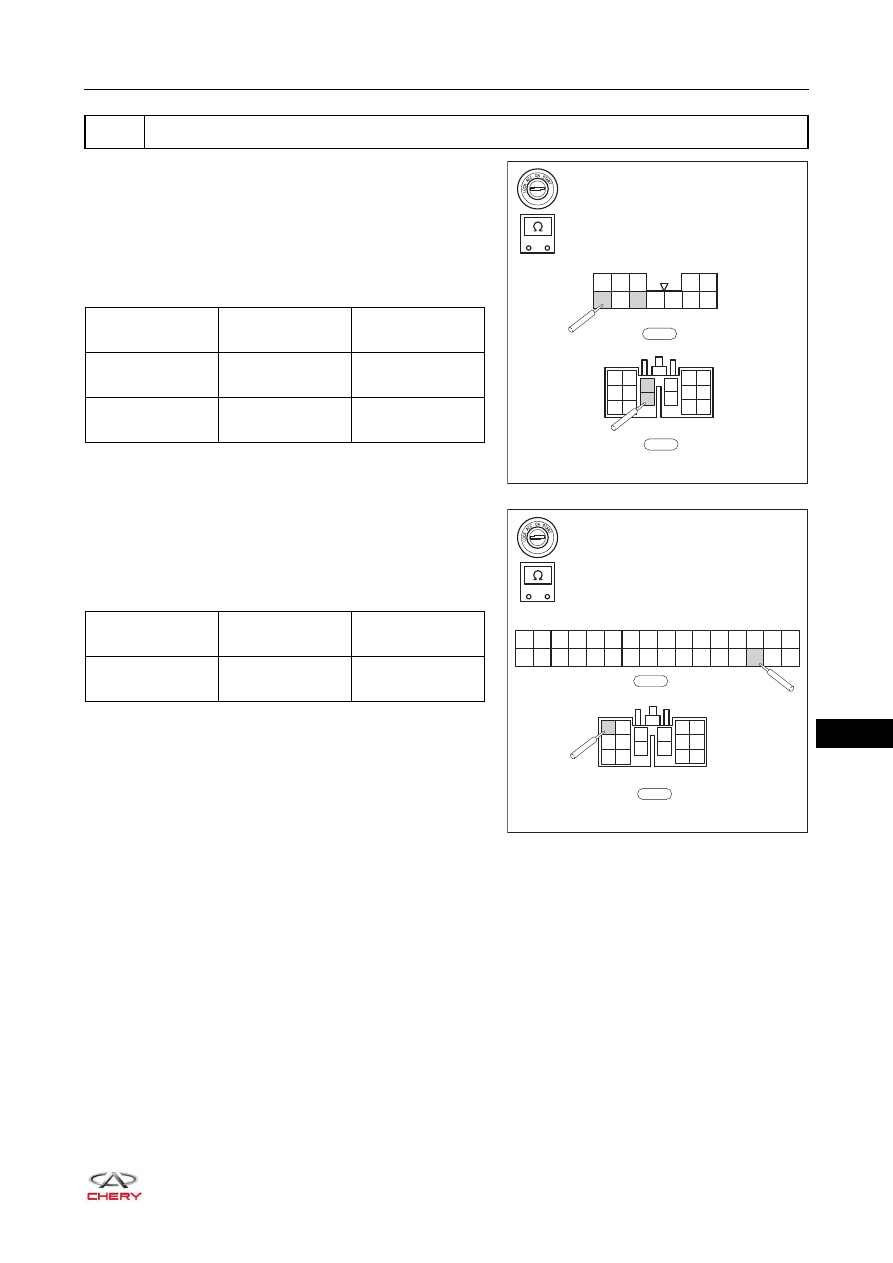

g. Disconnect the body wire harness connectors B-047 and

B-041.

h. Using a digital multimeter, check for continuity between

body wire harness connectors B-047 and B-041
according to the table below.

i. Disconnect the body wire harness connector B-040 and

ground B-036.

j. Using a digital multimeter, check for continuity between

body wire harness connector B-040 and ground B-036
according to the table below.

k. Disconnect the body wire harness connector B-026 and

ground B-036.

l. Using a digital multimeter, check for continuity between

body wire harness connector B-026 and ground B-036
according to the table below.

-

+

RT21430620

B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12 B13 B14 B15 B16

B17 B18 B19 B20 B21 B22 B23 B24 B25 B26 B27 B28 B29 B30 B31 B32

B-047

1

4

7

10

13

16

2

5

8

11

14

17

3

6

9

12

15

18

B-041

Multimeter

Connection

Condition

Specified

Condition

B-047 (B11) -

B-041 (14)

Always

Continuity

-

+

RT21430660

1

4

7 10 13 16

2

5

8 11 14 17

3

6

9 12 15 18

B-040

B-036

Multimeter

Connection

Condition

Specified

Condition

B-040 (3) - B-036

Always

Continuity

-

+

RT21430680

1

2

7

13

14

8

3

9

4

10

11

12

15

16

5

6

B-026

B-036

Multimeter

Connection

Condition

Specified

Condition

B-026 (5) - B-036

Always

Continuity

Repair or replace body wire harness and
connector

NG

43–

35

43

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the front left door wire harness connectors



F-007 and F-009.

d. Using a digital multimeter, check for continuity between

front left door wire harness connectors F-007 and F-009
according to the table below.

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the rear left door wire harness connectors



L-005 and L-002.

d. Using a digital multimeter, check for continuity between

rear left door wire harness connectors L-005 and L-002
according to the table below.

4

Check front left door wire harness and connector

OK

-

+

RT21430750

1

1

2

2

3

3

4 5 6

7 8 9

10 11 12

13 14 15

16

4

7

10

13

16

17

5

8

11

14

17

18

6

9

12

15

18

F-007

1

2

3

4

5

6

7

8

16

15

14

13

12

11

10

9

F-009

Multimeter

Connection

Condition

Specified

Condition

F-007 (14) -

F-009 (4)

Always

Continuity

F-007 (3) -

F-009 (11)

Always

Continuity

Repair or replace front left door wire
harness and connector

NG

5

Check rear left door wire harness and connector

OK

-

+

RT21430760

1 2 3 4

5

6 7 8 9 10

L-002

1

2

7

8

13 14

3

4

9

10

5 6

11 12

15 16

L-005

Multimeter

Connection

Condition

Specified

Condition

L-005 (6) -

L-002 (6)

Always

Continuity

L-005 (11) -

L-002 (1)

Always

Continuity

L-005 (5) -

L-002 (9)

Always

Continuity
