Chery Tiggo 5 (T21). Manual - part 450

40–

11

40

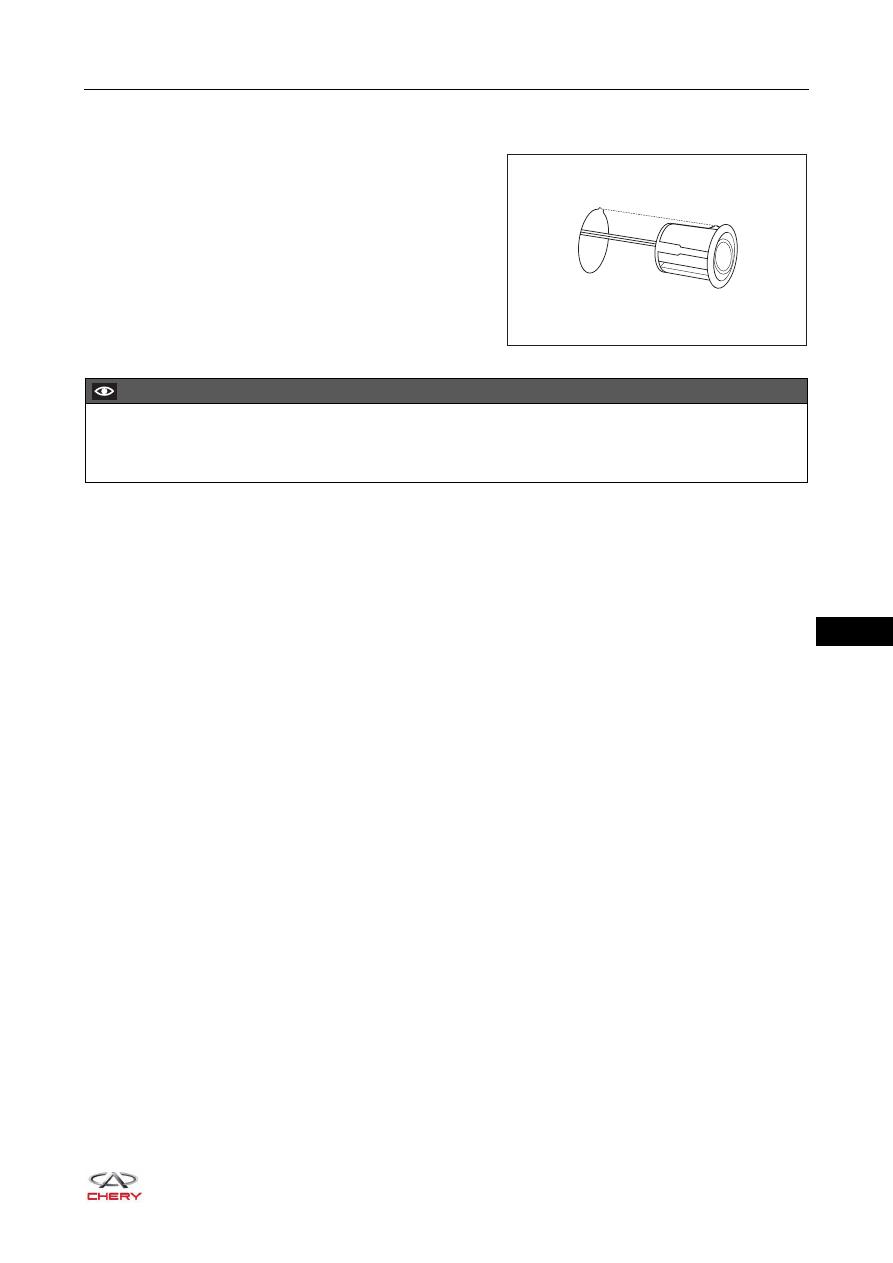

Installation

Installation is in the reverse order of removal.
HINT:
When installing the reversing radar sensor, align the boss at
the end of reversing radar sensor with the groove on rear
bumper assembly, and then firmly install the reversing radar
sensor as shown in the illustration.

RT21400030

CAUTION

 Install connector in place when installing the reversing radar sensor.
 Check reversing radar system for proper operation after installing the reversing radar sensor.

40–

12

40

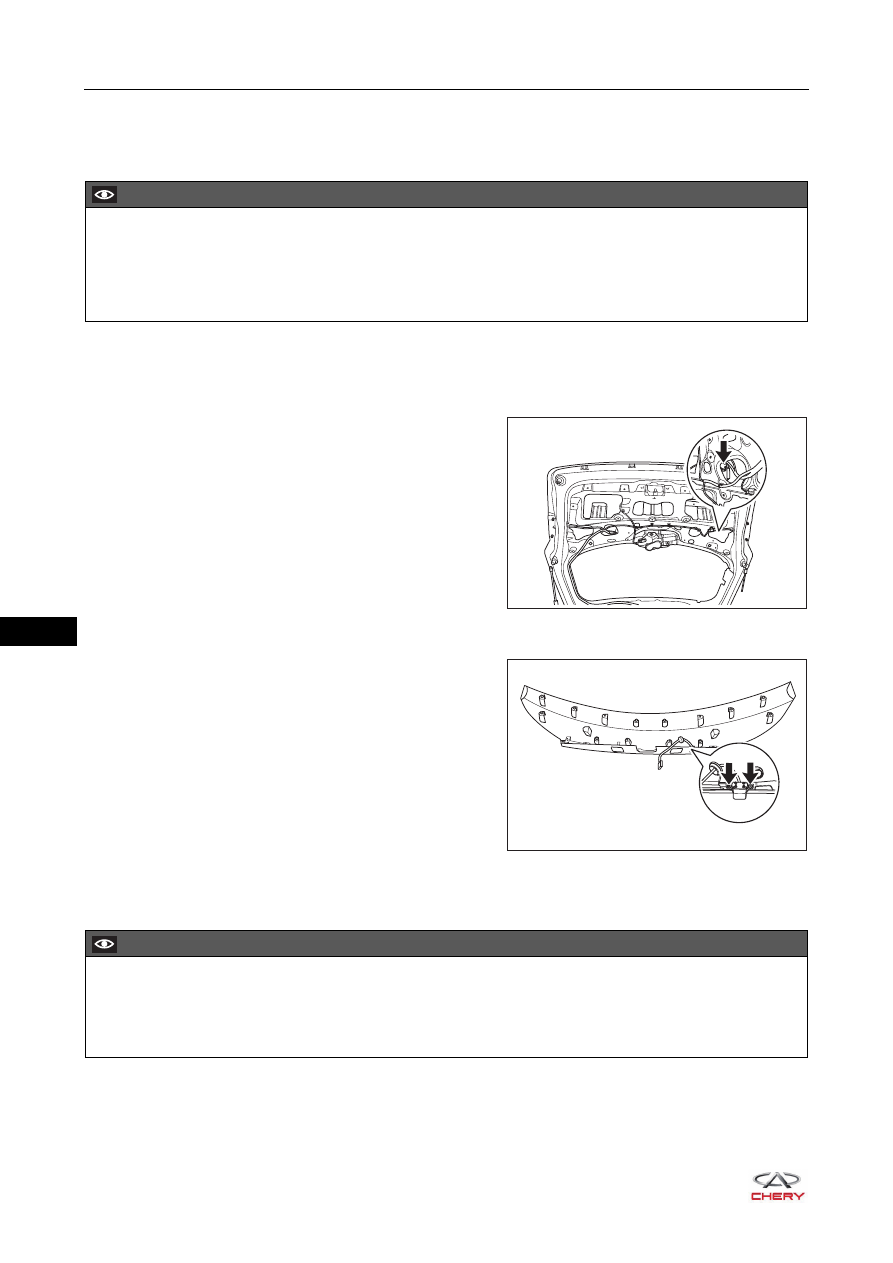

Rear View Monitor Camera

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the Back Door Protector Assembly (

See page 47-47

).

HINT:
The rear view monitor camera connector (arrow) has
been disconnected when removing the luggage
compartment upper trim assembly.

4. Remove the rear view monitor camera.

a. Remove 2 fixing screws (arrow) from the rear view

monitor camera, and remove the rear view monitor
camera.



(Tightening torque: 6 ± 0.1 N·m)

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when removing the rear view monitor

camera.

 Appropriate force should be applied when removing the rear view monitor camera. Be careful not to

operate roughly.

RT21370260

RT21400040

CAUTION

 Tighten fixing screws to specified torque when installing the rear view monitor camera.
 Install connector in place when installing the rear view monitor camera.
 Check reversing radar system for proper operation after installing the rear view monitor camera.

40–

13

40

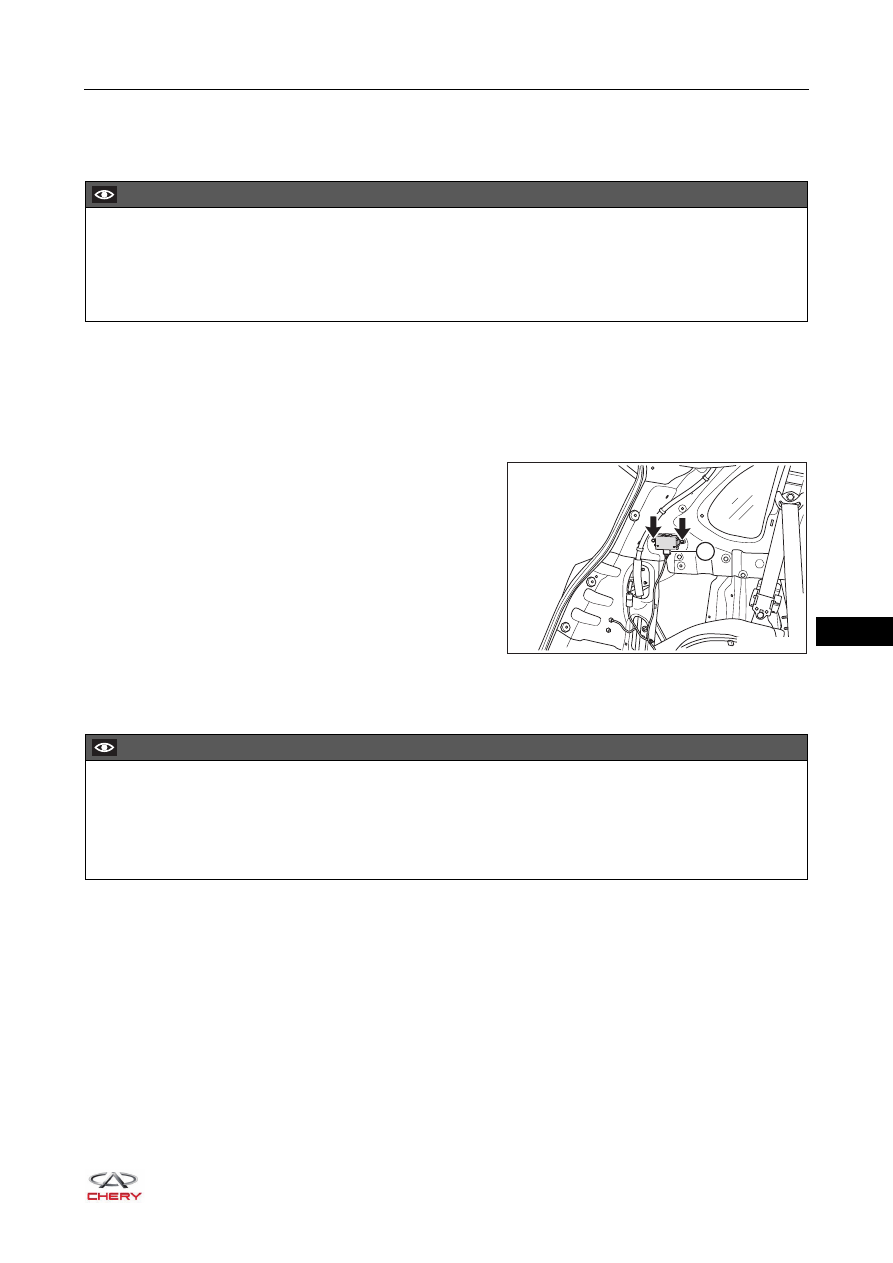

Reversing Radar Control Module Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the C-pillar lower protector assembly (

See page 49-23

).

4. Remove the C-pillar upper protector assembly (

See page 49-26

).

5. Remove the reversing radar control module assembly.

a. Disconnect the reversing radar control module

assembly connector (1).

b. Remove 2 fixing bolts (arrow) between reversing

radar control module assembly and body, and remove
the reversing radar control module assembly.



(Tightening torque: 5 ± 1 N·m)

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when removing the reversing radar

control module assembly.

 Appropriate force should be applied when removing the reversing radar control module assembly. Be

careful not to operate roughly.

1

RT21400050

CAUTION

 Tighten fixing bolts to specified torque when installing the reversing radar control module assembly.
 Install connector in place when installing the reversing radar control module assembly.
 Check reversing radar system for proper operation after installing the reversing radar control module

assembly.

40–

14
