36–

27

36

Inspection

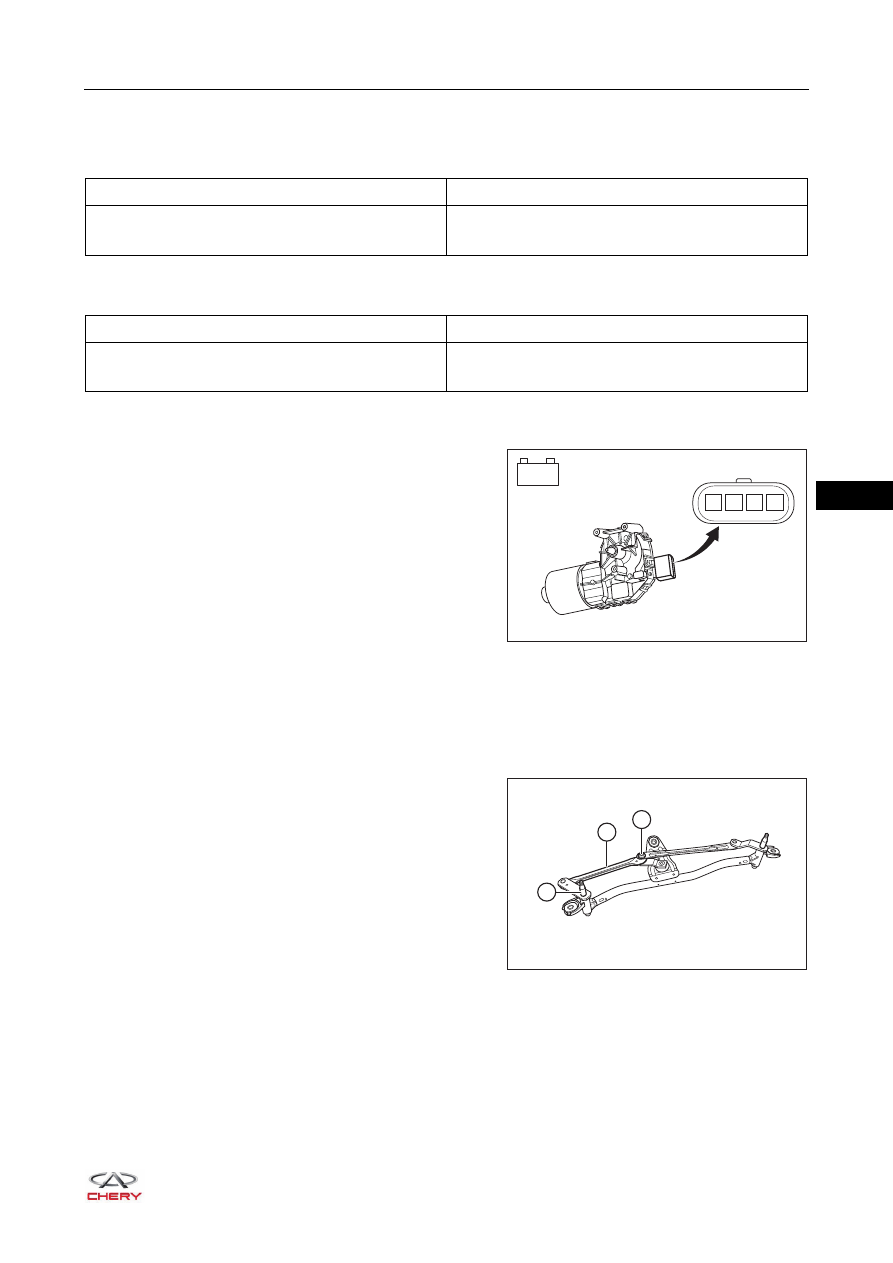

1. Check front wiper motor assembly.

a. Check LO operation.

If result is not as specified, replace front wiper motor assembly.

b. Check HI operation.

If result is not as specified, replace front wiper motor assembly.

c. Check auto reset function.

 Connect positive (+) battery lead to terminal 1 or 2

and negative (-) battery lead to terminal 4. When
motor is running at low speed (LO) or high speed
(HI), disconnect battery positive (+) to stop the
front wiper motor at any position other than the
original position.

 Connect terminals 2 and 3 with a lead, using

another lead extracted from lead between
terminals 2 and 3 to connect battery positive (+),
and connect negative (-) battery lead to terminal 4
to run the motor to the original position at low
speed (LO).

 Check if front wiper motor assembly can stop automatically after running to the original position.
OK: Motor stops automatically after running to the original position, which indicates that the
motor can reset automatically.
If result is not as specified, replace front wiper motor assembly.

2. Check wiper link rod.

a. Check the rotation shaft (1) for looseness or falling off,

link rod (2) for deformation or break, and shaft sleeve
(3) for sticking. Replace wiper link rod if necessary.



Measurement Condition

Specified Condition

Battery positive (+) → Terminal 2
Battery negative (-) → Terminal 4

Motor running at low speed (LO)

Measurement Condition

Specified Condition

Battery positive (+) → Terminal 1
Battery negative (-) → Terminal 4

Motor running at high speed (HI)

RT21360110

-

+

1 2 3 4

1

2

3

RT21360120

36–

28

36

Installation

Installation is in the reverse order of removal.

CAUTION

 Always operate carefully to prevent other components from being damaged when installing front wiper

motor assembly.

 Adjust and make sure wiper motor and wiper link rod are at the original position before installing front

wiper motor assembly. Otherwise, wiper system will not operate normally.

 Install connector in place and tighten fixing bolts and nuts to the specified torque when installing front

wiper motor assembly.

 Check wiper system for proper operation after installing front wiper motor assembly.

36–

29

36

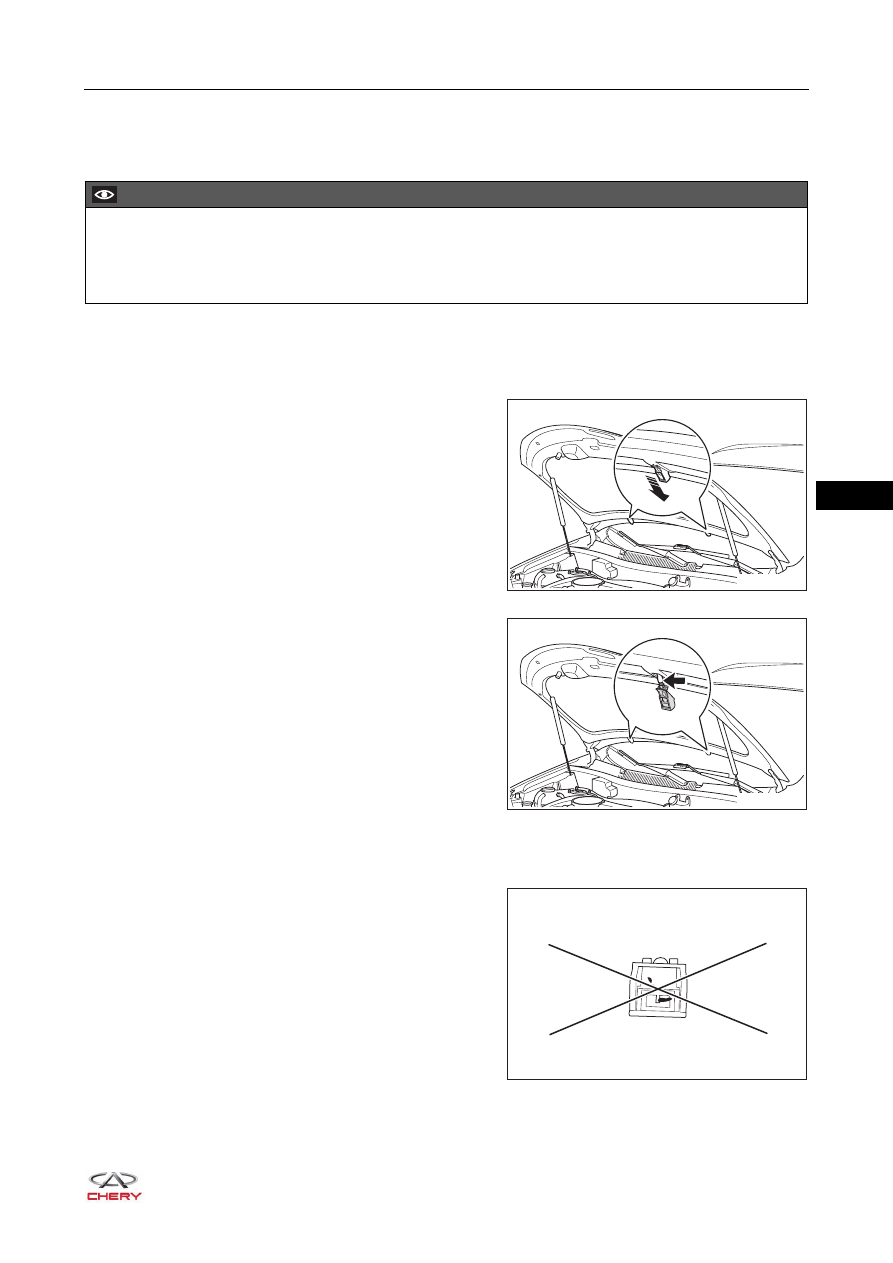

Front Washer Nozzle Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front washer nozzle assembly.

a. Loosen the front washer nozzle assembly in the

direction of arrow as shown in the illustration.

b. Disconnect the joint (arrow) between washer line and

front washer nozzle assembly, and remove the front
washer nozzle assembly.



Inspection

1. Check front washer nozzle assembly.

a. Check front washer nozzle for blockage, deformation

or damage. Replace front washer nozzle if necessary.



CAUTION

 Be sure to wear safety equipment to prevent accidents when removing front washer nozzle assembly.
 Appropriate force should be applied when removing front washer nozzle assembly. Be careful not to

operate roughly.

RT21360130

RT21360140

RT21360150

36–

30

36

Installation

Installation is in the reverse order of removal.

CAUTION

 Always operate carefully to prevent components from being damaged when installing front washer

nozzle assembly.

 Install washer line joint in place when installing front washer nozzle assembly.
 Check front washer nozzle for proper operation after installing front washer nozzle assembly.
