Inspection

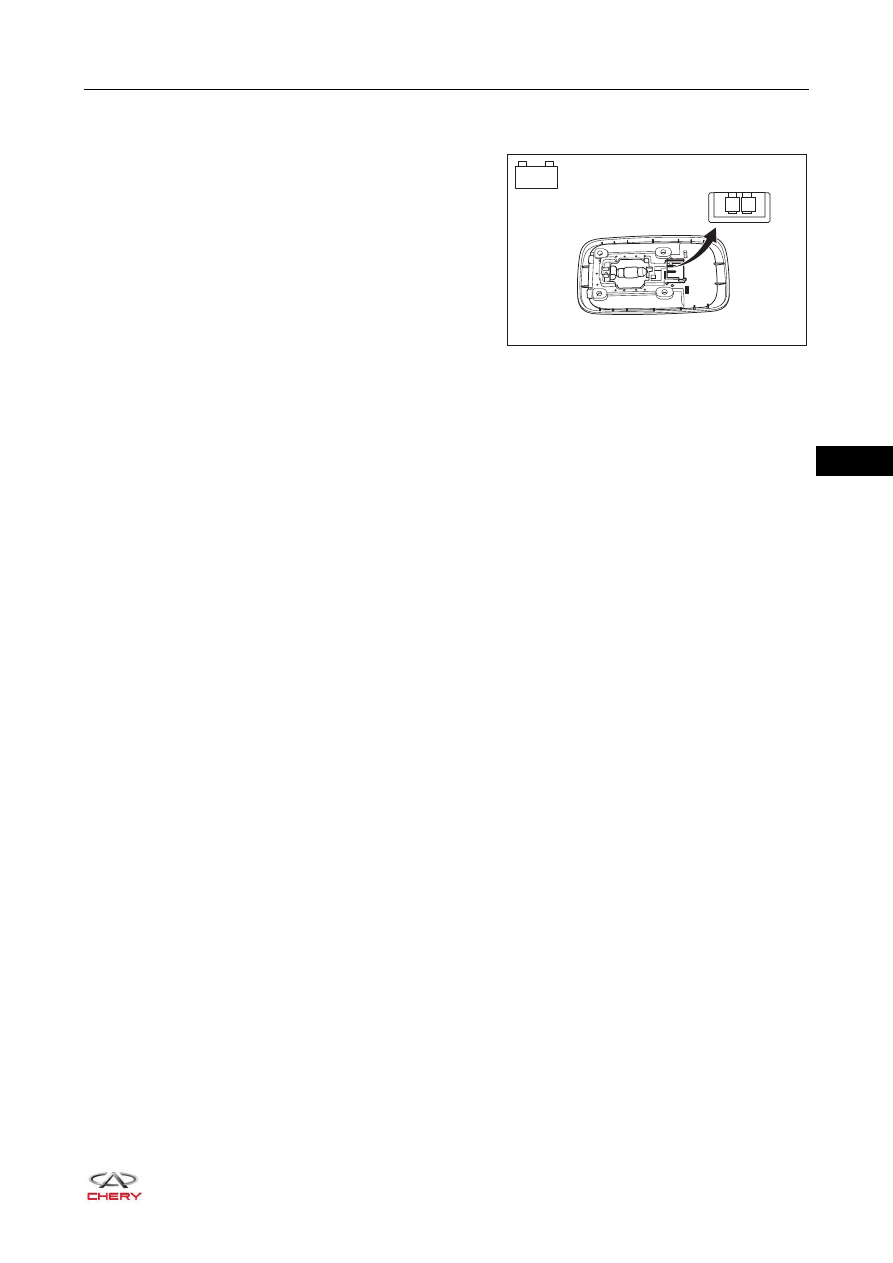

1. Check rear dome light assembly.

a. Connect battery positive (+) to terminal 2 of rear dome

light assembly, and battery negative (-) to terminal 1.
Check operation of rear dome light when turn rear
dome light assembly switch to ON, OFF and DOOR
position.
Standard Condition:
Switch ON: Does not come on.



Switch OFF: Does not come on.



Switch DOOR: Comes on.

If result is not as specified, replace rear dome light
assembly.

Installation

Installation is in the reverse order of removal.

RT21350350

1 2

35–

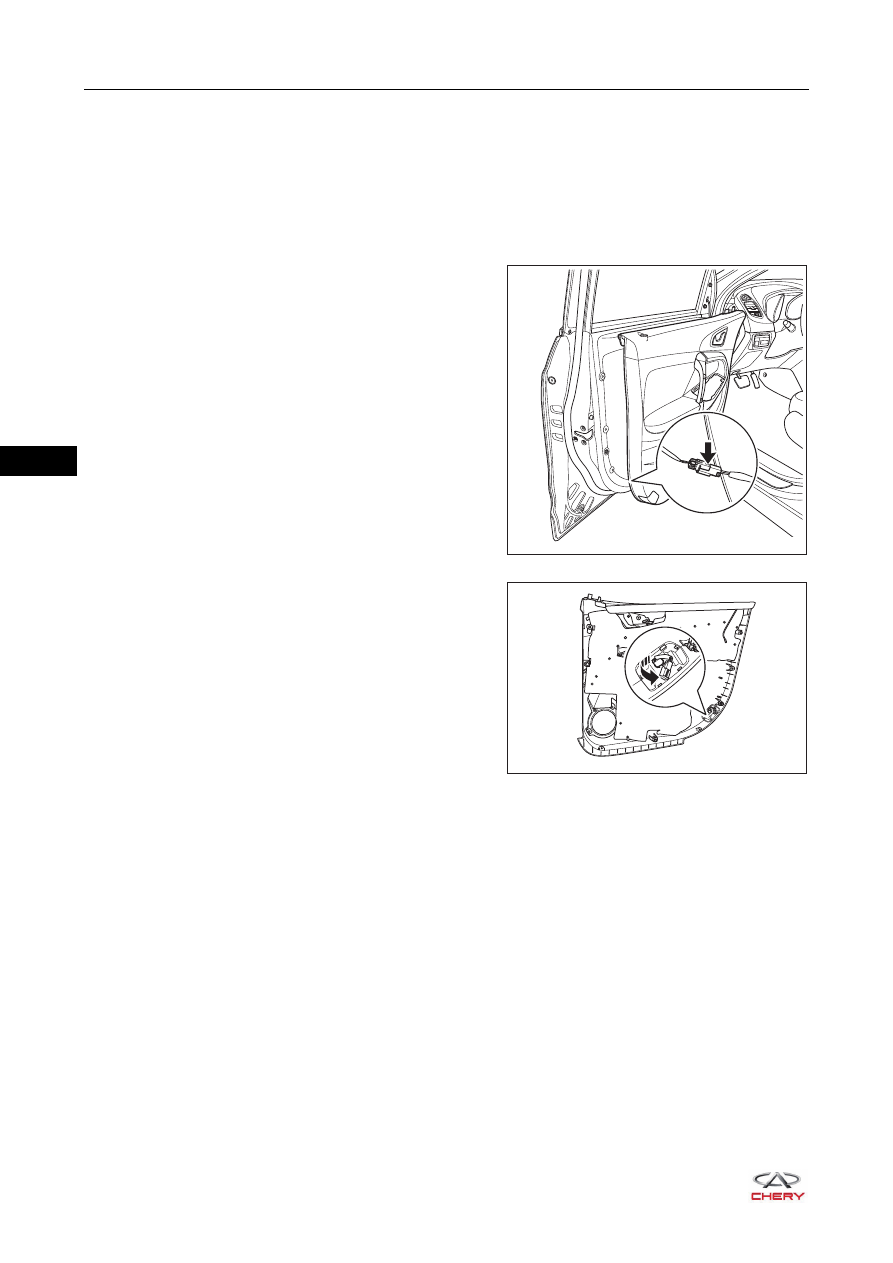

Front Door Courtesy Light

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the front door protector assembly. (

See page 47-23

4. Remove the front door courtesy light.

a. Disconnect the front door courtesy light wire harness

connector (arrow).

b. Turn the front door courtesy light counterclockwise,

and remove it from front door protector assembly.

Installation

Installation is in the reverse order of removal.

RT21350360

RT21470311

35–

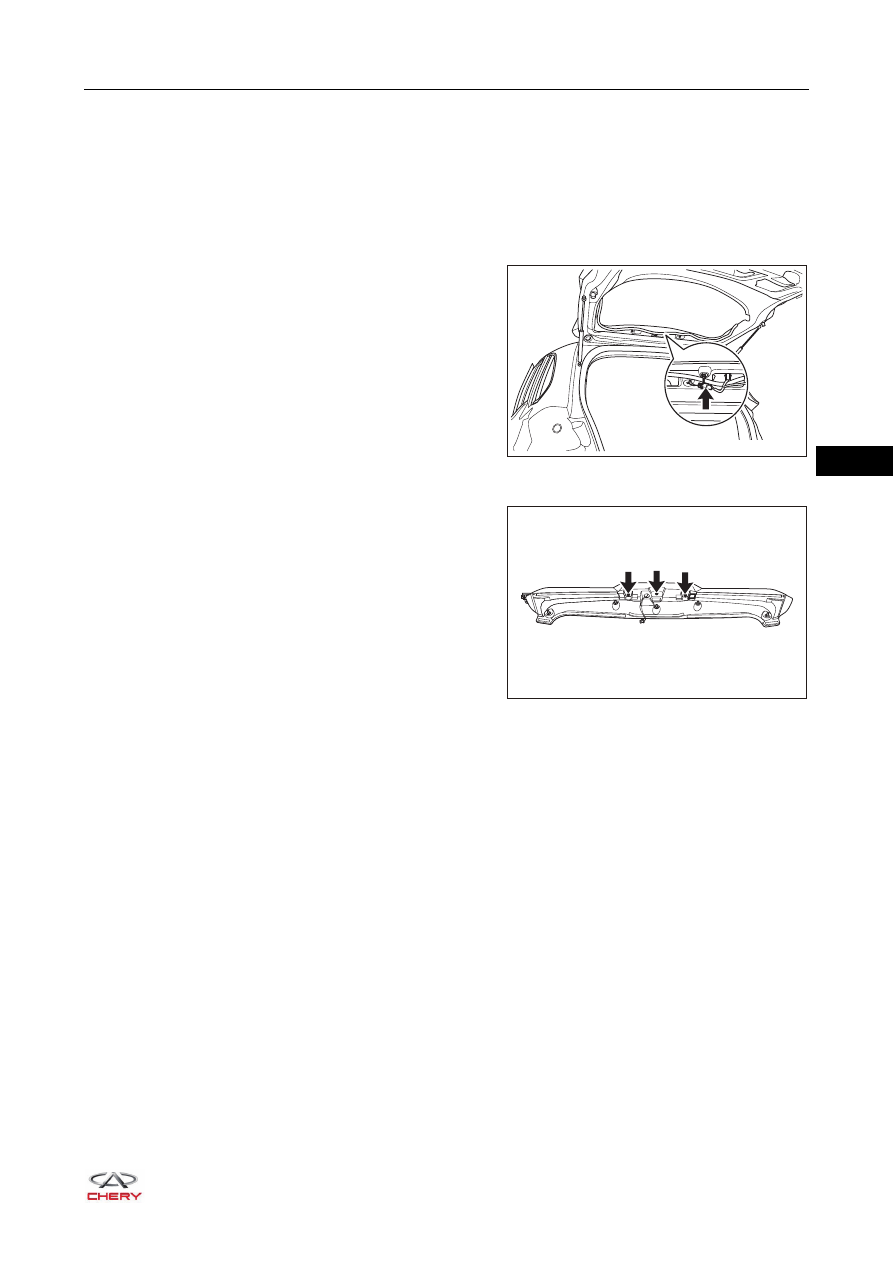

High Mounted Stop Light Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the back door protector assembly (

See page 47-47

4. Remove the high mounted stop light assembly.

a. Disconnect the high mounted stop light assembly wire

harness connector (arrow).

b. Remove the rear spoiler assembly (

See page 48-43

c. Remove 3 fixing nuts (arrow) from high mounted stop

light assembly.



(Tightening torque: 3.5 ± 0.5 N·m)

d. Remove the high mounted stop light assembly from rear spoiler assembly.

Installation

Installation is in the reverse order of removal.

RT21350370

RT21480542

35–

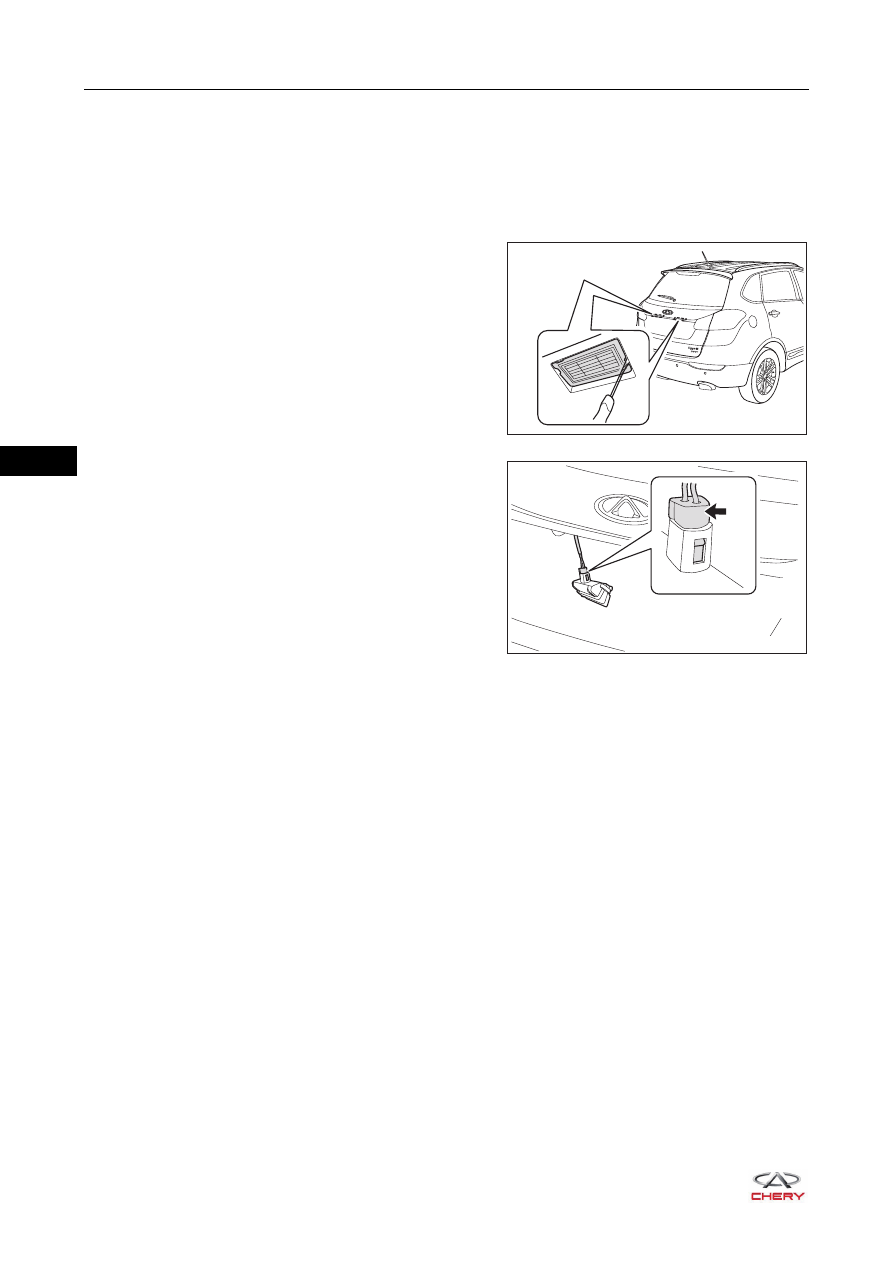

License Plate Light Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the license plate light assembly.

a. Using a flat tip screwdriver wrapped with protective

tape, pry out the license plate light assembly.

b. Disconnect the license plate light assembly wire

harness connector (arrow).

c. Remove the license plate light assembly.

Installation

Installation is in the reverse order of removal.

RT21350380

RT21350390
