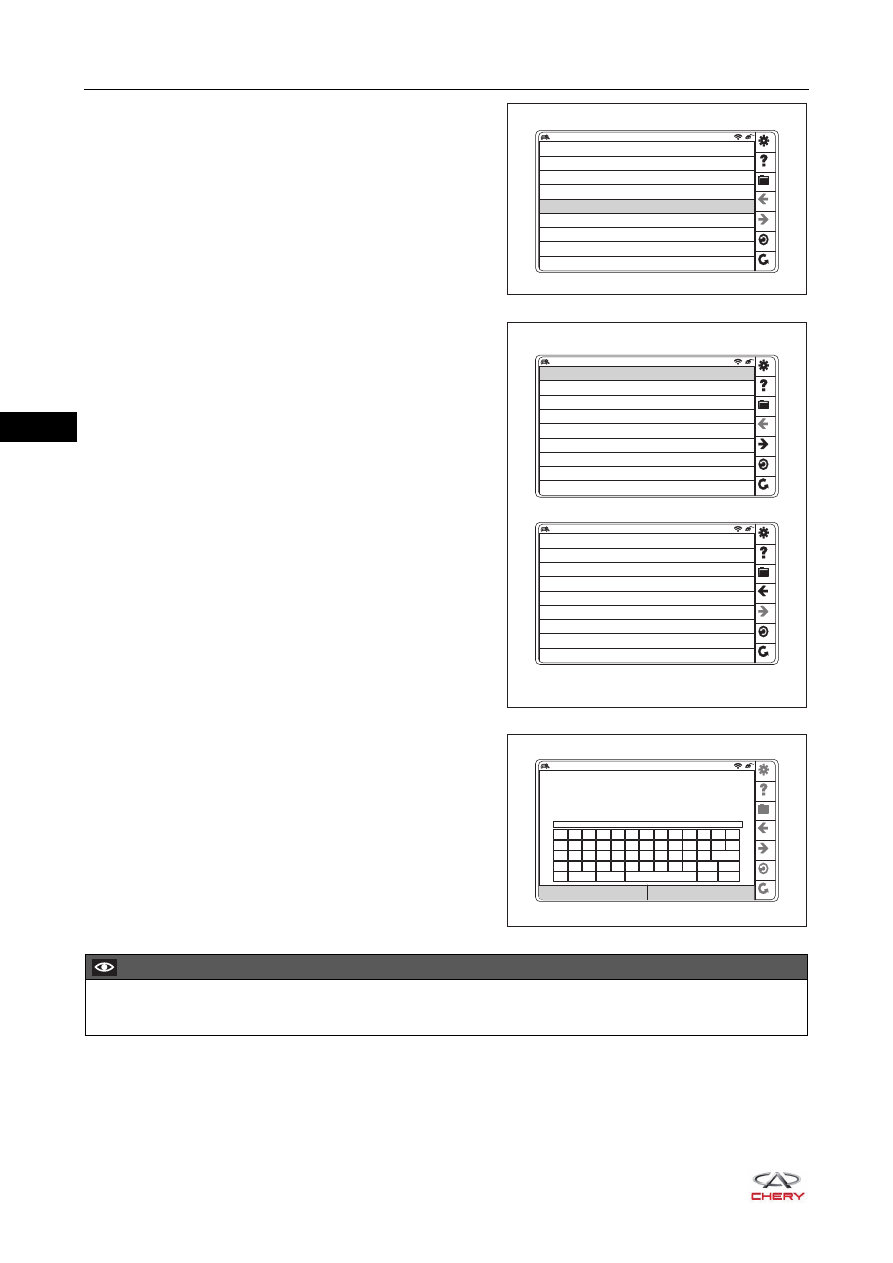

5. Select "After sale function".

6. Select the required match item.

7. Input the Security Code or PIN Code (from Chery), and

then click "OK".

System

Help

File

PgUp

PgDn

Reset

Back

Erase fault code

Read fault code

Read data stream

write data

After sale function

SELECT FUNCTION

RT21340040

System

Help

File

PgUp

PgDn

Reset

Back

Programming ECM

Programming IMMO

key match

Erase keys.

Write PIN

Programming ECM

Match all the systems.

Programming IMMO(learn SK from EMS)

Programming IMMO(learn SK from TCU)

After sale function

System

Help

File

PgUp

PgDn

Reset

Back

Programming TCU

Reset TCU

Programming ESCL

Erase ESCL

After sale function

RT21030050

System

Help

File

PgUp

PgDn

Reset

Back

Please enter a PIN with 8 digits.

12345678

[

]

;

‘

Enter

Ins

Del

Tab

Caps

Space

Cancel

Input

RT21340060

CAUTION

 The code in the illustration is only an example.

34–

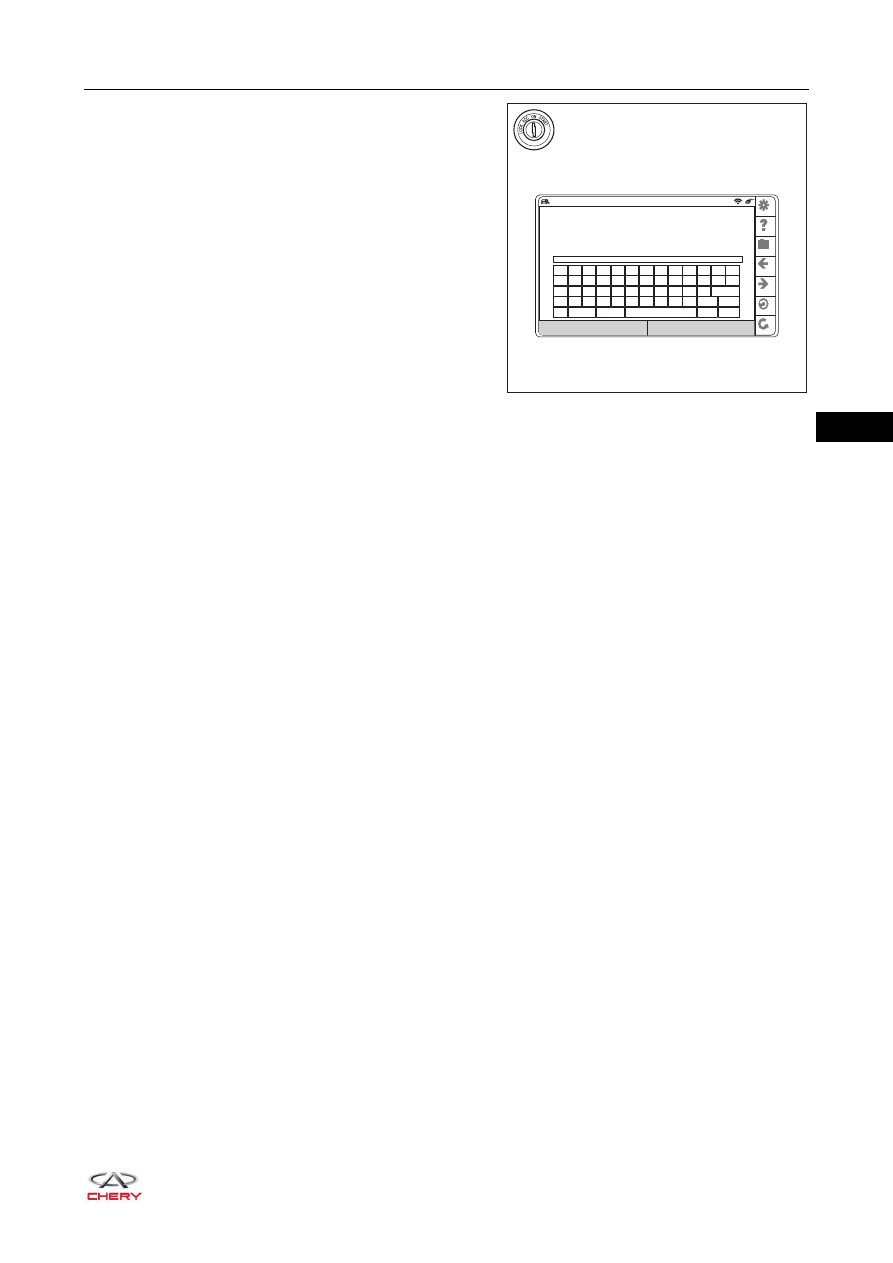

8. Input the VIN code, and then click "OK".

9. Match all the systems.

If the transponder, immobilizer control module and ECM have been all replaced, select "Match all the
systems" and finish the procedures according the following steps.
a. Input the VIN code to the diagnostic tester;
b. Input the SC (Security Code) code to the diagnostic tester;
c. Match the immobilizer control module with diagnostic tester;
d. Match the ECM with diagnostic tester;
e. Add the key;
f. Clear the code.

10.Programming ECM.

If the ECM has been replaced, select "Programming ECM" and finish the procedures according the
following steps.
a. Input the VIN code to the diagnostic tester;
b. Input the SC code to the diagnostic tester;
c. Match the ECM with diagnostic tester;
d. Input the service station code;
e. Input program date.

11.Programming IMMO.

If the immobilizer control module has been replaced, select "Programming IMMO" and finish the
procedures according the following steps.
a. Input the VIN code to the diagnostic tester;
b. Input the SC code to the diagnostic tester;
c. Match the immobilizer control module with diagnostic tester;
d. Input the service station code;
e. Input program date.

System

Help

File

PgUp

PgDn

Reset

Back

RT21340070

Please Input the VIN.
The length is 17 digits form 0 to 9, A~Z, a~z.

12345678123456789

[

]

;

‘

Enter

Ins

Del

Tab

Caps

Space

Cancel

Input

34–

12.Programming TCU.

If the TCU has been replaced, select "Programming TCU" and finish the procedures according the
following steps.
a. Input the VIN code to the diagnostic tester;
b. Input the SC code to the diagnostic tester;
c. Match the TCU with diagnostic tester;
d. Input the service station code;
e. Input program date.

13.Key match

a. Add new key.

 Input the SC code to the diagnostic tester;
 Perform add new key procedure.

b. Add old key.

 Input the SC code to the diagnostic tester;
 Perform add old key procedure.

c. Erase key

 Erase all key

- Input the SC code to the diagnostic tester;
- Perform erase all key procedure.

 Erase key X

- Input the SC code to the diagnostic tester;
- Perform erase key X (X = 1, 2, 3, 4, 5) procedure.

Diagnostic Help

1. Connect X-431 3G diagnostic tester (the latest version) to the Data Link Connector (DLC), and make it

communicate with the vehicle electronic module by the data network.

2. Confirm that malfunction is current, and carry out the diagnostic test and repair procedures.
3. If DTC cannot be deleted, the malfunction is current.
4. Only use a digital multimeter to measure the voltage of the electrical system.
5. Refer to any Technical Bulletin that may apply to the malfunction.
6. Visually check related wire harness.
7. Check and clean all the immobilizer control module ground related to the current DTC.
8. If multiple trouble codes were set, use the circuit diagrams and look for any common ground circuit or

power supply circuit applied to the DTC.

CAUTION

 Add the old key (

See page 37-9

) after programming immobilizer control module.

 If both ECM and immobilizer control module are replaced at the same time, there are two cases, one, if

the immobilizer control module has no communication problem, replace the ECM first, and then perform
the ECM programming and match with immobilizer control module that need to be replaced, after that,
replace the immobilizer control module and programming the IMMO, and finally, immobilizer control
module matches the old key, there is no need to replace a new key. Two, if the immobilizer control
module has communication problem, replace the ECM, immobilizer control module and key with now
one and perform match all the systems.

34–

Intermittent DTC Troubleshooting

If the malfunction is intermittent, perform the following:
 Check if connectors are loose.
 Check if wire harnesses are worn, pierced, pinched or partially broken.
 Monitor the X-431 3G diagnostic tester (the latest version) data that is related to this circuit.
 Wiggle related wire harness and connector and observe if the signal is interrupt in the related circuit.
 If possible, try to duplicate the conditions under which the DTC was set.
 Look for data that has changed or the DTC to reset during the wiggle test.
 Look for broken, bent, protruded or corroded terminals.
 Inspect sensor and mounting areas for damage, foreign matter, etc. that will cause incorrect signals.
 A data recorder and/or oscilloscope can be helpful in diagnosing the intermittent malfunction.

Ground Inspection

Groundings are very important to the proper operation of the electrical equipment and circuits. Groundings are
often exposed to moisture, dirt and corrosive elements. Corrosion (rust) may form additional resistance. This
additional resistance will change the way in which a circuit works.
Electronically controlled circuits are very sensitive to proper grounding. A loose or corroded ground can affect
the electronically controlled circuit. Perform the following operations when checking the groundings:
1. Remove the ground bolt or nut.
2. Check all the contact surfaces for tarnish, dirt, rust, etc.
3. Clean as necessary to ensure that the contacting is in a good condition.
4. Reinstall the bolt or nut securely.
5. Check for the accessories which may interfere with the ground circuit.
6. If several wires are crimped into one ground terminal, check for proper crimps. Make sure that all the wire

harnesses are clean, securely fastened and good contacted without crimping any excessive insulation
coat.

Diagnostic Trouble Code (DTC) Chart

DTC Code

DTC Definition

B1300

Internal Control Module EEPROM Error

B1301

Immobilizer and ECM authentication failed

B1302

VIN Not Programmed

B1303

The antenna communication is disturbed

B1304

None transponder was detected

B1305

Immobilizer has none key was storage

B1306

Security code was not programmed

U0100

Lost communication With ECM authentication frame

U0073

Control Module communication Bus Off
