Chery Tiggo 5 (T21). Manual - part 374

33–

16

33

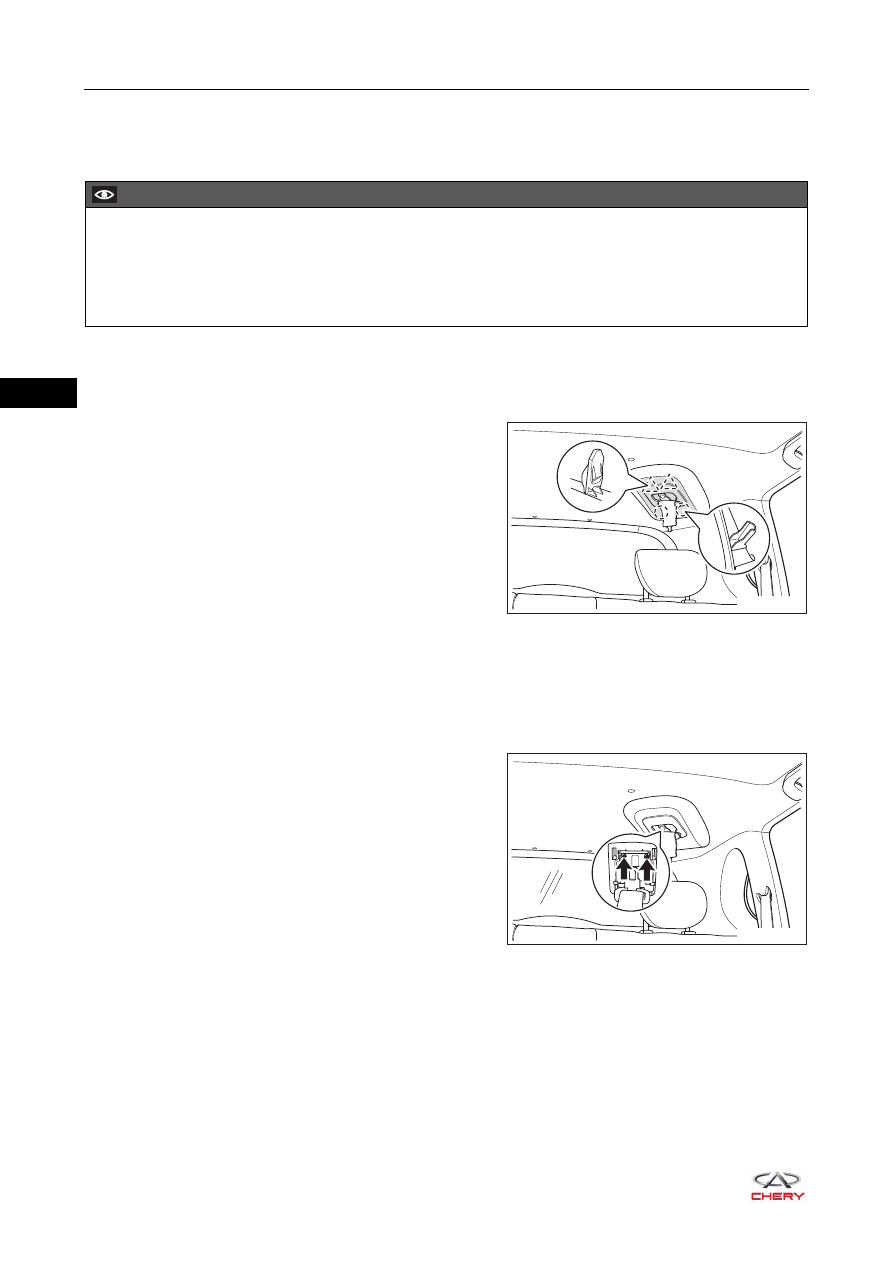

Center Seat Belt Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the center seat belt outer trim cover.

a. Using a screwdriver wrapped with protective tape, pry

the clip on the center seat belt outer trim cover, and
remove the center seat belt outer trim cover.

4. Remove the roof assembly (

See page 49-30

).

HINT:
It is unnecessary to completely remove the roof assembly, but it is necessary to lower the rear part of roof
assembly, so that the center seat belt assembly can be removed.

5. Remove the center seat belt inner trim cover.

a. Remove 2 fixing screws (arrow) from the center seat

belt inner trim cover.



(Tightening torque: 3 ± 0.5 N·m)

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing center seat belt assembly.
 Appropriate force should be applied when removing center seat belt assembly, and avoid operating

roughly.

 DO NOT scratch the interior when removing center seat belt assembly.

RT21490311

RT21330150

33–

17

33

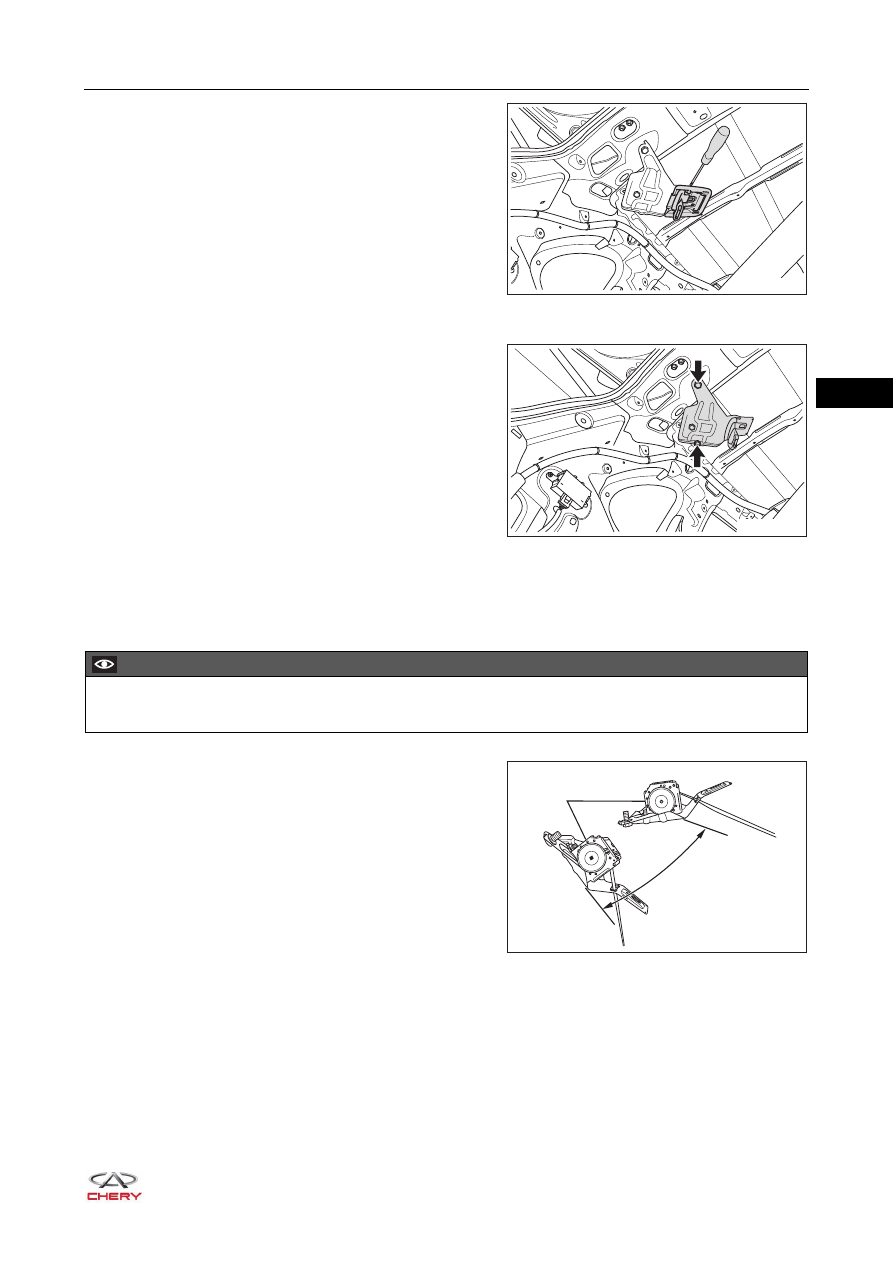

b. Using a screwdriver wrapped with protective tape, pry

the clip on the center seat belt inner trim cover.

c. Remove the center seat belt inner trim cover.

6. Remove the center seat belt assembly.

a. Remove 2 fixing bolts (arrow) from the center seat belt

assembly.



(Tightening torque: 50 ± 5 N·m)

b. Remove the center seat belt assembly.

Inspection

Check the center seat belt retractor.

HINT:
When the inclination of center seat belt retractor is 15° or
less, check that the center seat belt can be pulled out from
center seat belt retractor. When the inclination of center seat
belt retractor is over 45°, check that center seat belt locks.

If result is not as specified, replace the center seat belt
assembly.

RT21330140

RT21330160

CAUTION

 DO NOT disassemble the center seat belt retractor.

RT21330170

Unlock

lock

45

o

Retractor

33–

18

33

Installation

Installation is in the reverse order of removal.

CAUTION

 Keep seat belt assembly clean, avoid attaching oil and check seat belt assembly for damage when

installing the center seat belt assembly.

 Make sure to tighten all fixing bolts according to the specified torque when installing the center seat belt

assembly.

33–

19

33

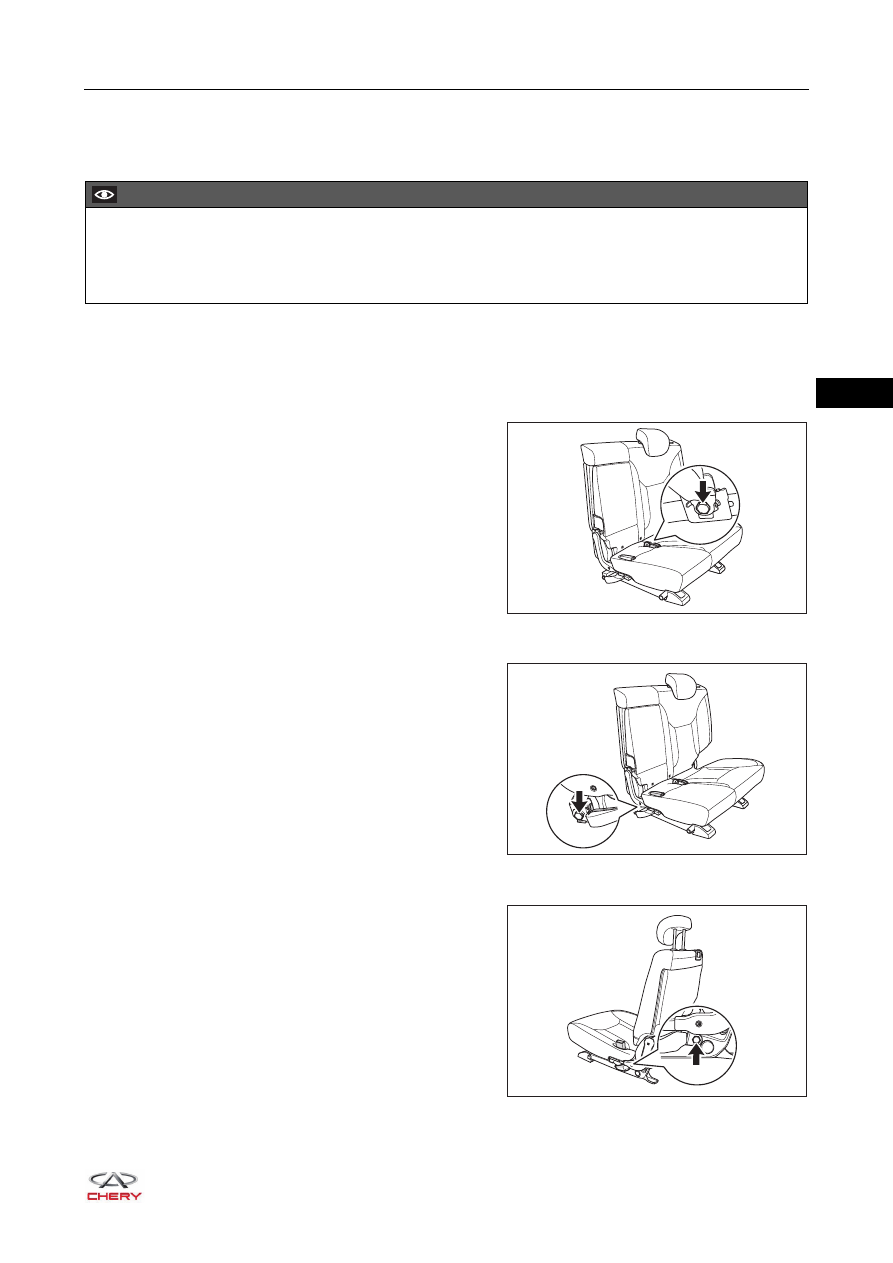

Rear Seat Belt Buckle Assembly

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear seat assembly (

See page 46-25

).

4. Remove the rear left seat belt buckle assembly.

a. Remove the fixing bolt (arrow) from the rear left seat

belt buckle assembly.



(Tightening torque: 50 ± 5 N·m)

b. Pull out and remove the rear left seat belt buckle

assembly from the rear left seat assembly.

5. Remove the rear center seat belt buckle assembly.

a. Remove the fixing bolt (arrow) from the rear center

seat belt buckle assembly.



(Tightening torque: 50 ± 5 N·m)

b. Pull out and remove the rear center seat belt buckle

assembly from the rear left seat assembly.

6. Remove the rear right seat belt buckle assembly.

a. Remove the fixing bolt (arrow) from the rear right seat

belt buckle assembly.



(Tightening torque: 50 ± 5 N·m)

b. Pull out and remove the rear right seat belt buckle

assembly from the rear right seat assembly.

CAUTION

 Make sure to wear safety equipment to prevent accidents when removing the rear seat belt buckle

assembly.

 DO NOT scratch the interior when removing the rear seat belt buckle assembly.

RT21330190

RT21330180

RT21330200
