Chery Tiggo 5 (T21). Manual - part 369





32–

67

32

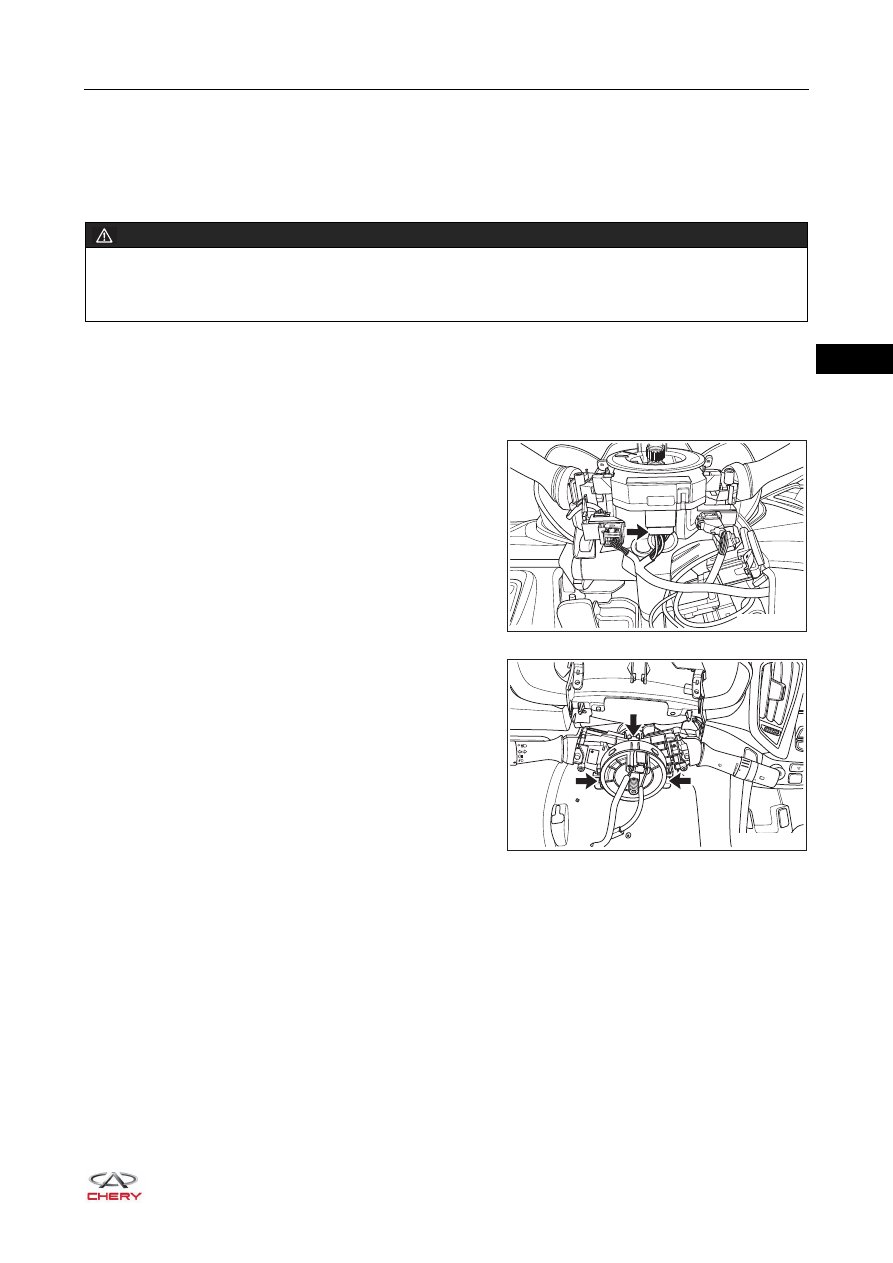

Spiral Cable

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

3. Position the front wheels straight ahead.
4. Remove the steering wheel assembly (

See page 28-10

).

5. Remove the combination switch cover (

See page 28-13

).

6. Remove the spiral cable.

a. Disconnect the spiral cable wire harness connector

(arrow).

b. Detach the fixing claws (arrow) between spiral cable

and steering column.

c. Remove the spiral cable.

Inspection

1. Check the spiral cable.

a. Check that there are no scratches or cracks on the connectors, and/or no cracks, dents or chipping on

the cable.

WARNING

 Wait at least 90 seconds after disconnecting negative battery cable to disable supplemental restraint

system.

RT21320060

A/C

PULL

rpm

×1000

MIST

OFF

OFF

REAR

ON

INT

INT

LO

H

I

RT21320080

32–

68

32

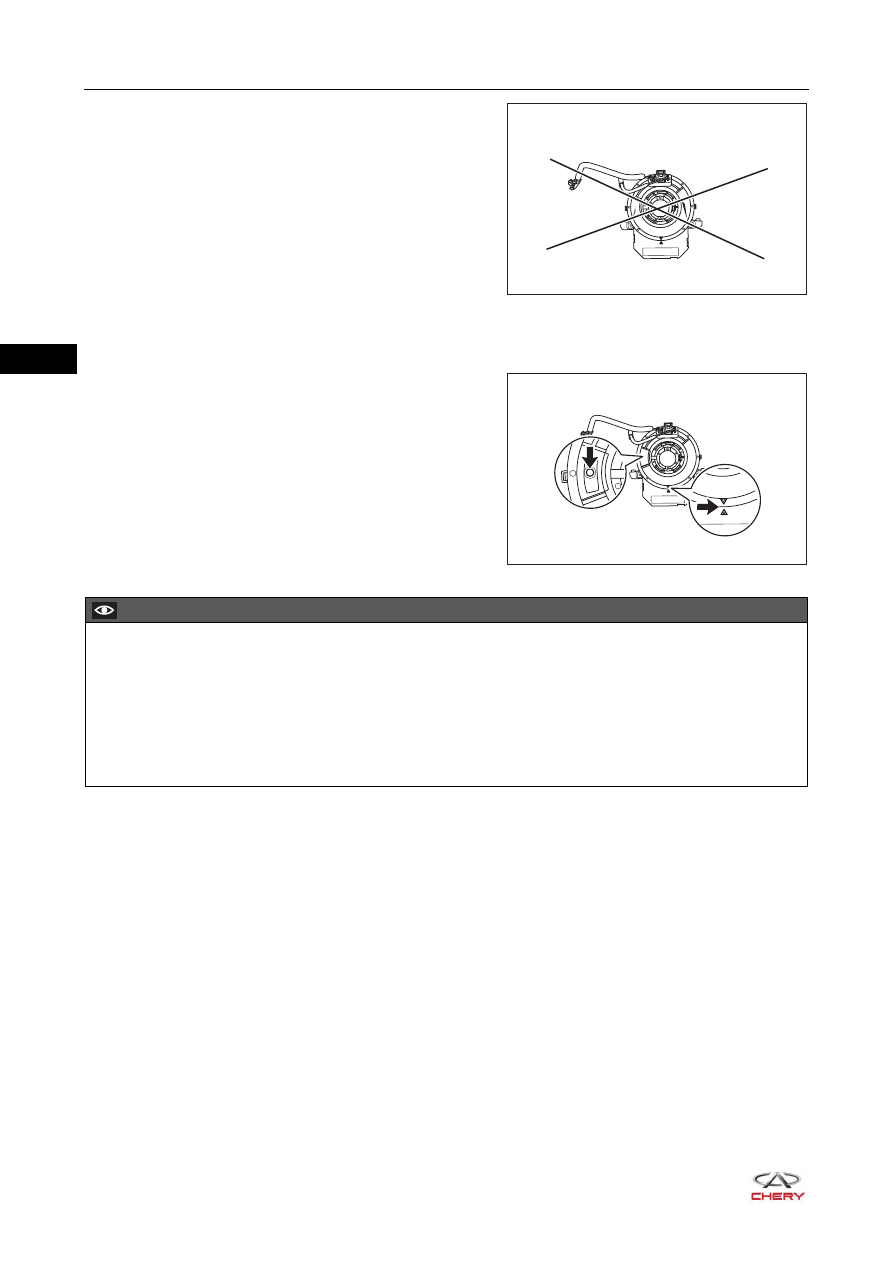

b. If there are scratches, cracks, dents or cuts on the

connectors or the spiral cable, replace the spiral cable
with a new one.

Installation

Installation is in the reverse order of removal.
HINT:
Always install the spiral cable correctly according to the
matchmarks on spiral cable and steering column (fully turn
the spiral cable clockwise slowly, then turn it
counterclockwise until yellow ball appears in the transparent
neutral window and align with the arrow marks), otherwise,
the spiral cable may be damaged.

RT21320090

RT21320100

CAUTION

 Always install the spiral cable correctly according to the specified operating instructions.
 DO NOT rotate the spiral cable over specified turns to prevent it from breaking.
 Be sure to install the fixing claws in place when installing spiral cable.
 Check that horn operates normally after installation.
 Check the SRS warning light after installation, and make sure that supplemental restraint system

operates normally.

32–

69

32

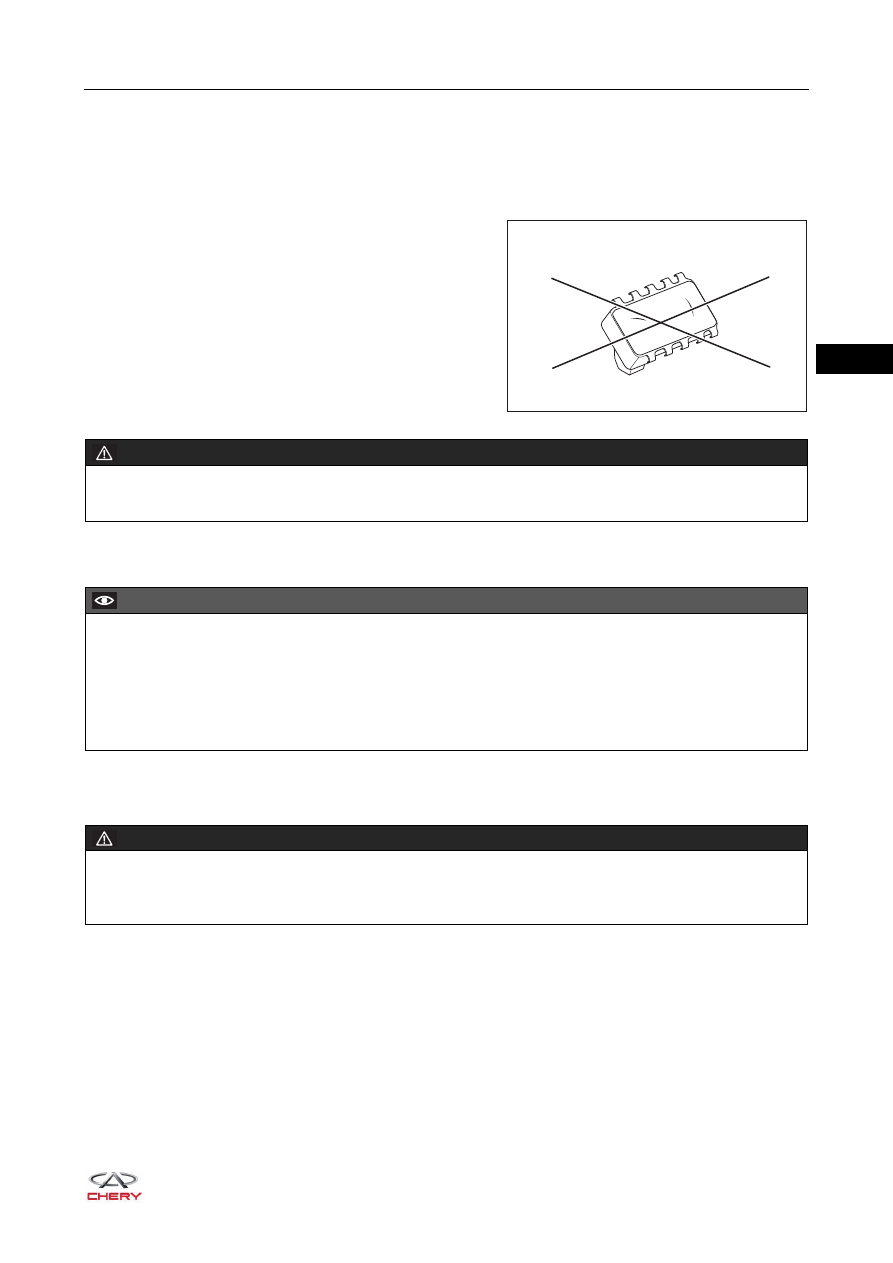

Front Passenger Airbag

On-vehicle Inspection

1. Check the front passenger airbag (vehicle is involved in a collision but airbag is not deployed).

a. Perform a diagnosis system inspection.
b. Perform visual inspection with the front passenger

airbag removed from vehicle.

 Check for cuts, cracks or discoloration on the front

passenger airbag.

 Check for cracks or other damage on the connector.
 Check instrument panel or instrument panel

crossmember assembly for deformation or break. If
any defect above is found, replace the front
passenger airbag with a new one.

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.

3. Remove the glove box assembly (

See page 45-17

).

4. Remove the front passenger airbag.

RT21320110

WARNING

 Be sure to follow the correct procedures to remove and install front passenger airbag.

CAUTION

 Handle the airbag and airbag control module assembly carefully, and never tap or strike them fiercely.
 Removal, inspection and installation of airbag system must meet the relevant requirements and

specifications, and never perform operation casually.

 The removed airbag should be kept properly. Store the airbag in a place with enough spare space to

prevent accidental airbag deployment.

WARNING

 Wait at least 90 seconds after disconnecting negative battery cable to disable supplemental restraint

system.

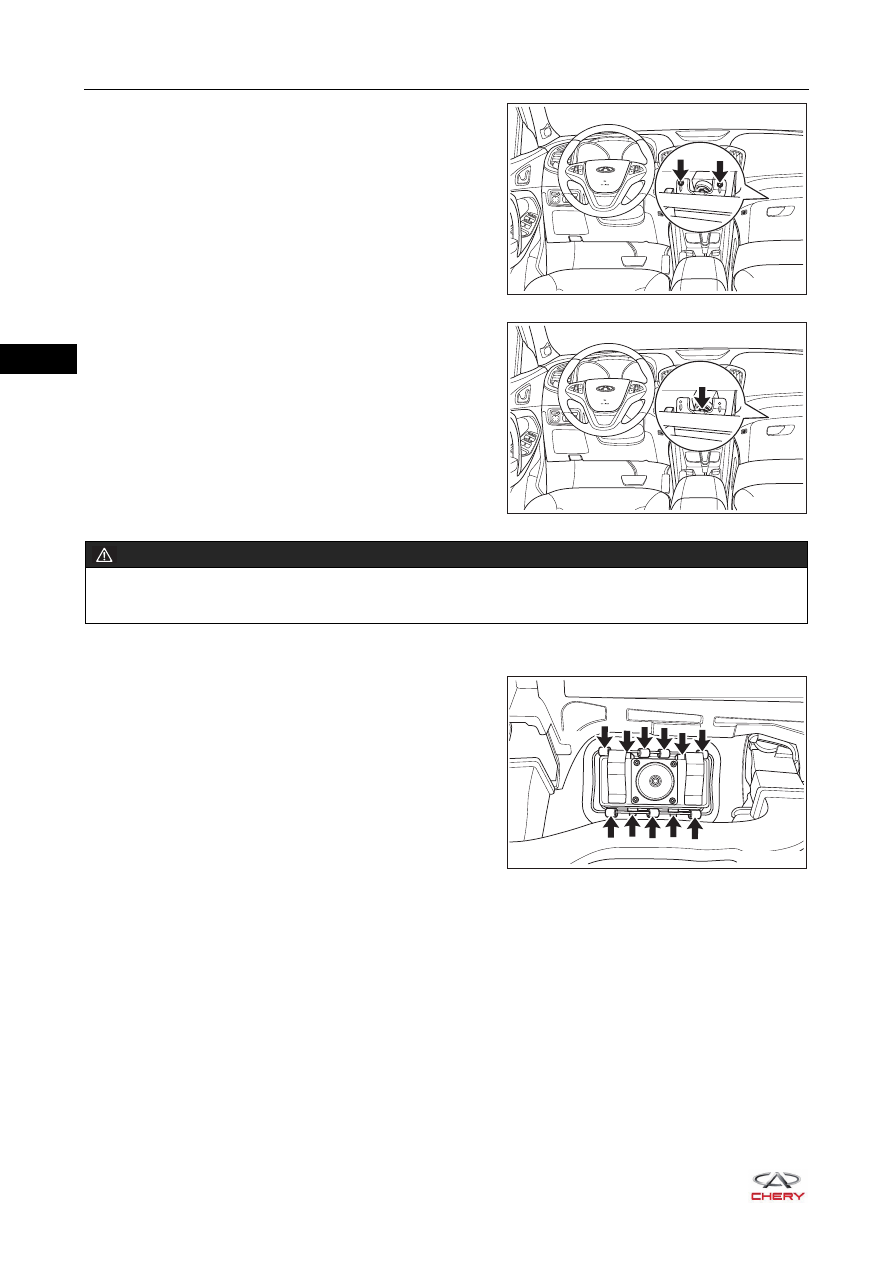

32–

70

32

a. Remove 2 coupling bolts (arrow) between front

passenger airbag and instrument panel crossmember
assembly.

(Tightening torque: 10 ± 1 N·m)

b. Disconnect the front passenger airbag wire harness

connector (arrow).

c. Remove the instrument panel body assembly (

See page 45-17

).

d. Using a flat tip screwdriver wrapped with protective

tape, slightly pry the fixing claws (arrow) around the
front passenger airbag mounting bracket to separate it
from the instrument panel body assembly.

e. Remove the front passenger airbag.

RT21320120

RT21320130

WARNING

 DO NOT damage the airbag wire harness when handling airbag wire harness connector.

RT21320140
