Chery Tiggo 5 (T21). Manual - part 337

31–

52

31

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the HVAC control panel assembly connector

K-012.

d. Disconnect the mode damper motor connector K-009
e. Using a digital multimeter, check for continuity between

terminals of connector K-012 and connector K-009 to
check if there is an open in mode damper motor
according to the table below.
Standard Condition

a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the HVAC control panel assembly connector

K-012.

d. Using a digital multimeter, check for continuity between

connector K-012 and body ground to check if mode
damper motor circuit is short to ground according to the
table below.
Standard Condition

3

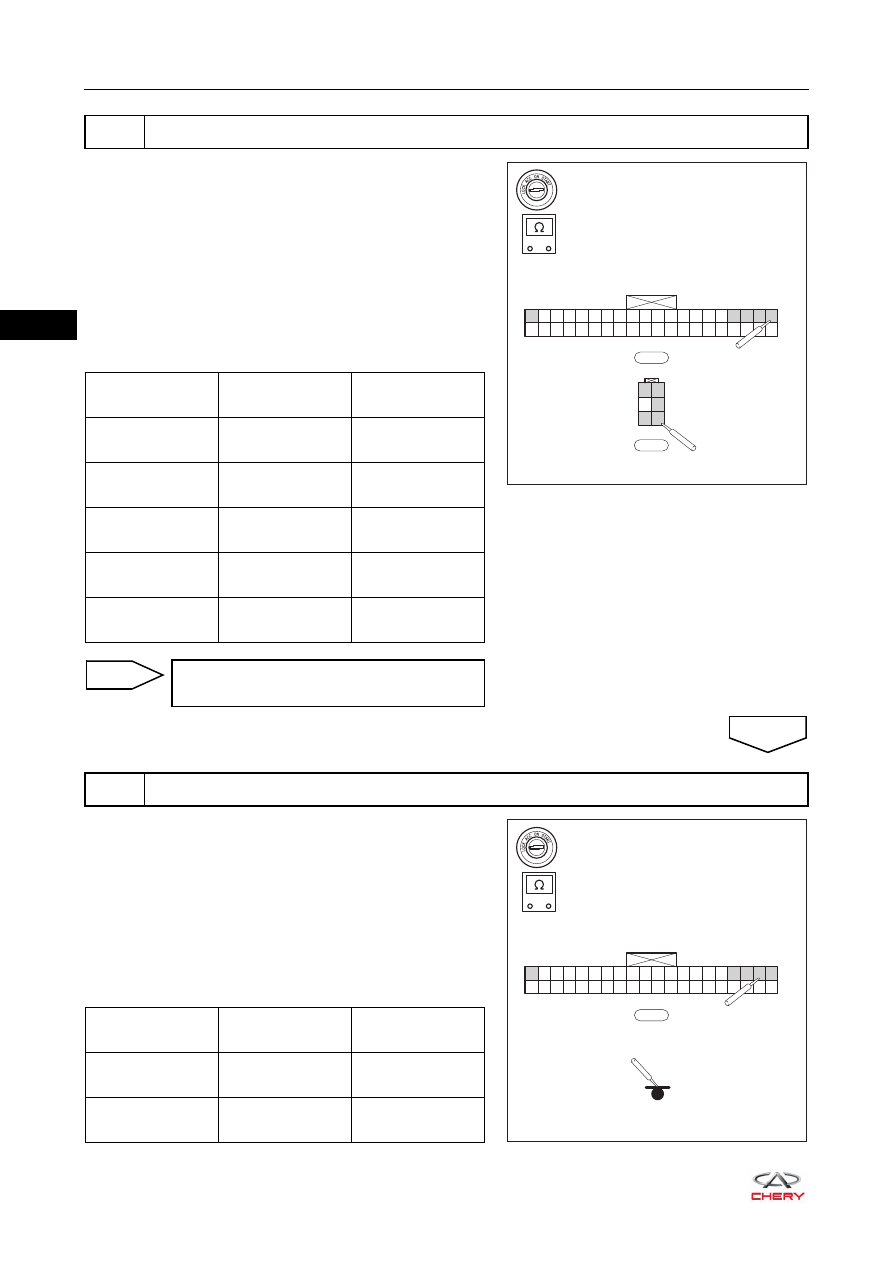

Check wire harness and connector (HVAC control panel assembly - mode damper motor)

RT21311200

-

+

K-012

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

K-009

4 1

5 2

6 3

Multimeter

Connection

Condition

Specified

Condition

K-012 (18) -

K-009 (1)

Always

Continuity

K-012 (1) - K-009

(2)

Always

Continuity

K-012 (20) -

K-009 (3)

Always

Continuity

K-012 (17) -

K-009 (4)

Always

Continuity

K-012 (19) -

K-009 (6)

Always

Continuity

Repair or replace A/C wire harness and
connector

NG

4

Check wire harness and connector (HVAC control panel assembly - body ground)

OK

RT21311210

-

+

K-012

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

Multimeter

Connection

Condition

Specified

Condition

K-012 (1) - Body

ground

Always

No continuity

K-012 (17) - Body

ground

Always

No continuity

31–

53

31

a. Reconnect all disconnected connectors securely.
b. Connect the negative battery cable.
c. Turn ignition switch ON.
d. Use X-431 3G diagnostic tester (the latest software) to record and clear DTCs stored in the HVAC control

panel assembly.

e. Turn ignition switch to LOCK and wait for a few seconds.
f. Turn ignition switch ON.
g. Use X-431 3G diagnostic tester to read DTCs stored in the HVAC control panel assembly again.

K-012 (18) - Body

ground

Always

No continuity

K-012 (19) - Body

ground

Always

No continuity

K-012 (20) - Body

ground

Always

No continuity

Repair or replace A/C wire harness and
connector

Multimeter

Connection

Condition

Specified

Condition

NG

5

Reconfirm DTCs

OK

Replace HVAC control panel assembly

NG

System operates normally

OK

31–

54

31

DTC

B2169

Error of AC Blower Actuator

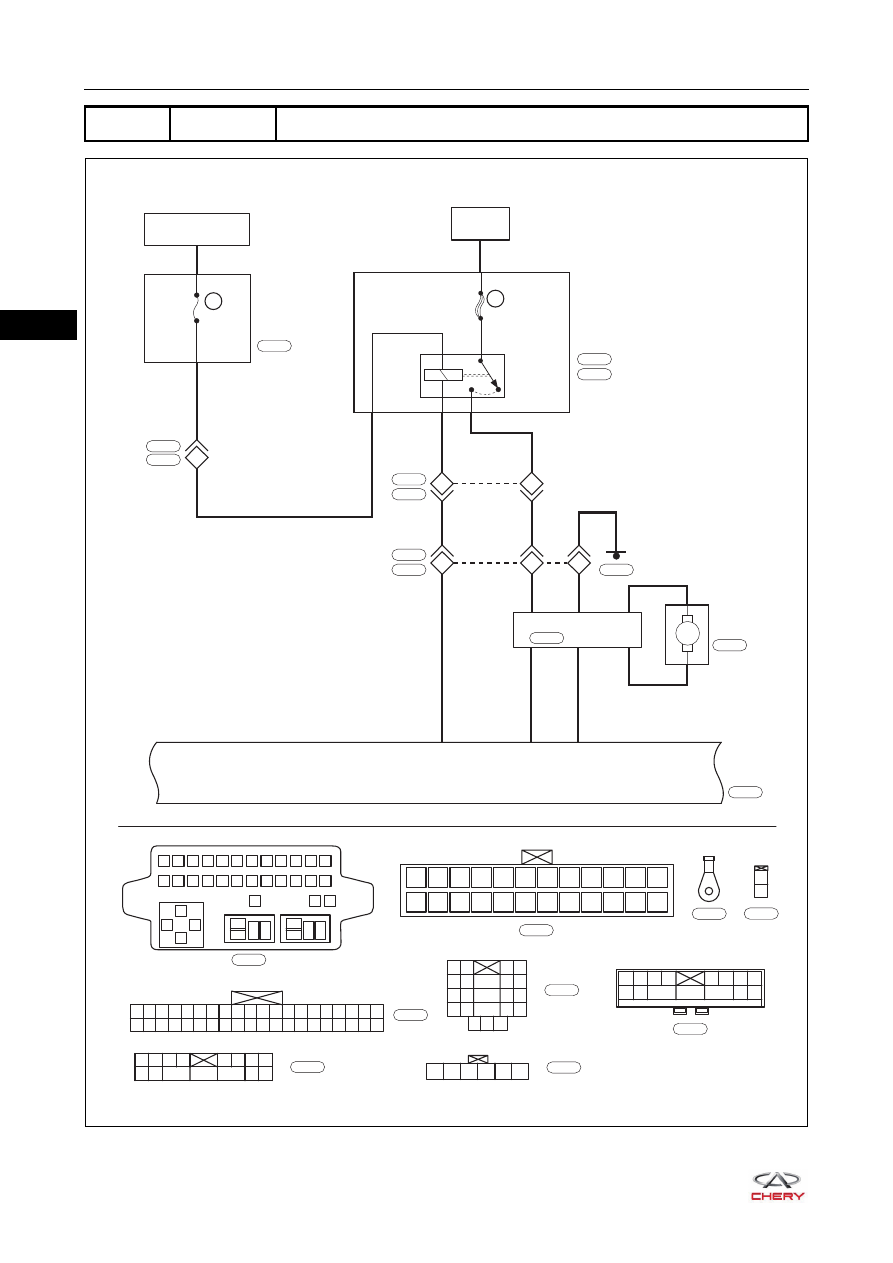

ET21310150

BATTERY

BLOWER
RELAY
ERLY15

85

30

86

87

MF05

30A

F8

F9

5

YR

ENGINE
COMPARTMENT
FUSE AND
RELAY BOX

25

28

26

3

6

1

1

2

4

5

2

Br

RW

WBL

2

GR

GR

8

7

17

R

R

RB

13

SPEED RESISTOR

B

B

G

P

M

BLOWER

1

2

1

2

3

4

5

6

1

2

3

4

5

6

7

8

9 10

11

12

13

14 15

F12

F24

F11

F23

F10

F22

F9

F21

F8

F20

F7

F19

F6

F18

F5

F17

F4

F16

F3

F15

F2

F14

F1

F13

5

W

E-069

E-063

E-063

E-069

K-008

K-004

W

K-012

W

K-007

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

1

2

3

4

5

6

8

9

10 11

13 14

15 16

18

17

21

20

22

7

12

19

HVAC
CONTROL
PANEL

K-012

B

K-004

W

K-008

I-039

K-007

E-027

I-034

I-038

W

E-027

E-027

I-034

IGNITION SWITCH
     ON OR ACC

RF13

7.5A

13

1

2

3

4

5

6

7

8

9 10 11 12

13

85

85

87

87 30

87 30

30

86

86

85

86

14 15 16 17 18 19 20 21 22 23 24

25

27

26

1

2

9

10

11

12

13

14

15

3

4

5

6

7

8

B

I-007

W

I-034

YR

7

INSTRUMENT
PANEL FUSE
AND RELAY
BOX

I-007

31–

55

31

Diagnosis Procedure

Use the circuit diagram as a guide to perform the following procedures:
a. Turn ignition switch to LOCK.
b. Disconnect the negative battery cable.
c. Disconnect the HVAC control panel assembly connector K-012.
d. Disconnect the blower connector K-008 and blower speed resistor connector K-004.
e. Check if wire harnesses are worn, pierced, pinched or partially broken.
f. Look for broken, bent, protruded or corroded terminals.
g. Check if related connector pins are in good condition.

a. Remove the blower.
b. Install the new blower to vehicle.
c. Use X-431 3G diagnostic tester to check if DTCs are still output.

DTC Code

DTC Definition

DTC Detection

Condition

Possible Cause

B2169

Error of AC Blower
Actuator

Ignition switch ON

 Fuse
 Relay
 Blower motor
 Blower speed resistor
 Wire harness and connector
 HVAC control panel

CAUTION

 When performing electrical equipment diagnosis and test, always refer to the circuit diagram for related

circuit and component information.

1

Check wire harness and connector

Repair or replace A/C wire harness and
connector

2

Check blower

Replace blower

NG

OK

NO

YES
