Chery Tiggo 5 (T21). Manual - part 303

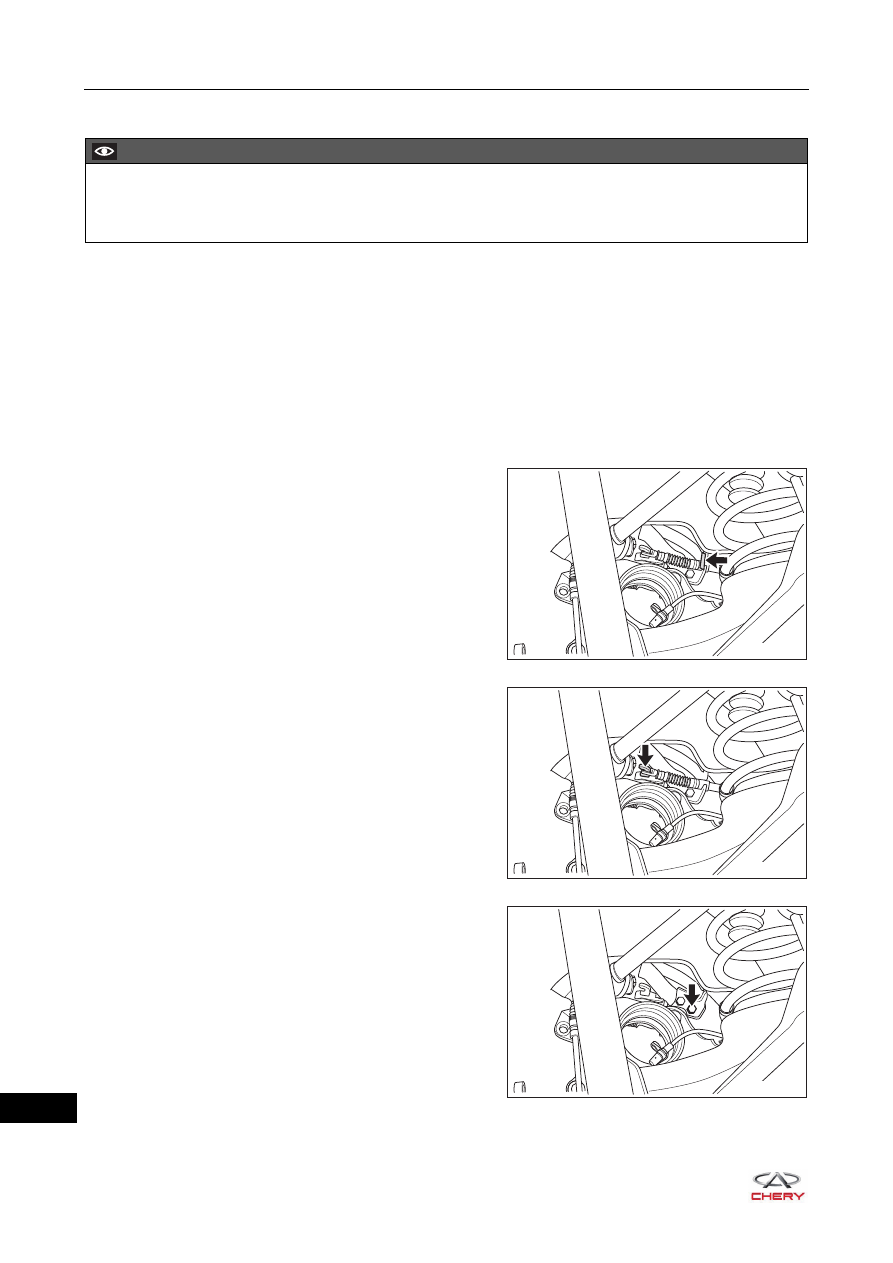

27–

16

27

Removal

HINT:

 Use the same procedures for the right side and left side.

 Procedures listed below are for the left side.
1. Remove the rear left wheel (

See page 24-9

).

2. Remove the rear left brake caliper assembly (

See page 26-41

).

3. Remove the rear left brake disc (

See page 26-41

).

4. Remove the rear left hub bearing unit (

See page 22-19

).

5. Remove the rear left brake assembly.

a. Fully release the parking brake control mechanism.
b. Remove the fixing clamp (arrow) and disengage the

parking brake rear cable assembly from the fixing
bracket.

c. Disengage the parking brake rear cable assembly end

(arrow) from the parking brake pulling arm.

d. Remove the coupling bolt (arrow) between parking

brake rear cable assembly fixing bracket and rear
brake bottom board assembly.



(Tightening torque: 23 ± 2 N·m)

CAUTION

 Be sure to wear necessary safety equipment to prevent accidents when repairing.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21270100

RT21270110

RT21270120

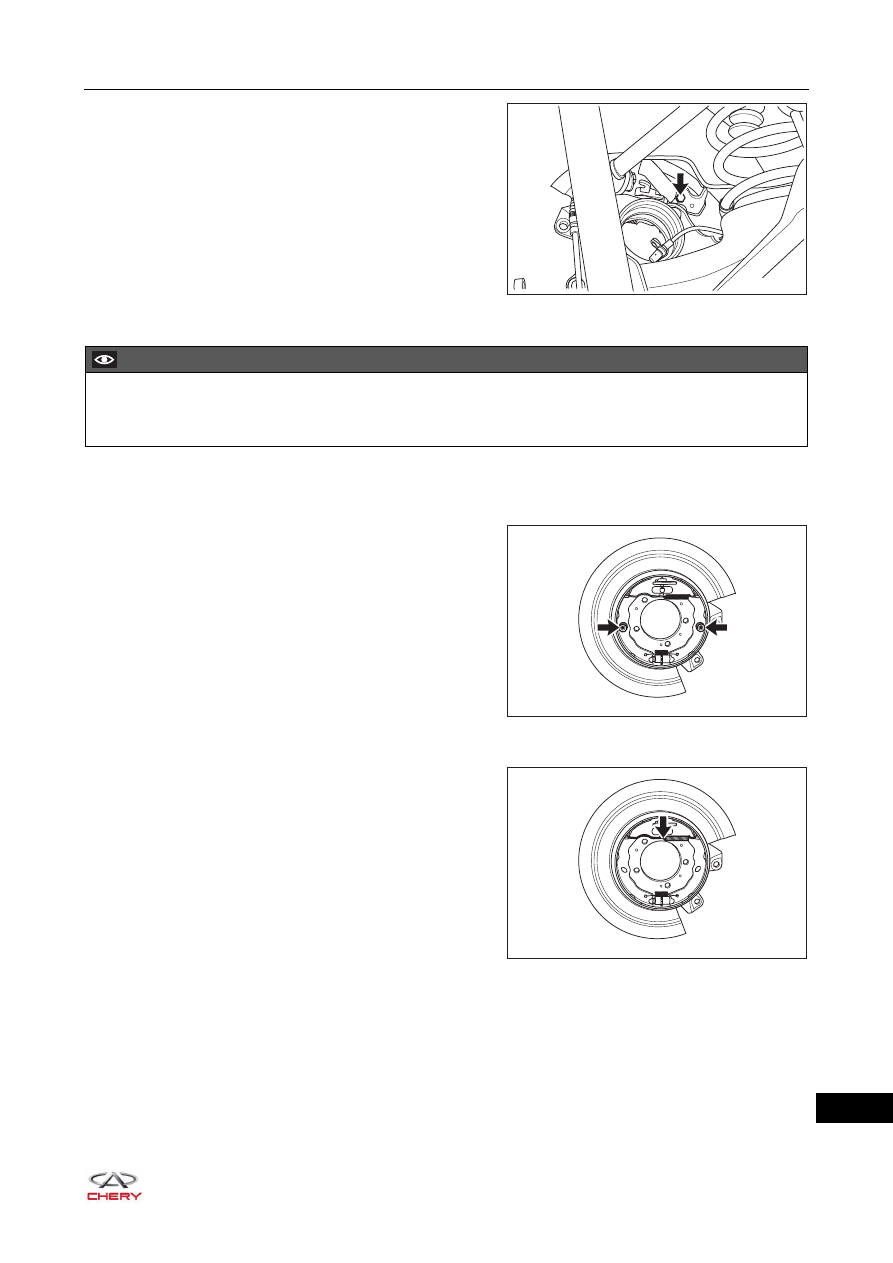

27–

17

27

e. Remove the coupling bolt (arrow) between rear brake

line fixing bracket and rear brake bottom board
assembly.



(Tightening torque: 23 ± 2 N·m)

f. Remove the rear left brake assembly.

Disassembly

1. Remove the brake shoe stopper spring set.

a. Using needle-nose pliers, press brake shoe

compressed spring and rotate compressed spring tie
rod to remove the stopper spring sets (arrow) on both
sides as shown in the illustration.

2. Remove the brake shoe return tension spring (upper).

a. Using needle-nose pliers, remove the brake shoe

return tension spring (upper) carefully as shown in the
illustration.

RT21270130

CAUTION

 DO NOT touch interior ornament when removing steering column with intermediate shaft assembly to

avoid scratching the interior ornament.

RT21270140

RT21270150

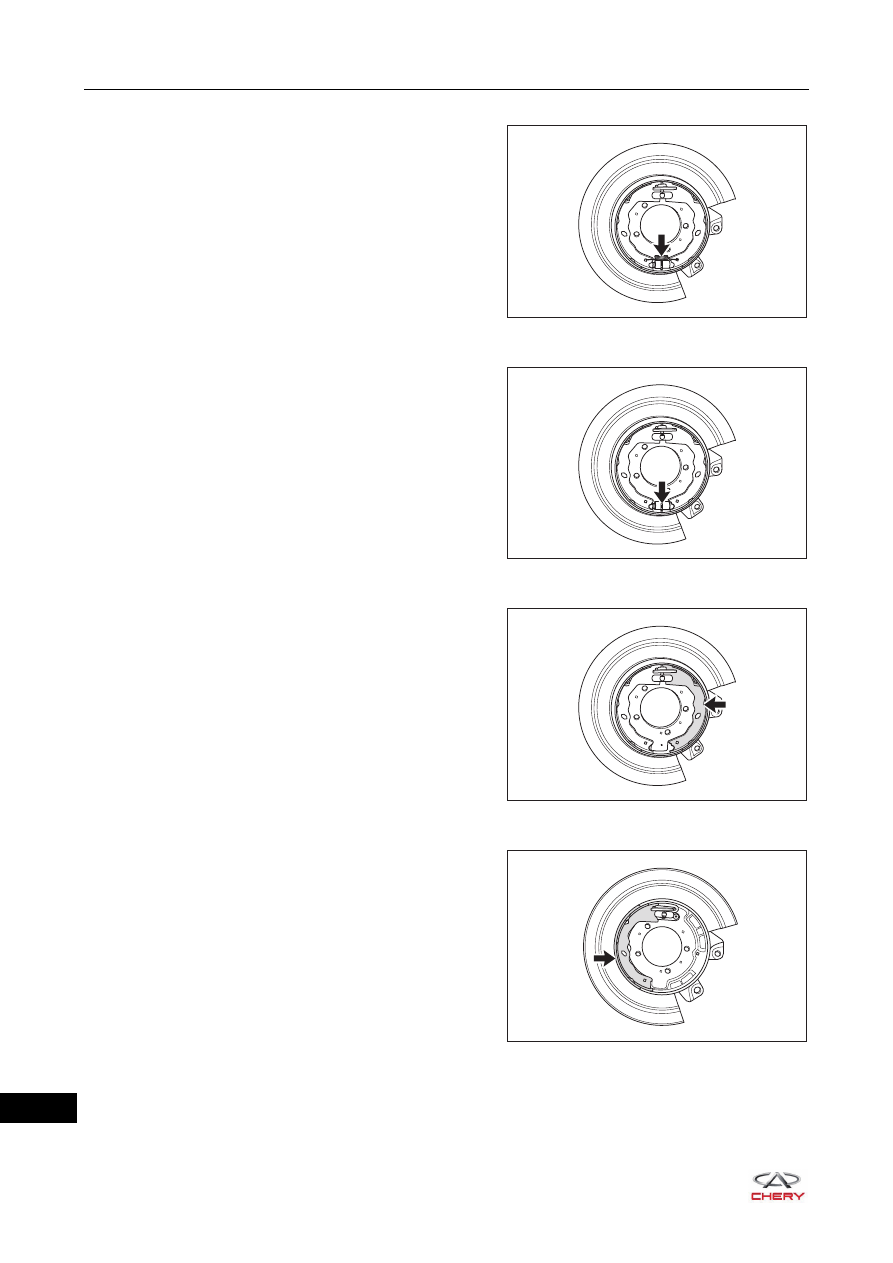

27–

18

27

3. Remove the brake shoe return tension spring (lower).

a. Using needle-nose pliers, remove the brake shoe

return tension spring (lower) carefully as shown in the
illustration.

4. Remove the brake shoe clearance adjustment mechanism assembly.

a. Disengage the brake shoe linings on both sides and

remove the clearance adjustment mechanism
assembly as shown in the illustration.

5. Remove the right brake shoe lining.

a. Disengage the right brake shoe lining from the parking

push rod as shown in the illustration.

6. Remove the left brake shoe lining.

a. Disengage the left brake shoe lining from the parking

push rod as shown in the illustration.

RT21270160

RT21270170

RT21270180

RT21270190

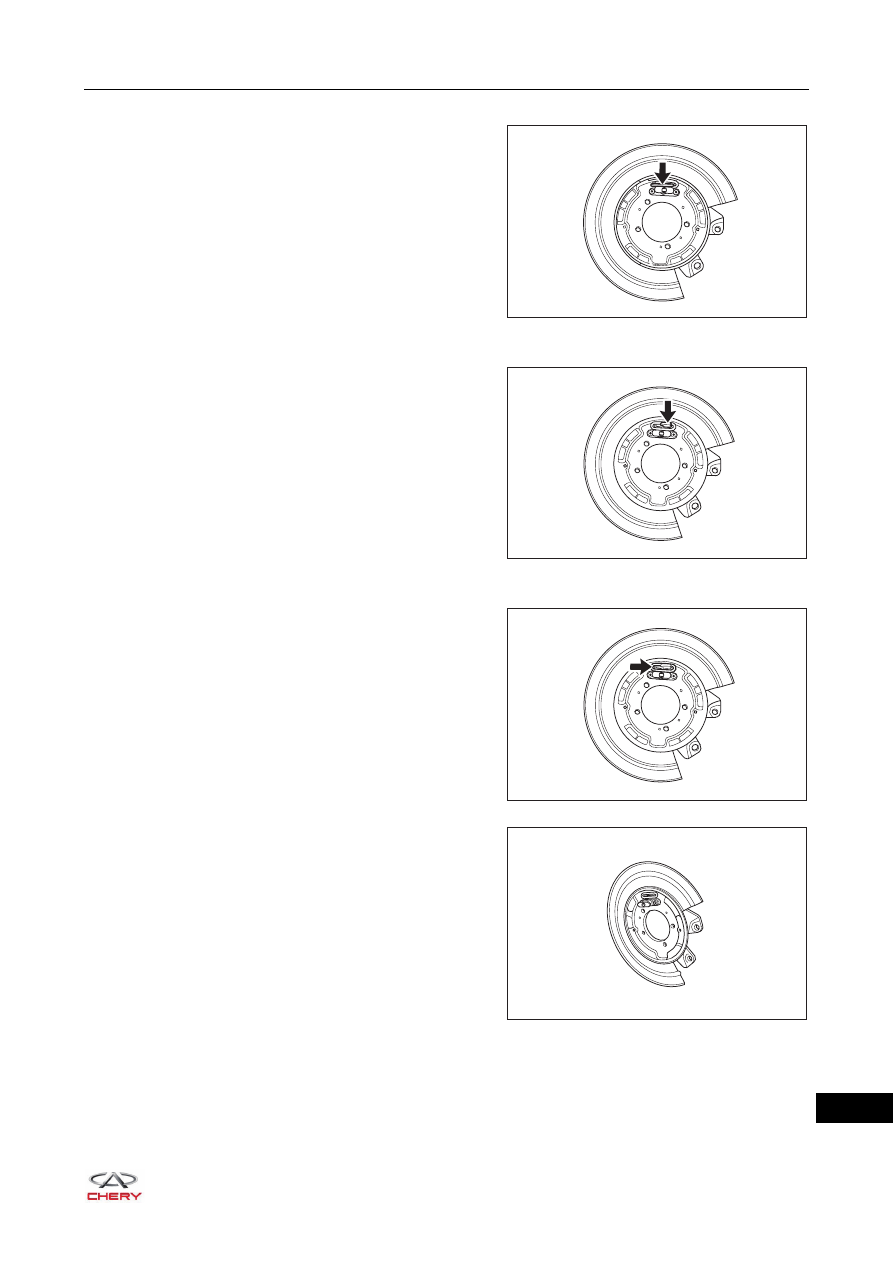

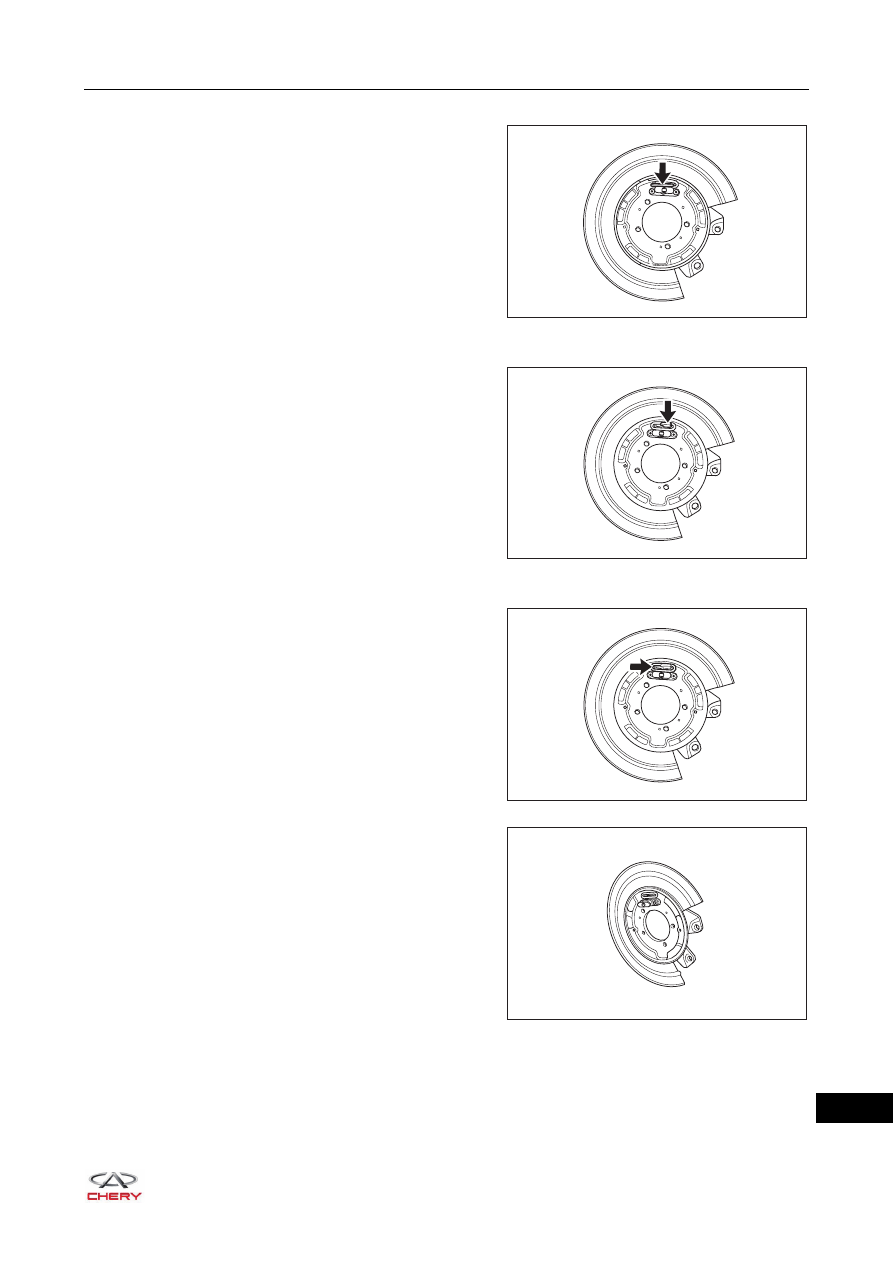

27–

19

27

7. Remove the parking push rod.

a. Disengage the parking push rod from the parking

pulling arm as shown in the illustration.

8. Remove the parking pulling arm.

a. Remove the parking pulling arm from the parking

pulling arm dust boot as shown in the illustration.

9. Remove the parking pulling arm dust boot.

a. Disengage the parking pulling arm dust boot from the

rear brake bottom board assembly as shown in the
illustration.

10.Remove the rear brake bottom board assembly.

RT21270200

RT21270210

RT21270220

RT21270230
