22–

4

22

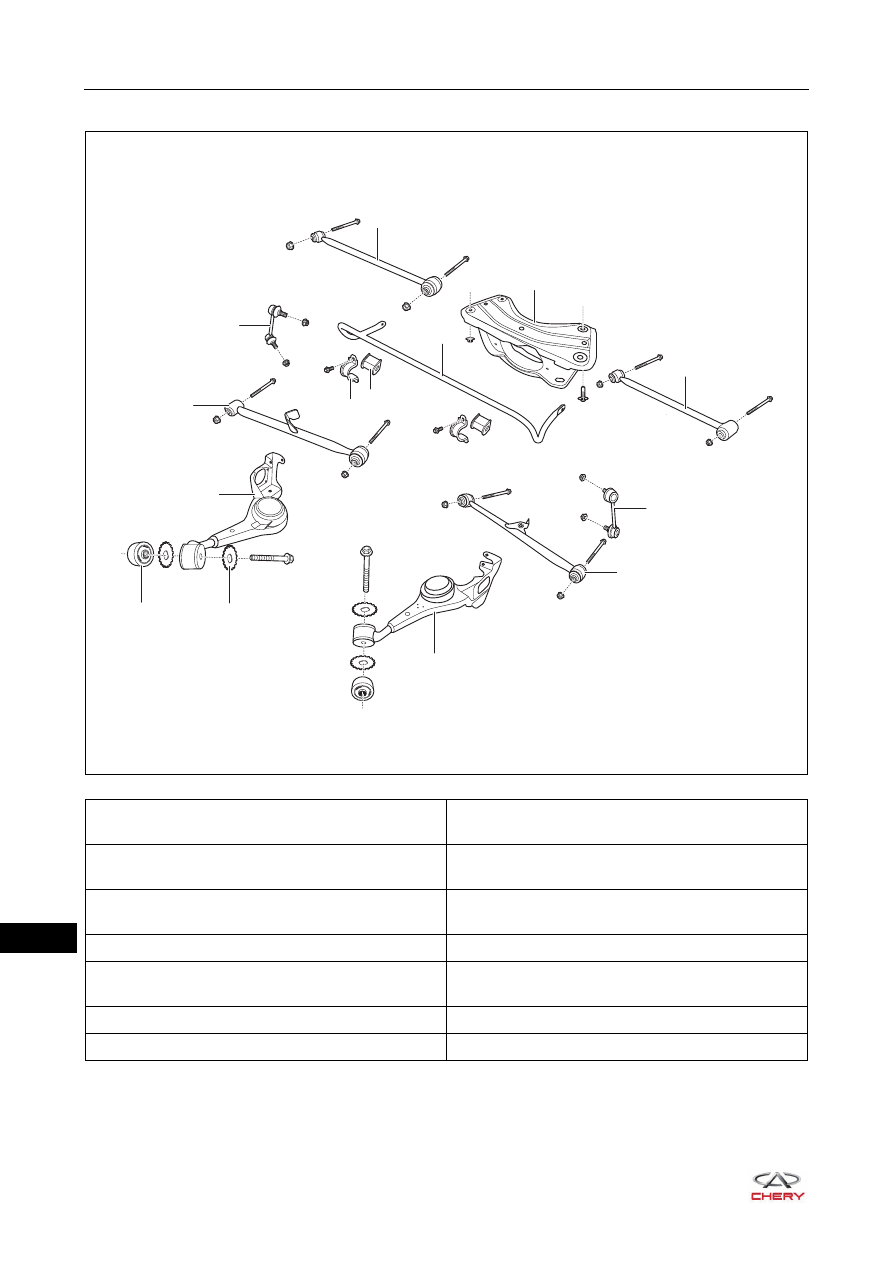

Rear Axle

Axles are connected to the integral body through suspension, and wheels are installed on both ends. The
function is to transmit the force in all directions between integral body and wheels.

1 - Rear Suspension Upper Right Swing Arm

Assembly

2 - Rear Sub Frame Welding Assembly

3 - Rear Suspension Upper Left Swing Arm

Assembly

4 - Rear Left Connecting Rod Assembly

5 - Rear Suspension Lower Left Swing Arm

Assembly

6 - Rear Stabilizer Bar

7 - Rear Stabilizer Bar Rubber Bushing

8 - Rear Stabilizer Bar Retainer

9 - Rear Right Connecting Rod Assembly

10 - Rear Suspension Lower Right Swing Arm

Assembly

11 - Rear Right Trailing Arm Assembly

12 - Rubber Bushing Assembly

13 - Rubber Cushion

14 - Rear Left Trailing Arm Assembly

×2

×2

×2

×2

4

5

9

7

8

6

3

2

1

12

13

14

11

10

RT21220020

22–

5

22

Specifications

Torque Specifications

Description

Torque (N·m)

Wheel Mounting Bolt

110 ± 10

Front Drive Shaft Assembly Locking Nut

300 ± 20

Coupling Bolt Between Front Hub Assembly and
Front Steering Knuckle Assembly

70 - 75

Coupling Bolt Between Front Wheel Speed Sensor
and Front Steering Knuckle Assembly

10 ± 1

Locking Nut Between Steering Tie Rod Assembly
Ball Pin and Front Steering Knuckle Assembly

47 ± 3

Coupling Nut Between Front Control Arm Assembly
Ball Pin and Front Steering Knuckle Assembly

120 ± 12

Coupling Bolt Between Front Shock Absorber
Assembly and Front Steering Knuckle Assembly

180 ± 10

Coupling Nut Between Front Shock Absorber
Assembly and Front Steering Knuckle Assembly

180 ± 10

Coupling Bolt Between Engine Lower Protector
Assembly and Side Rail Welding Assembly

10 ± 1

Coupling Bolt Between Rear Mounting Cushion
Assembly and Rear Mounting Bracket

70 ± 5

Coupling Nut Between Rear Mounting Cushion
Assembly and Rear Mounting Bracket

70 ± 5

Coupling Bolt Between Front Mounting Cushion
Assembly and Front Mounting Bracket

70 ± 5

Coupling Nut Between Front Mounting Cushion
Assembly and Front Mounting Bracket

70 ± 5

Coupling Bolt Between Side Rail Welding Assembly
and Body

80 ± 6

Coupling Bolt Between Side Rail Welding Assembly
and Front Mounting Cushion Assembly

70 ± 5

Coupling Bolt Between Side Rail Welding Assembly
and Rear Mounting Cushion Assembly

70 ± 5

Coupling Nut Between Side Rail Welding Assembly
and Rear Mounting Cushion Assembly

70 ± 5

Coupling Bolt Between Front Stabilizer Bar and Front
Sub Frame Welding Assembly

20 ± 3

Coupling Bolt Between Front Sub Frame Welding
Assembly and Steering Gear Assembly

120 ± 10

Coupling Bolt Between Upper Part of Front Sub
Frame Welding Assembly and Body

180 ± 10

Coupling Bolt Between Rear Part of Front Sub
Frame Welding Assembly and Body

180 ± 10

22–

6

22

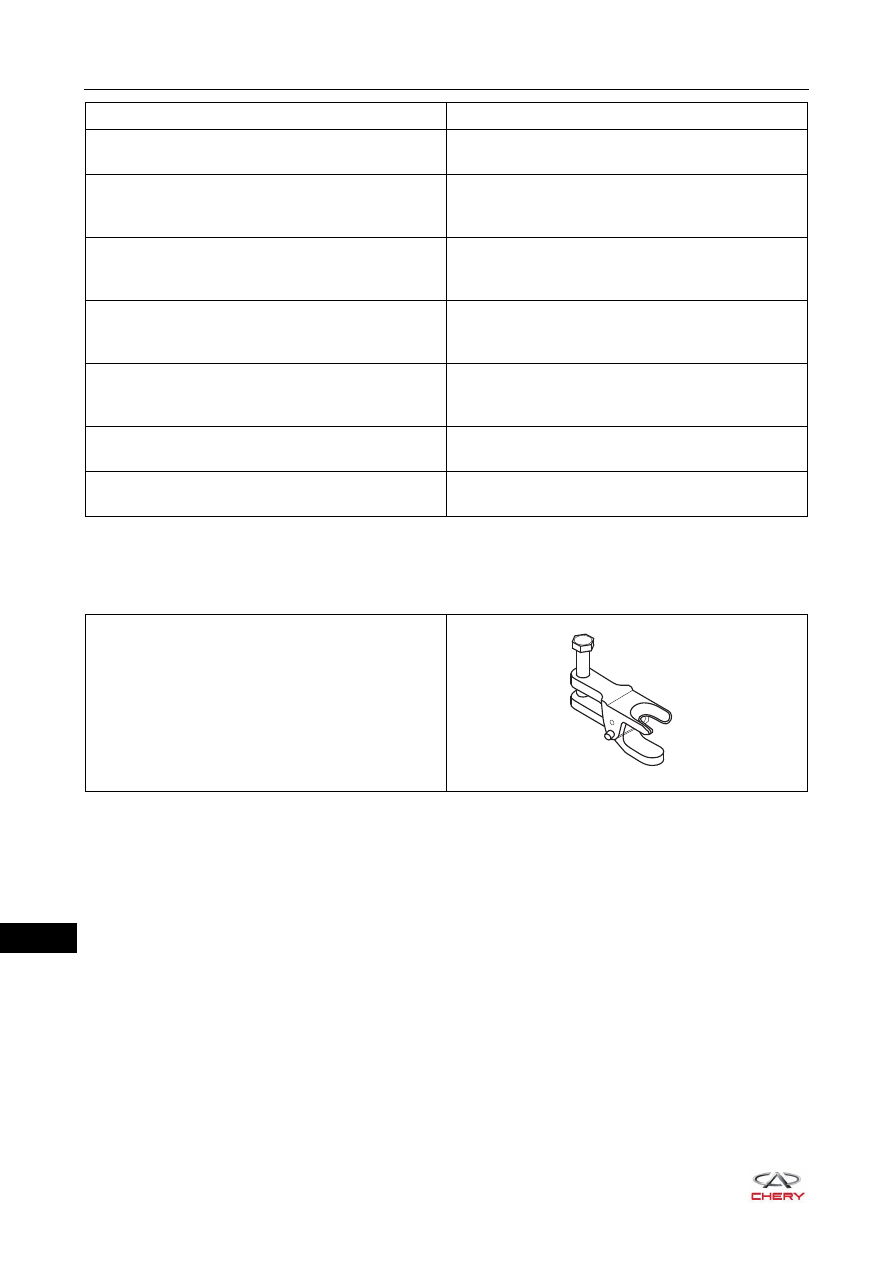

Tools

Special Tool

Coupling Nut Between Rear Hub Bearing Unit and
Rear Brake Bottom Board Assembly

68 ± 5

Coupling Bolt Between Rear Suspension Upper
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Upper
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Bolt Between Rear Suspension Lower
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Nut Between Rear Suspension Lower
Swing Arm Assembly and Rear Sub Frame
Assembly

120 ± 10

Coupling Bolt Between Rear Sub Frame Assembly
and Body

120 ± 10

Coupling Nut Between Rear Sub Frame Assembly
and Body

120 ± 10

Description

Torque (N·m)

Ball Pin Separator

RCH0000024

22–

7

22

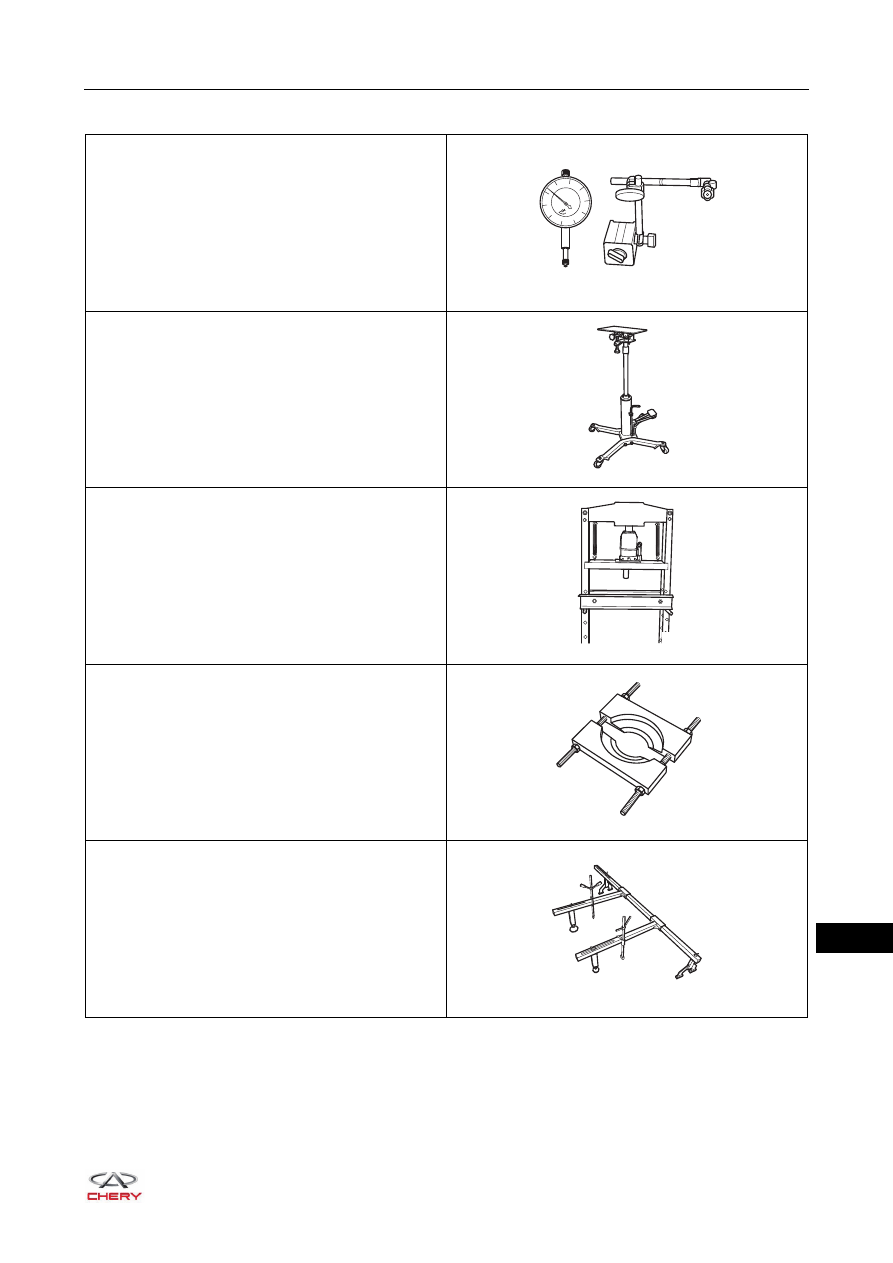

General Tools

Dial Indicator and Magnetic Holder

Transmission Carrier

Hydraulic Press

Bearing Remover

Engine Equalizer

RCH0000023

0

10

20

30

40

50

60

70

80

90

RCH0000005

RCH0000012

RCH0000011

RCH0000026
