Chery Tiggo 5 (T21). Manual - part 232

18–

117

18

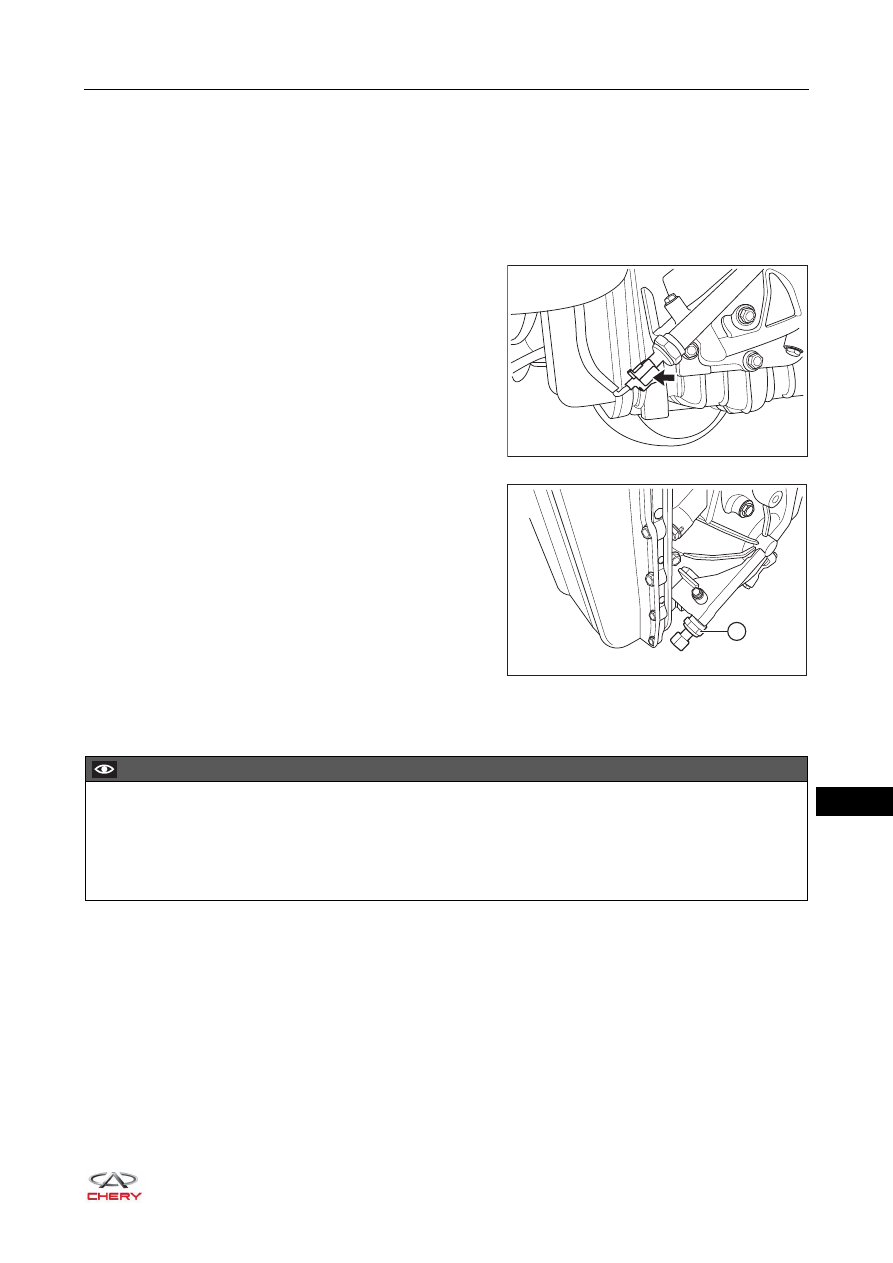

Primary Shaft Pressure Sensor

Removal

1. Turn off all the electrical devices and ignition switch.
2. Disconnect the negative battery cable.
3. Raise the vehicle with a lifter.
4. Drain the automatic transmission fluid (

See page 18-110

).

5. Disconnect the wire harness connector of the primary

shaft pressure sensor.

6. Remove the primary shaft pressure sensor (1).



(Tightening torque: 15 - 22 N·m)

Installation

Installation is in the reverse order of removal.

RT21180400

1

RT21180410

CAUTION

 Keep clean of sensor and contact surface between sensor and transmission, and avoid dust or impurity

entering the transmission.

 During installation, apply automatic transmission fluid on the O ring of the sensor.
 Add automatic transmission fluid (

See page 18-110

).

18–

118

18

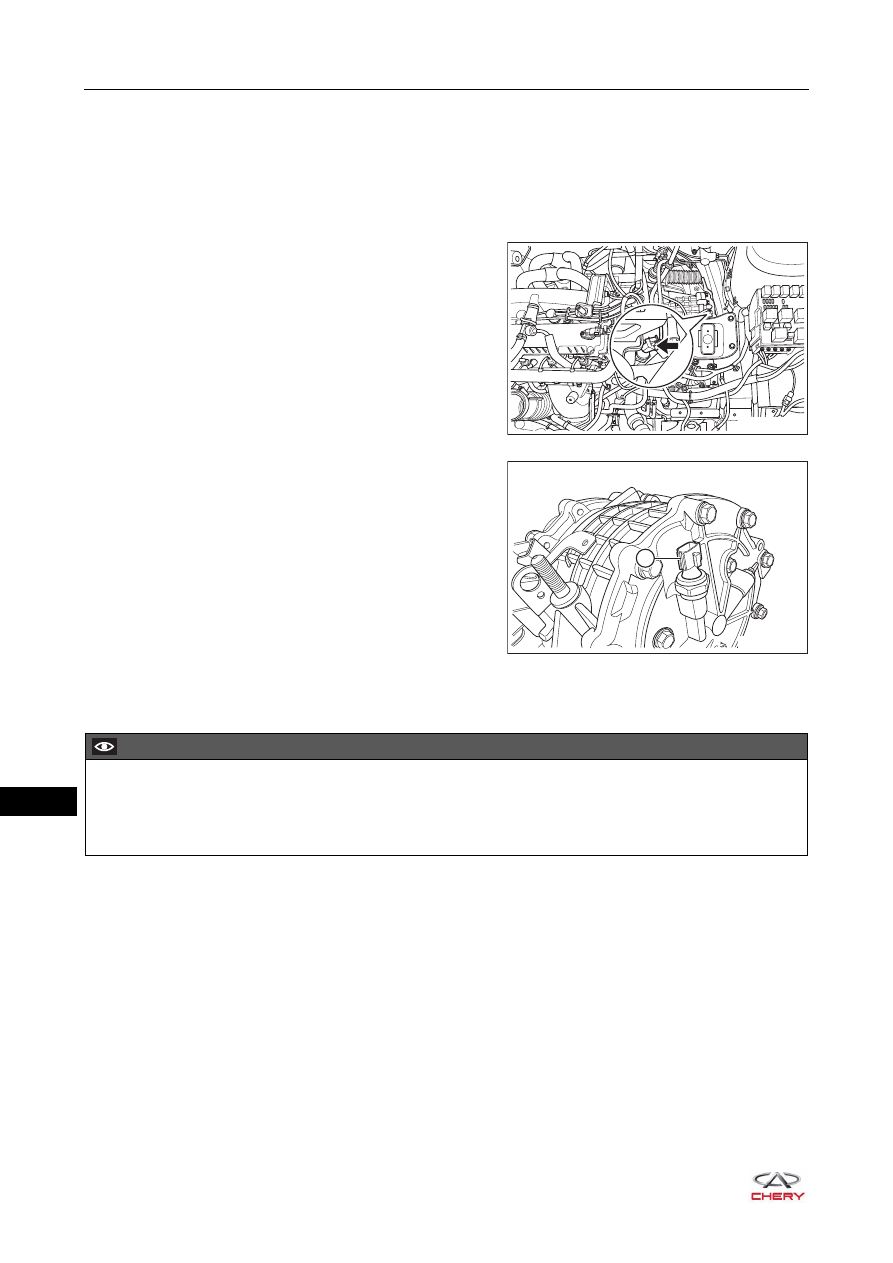

Secondary Shaft Pressure Sensor

Removal

1. Turn off all the electrical devices and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the air filter (

See page 10-17

).

4. Disconnect the wire harness connector of the secondary

shaft pressure sensor (arrow).

5. Remove the secondary shaft pressure sensor (1).



(Tightening torque: 15 - 22 N·m)

Installation

Installation is in the reverse order of removal.

RT21180420

1

RT21180430

CAUTION

 Keep clean of sensor and contact surface between sensor and transmission, and avoid dust or impurity

entering the transmission.

 During installation, apply automatic transmission fluid on the O ring of the sensor.

18–

119

18

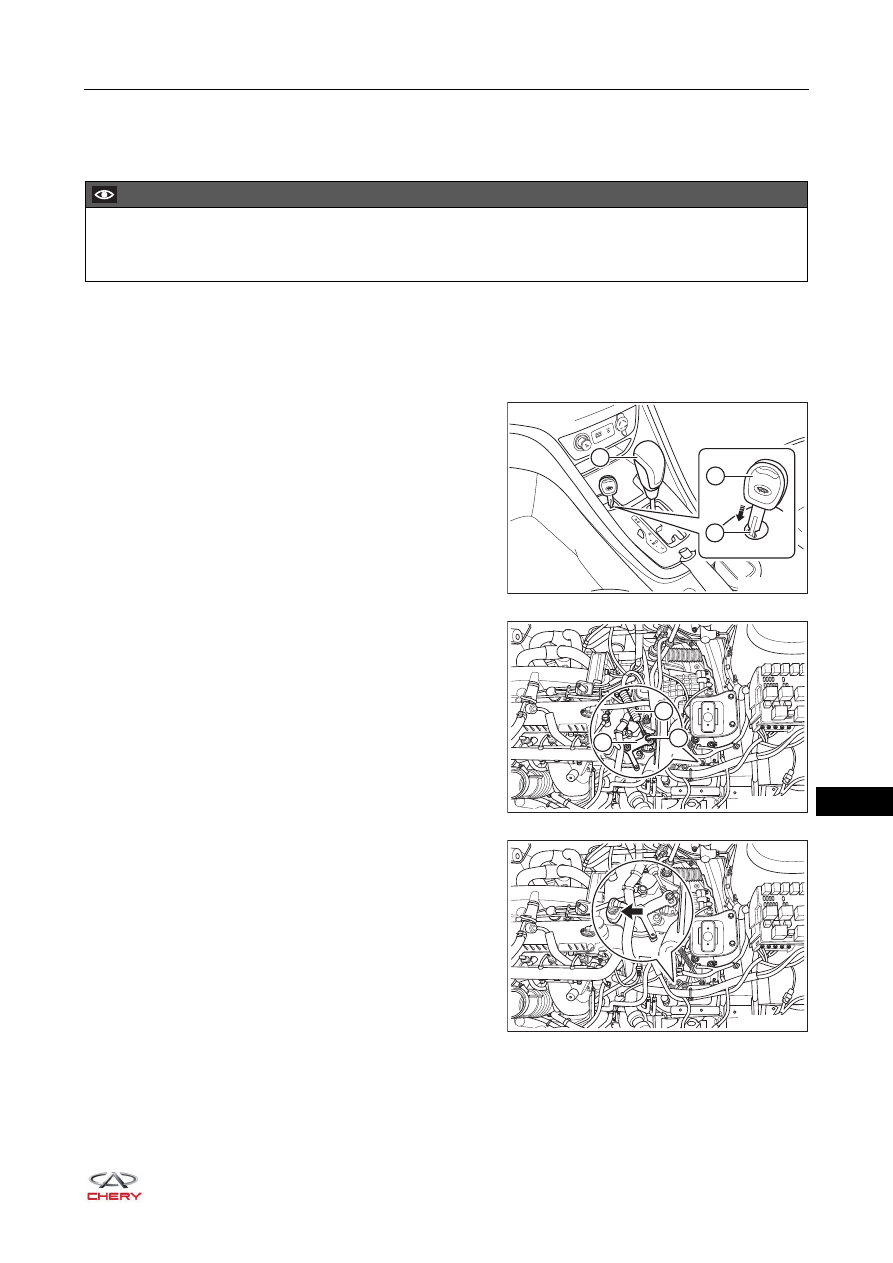

Transmission Range Sensor

Removal

1. Apply the parking brake.
2. Turn off all the electrical devices and ignition switch.
3. Disconnect the negative battery cable.
4. Remove the battery, battery tray and tray bracket (

See page 16-7

).

5. Insert the mechanical key (3) in the emergency unlock

hole (2) and press the mechanical key to hold down the
emergency unlock switch, and move the shift lever (1) to
the N (neutral) position to release the shift lock.

6. Remove the gear shift cable (1) and arm (2) connecting

nut (3).



(Tightening torque: 16 - 20 N·m)

7. Disconnect the transmission range sensor wire harness

connector (arrow).

CAUTION

 When removing and installing the transmission range sensor, make sure that the gear shift lever is at "N"

position.

R

S

3

1

2

RT21180440

RT21180450

1

3

2

RT21180460

18–

120

18

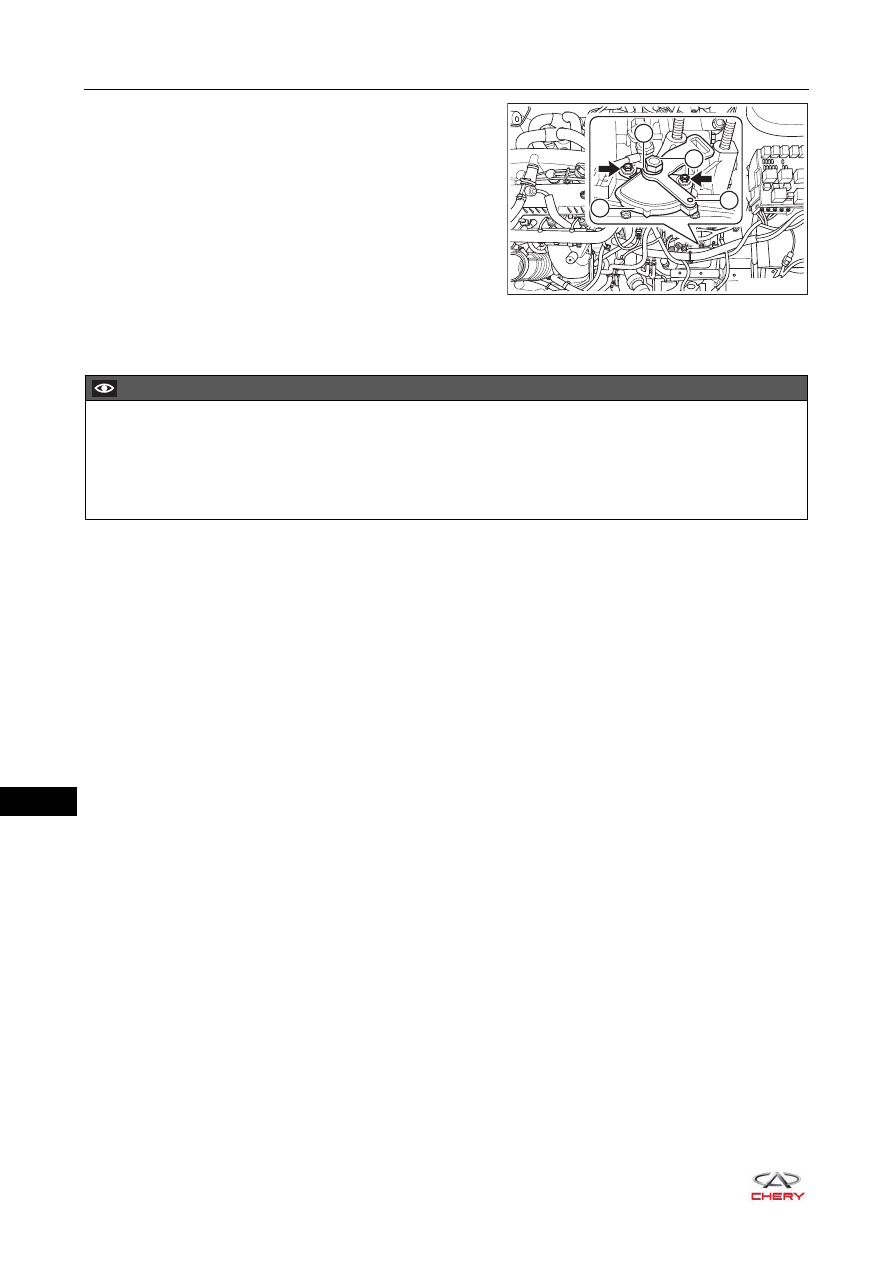

8. Remove the gear shift arm fixing nut (1).



(Tightening torque: 18 - 25 N·m)

9. Take out the gear shift arm spring gasket (2).
10.Take out the gear shift arm (3).
11.Remove the transmission range sensor fixing bolts

(arrow).



(Tightening torque: 10 - 12 N·m)

12.Take out the transmission range sensor (4).

Installation

Installation is in the reverse order of removal.

RT21180470

1

3

4

2

CAUTION

 After the spring gasket of the gear shift arm is removed, use a new spring gasket during installation.
 During installation, align the hole of gear shift arm to the hole of transmission range sensor and fix them

with a proper tool.

 After installation, inspect the gear shift lever position. Adjust the gear shift cable as necessary.
