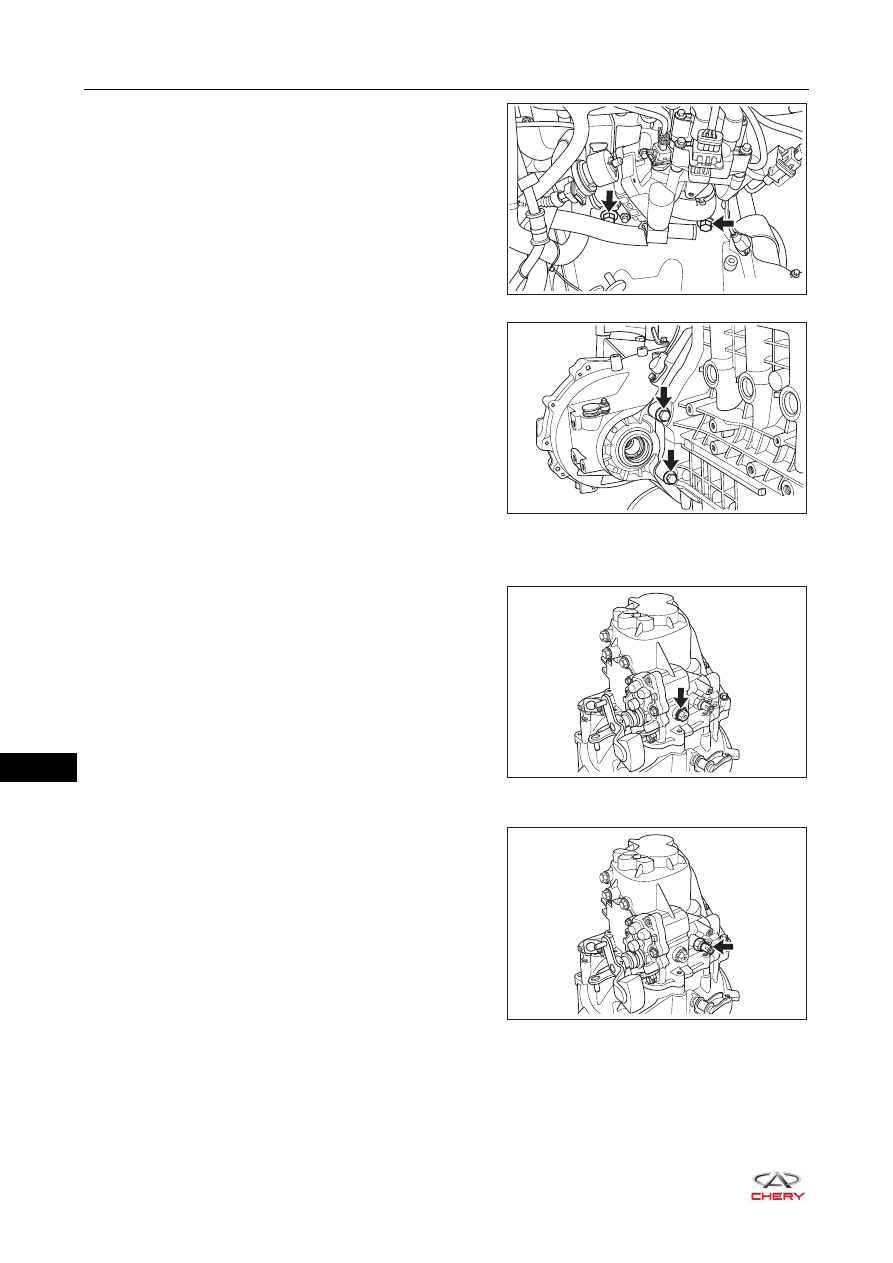

c. Remove the transmission upper coupling bolts.



(Tightening torque: 60 ± 5 N·m)

d. Remove the coupling bolts from engine side and pull

the transmission to separate it from the engine.



(Tightening torque: 60 ± 5 N·m)

Disassembly

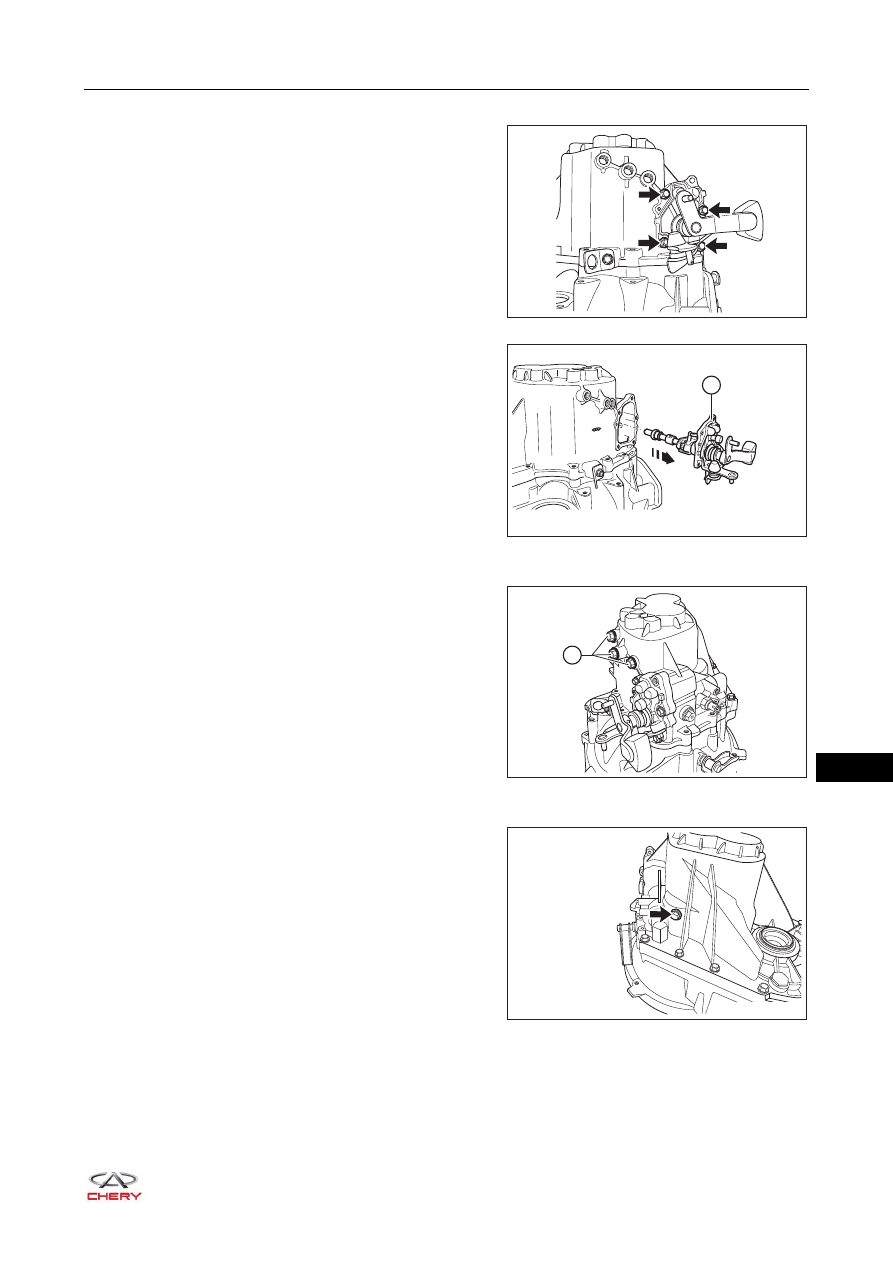

1. Remove the gear shift mechanism locating bolt.

a. Remove the gear shift mechanism locating bolt

(arrow) from transmission assembly.

2. Remove the back-up light switch.

a. Remove the back-up light switch (arrow) from

transmission assembly.

RT21170160

RT21170170

RT21170180

RT21170190

17–

23

17

3. Remove the gear shift mechanism.

a. Remove the gear shift mechanism fixing bolts (arrow).

b. Remove the gear shift mechanism (1) in the direction

of arrow.

HINT:
Tap the protrusion part of gear shift mechanism case
side with a rubber hammer, as the seal gum makes
difficulty to remove gear shift mechanism.

4. Remove the shift shaft locating bolt.

a. Remove the shift shaft locating bolts (1) from

transmission assembly.

5. Remove the reverse idler gear shaft locating bolt.

a. Remove the reverse idler gear shaft locating bolt

(arrow) from transmission assembly.

RT21170200

1

RT21170210

1

RT21170220

RT21170230

17–

24

17

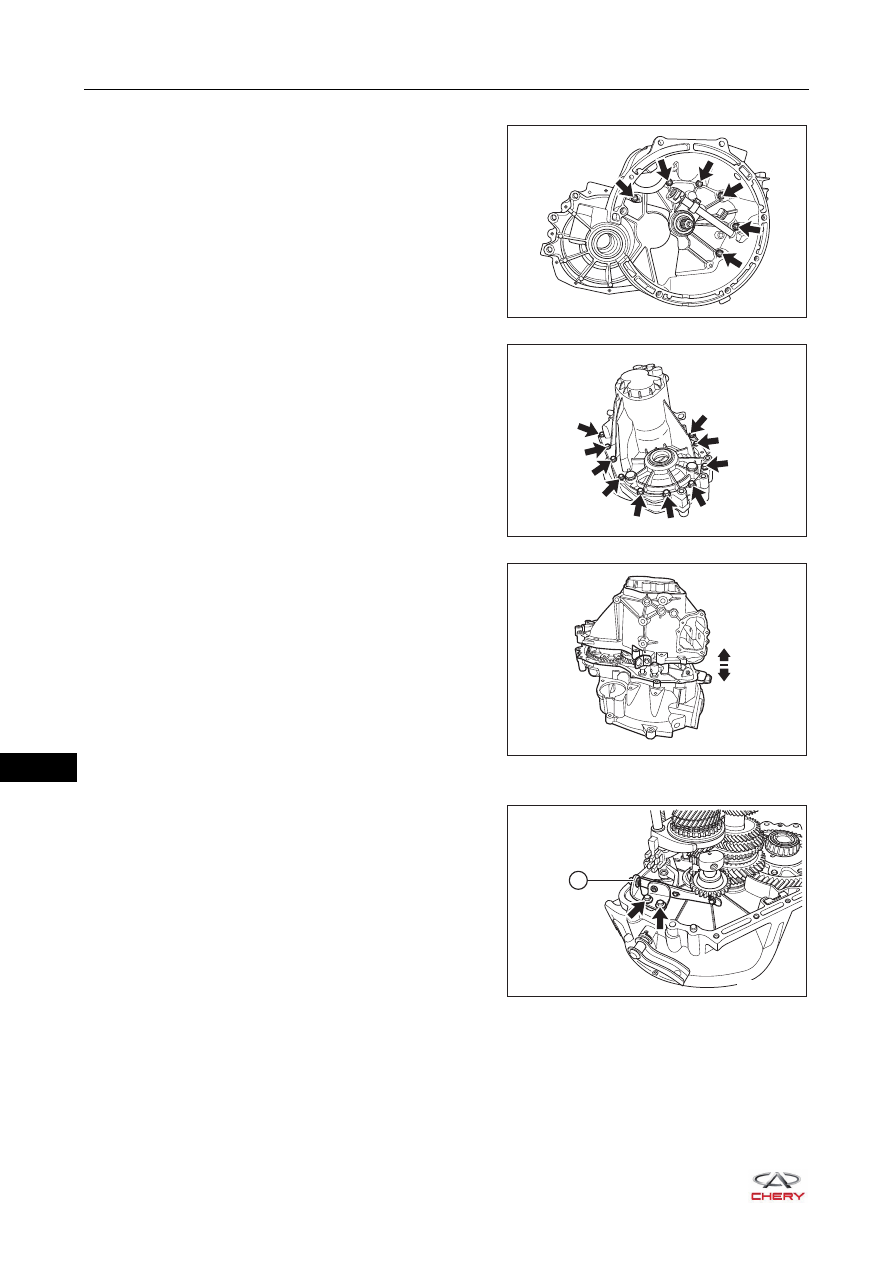

6. Remove the transmission case.

a. Remove the clutch case fixing bolts (arrow) from

transmission assembly.

b. Remove the transmission case fixing bolts (arrow)

from transmission assembly.

c. Separate the transmission case and clutch case, and

remove the transmission case.

HINT:
Tap the protrusion part of transmission case side with
a rubber hammer or equivalent for easy removal, as
the seal gum makes difficulty to remove transmission
case.

7. Remove the reverse gear fork.

a. Remove the fixing bolts (arrow) from reverse gear

fork, and remove the reverse gear fork (1).

RT21170240

RT21170250

RT21170260

1

RT21170270

17–

25

17

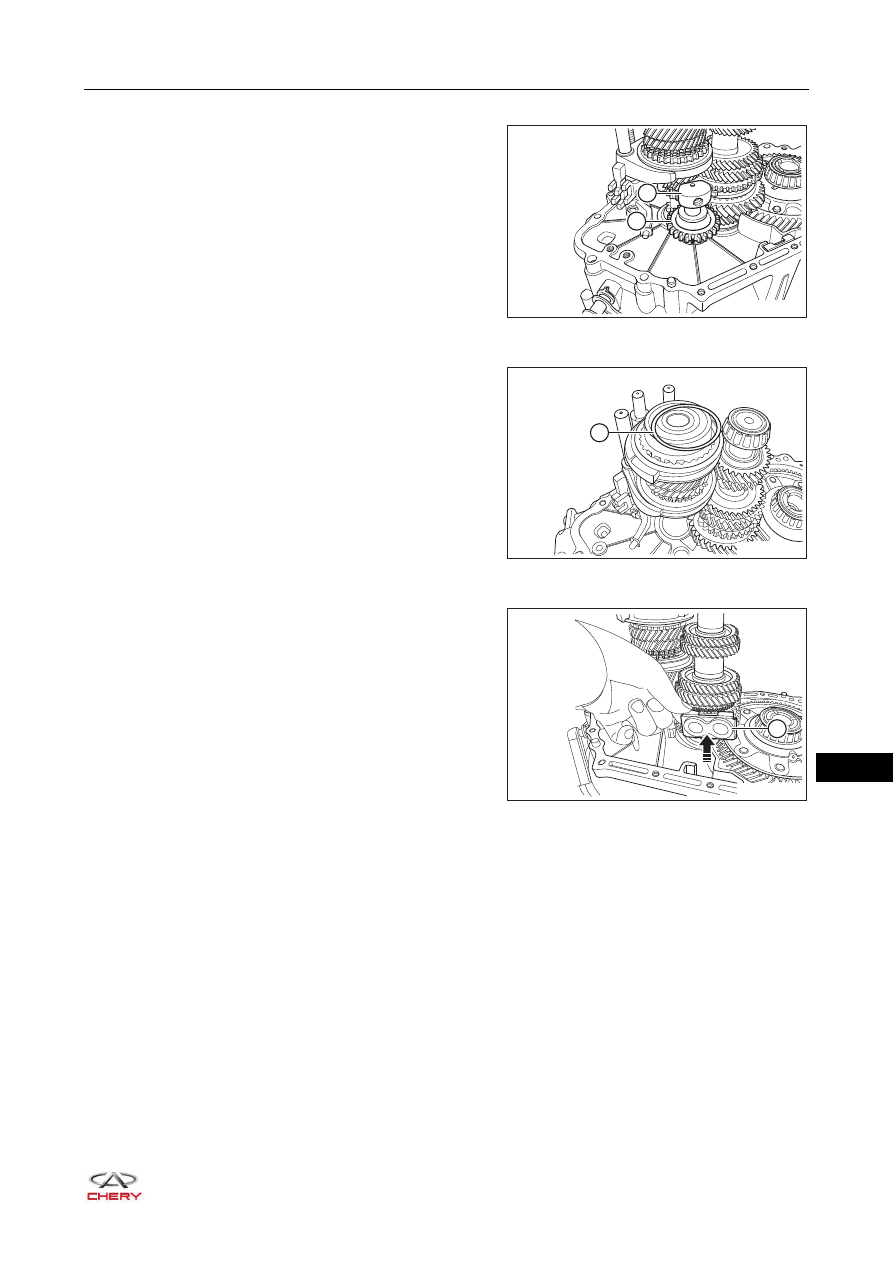

8. Remove the reverse gear shaft and reverse gear.

a. Remove the reverse gear shaft (1) and reverse gear

(2) together from clutch case.

9. Remove the input shaft rear washer.

a. Remove the input shaft rear washer (1) from input

shaft.

10.Remove the magnet.

a. Remove the magnet (1) from clutch case.

1

2

RT21170280

1

RT21170290

1

RT21170300
