Chery Tiggo 5 (T21). Manual - part 145

10–

Inspection

1. Clean and check the fitting surface between intake manifold assembly and cylinder head.

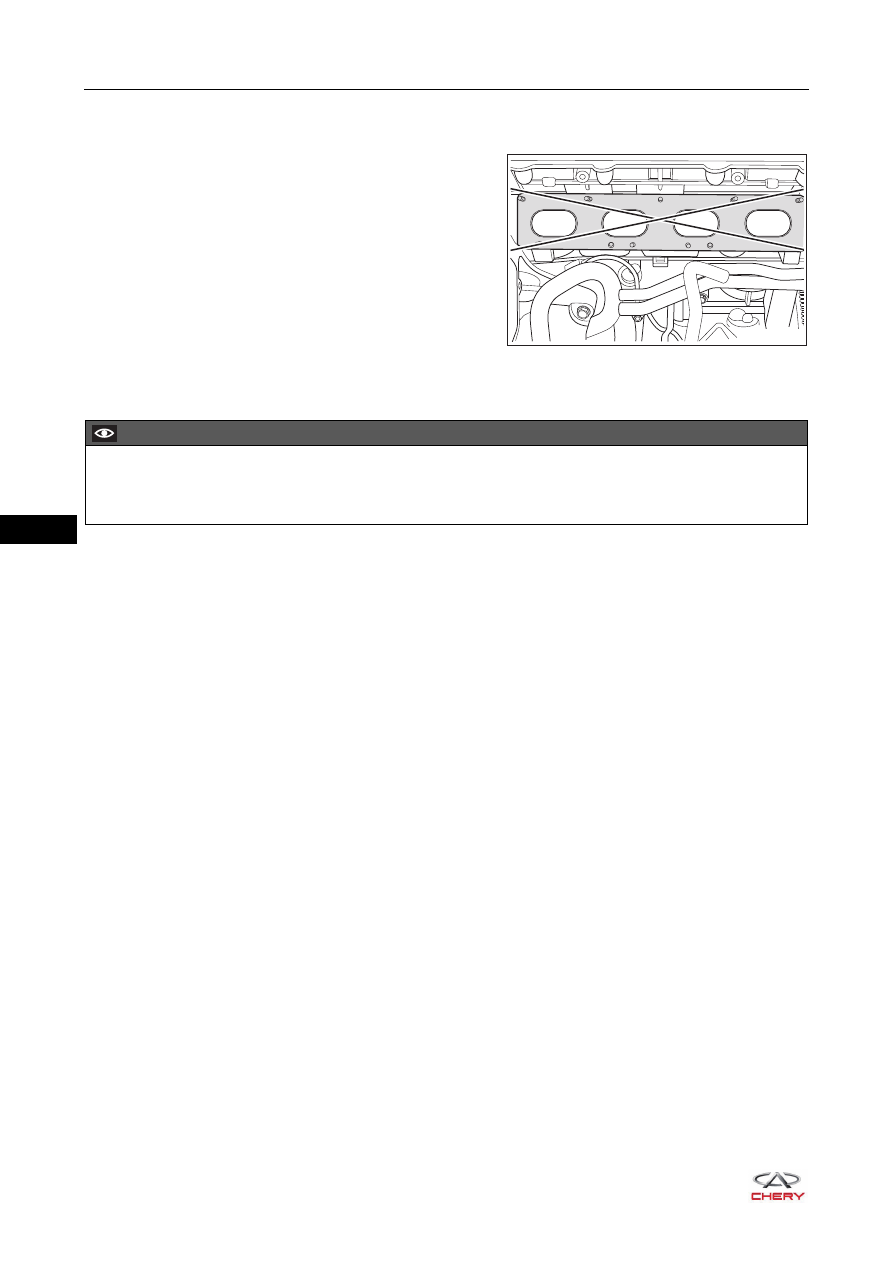

2. Measure the surface warpage of cylinder head intake

side with precision ruler and feeler gauge diagonally as
shown in the illustration. If surface warpage is more than
0.04 mm, replace the cylinder head.

Installation

Installation is in the reverse order of removal.

RT21100290

CAUTION

 Clean the inner wall of intake manifold assembly and the fitting surface.
 Replace intake manifold gasket.

10–

Electronic Accelerator Pedal

Removal

1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the electronic accelerator pedal.

a. Disconnect the electronic accelerator pedal connector

(1).

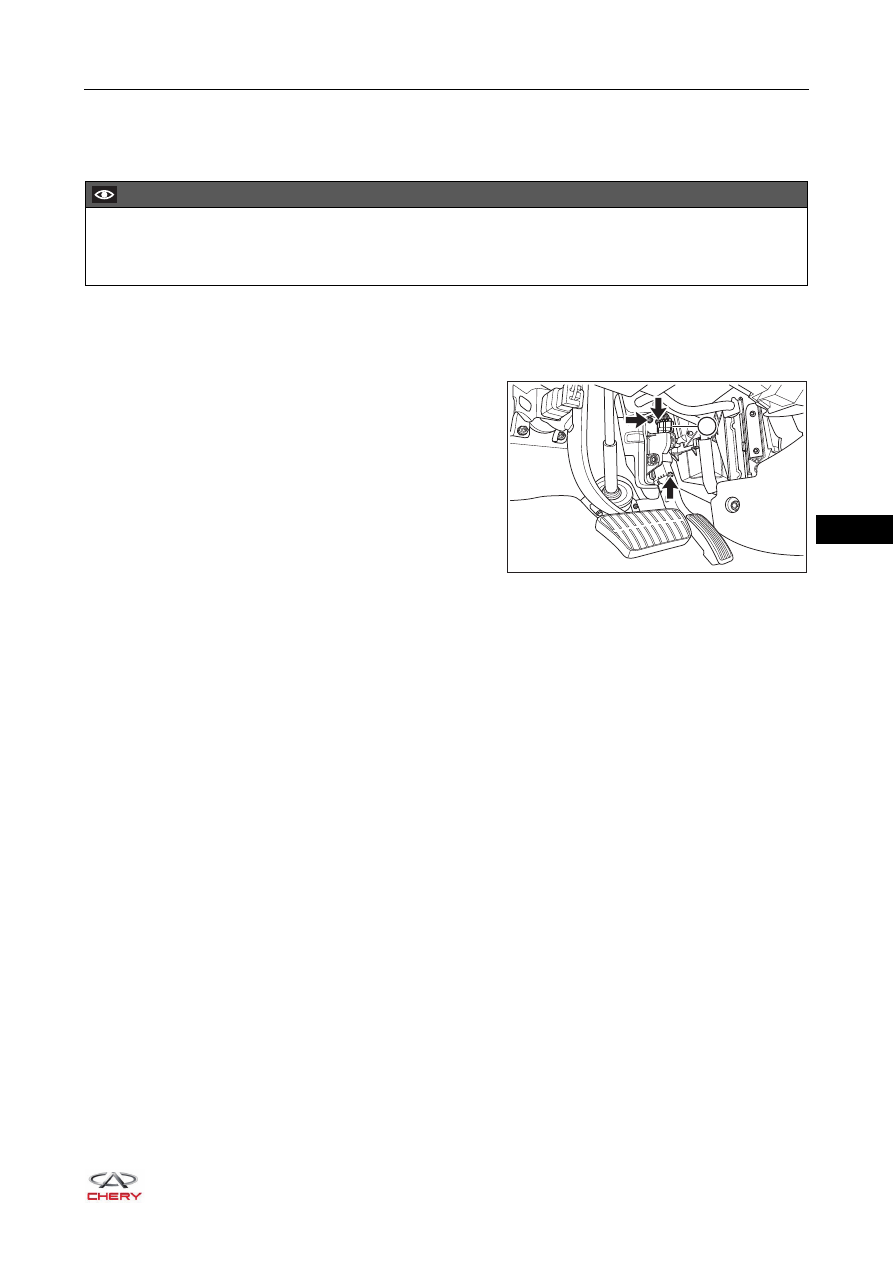

b. Remove 3 fixing bolts (arrow) from the electronic

accelerator pedal.



(Tightening torque: 10 ± 2 N·m)

c. Remove the electronic accelerator pedal.

Installation

Installation is in the reverse order of removal.

CAUTION

 Be sure to wear necessary safety equipment when repairing to prevent accidents.
 Try to prevent body paint surface from being scratched during removal and installation.

RT21100300
