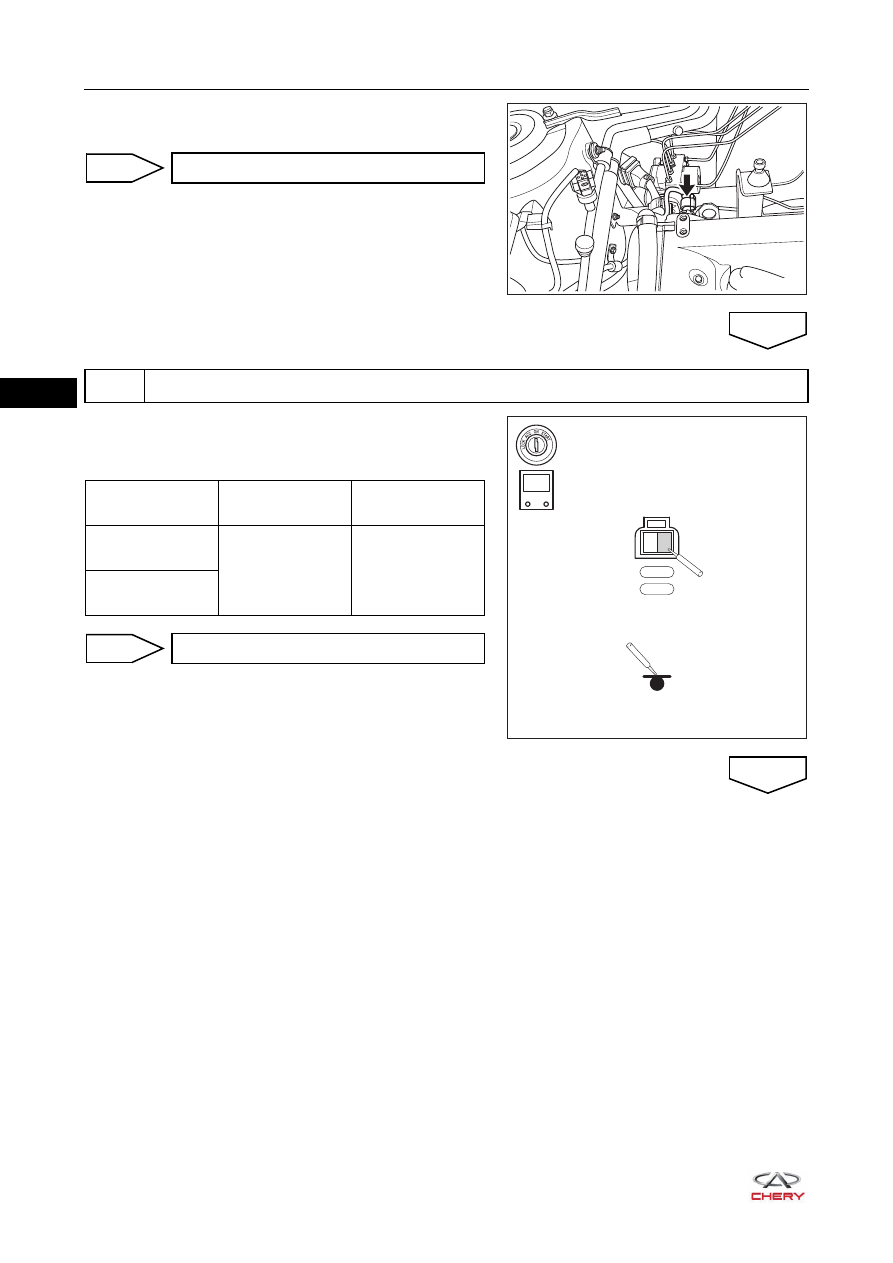

b. Disconnect exhaust VVT control valve connector E-008.
c. Check VVT control valve connectors.

a. Turn ignition switch to ON.
b. Check voltage between connector terminals and body

ground.

RT21070530

Repair or replace connector

NG

3

Check VVT control valve power supply voltage

OK

E-008

E-006

1

2

-

+

V

RT21065070

Multimeter

Connection

Condition

Specified

Condition

E-006 (1) - Body

ground

Ignition switch ON

11 to 14 V

E-008 (1) - Body

ground

Go to step 5

OK

NG

06–

195

06

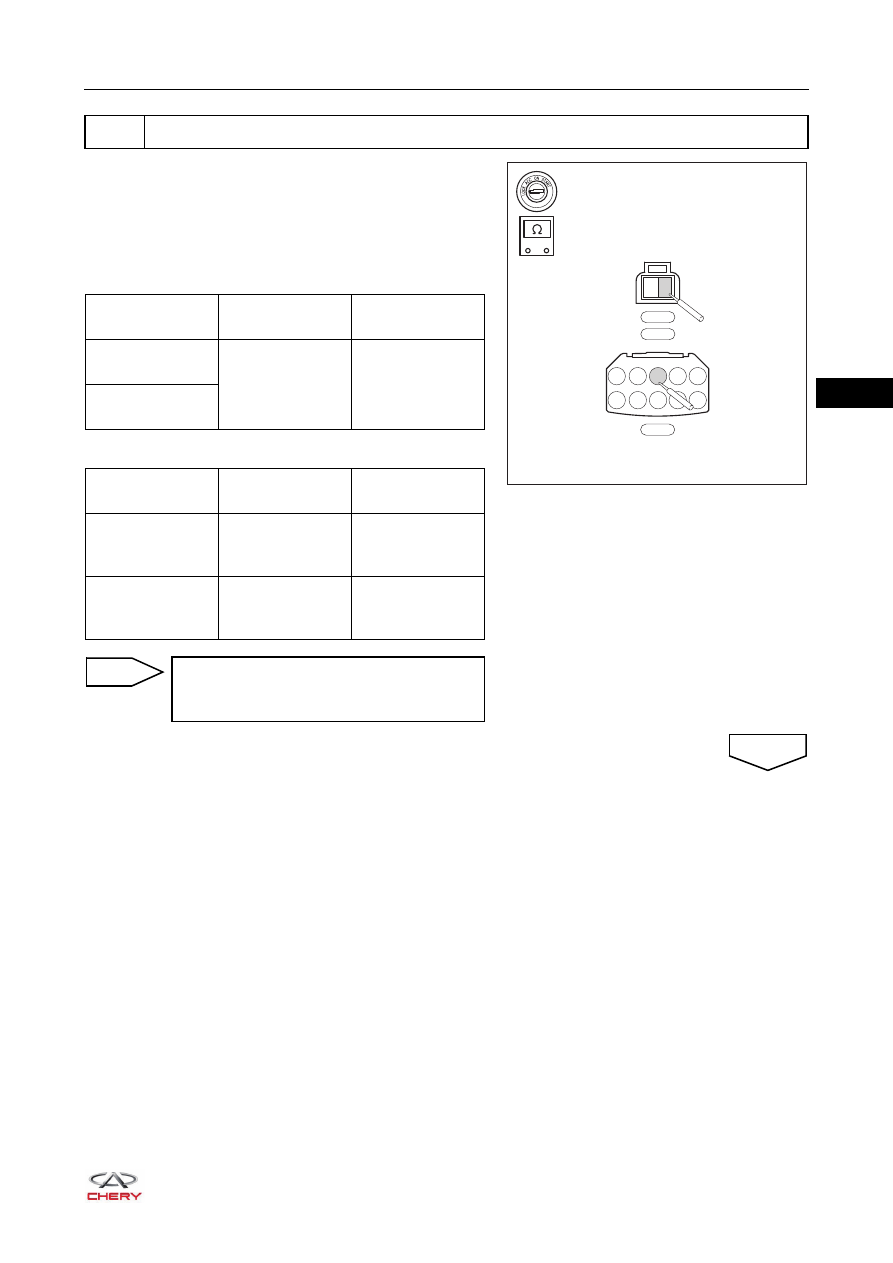

a. Turn ignition switch to LOCK.
b. Check if fuse EF08 is normal.
c. Disconnect engine compartment fuse and relay box

connector E-023.

d. Check wire harness between connector terminals.

Check for Open

Check for Short

4

Check VVT control valve power supply circuit and fuse EF08

E-008

E-006

1

2

E-023

C1

C2

C3 C4

C5

C6

C7

C8 C9 C10

-

+

RT21065071

Multimeter

Connection

Condition

Specified

Condition

E-006 (1) - E-023

(C3)

Always

Continuity

E-008 (1) - E-023

(C3)

Multimeter

Connection

Condition

Specified

Condition

E-006 (1), E-008

(1) or E-023 (C3) -

Body ground

Always

No continuity

E-006 (1), E-008

(1) or E-023 (C3) -

Battery positive

Always

No continuity

Repair or replace wire harness or
connector (VVT control valve - engine
compartment fuse and relay box)

NG

OK

06–

196

06

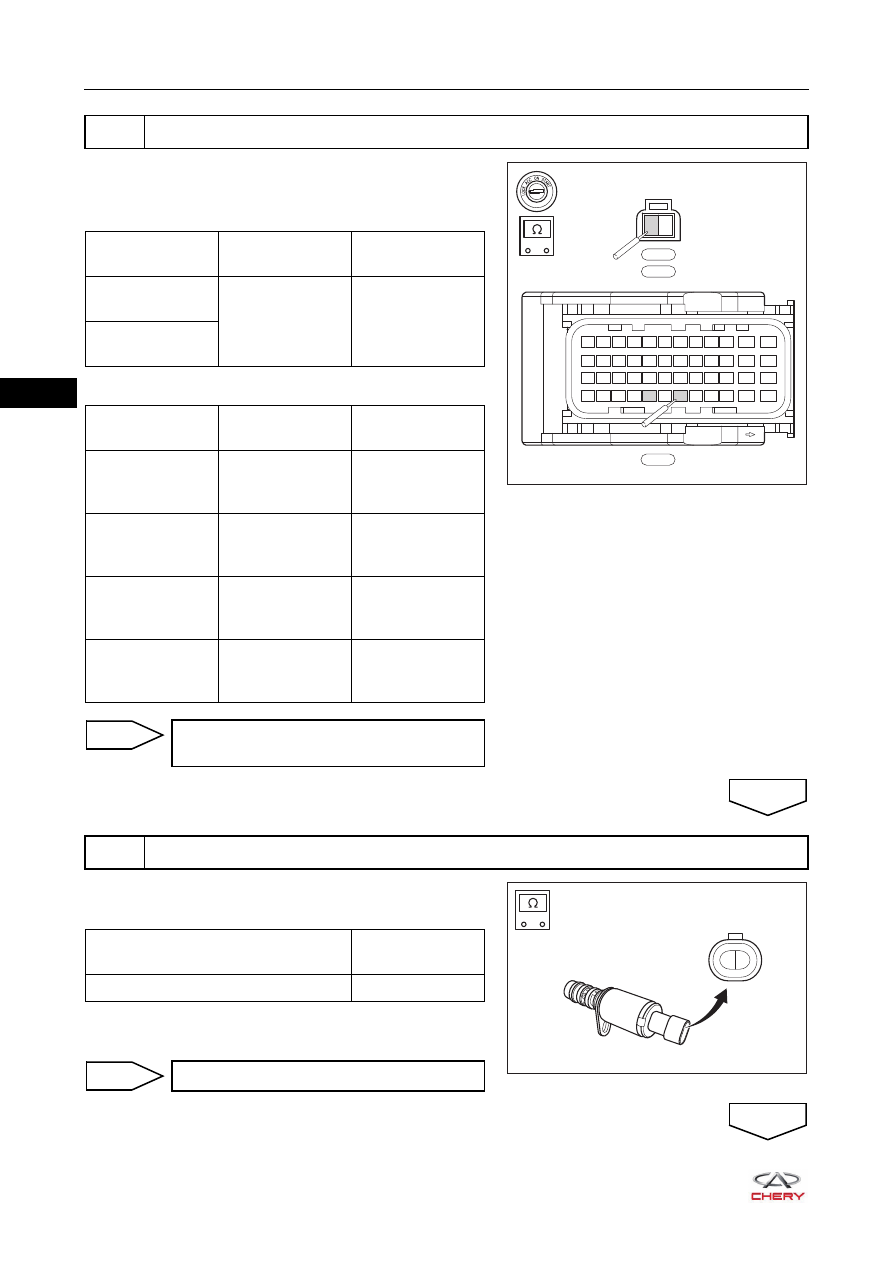

a. Disconnect ECM connector E-035.
b. Check wire harness between connector terminals.

Check for Open

Check for Short

a. Remove intake/exhaust VVT control valves.
b. Check intake/exhaust VVT control valves.

c. When battery voltage is applied between terminals 1 and

2, control valve should move quickly.

5

Check VVT control valve control circuit

E-035

37 38 39 40 41 42 43 44 45 46

47

48

25 26 27 28 29 30 31 32 33 34

35

36

13 14 15 16 17 18 19 20 21 22

23

24

1

2

3

4

5

6

7

8

9 10

11

12

-

+

RT21065072

E-008

E-006

1

2

Multimeter

Connection

Condition

Specified

Condition

E-006 (2) - E-035

(7)

Always

Continuity

E-008 (2) - E-035

(5)

Multimeter

Connection

Condition

Specified

Condition

E-006 (2) or

E-035 (7) - Body

ground

Always

No continuity

E-006 (2) or

E-035 (7) -

Battery positive

Always

No continuity

E-008 (2) or

E-035 (5) - Body

ground

Always

No continuity

E-008 (2) or

E-035 (5) -

Battery positive

Always

No continuity

Repair or replace wire harness or
connector (VVT control valve - ECM)

NG

6

Check intake/exhaust VVT control valve

OK

-

+

RT21060211

1

2

Multimeter Connection

Specified

Condition

Terminal 1 - Terminal 2

8 Ω

Replace intake/exhaust VVT control valve

NG

OK

06–

197

06

a. Use X-431 3G diagnostic tester to read the ECM DTC.
b. Refer to "DTC Confirmation Procedure".
c. Check if DTC P0010-00 or P0013-00 still exists.

7

Check for DTCs

Replace ECM

NG

System is operating normally.
Reassemble vehicle and perform a road test to confirm that malfunction reported by customer has
been repaired.
