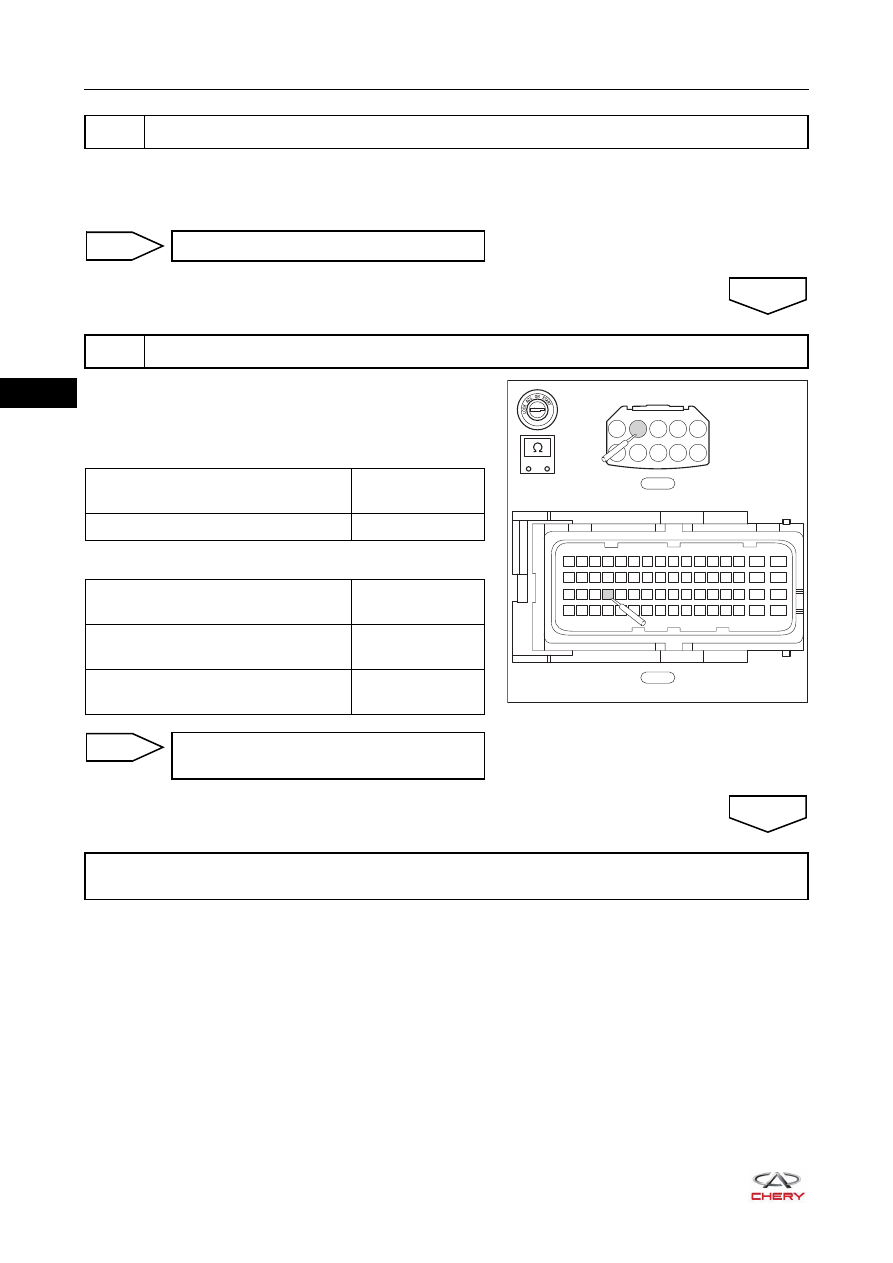

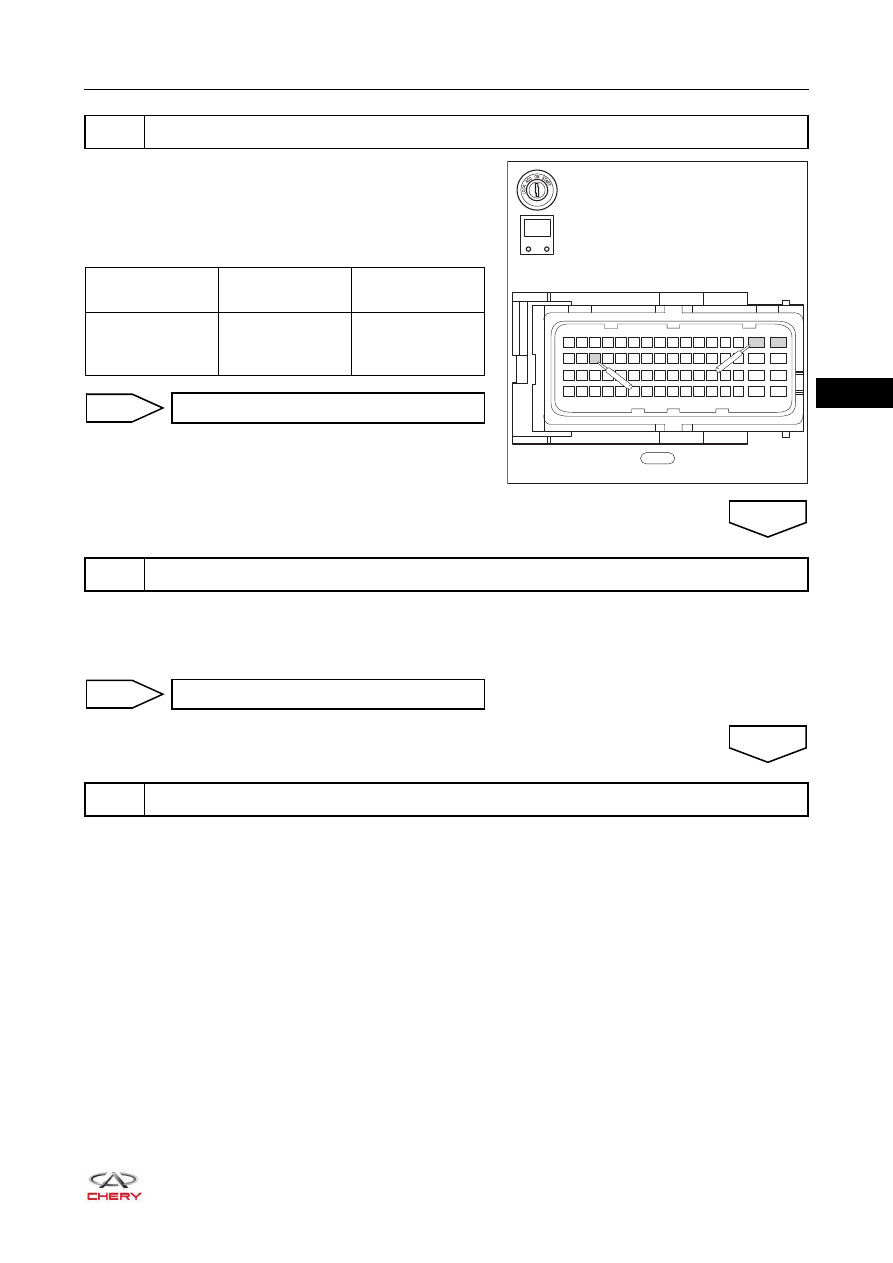

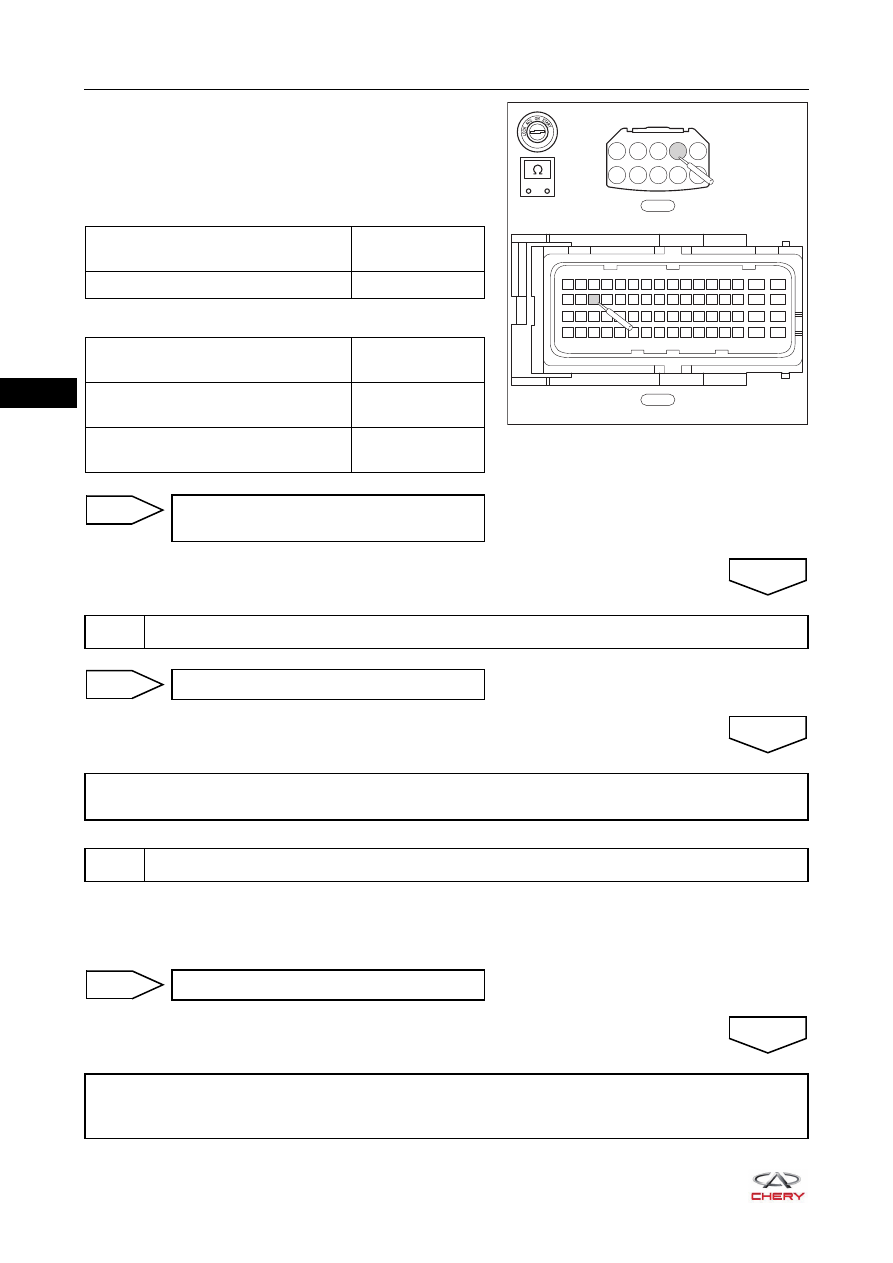

06– 142 06 a. Unplug ECM fuse EF19 (10 A) from engine compartment fuse and relay box. Standard resistance: less than 1 Ω a. Disconnect engine compartment fuse and relay box connector E-076. b. Check wire harness between connector terminals. Check for Open Check for Short 6 Check ECM fuse Replace ECM fuse NG 7 Check wire harness and connector (ECM - engine compartment fuse and relay box) OK E-076 E-033 49 50 51 63 64 15 16 31 32 47 48 33 34 35 17 18 19 1 2 3 52 53 54 55 56 57 58 59 60 61 62 36 37 38 39 40 41 42 43 44 45 46 20 21 22 23 24 25 26 27 28 29 30 4 5 6 7 8 9 10 11 12 13 14 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 - + RT21065053 Multimeter Connection Specified Condition E-033 (20) - E-076 (A2) Continuity Multimeter Connection Specified Condition E-033 (20) or E-076 (A2) - Body ground No continuity E-033 (20) or E-076 (A2) - Battery positive No continuity Repair or replace wire harness or NG Repair or replace engine compartment fuse and relay box or wire harness (engine compartment fuse OK |
