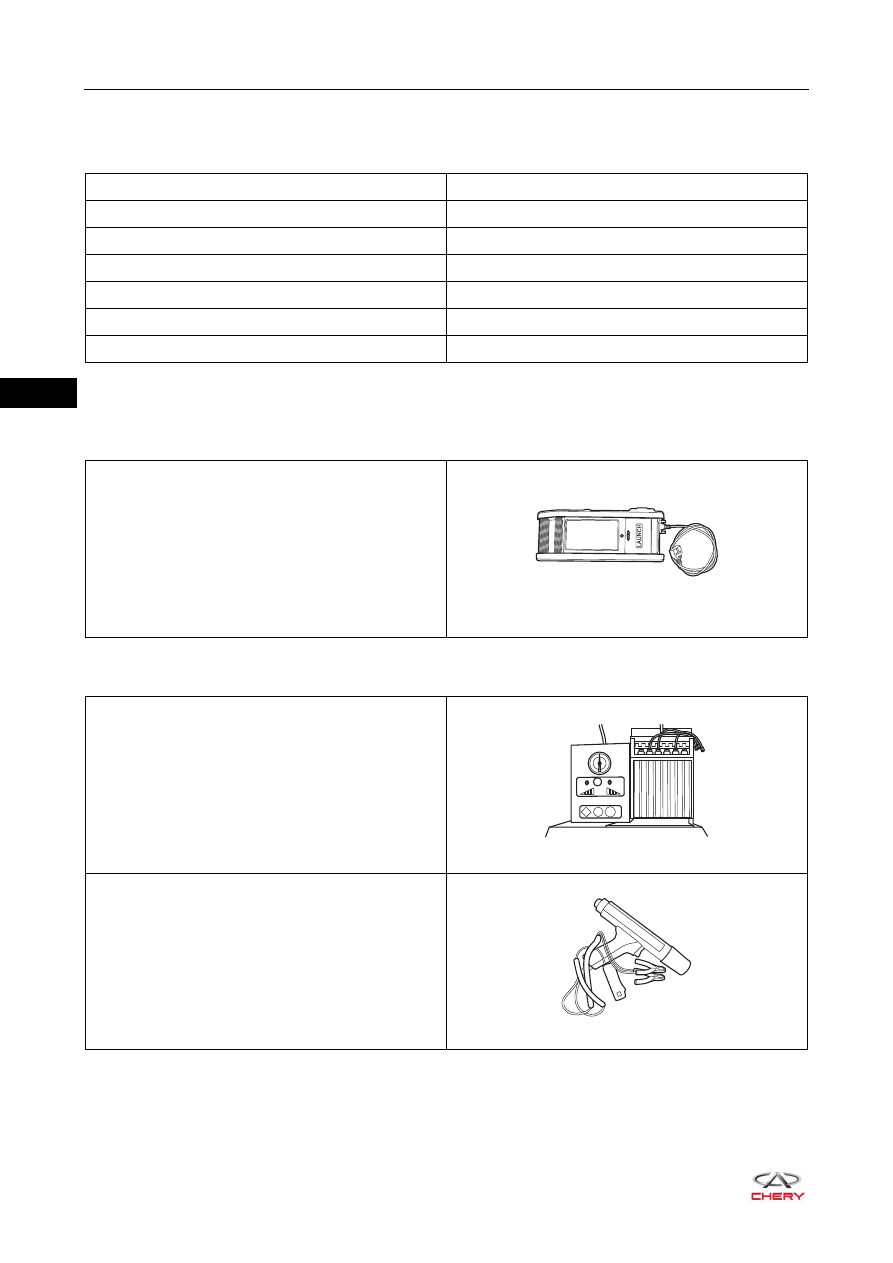

Specifications

Torque Specifications

Tools

Special Tool

General Tools

Description

Torque (N·m)

Coolant Temperature Sensor

11 - 16

Knock Sensor Fixing Bolt

20 ± 5

Engine Speed Sensor Fixing Bolt

8 ± 2

Camshaft Position Sensor Fixing Bolt

8 ± 0.5

VVT Control Valve Fixing Bolt

8 ± 2

Engine Control Module Bracket Fixing Nut

7 ± 1

X-431 3G Diagnostic Tester

RCH0000001

ཽ⪔⊳䖜

Fuel Injector Cleaning Analyzer

Ignition Timing Light

RCH0000062

RCH0000016

06–

7

06

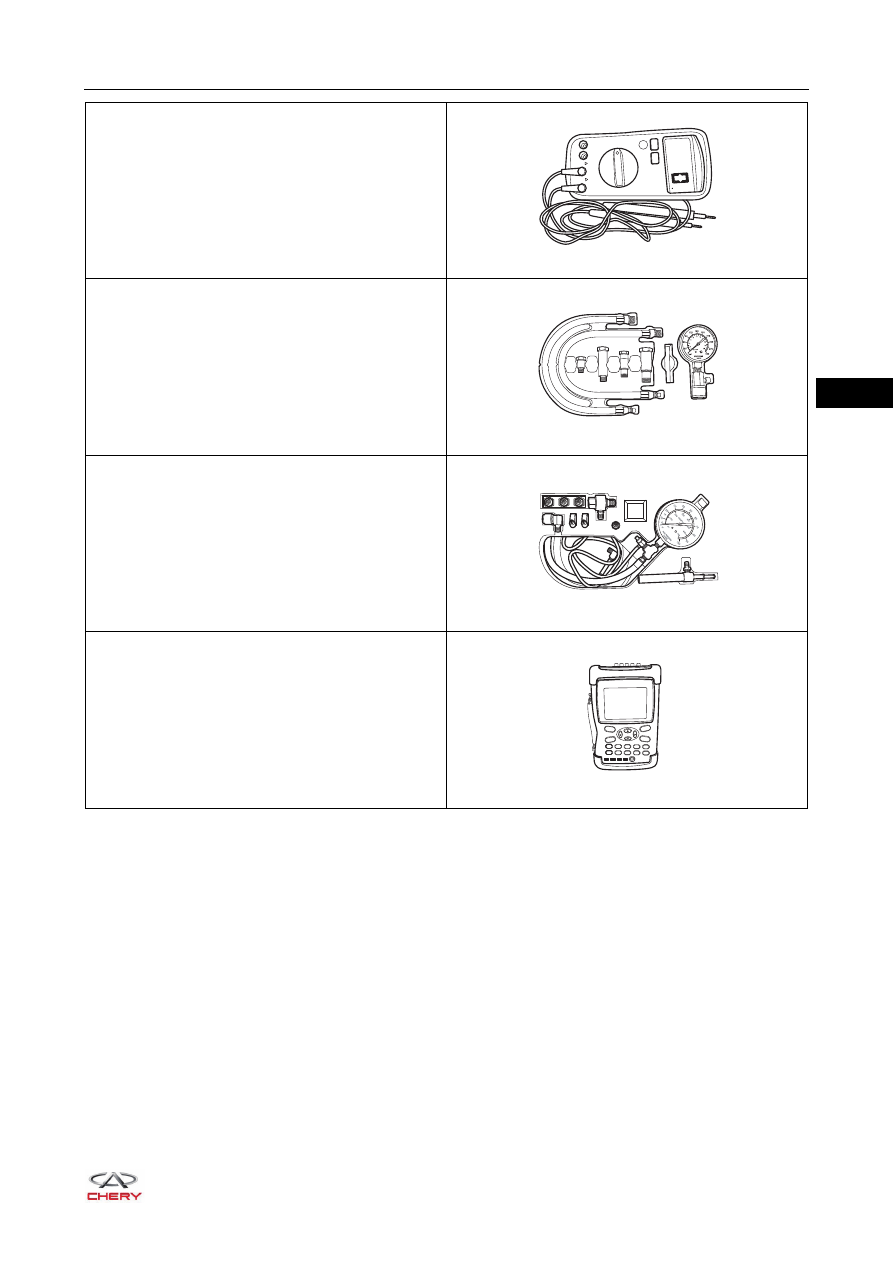

Digital Multimeter

Cylinder Pressure Gauge

Fuel Pressure Gauge

Oscilloscope

RCH0000002

RCH0000044

RCH0000048

RCH0000061

YES

ENTER

NO

ESC

5

4

3

2

0

9

8

7

6

1

06–

8

06

ECM Pin Definition

ECM connector 1

Pin No.

Definition

Pin No.

Definition

1

-

25

Knock Sensor B

2

-

26

Knock Sensor A

3

Fuel Injector (Bank 2)

27

Air Flow Meter

4

Fuel Injector (Bank 1)

28

-

5

Variable Camshaft Timing Valve
(Exhaust)

29

Camshaft Position Sensor 1 (Intake)

6

-

30

Canister Solenoid Valve

7

Variable Camshaft Timing Valve
(Intake)

31

Sensor Ground

8

Fuel Injector (Bank 3)

32

Engine Speed Sensor A

9

Upstream Oxygen Sensor Heater

33

Engine Speed Sensor B

10

Fuel Injector (Bank 4)

34

5 V Power Supply 1

11

Throttle Actuator (+)

35

Ignition Coil Drive 2

12

-

36

Ignition Coil Drive 1

13

Throttle Position Sensor 1

37

Engine Coolant Temperature Sensor

14

Throttle Position Sensor 2

38

Intake Temperature Signal

15

-

39

-

16

Oxygen Sensor Ground

40

Upstream Oxygen Sensor

17

-

41

Camshaft Position Sensor 2
(Exhaust)

18

-

42

-

19

-

43

Throttle 5 V Power Supply

20

Ground

44

-

21

Air Flow Meter Ground

45

5 V Power Supply

22

Throttle Ground

46

-

23

Throttle Actuator (-)

47

ECU Ground 4

24

-

48

ECU Ground 3

06–

9

06

ECM connector 2

Pin No.

Definition

Pin No.

Definition

1

CAN Bus Line High

33

-

2

-

34

-

3

-

35

Ignition Switch

4

-

36

5 V Power Supply

5

Main Relay Coil

37

5 V Power Supply

6

Clutch Switch (MT)

38

-

7

Accelerator Pedal Position Sensor 1
Ground

39

-

8

-

40

-

9

-

41

Fuel Pump Relay Coil

10

-

42

A/C Compressor Relay Coil (MT)

11

-

43

Oxygen Sensor Ground

12

-

44

-

13

Ignition Switch Start (MT)

45

Electronic Accelerator Pedal Sensor 1

14

-

46

-

15

Noncontinuous Power Supply

47

Ground

16

Noncontinuous Power Supply

48

Downstream Oxygen Sensor Heater

17

CAN Bus Line Low

49

-

18

-

50

-

19

5 V Power Supply 1

51

-

20

Battery Continuous Power Supply

52

-

21

Downstream Oxygen Sensor

53

-

22

-

54

-

23

Brake Switch

55

-

24

A/C Pressure Sensor

56

Fan Control

25

Brake Light Switch

57

-

26

-

58

A/C Compressor Relay Coil (CVT)
Starter Relay Coil (MT)

27

-

59

Electronic Accelerator Pedal Sensor
2 Ground

28

A/C Switch

60

-

29

-

61

-

30

Electronic Accelerator Pedal Sensor 2

62

-

31

-

63

ECU Ground 2

32

5 V Power Supply

64

ECU Ground 1
