MIRRORS
Description

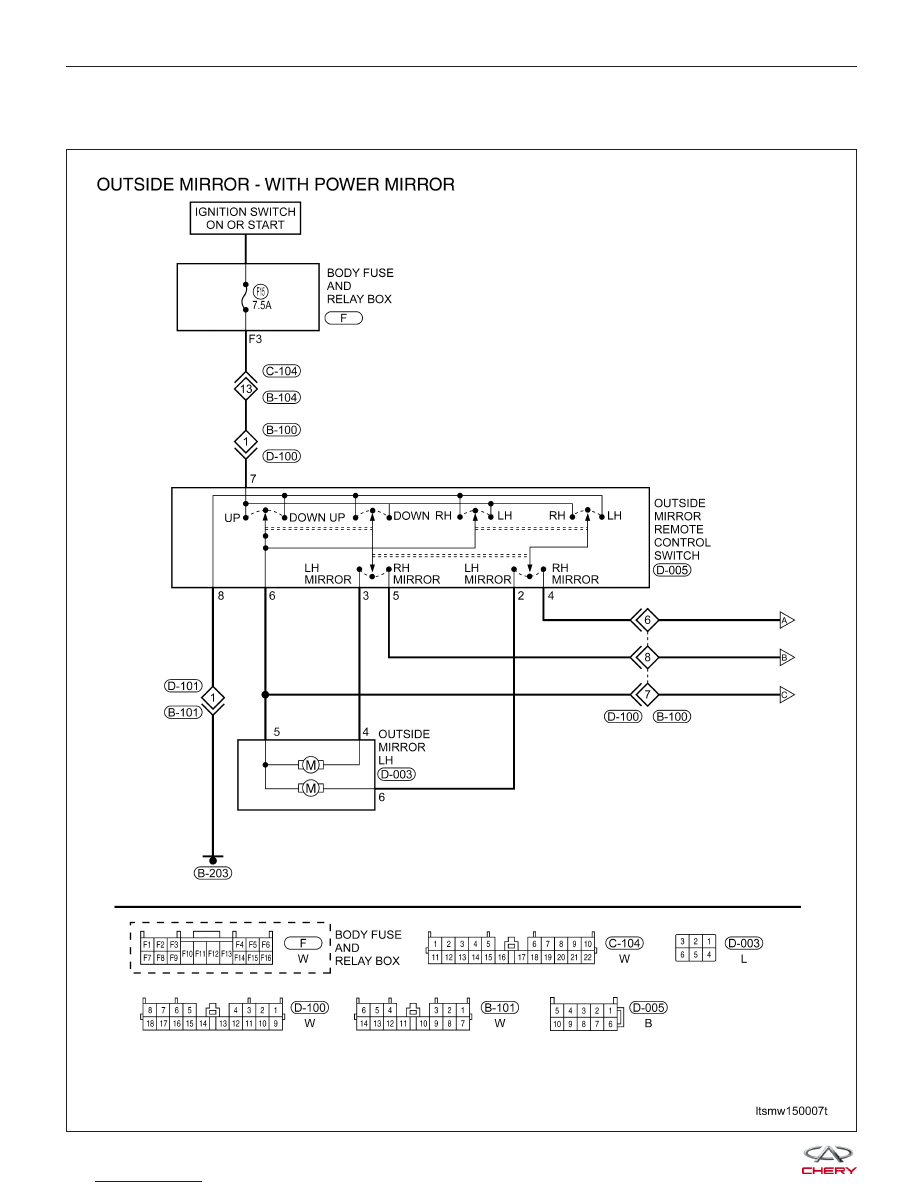

The mirrors are controlled by a single switch assembly located on the driver’s door trim panel. A three-position switch
selects the right or left power mirror for adjustment. A momentary joystick directional switch allows the driver to adjust

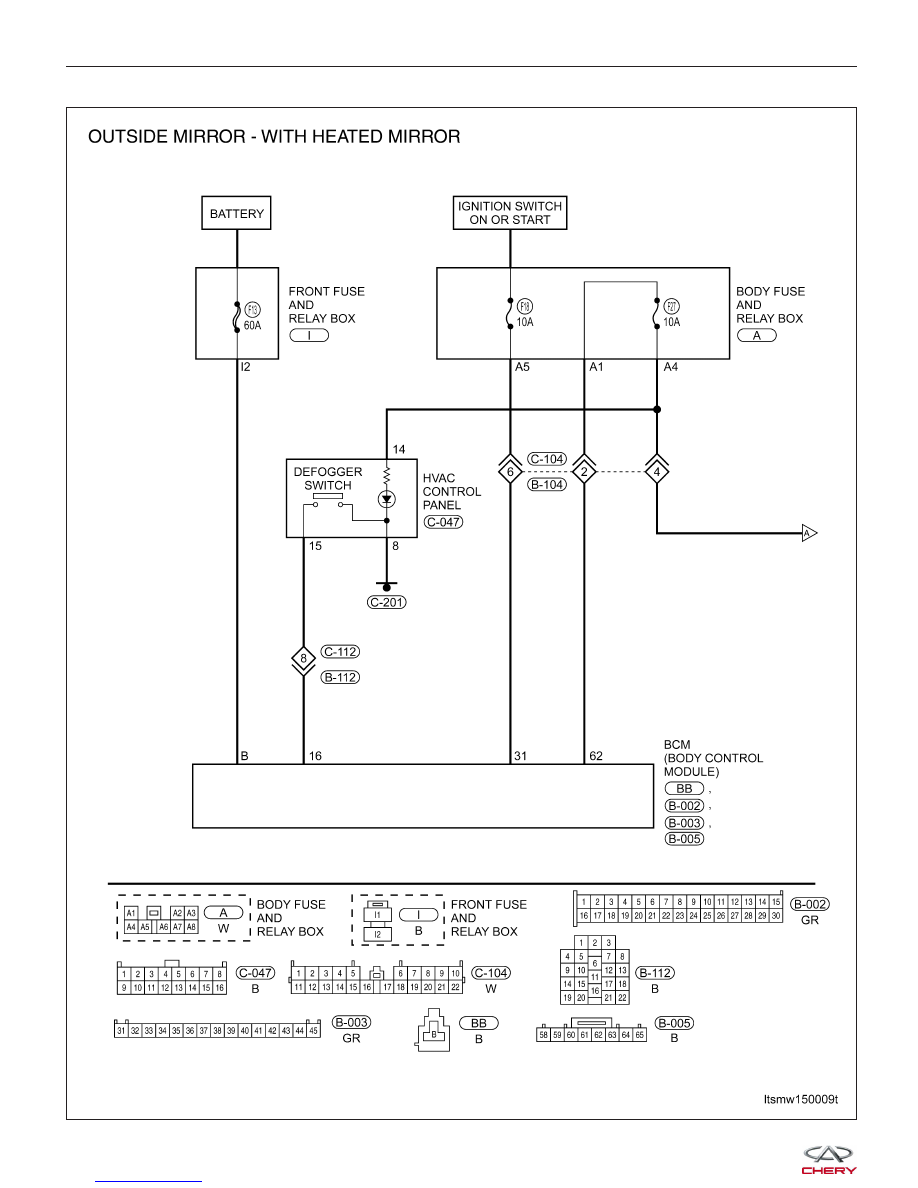

the selected power mirror in the Up & Down or Right & Left directions. The heated mirror system is controlled by the
Body Control Module (BCM). When there is water vapor on the mirrors, the heated mirrors will eliminate the water
vapor.
Operation
Use the mirror select switch, located on the driver’s door trim panel to adjust the view obtained in the outside mirrors.
Rotate the joystick for Left or Right mirror selection. Select a mirror and press the joystick that correspond with the
direction that you want the mirror to move.
