1. Disconnect the negative battery cable.

2. Drain the cooling system (See Cooling System Draining Procedure in Section 06 Cooling System).

3. Disconnect the upper radiator hose from the radiator.

4. Disconnect the lower radiator hose from the radiator.

5. Disconnect the cooling fan electrical connectors.

6. Remove the cooling fan (See Cooling Fan Removal & Installation in Section 06 Cooling).

7. Remove the automatic transaxle fluid hose connecting bolts to radiator (only with 2.0L engine).

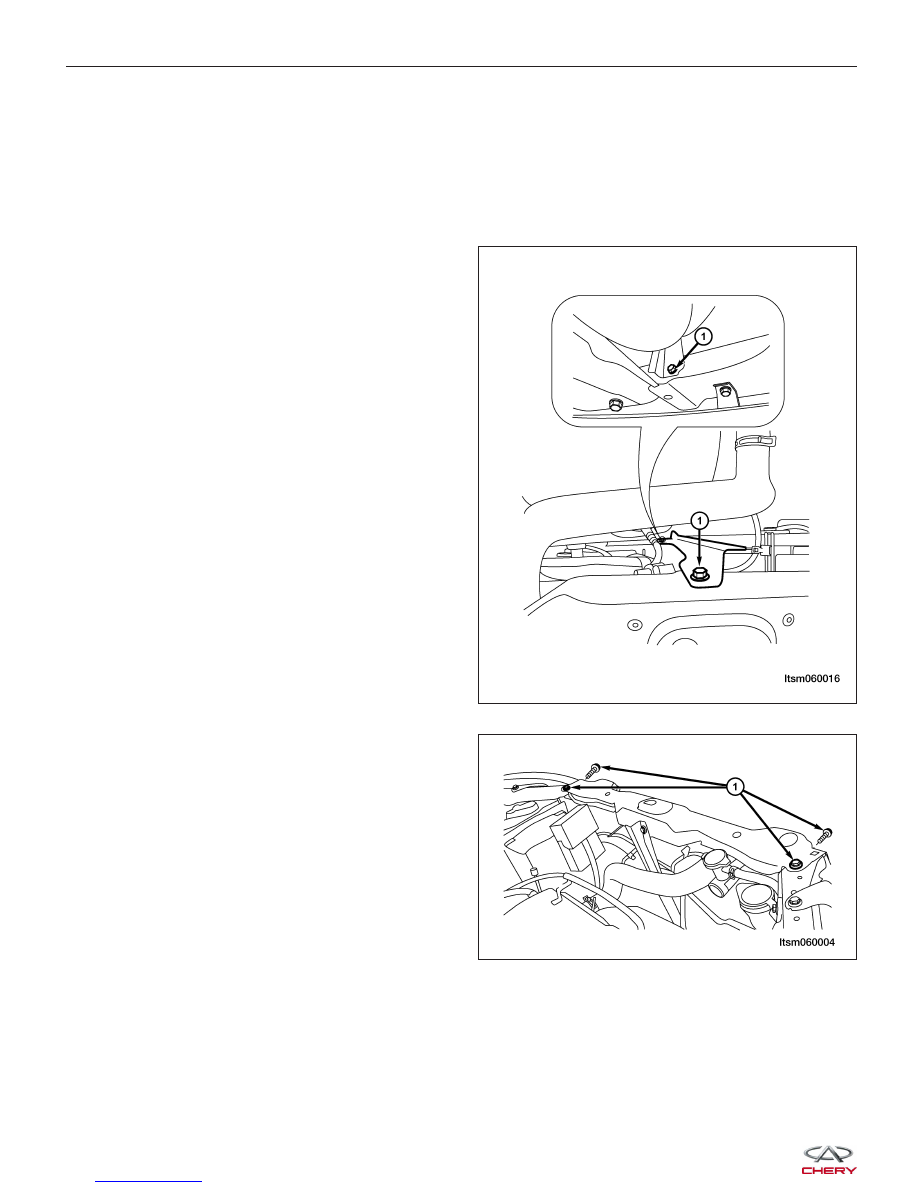

8. Remove the radiator support lever retaining bolts

(1).

9. Remove the radiator support mounting bolts (1).

(Tighten: Radiator support mounting bolts to 5 N·m)

10. Remove the radiator from the engine compartment.

11. Installation is in the reverse order of removal.

Installation Notes:
• Verify the cooling system is filled to proper

specifications.

Cooling Fan

Description

The radiator cooling fans are dual-speed electric motor driven fans. The radiator fan assembly includes two electric
motors, two five-blade fans, and a support shroud that is attached to the radiator. The radiator fans are serviced as
an assembly.

ON-VEHICLE SERVICE

LTSM060016

LTSM060004



Operation

The radiator cooling fan operation is controlled by the Engine Control Module (ECM) and the fan relays, with inputs
from the following:

• Engine coolant temperature

• Automatic transaxle fluid temperature (with DP0 transaxle)

• A/C signal
Inspect the cooling fan for proper low speed and high speed operation:

• The low speed fan should be switched on at 98°C and switched off at 94°C.

• The high speed fan should be switched on at 105°C and switched off at 101°C.

• If the water temperature is greater than 101°C after the fan is switched off, the fan will continue to operate for

1 minute.

• If the water temperature is greater than 94°C after the fan is switched off, the fan will continue to operate for

0.5 minute.

• If the water temperature is less than 85°C after the fan is switched off, the fan will stop operating.

Removal & Installation

WARNING!

Always allow the engine to cool before opening the cooling system. Do not remove the coolant pressure relief
cap when the engine is operating or the cooling system is hot. The cooling system is under pressure; steam and
hot liquid can come out forcefully when the cap is loosened slightly. Failure to follow these instructions may
result in serious personal injury.

1. Disconnect the negative battery cable.

2. Drain the cooling system (See Cooling System Draining Procedure in Section 06 Cooling System).

3. Disconnect the upper radiator hose from the radiator.

4. Disconnect the cooling fan electrical connector and the cooling fan ground cable connected to the body.

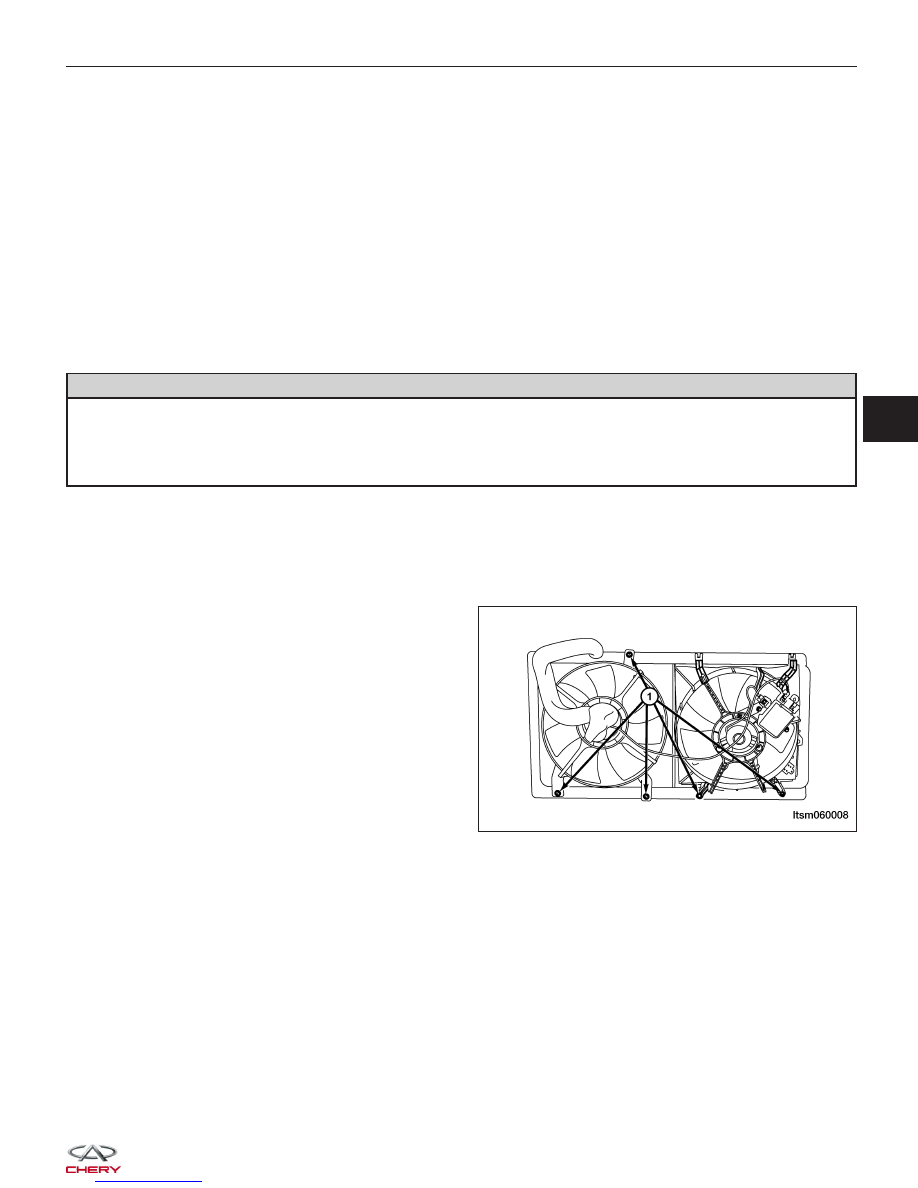

5. Remove the cooling fan mounting bolts (1) to the

radiator.
(Tighten: Cooling fan mounting bolts to 5 N·m)

6. Remove the radiator fan from the engine compartment.

7. Remove the cooling fan from its support, if necessary.

8. Installation is in the reverse order of removal.

Installation Notes:
• Verify the cooling system is filled to proper specifications.

Cooling Fan Inspection

1. Using the following table, apply battery voltage to the specified connector terminals.

2. Verify that the fan motor operates smoothly when voltage is applied.

3. If the test results are not as specified, replace the fan motor.

ON-VEHICLE SERVICE

LTSM060008

06



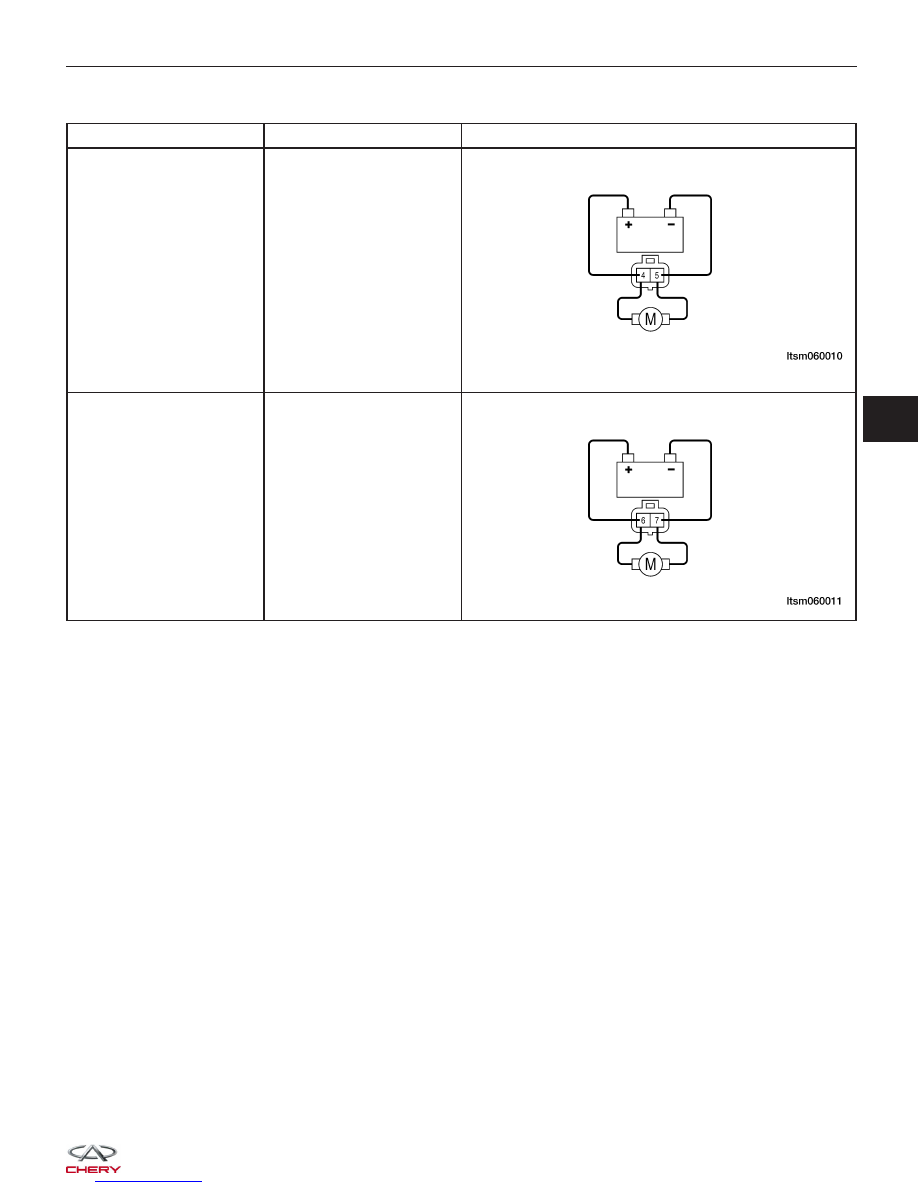

With 1.6L & 1.8L & 2.0L Engine

MEASURING CONDITION

OPERATION

INSPECTION DIAGRAM

Battery positive (+) to
terminal – 1
Battery negative (-) to
terminal – 2

Turns smoothly

Battery positive (+) to
terminal – 1
Battery negative (-) to
terminal – 2

Turns smoothly

ON-VEHICLE SERVICE



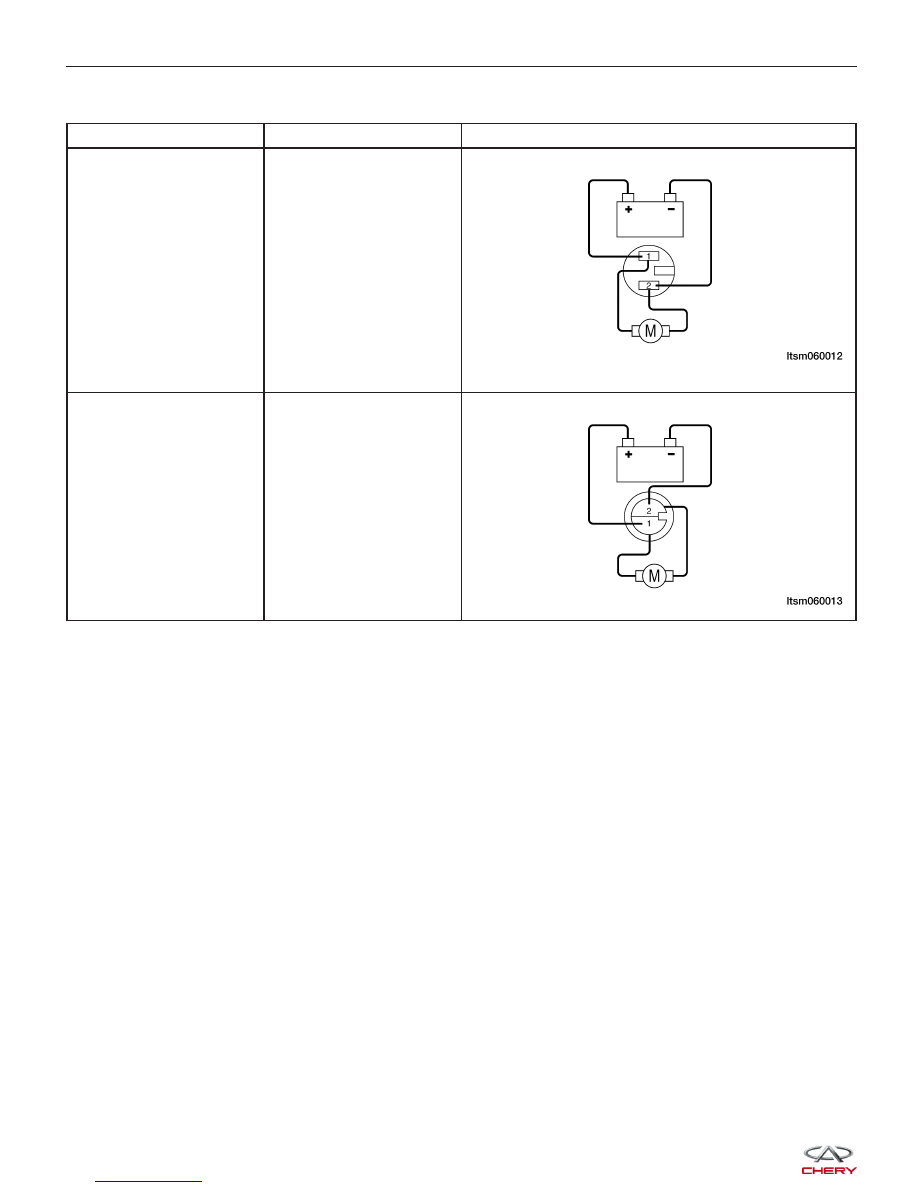

With 2.4L Engine

MEASURING CONDITION

OPERATION

INSPECTION DIAGRAM

Battery positive (+) to
terminal – 4
Battery negative (-) to
terminal – 5

Turns smoothly

Battery positive (+) to
terminal – 6
Battery negative (-) to
terminal – 7

Turns smoothly

ON-VEHICLE SERVICE
