CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual

Automatic transmission bolt tightening torque



Item N.m



Lb-Ft



Lb-In



Brake band adjusting bolt

10

-

89

Brake band lock nut

80

59

-

Bolt connecting the converter case with the housing

23

1

-

Bolt connecting the converter case with the engine

75

55

-

Connecting bolt on the odometer drive gear case

43

32

-

Bolt connecting clutch A with brake D valve plate

8

-

71

Bolt connecting the oil cooling pipe with transmission

35

26

-

Lock bolt between the oil cooling pipe and the transmission

35

26

-

Centrifugal fast mount bolt

10

-

89

Differential adjuster

7

-

62

Oil feed filter screen’s connecting bolt

8

-

71

Oil pan’s connecting bolt

10

-

89

Drain bolt of the oil pan

15

11

-

Governor’s connecting bolt

10

-

89

Grooved lock nut for back output gear

50

37

-

Bolt connecting the middle seat with the housing

10

-

89

Bolt connecting the middle seat with the oil pump

10

-

89

Auxiliary back output gear lock nut

150

110

-

Connecting bolt (Bottom valve plate)

8

-

71

Oil feed pipe fixing nut

8

11

-

Bolt connecting the bottom valve plate with main valve plate

8

-

71

Bottom valve plate exterior compression plate’s connecting bolt

40

-

71

Bottom valve plate interior compression plate’s connecting bolt

6

-

71

Neutral start switch’s connecting nut

8

30

-

Shift cable’s connecting nut

6

-

53

Shift cable’s adjusting bolt and lock nut

8

-

71

Shift cable and positioning rack’s fixing nut

10

-

53

Main valve plate slide valve compression plate’s fixing bolt

20

-

71

Side cover’s connecting bolt

10

-

89

Lock nut on driven shaft bearing’s outer racer

20

15

-

Main back output gear lock bolt (before gap adjusted)

10

-

89

Main back output gear lock bolt (after gap adjusted)

20

15

-

Pawl braking spring’s positioning bolt

10

-

89

Air throttle cable cam pawl spring

10

-

89

Bolt connecting the converter with the targeted wheel

45

33

-

Bolt connecting the transmission front suspension with the engine

80

59

-

Bolt connecting the transmission front suspension with the
transmission

80 59  -

Bolt connecting the transmission front suspension with the front
suspension gasket

65 48  -

Bolt connecting the transmission left back suspension with the
vehicle body

58 43  -

Bolt connecting the left back suspension with the transmission

30

22

-

Fixing bolt at upper part of oil feed tank

20

15

-

Valve plate assembly’s connecting bolt

8

-

71

Main valve plate control valve compression plate’s fixing bolt

8

-

71

Main valve plate shuttle valve compression plate’s fixing bolt

8

-

71





6

CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual

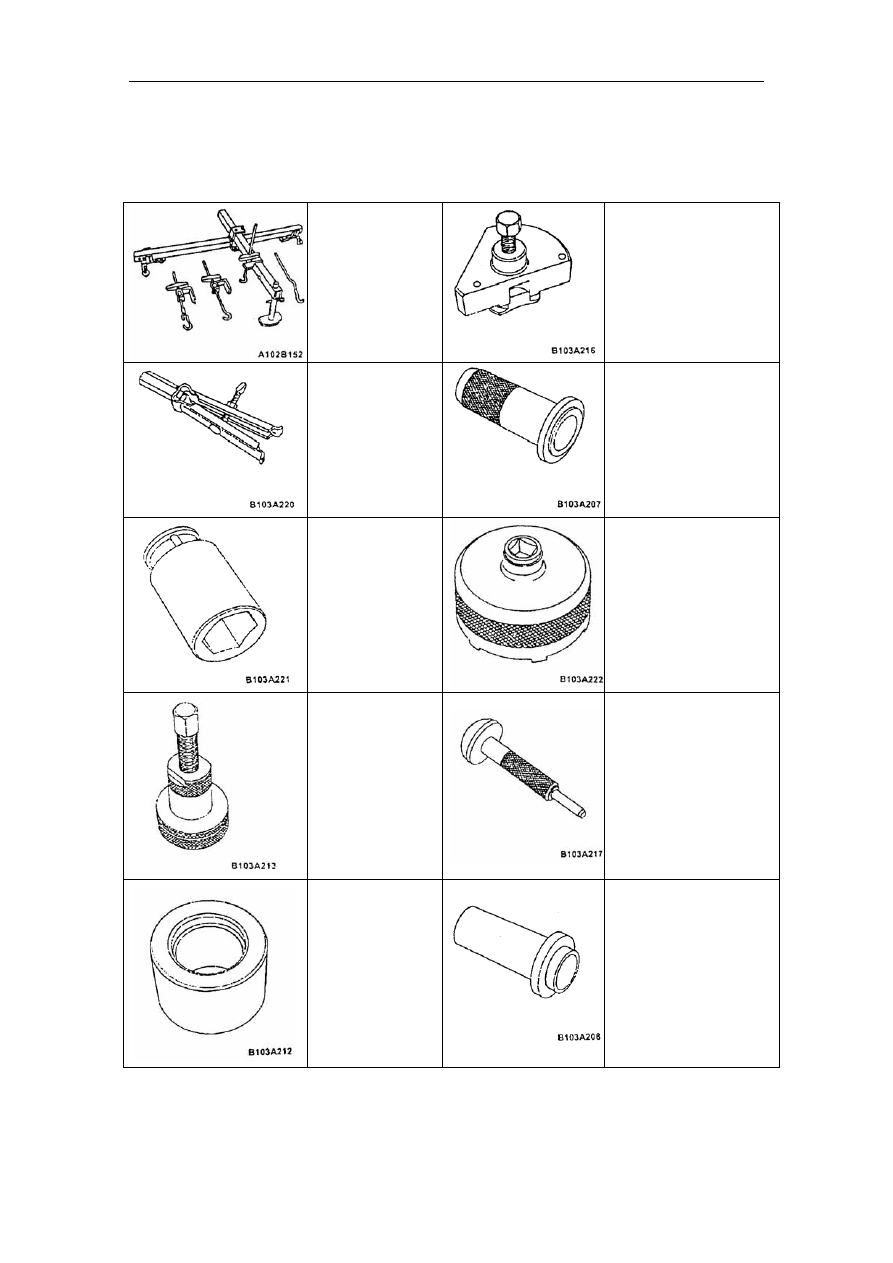

4HP14 Automatic transmission special tool



Special tool

J-28467-B

Engine hanger

KA-000-088 (KA-0888)

Differential

adjuster



J2936-1
Bearing

inner

racer remover

KA-002-111 (KA-111)
Bearing assembler



KA-001-023
(KA-232)
Bolt remover

KA-000-155 (KA-155)
Grooved  nut  remover
socket



KA-001-060
(KA-060)
Bearing remover

KA-000-187 (KA-187)
Oil sealing assembler



KA-000 232 (KA
232)
Bearing remover

KA-000-299 (KA-299)
Oil sealing assembler

7

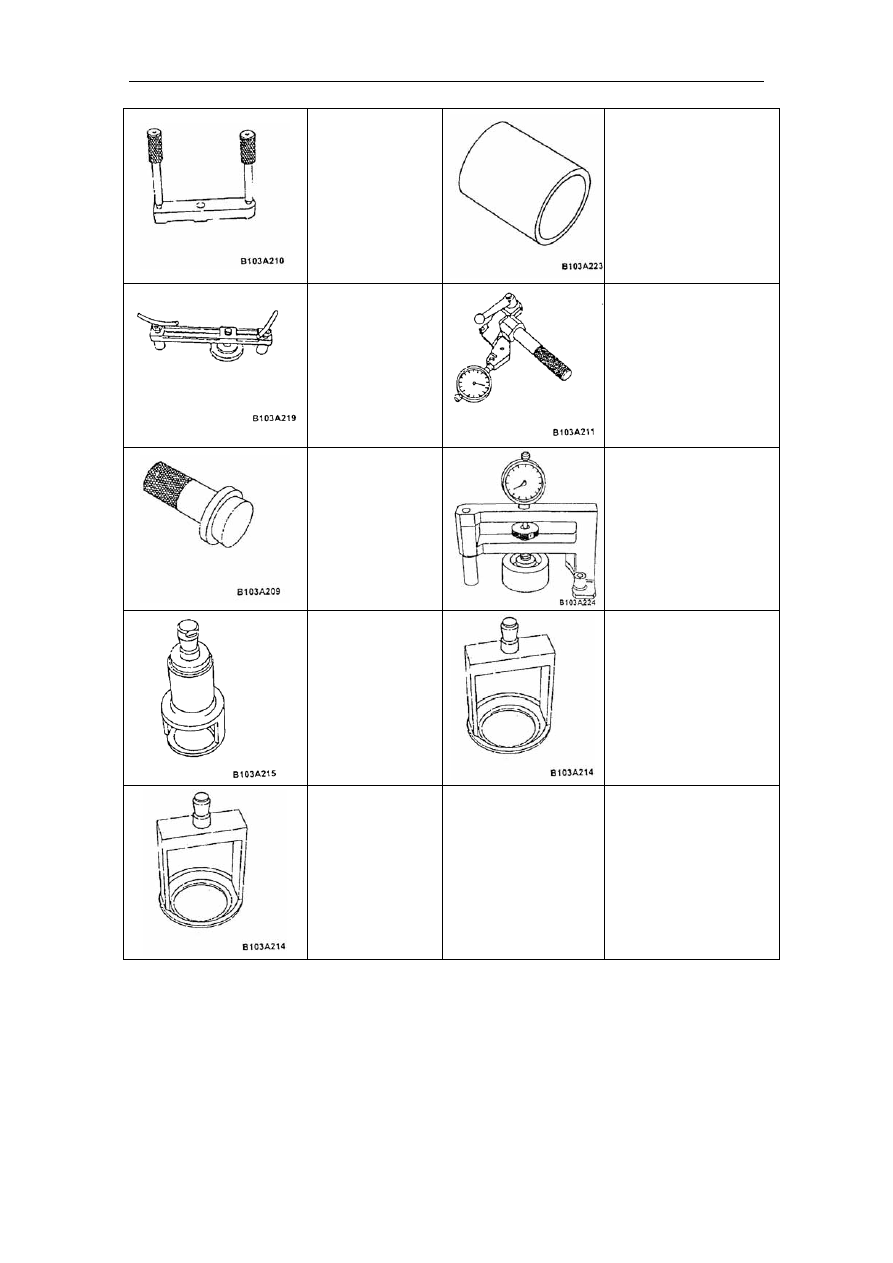

CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual



KA-000-287
(KA287)
Locator

KA-000-300 (KA300)
Bearing assembler



KA-000-288
(KA-288)
Driven

shaft

locator

KA-001-483 (KA 483)
Gap detector



KA-000-298
(KA298)
Bearing

inner

racer remover

KA-001-655 (KA 655)
Main back output gear
gap detector



KA-001-715-04
(KA-715-04)
Bearing remover

KA-000-914 (KA914)
Diaphragm

spring

compressor



KA-000-913
(KA-913)
Diaphragm
spring
compressor















8

CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual

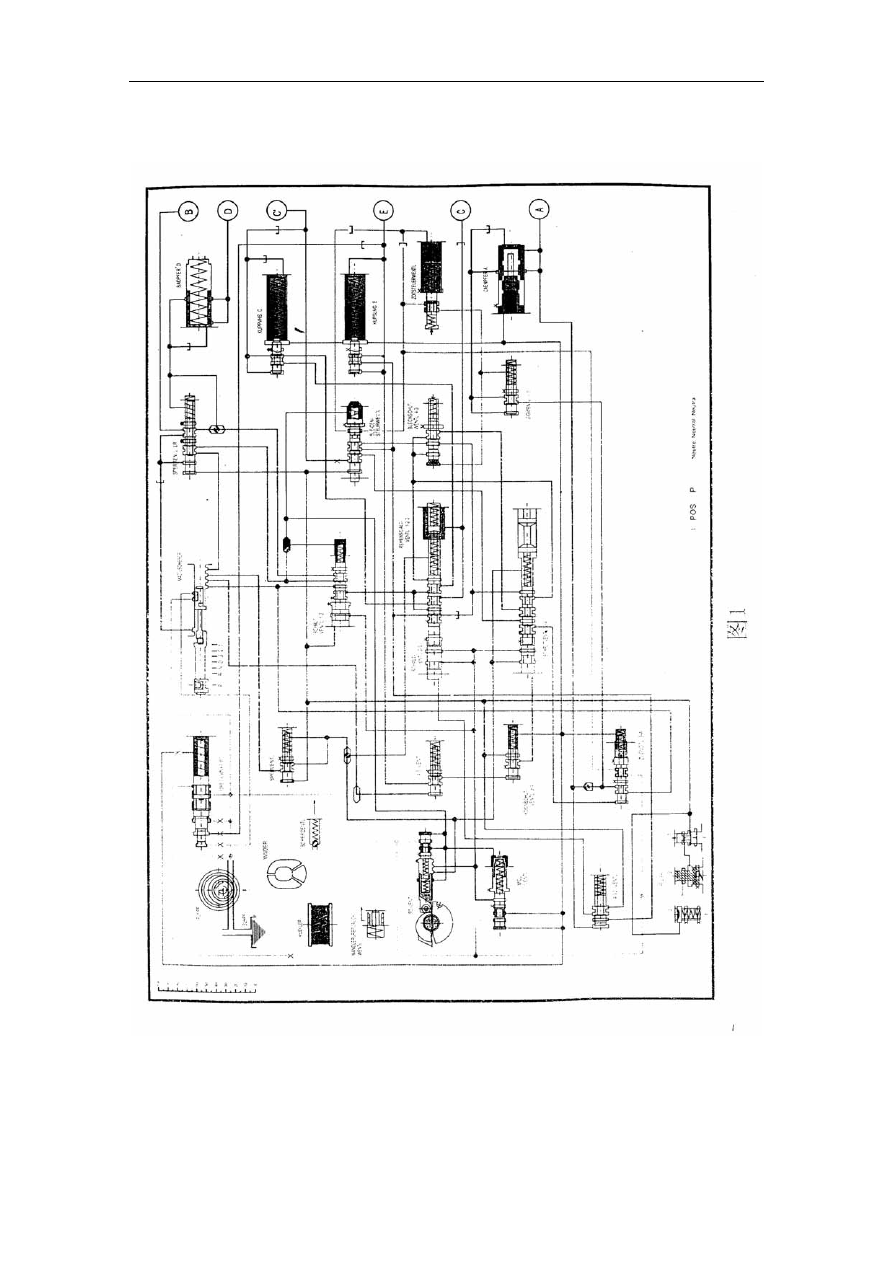

DIAGRAM 1




9
