Chery SQR 7160 sedan. Manual - part 23

CAC Gasoline Engine Maintenance And Servicing Manual

10

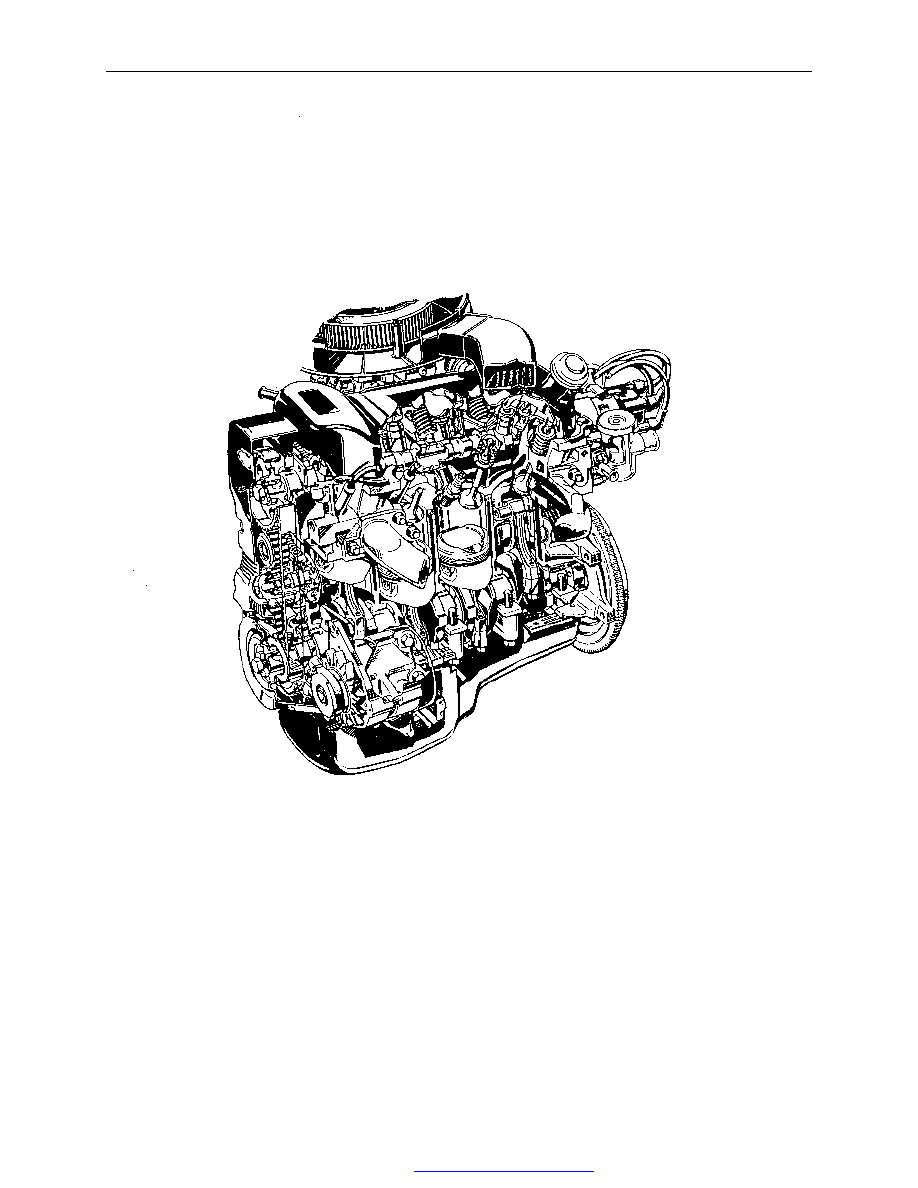

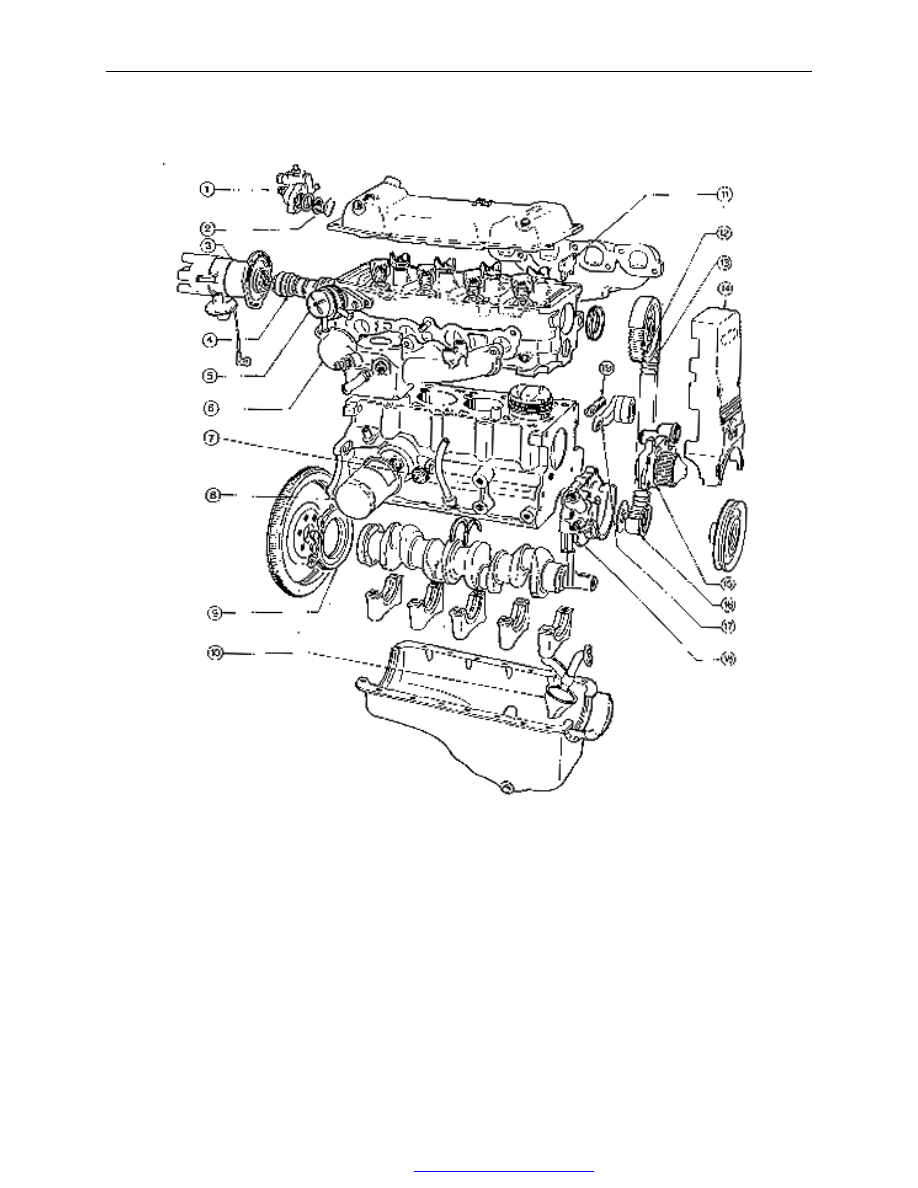

Carburetor engine exploded view

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

11



1、 temperature regulator seat assembly              11、camshaft thrust plate

2、

temperature regulator seat                              12、camshaft timing gear



3、

distribulator                                                    13、timing belt



4、

camshaft assembly                                          14、upper\ lower timing gear cap assembly



5、

fuel pump assembly                                        15、water pump assembly



6、

air intake manifold assembly                          16、camshaft timing gear



7、

fuel pressure switch                                        17、tensioner pulley assembly



8、

oil filter assembly                                            18、oil pump assembly



9、

rear oil sealing carrier assembly                      19、camshaft oil sealing



10、

oil collector assembly



PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

12



Main engine technical indexes and operation parameters





                                              CAC478C                  CAC480C            CAC480M

Type

  Line,4-cyl, four strokes, water-cooling

    ←                          ←

Cylinder bore diameter(mm)            77.24

                    79.94                      ←

Stroke(mm)

                      74.30

                    79.52                      ←

Total displacement(L)

          1.392

                    1.596                      ←

Compression ratio

                      9.5∶1                      9.75∶1                  9.75∶1

Nominal power/RPM                        54/5500

        60/5500                62/5500

(kW/r/min)(Total power)
Output maximum torque/RPM        105/3000-3500          128/3000-3500  128/3000-2500
(Nm/r/min)(Total power)
Minimum fuel consumption of
total power for external characteristic 298

                    290

            285

        (g/KW·h)
Fuel supply system                          Carburetor

←                        Single-point

electric control fuel injection

Combustion chamber shape            Wedge type              Hemisphere type    Hemisphere type

Cylinders Working Order              1-3-4-2                      ←

              ←

Direction of crankshaft rotation      Clockwise(Viewed      ←                          ←

      from the front)

Lubrication            Mechanical lubrication+Splash feed    ←

              ←

Idling speed r/min

                    850±50                      ←

            900±50

Emission(Idling)CO                      2%

                    ←

              1.2%

Weight (kg)                                    105

                    108

              108

Overall dimensions
(Length * width * highness)          670×630×650            670×630×650    620×610×650

(mm)

Ignition angle at idle
(Crankshaft angle                            7°±1°                    7°±1°

  10°±1°

，Before top dead center)
Valve timing(Crankshaft angle)
      Intake valve opened                Before top dead center18°    ←                  ←
      Intake valve closed

      After bottom dead center50      57°            ←



Exhaust valve opened



                                                      before bottom dead center 61°    60°          ←

Exhaust valve closed

After top dead center 7°              15°          ←







PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

13



Application parameters：



Lubricant(With temperature at - 10℃  or more)

                  SAE10W/30—50( grade SF)


Gasoline

                                                                              93#(SH0041) Common unleaded

Gasoline


Engine oil pressure      Idling                                                        100kPa      min
                                    2000r/min(80℃)

                              280kPa      min


Engine oil capacity (L)

                                                      3.86(New oil filter)


Oil pump pressure regulator starts to open(pressure) kPa            440±20

Engine oil filter by-pass valve starts to open (pressure) kPa        78—118

Coolant

                                                                              50%Glycol+50%Soft water(Rate

by volume)

Coolant capacity (Total)(L)                                                          8

Thermo-sister          Starts to open (Temperature)  ℃                  85—89
                                Fully open(temperature)℃                            99—102

Expansion tank pressure cap pressure kPa                                    160

Fan diameter (mm)

                                                                    280


Fan speed r/min

                                                                  Ⅰspeed 1500

Ⅱspeed 2800


Air filter

                                                                              1GD129607G
