Chery SQR 7160 sedan. Manual - part 17

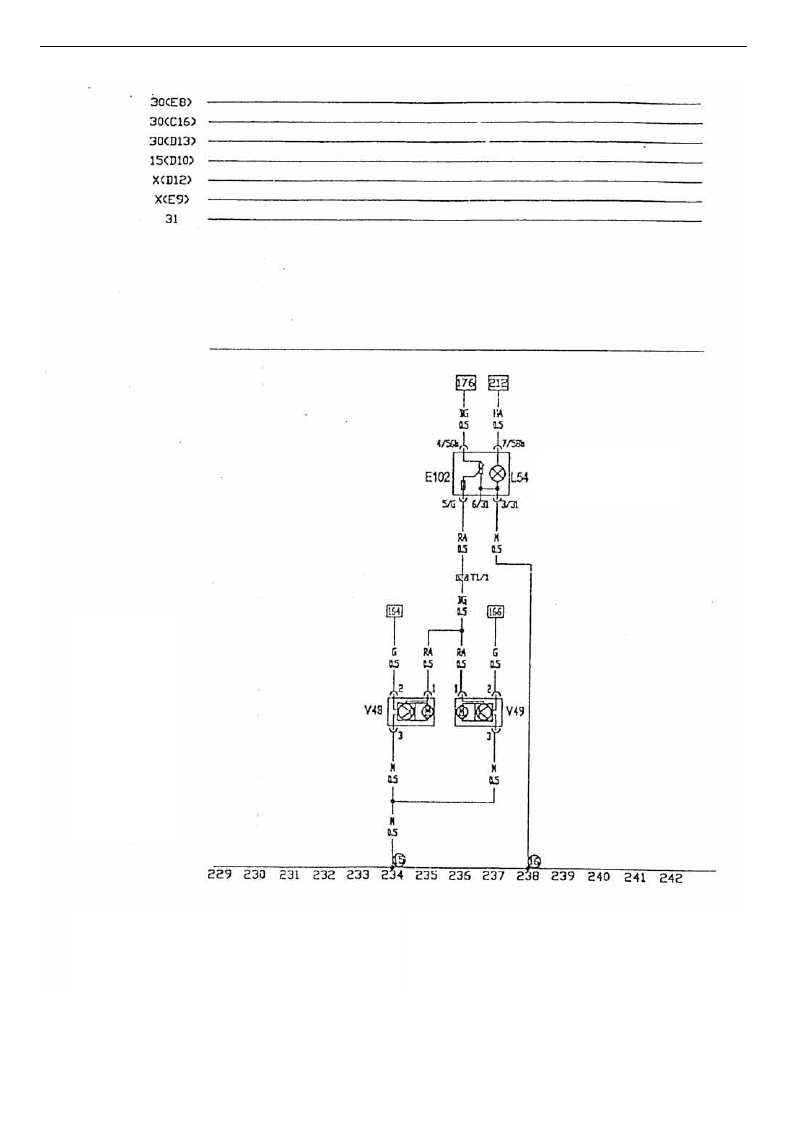

CIRCUIT

HEADLIGHT ADJUSTMENT



Light Adjustment

Illumination Light

B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

○

16   Ground, Located Beside Central Electrical Box

○

15   Ground, at headlight

T1  Single Hole Connector

E102  Headlight Height Adjustment Switch

L54   Light Adjustment Illumination Light

V48   Left Front Headlight Adjustment Motor

V49   Right Front Headlight Adjustment Motor

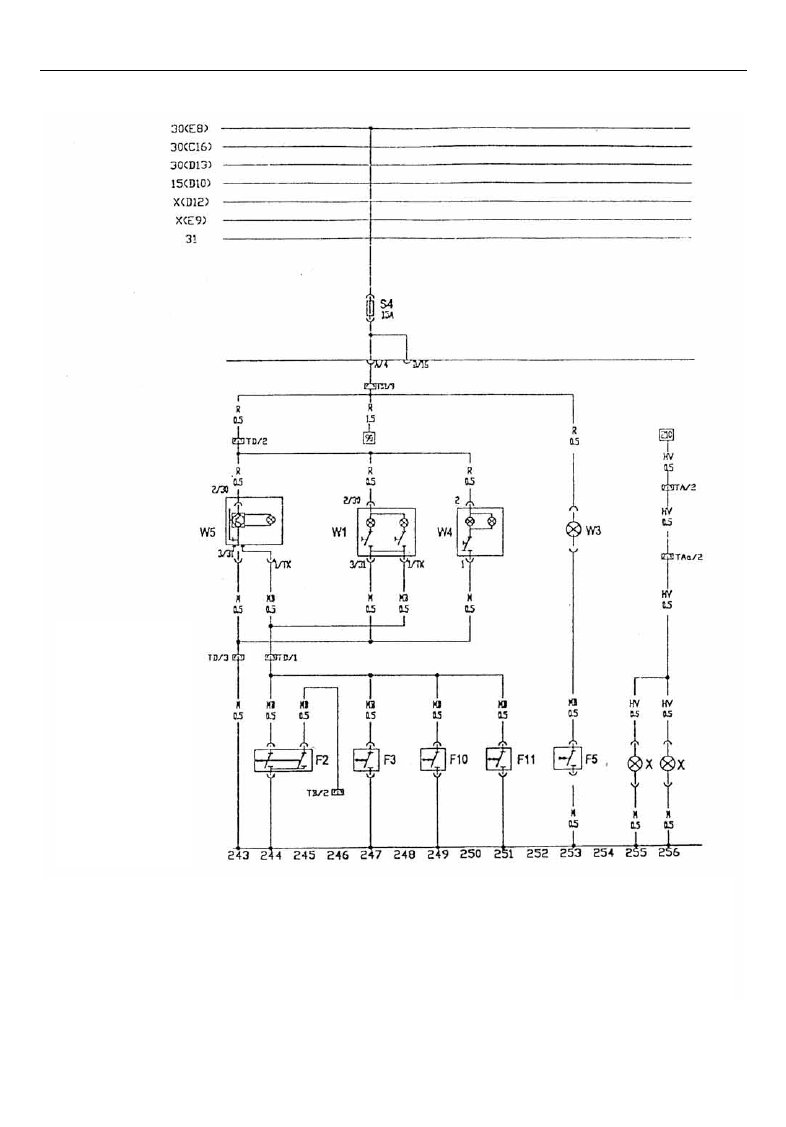

CIRCUIT



FRONT AND REAR INTERIOR LIGHT, LUGGAGE COMPARTMENT LIGHT, SUN VISOR
LIGHT, LICENSE PLATE LAMP, DOOR TOUCH SWITCH



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

F2   Left Front Door Touch Switch







  TAa  2 Holes Connector, on left side of luggage compartment

F3      Right Front Door Touch Switch                                    W1      Rear Interior Ceiling Lamp

F5   Luggage Compartment Illumination Light Switch    W3   Luggage Compartment Light

F10    Left Rear Door Touch Switch                                        W4      Sun Visor Light

F11  Right Rear Door Touch Switch                   W5   Front Interior Ceiling Lamp With Delay Close

T8      2 Holes Connector                                                          X        License Plate Lamp

TD   4 Holes Connector

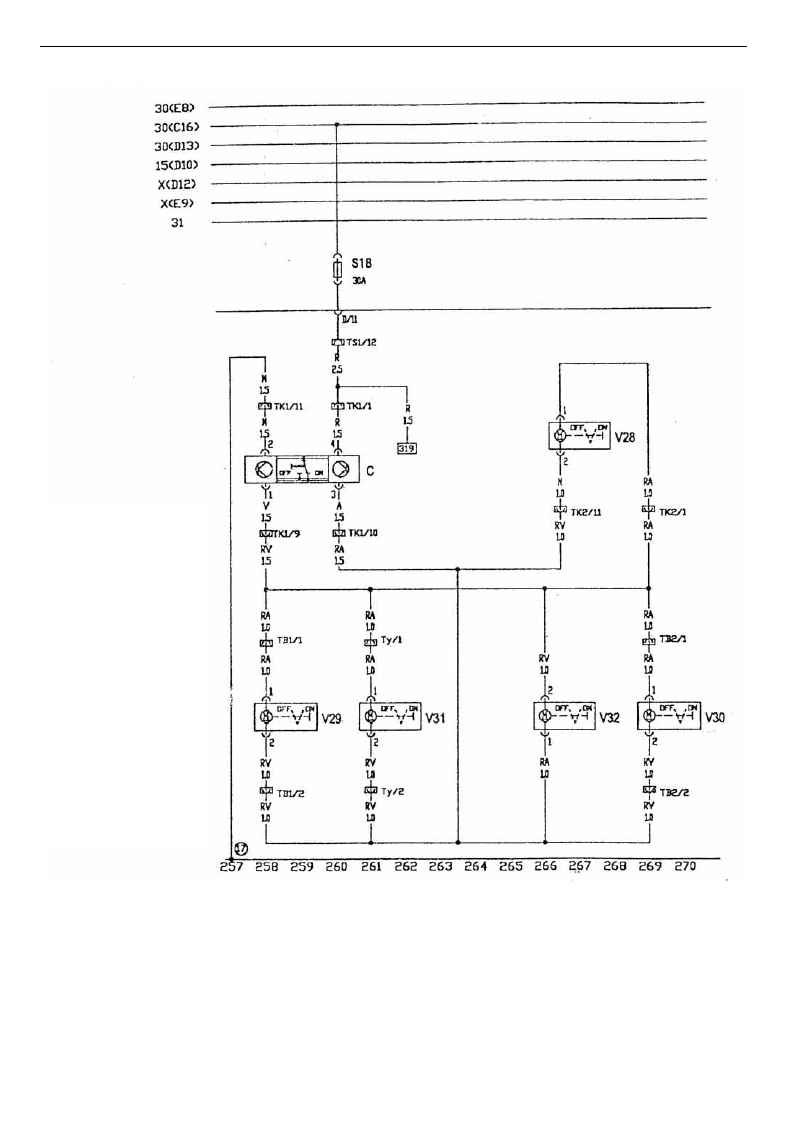

CIRCUIT

CENTRAL LOCKING



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREY

Z=PURPLE

G=YELLOW

TB1    4 Holes Connector    (left B pillar side)

TB2    4 Holes Connector    (right B pillar side)

TK1    12 Holes Connector (left A pillar Side)

TK2    12 Holes Connector (right A pillar Side)

Ty        2 Holes Connector (Left C pillar side)

○

17    Ground Point Beside Central Electrical

C        Central Locking Control Unit ( in left front door)

V28    Right Front Door Lock Control Motor

V29    Left Rear Door Lock Control Motor

V30    Right Rear Door Lock Control Motor

V31    Luggage Compartment Lock Control Motor

V32    Fuel Tank Door Control Motor

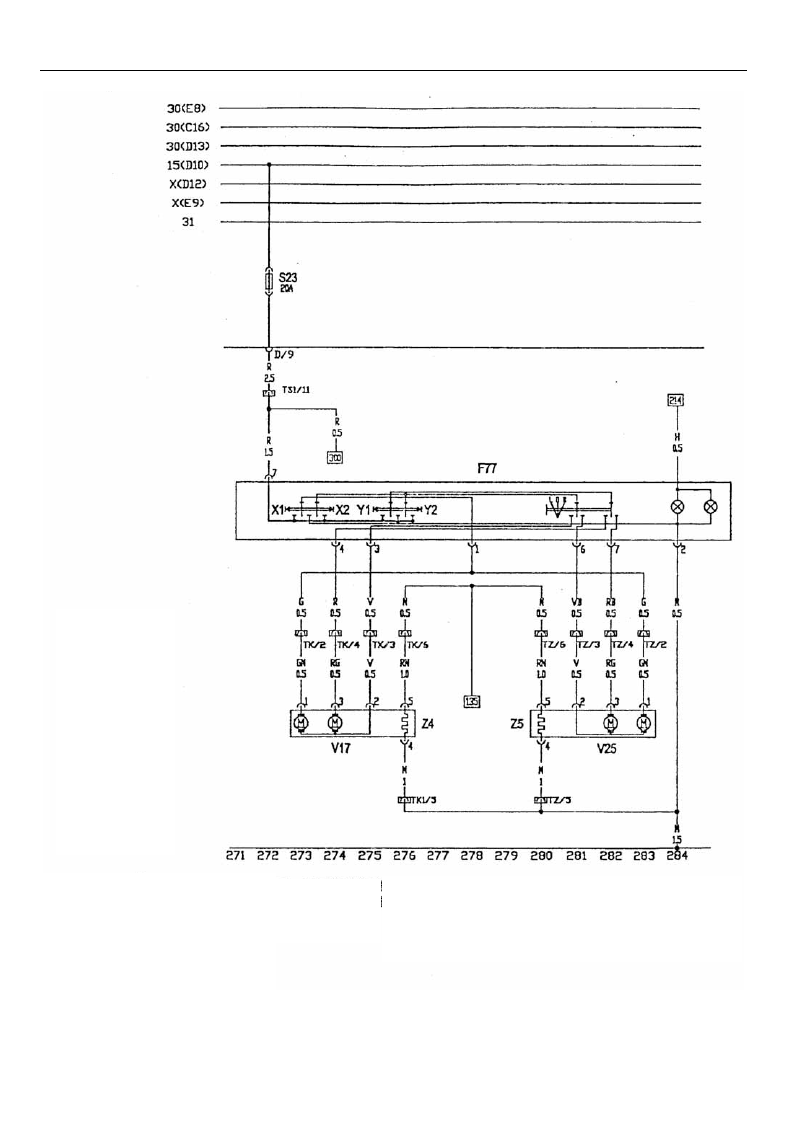

CIRCUIT



POWER MIRROR



B=WHITE

N=BLACK

R=RED

M=BROWN

V=GREEN

A=BLUE

H=GREN

Z=PURPLE

G=YELLOW

F77 Mirror Switch

X1 Left Adjust

X2 Right Adjust

Y1 Up Adjust

Y2 Down Adjust

V17 Left Mirror Control Motor

V25 Right Mirror Control Motor

Z4 Left Mirror Defogger

Z5 Right Mirror Defogger

TK1 12 Holes Connector (left A pillar side )

TK2 12 Holes Connector (right A pillar side)

TZ 2 Holes Connector (beside central electrical box)
