Chery    QQ    Maintenance Manual                  Transmission System

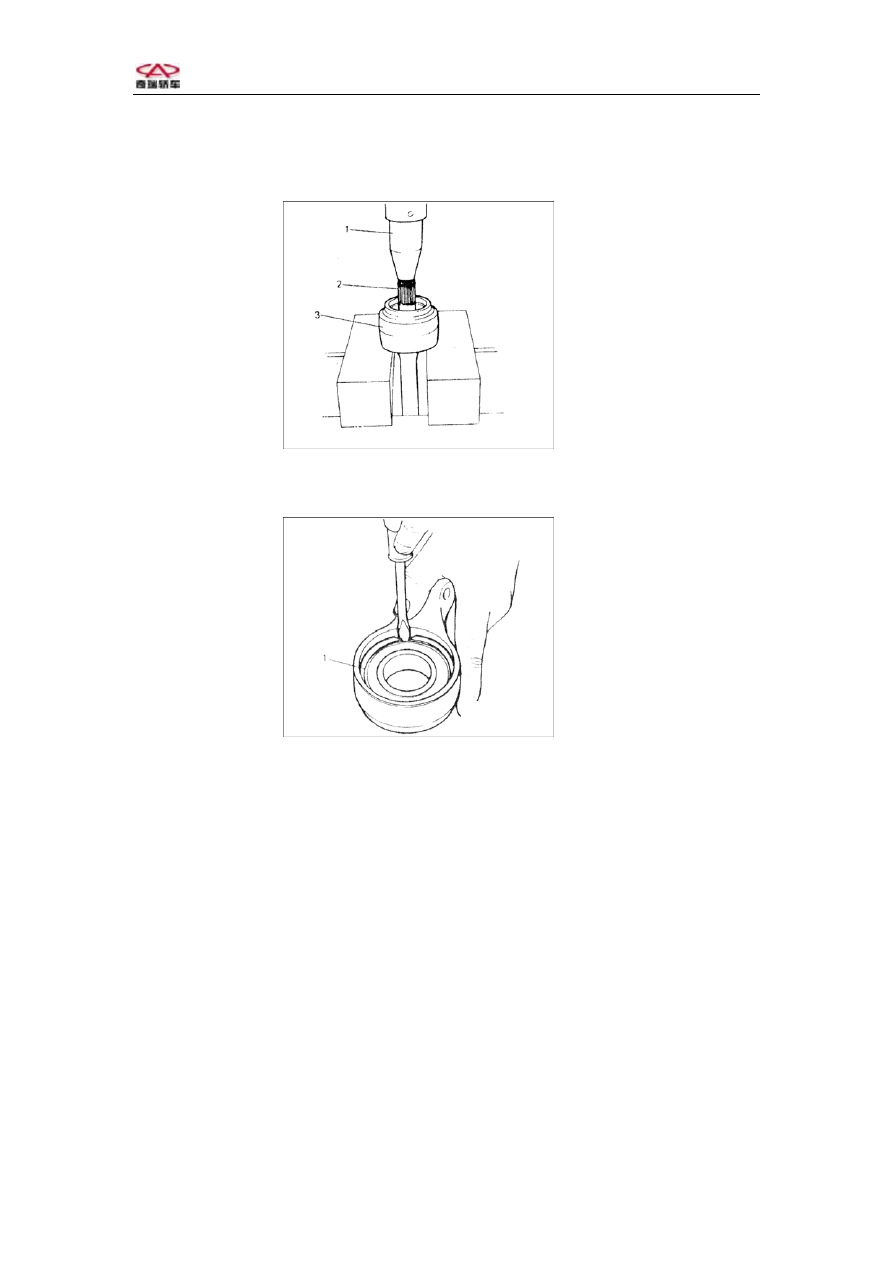

（2）Remove the snap ring.
（3）Use oil pressure to extrude output    shaft.





1

、

Oil

pressurer

2

、

Output











（4）Remove the left oil seal.

（5）Take out the bearing  race snap ring    .



Snap ring












（6）Remove the central bearing.
Check:
● Check if the boot has been broken or aged.
● Check if the snap ring, snap ring and boot hoop have cracks or distortion.





III、Installation
1、Installation of driven shaft.
（1） Clean the parts (except the boot) and dry the parts with compressed air.
（2）. Use a piece of clean and dry cloth to clean the boot, be sure not to use skim
milk (such as gasoline or coal oil).

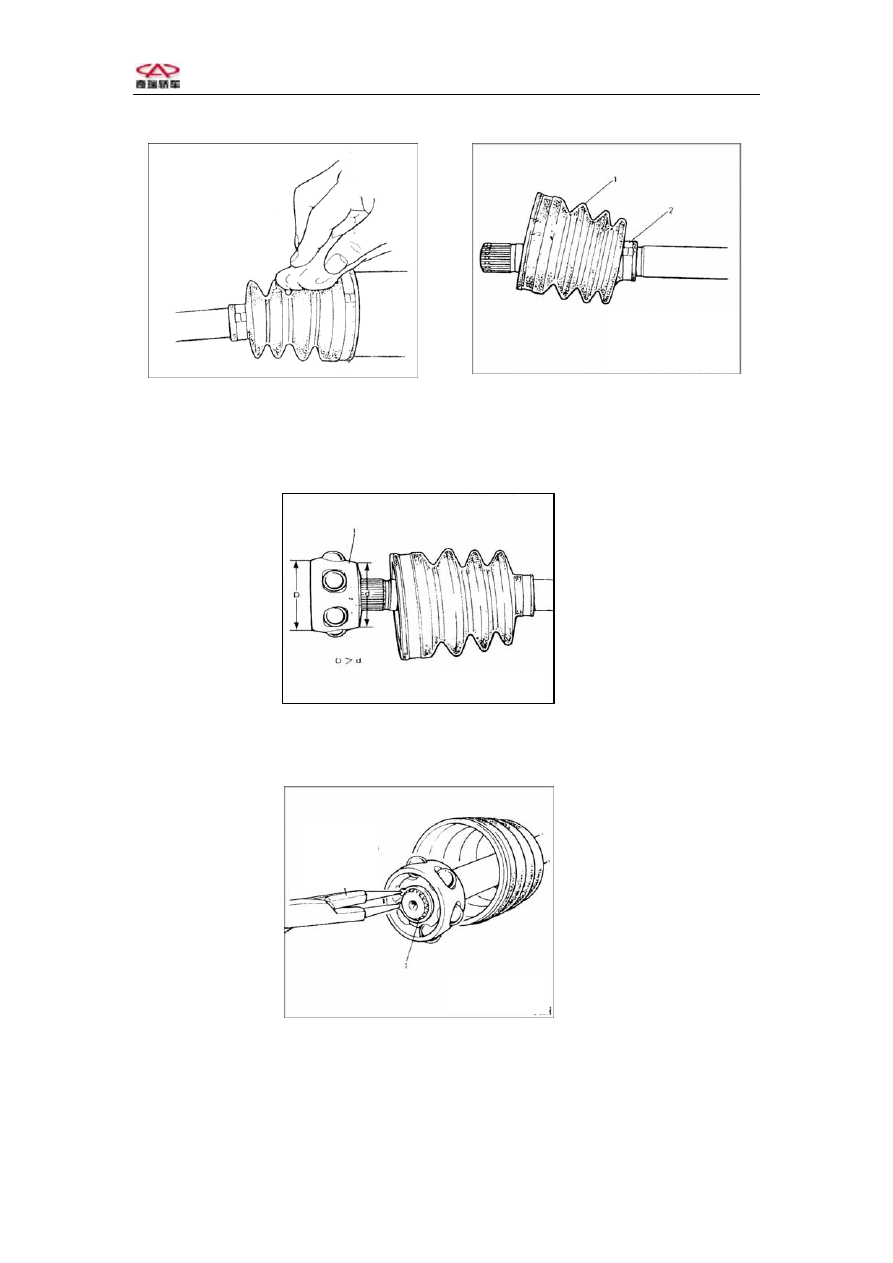

（3）Put the boot onto the axle till the small diameter    set in the shaft    slot and fix
the hoop.




-104-



Chery    QQ    Maintenance Manual                  Transmission System






1、 Boot

2、Boot  hoop













（4）Install the   holding  .
Caution: When installing the holding,keep the small diameter towards the shaft

end.






1、 Holding










（5）Use special tool (A) to install the    snap    ring.














1.Snap ring










-105-



Chery    QQ    Maintenance Manual                  Transmission System

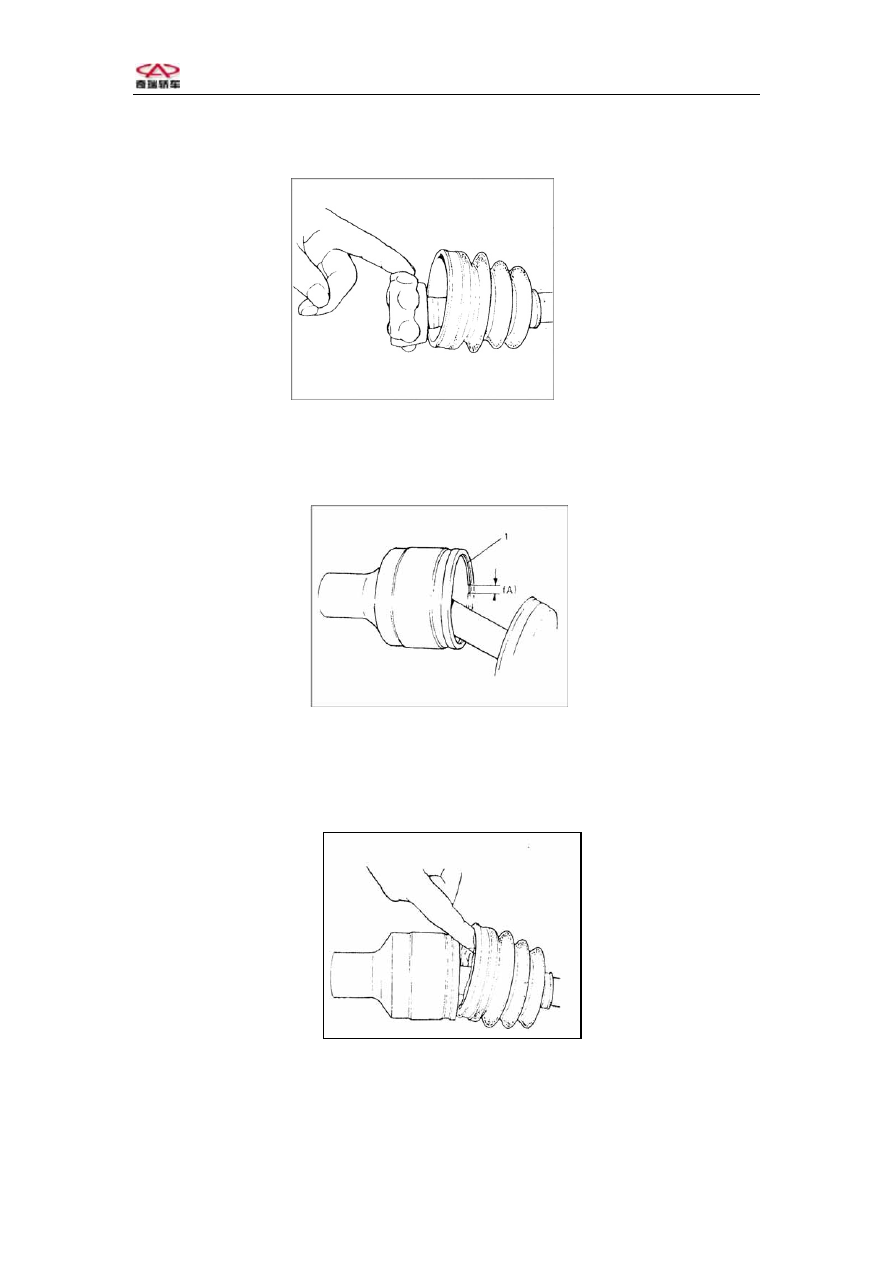

（6）Spread 30-40 g of  SUZUKI     H on the surface of the   holding.
















（7）. Put the holding into the bell-mouthed    ,and then put the snap ring in the snap
ring slot.
Caution: snap ring hatch(A) can not aim at the ball.













（8）Fill in 23-35g of  SUZUKI    H, put the  boot on the bell-mouth, Then install
boot on  bell-mouth。













After installing the boot, insert a drivenscrew into bell-mouthed

boot, send air into boot.



-106-



Chery    QQ    Maintenance Manual                  Transmission System

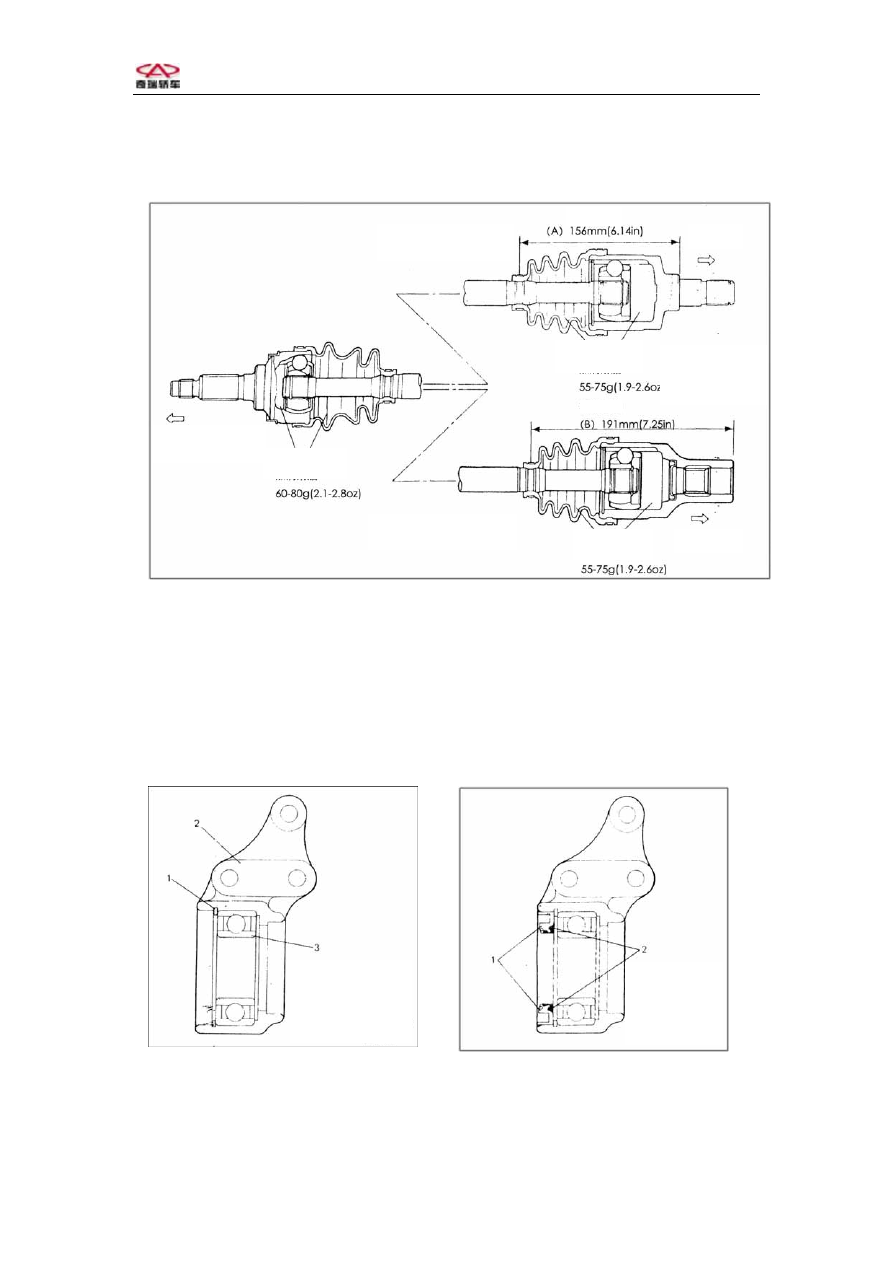

9. Fix the boot on the    bell-mouthed. Adjust the measure(A) and (B) to accord

with the fig. Bellow.




















Left driven shaft

Right driven shaft

Differential

side

lubricate

lubricate

lubricate

 Wheel side


（2）install output  shaft  and  bearing  race.
Install the output shaft according to the reverse order and pay attention to the

followings.

When installing the bearing race snap ring, be sure the snap ring        has been

fixed tightly in the central bearing race snap ring slot; keep the left oil seal in the right
direction shown in the fig. below.




1、  Snap    ring

2 、   Central

bearing  race














1、Left  oil

seal

2、Hubricate



Fix the snap ring tightly in the snap ring slot.

When install the right oil seal, keep the right direction shown in the fig. below.
