Chery QQ Maintenance Manual Chassis System

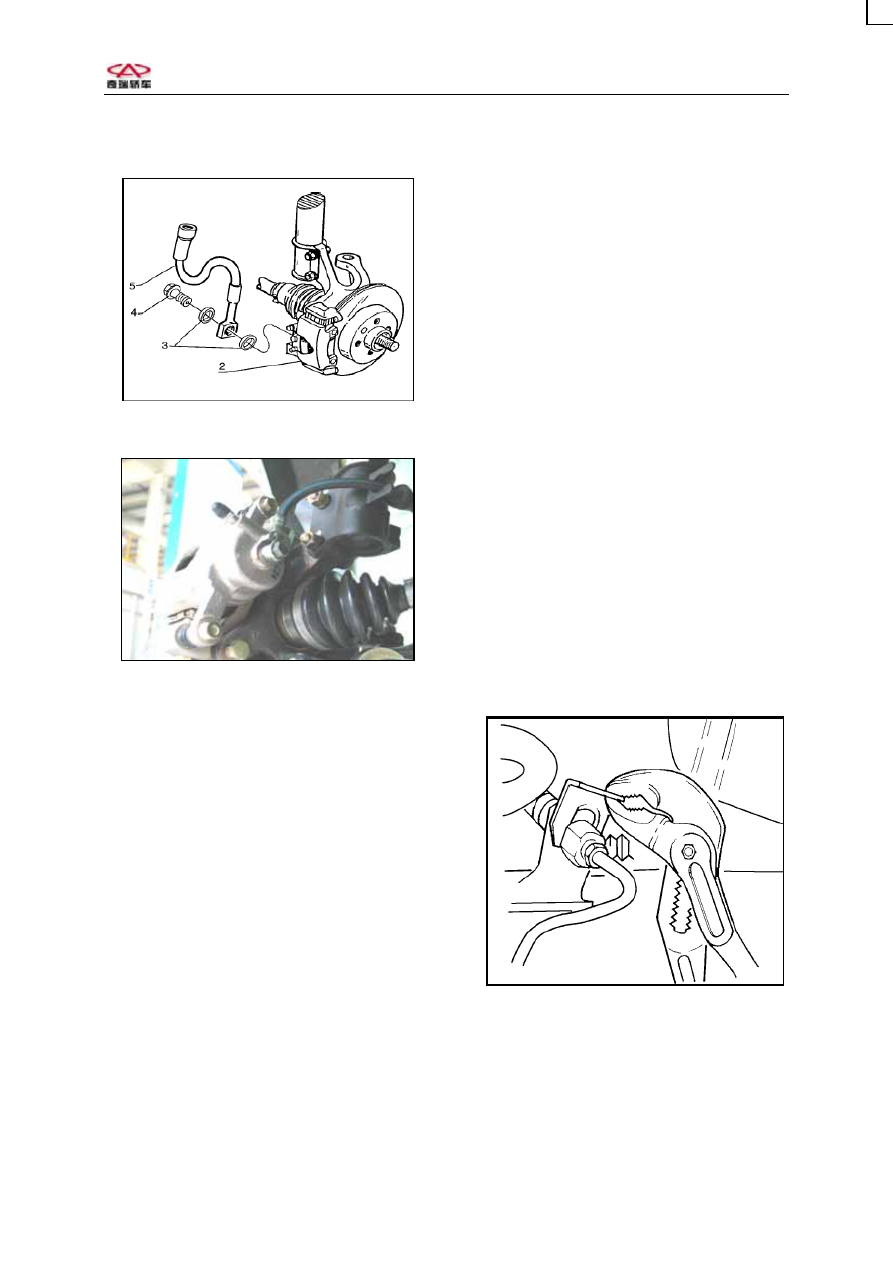

4. Fix brake pipe onto brake hose with
fingers.
5. Install brake hose on support
6. Fix brake pipe onto brake hose with
fingers.

Use wrench to open hose

connector.

Don’t bend support or pipe

Fixture
Fix brake pipe connector nuts to
16N.m.
7. Refer “ Remove and install
wheel” before installing wheel.
8. Make sure no any touch for hose and
suspension system. Check working
condition on right and left hoses. If
there is any touch for hose and
suspension system, remove hose and
correct it.

9. Lower vehicle.
10. Drain out air in brake system.
Please refer to “ Draining out air
in hydraulic system”.

2) Rear wheel brake replace
Disassembly procedure
Warning: Don’t move vehicle before
the brake pedal stroke is stable. The
air in brake system will result
faulty for brake or hurt people.
Attention：Any brake hose cannot be
bent to prevent no-braking.
1. Support vehicle and lift.
2. Clear the dusts on the hose and
pipe connector.

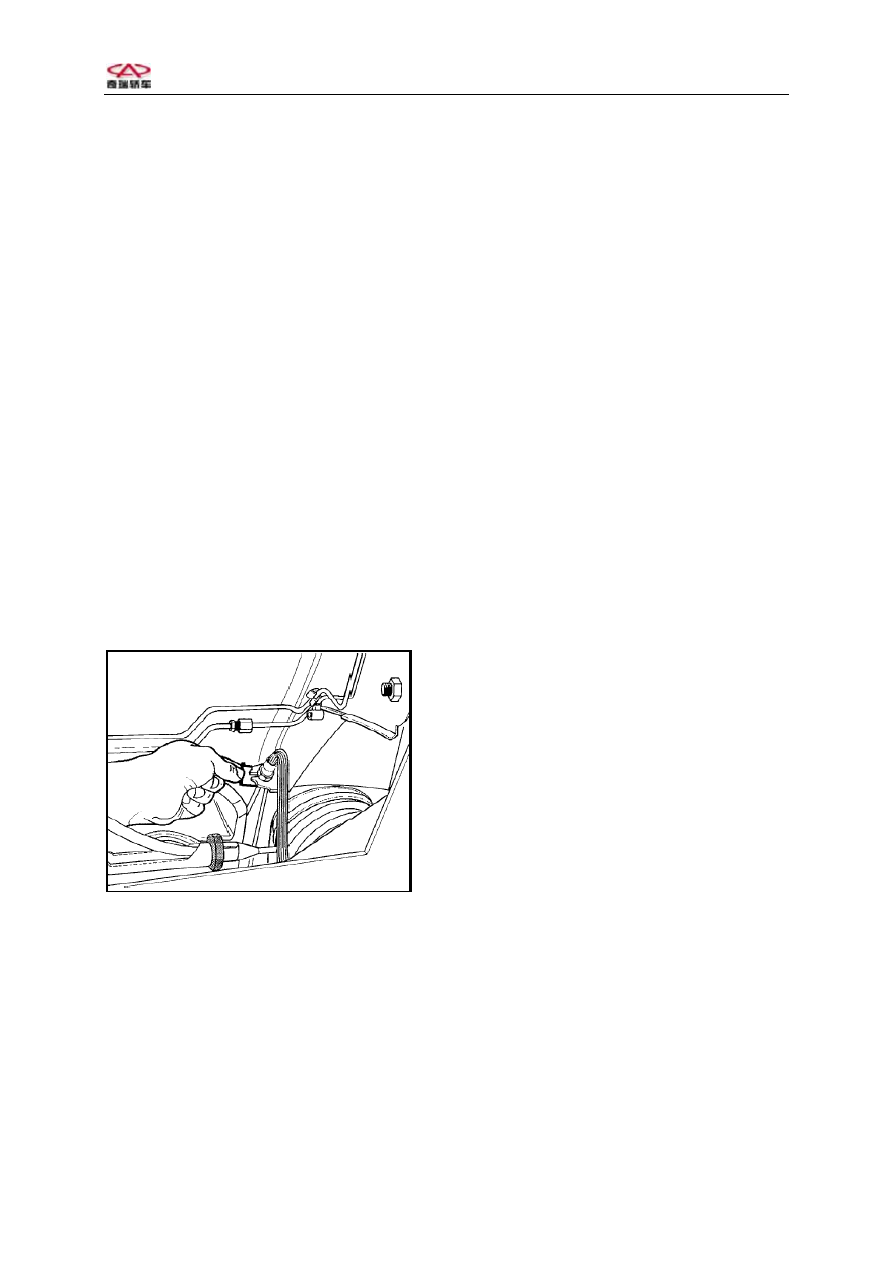

3. Use wrench to remove brake pipe
from hose. don’t bend pipe or
support.
4. Remove clamp from brake hose.
5. Remove the hose from support.

Steps of installation

Fixture

Chery QQ Maintenance Manual Chassis System

1． Install  brake  hose  on  support
with any wrest for hose.
2． Fix  brake  pipe  onto  brake  hose
with fingers.
3． Install fixed card onto the hose
connector.
4． Fix  brake  pipe  onto  the  brake
hose.

Use wrench to open hose

connector.

Don’t bend support or pipe.

Fixture
Fix brake pipe connector nuts to
16N.m.
5. Lower vehicle.
6. Drain out air in brake system.
Please refer to “ Draining out air
in hydraulic system”.

5、Hydraulic brakiing system

exhaust

Warning：Don’t move vehicle before
the pedal is not stable. The air in
the system will cause brake faulty or
personal hurt.
Warning：Only use clean OPEL DOT 4

fluid in sealed container. Don’t use
polluted fluid, otherwise it will
cause damage to parts, bad brake or
personal hurt.
Warning：Don’t fill fluid to much.
It will flow out to engine exhaust
parts to result fire.
HINT: If air enters into brake system
during repairing, carry out complete
draining out air process.
HINT: Avoid spraying the fluid on
paint surface, wires and connectors.
Rinse the parts if any fluid sprayed
on vehicle.
HINT: Strictly observe the process of
draining air. When air enters into
hydraulic  system,  four  hydraulic
systems must be drained. If the hose
or  brake  opens  on  one  wheel,  only
drain out air for this wheel. If the
hose opens in any connector between
master cylinder and the brake, only
drain out air related system.

1)Pressure exhaust
HINT: For vehicle with ABS, apply ABS
automatic darining out air process.
Check if ABS is normal before
draining out.

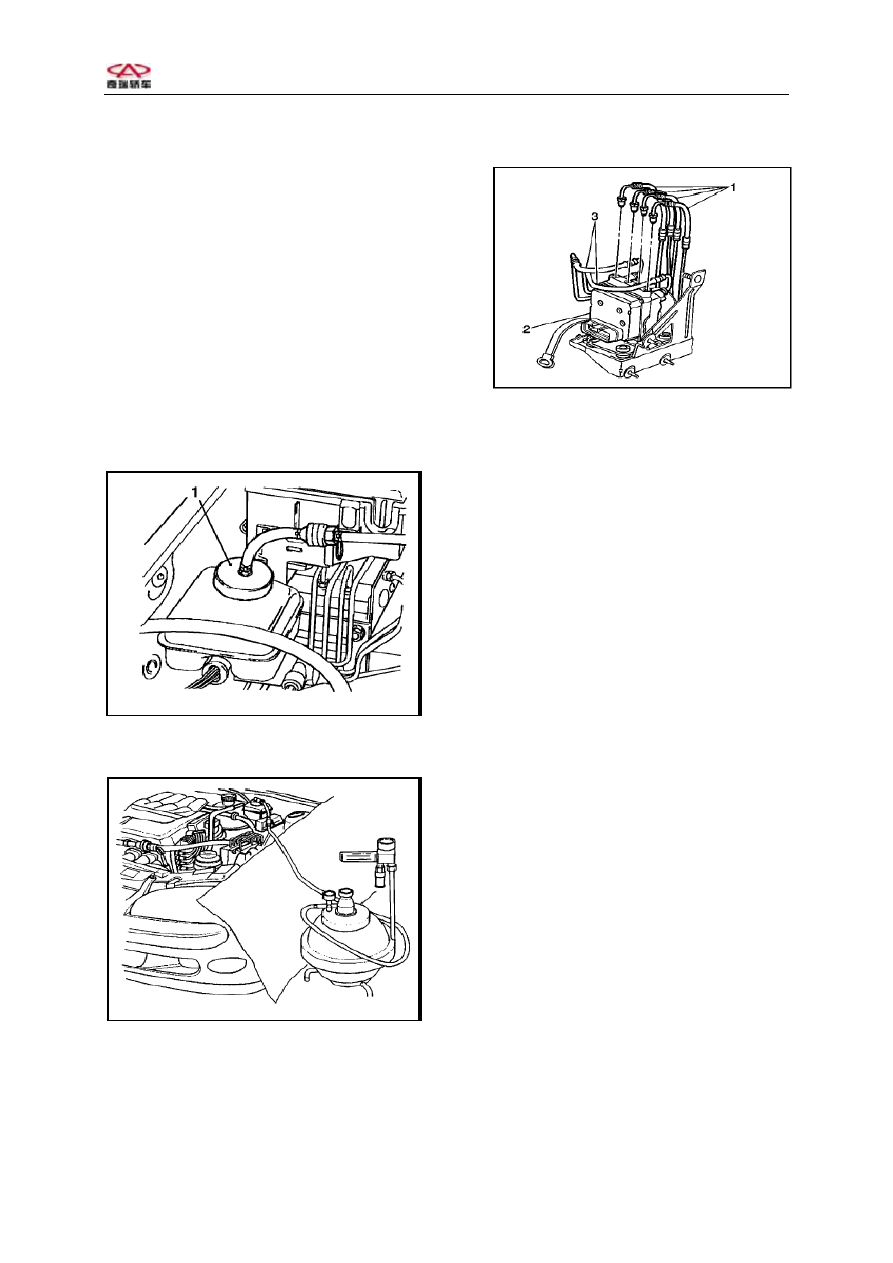

1.  Check the level of fluid and fill
fluid to correct level if necessary.
2. Remove reservoir cover.
3. Use connector 1 to connect
draining unit with the reservoir.
4. Apply pressure on system.
5. Wait for 5 minutes. Then check
whole system to make sure no any
leakage. If any leakage happens,
service at once.
Attention：Clear the fluid flown out.
Fixture

Chery QQ Maintenance Manual Chassis System

6.  Slowly  open  one  of  brake  pipe
connector on ABS regulator to flow
out the fluid.
7. When no bubbles appear in the fluid,
close  brake  pipe  connector  on  ABS
regulator.
Fixture
Screw  brake  pipe  connector  on  ABS
regulator to 8N.m.
8. For other connector, repeat step
6 and step 7.
9. Support and lift vehicle.

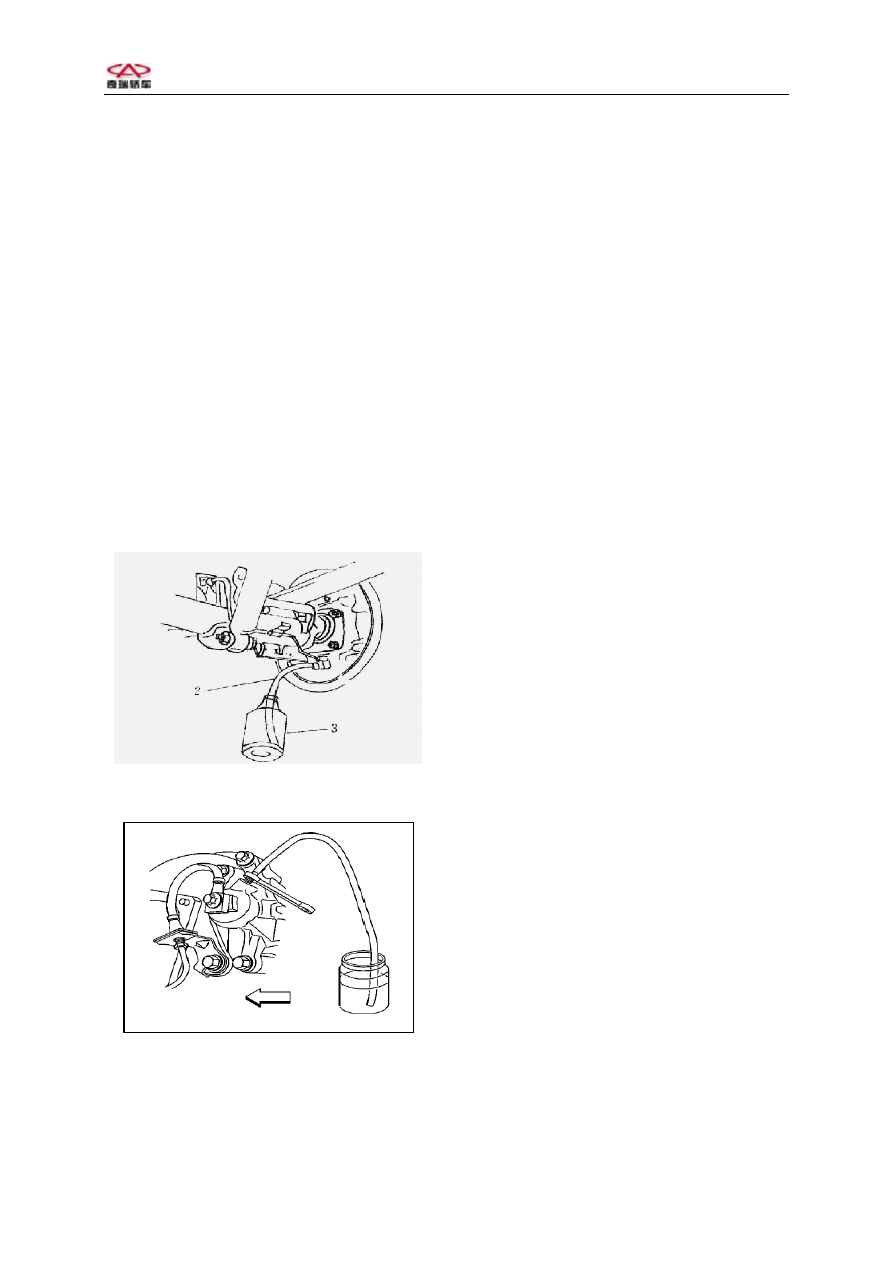

10． Remove right rear brake exhaust
valve cover. Put transparent hose to
the valve.
11. Put one end of hose into the
container with clear brake fluid.
12. Slowly open the valve to flow out
fluid.
13. Close the valve when no bubbles
appear.
14. Fix the valve to ６N.m.
15. Remove the transparent hose from
the valve.
16. Repeat above steps for left rear
brake, right front clamp and left
front clamp until no any bubbles
appear.

Points of attention:
Make sure no any leaks for the valve.
17. Remove the transparent plastic
hose from valve.
18. Lower vehicle.
19. Note the pressure remaining in
reservoir when remove exhaust units.
20. Check and fill fluid to suitable
level in reservoir.
21. Install reservoir cover.
22. Start engine and run at least 10
s.
23. Turn off ignition switch.

Chery QQ Maintenance Manual Chassis System

24. Check brake pedal vibration and
stroke.

If brake pedal is felt stable and

the stroke does not exceed
specified value, go to step 25.

If brake pedal is felt soft and

the stroke exceeds specified
value, don’t drive vehicle and
go to step 26.

25. Start engine and check the pedal.

If the pedal is felt stable, go to

step 27.

If the pedal is felt soft, don’t

drive vehicle and got to step 26
again.

26. Make sure that the bad feeling of
the pedal and the bad stroke are not
caused by bad adjusting for friction
line or other mechanical malfunction.
Repeat draining out air process for
brake system and go to step 1 again.
Warning: Don’t move vehicle before
the  brake  pedal  is  not  stable.
Otherwise it will cause accident or
personal hurt.
27. Test vehicle on road at middle
speed to brake vehicle (without ABS)
in  order  to  make  sure  that  brake
system is normal.

2)Braking system hand work exhaust
procedure
p down brake pedal when draining air
for system.
Points of attention：Make sure that
the bad feeling of the pedal and the
bad stroke are not caused by bad
adjusting for friction line or other
mechanical malfunction. Repeat
draining out air process for brake
system and go to step 1 again.
1.Check the level of fluid and fill
fluid to correct level if necessary.
2. Slowly open one of brake pipe
connector on ABS regulator to pour
into the fluid.
3. Step down the pedal to 75% of whole
stroke and keep a period of time.
4. When no any bubbles in the fluid,
close brake connector on ABS
regulator
Fixture
N.m。Screw brake pipe connector on ABS
regulator to 16N.m.
5.  For other connector, repeat step
2 to step 4.
