Chery QQ Service Manual                              BCM Computer Control System







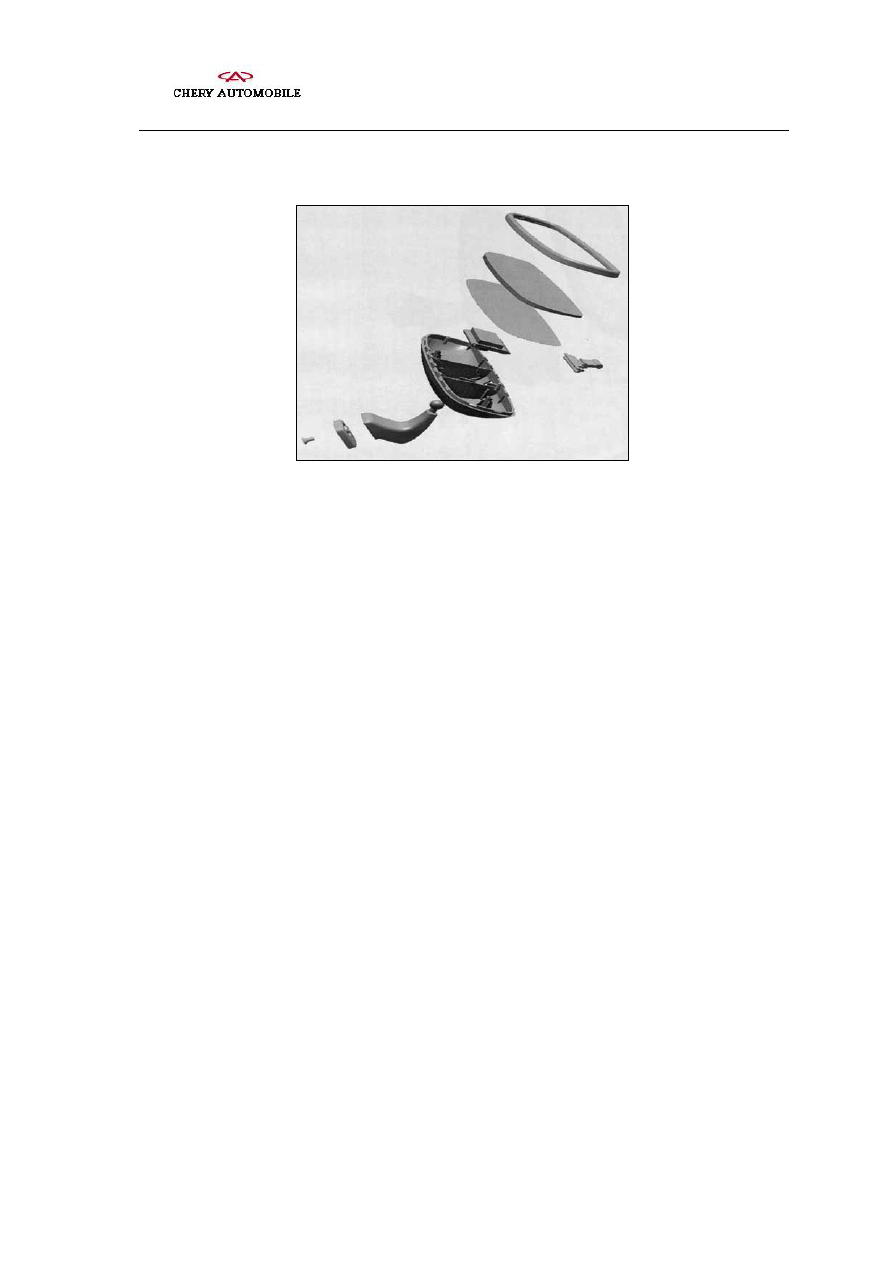

(1) Explosive view























(2)Usage/operation guide and warning

Usage/operation guide

①

According to the different driver’s  visual, adjust the mirror angular of the

assembly

②

Turn the handle to adjust the mirror angular in the up and down direction to

prevent dazzle.

Warning:

If the Number of manual adjusts excesses a predetermined value, operating

force will lower.

3、Assemble, disassemble and warning

Steps of assemble and disassemble

（

1）Prize off the mirror frame with tools, and remove damaged mirror

（

2）Put new mirror in the mirror case in position, insert the mirror frame in the

corresponding groove of mirror case assembly

Notice:

（

1）Remove the mirror frame with caution, don’t scratch or damage other parts

（

2）Put the new mirror in the correct position of the mirror case, face the

reflecting surface outward; Insert mirror frame in position.

2. Structure of power rearview mirror and control switch

- 120 -



Chery QQ Service Manual                              BCM Computer Control System







The rearview mirror of Chery S11 is electric controlled. If the driver turns the turning

switch on, turning light of the rearview mirror gives turning signal in the corresponding

direction. Turn the adjust button in the car to adjust the angular of the mirror in upward,

downward, leftward or rightward direction.

In the power rearview mirror on the both side, permanent magnet motors are provided,

four currents, i.e. two positive and two negative, can be attained by switching the two

motor switches, so that adjustment in different direction can be done.

The control switches are provided in the combination switch on the driver side. When the

start-up switch is ON, operate the switches in the four directions to select the rearview

mirror to be adjusted. On the control switch panel there are L, R printed, L stands for left

rearview mirror, and R for right rearview mirror, stop operating is in the middle. After

the mirror to be adjusted is selected, operate the switch in four directions

above-mentioned, the space angle of the selected mirror is adjusted. After the adjustment,

turn the switch back to the middle. In the figure power rearview mirror and the switches

thereof are shown.









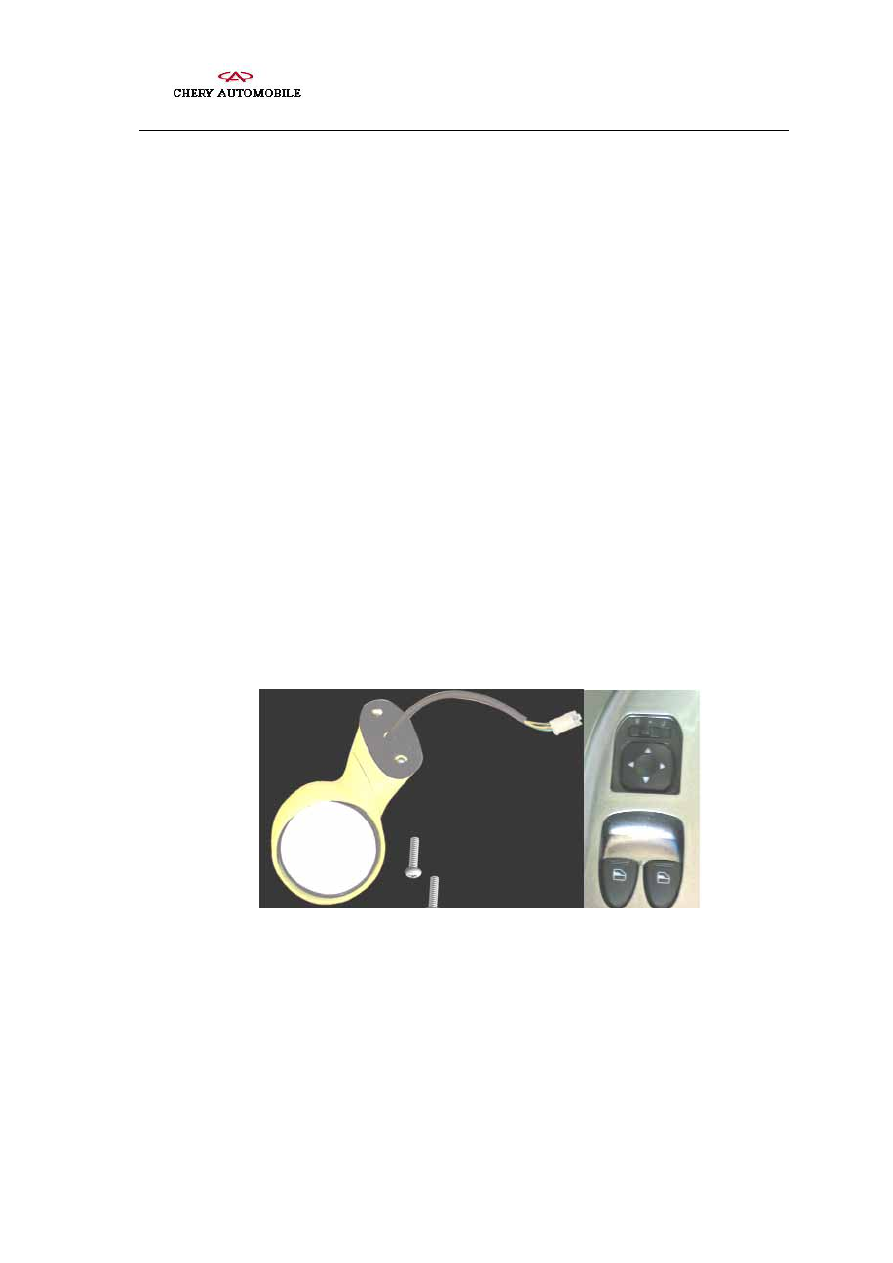

     Power rearview mirror

1-

Left rearview mirror assembly



 2- Wire connector  3- Control switch



Notice：

If adjust the rearview mirror manually, do not go beyond the range of adjust angle,

otherwise the function or service life thereof will be influenced.

- 121 -



Chery QQ Service Manual                              BCM Computer Control System





Technical parameter

No. Parameter

Criterion

1

reflectivity of the mirror

≥40%

2

curvature of the mirror surface

Left：R1200～R2000

Right：R1200

3 upward/downward,

leftward/rightward



turning angle of the rearview mirror

≥7°

folding angle inward of left rearview

mirror

Max 65°

4

folding angle outward of left rearview

mirror

Max 70°

folding angle inward of right rearview

mirror

Max 70°

5

folding angle outward of right rearview

mirror

Max 70°


The power rearview mirror consists of mirror glass (reflecting surface), two motors,

connecting member, driving unit and case etc. control switches include rotary switch,

swing switch and wiring harness etc.





























- 122 -



Chery QQ Service Manual                              BCM Computer Control System

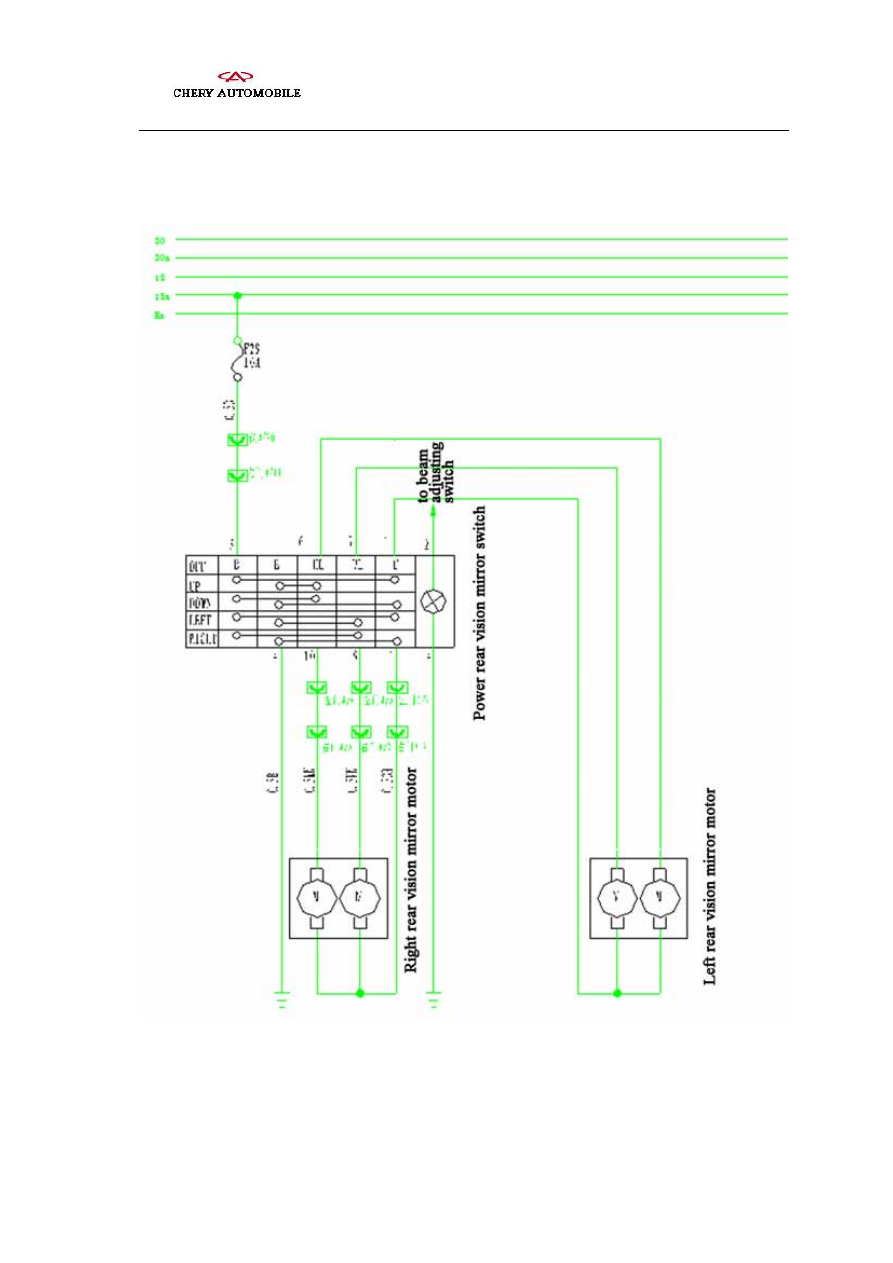

Electric circuit diagram of power rearview mirror







3. Inspection of power rearview mirror

(1)

Power rearview mirror can only be operated in one direction



For example, the

power rearview mirror can only turn left or turn up, defective switch can be
