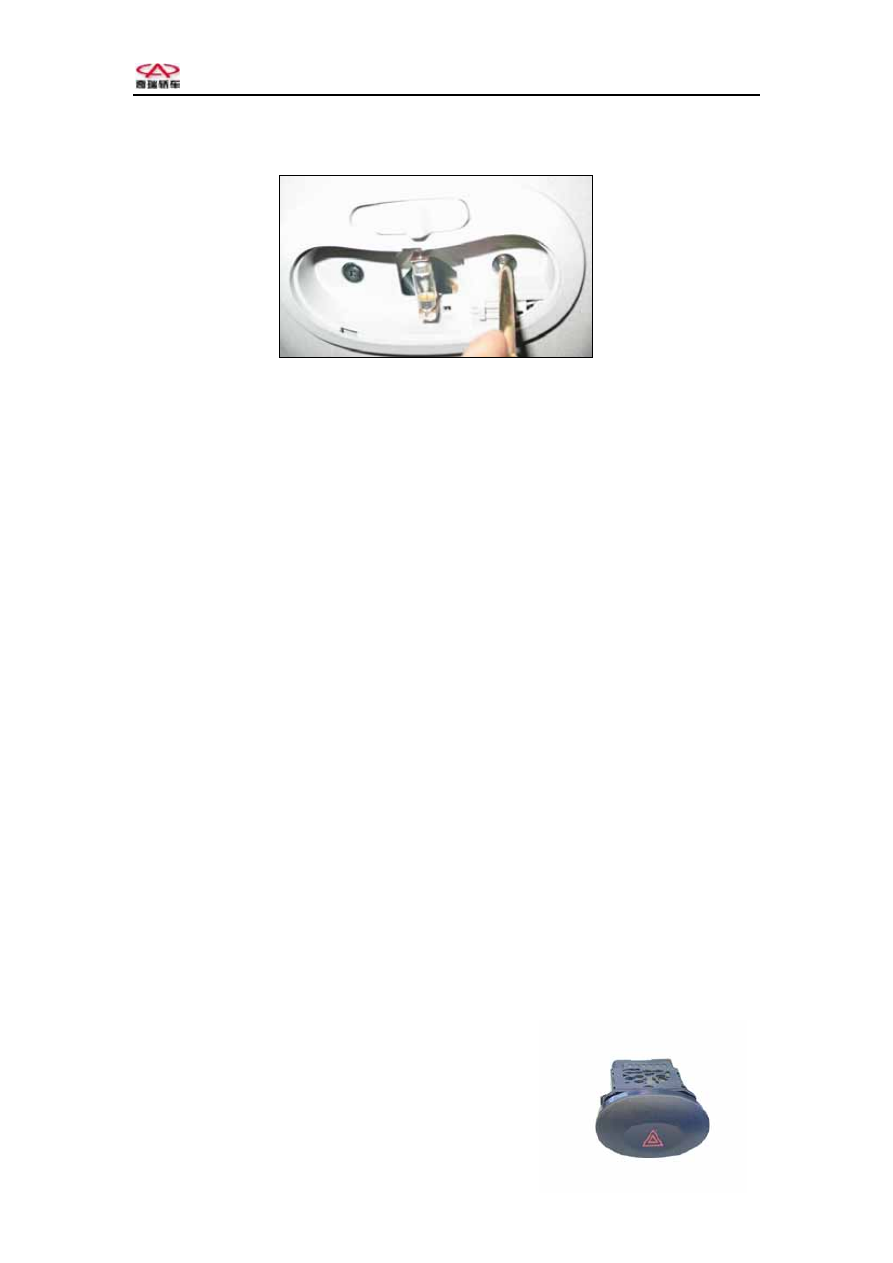

7. Interior ceiling light switch





OFF position：Interior ceiling light will not illuminate.

ON position：Interior ceiling light will remain on.

Middle position (door position)：Interior ceiling light will illuminate when vehicle

door is opened. Interior ceiling light will still illuminate in 8 seconds after close the

door in order to help passenger seating safely.

8. Luggage compartment illuminating lamp

Luggage compartment illuminating lamp will illuminate when luggage compartment

lid is opened (this lamp is not controlled by ignition switch). Please close the luggage

compartment lid after parking.

You can also make this lamp in close state. In other words, the lamp will not

illuminate when luggage compartment lid is opened. Therefore, you can press the

triggering switch to locking position, when you want turn on this lamp, you only use

your hand to release the switch.

9. Hazard warning flashlight switch

When hazard warning flashlight switch on dashboard is pressed, hazard warning

flashlight will be turned on and all turn signal light will light up simultaneously. After

once more a press, all lights go out at the same time. Hazard warning flashlight may

be operated on matter whether ignition switch is turned on. Apply hazard warning

flashlight to warn other drivers and try to avoid stopping on driveway when an

emergent parking or traffic handicapping is avoidless.



- 42 -



Chery QQ Service Manual



Section 3 Removal and installation of entire vehicle

lighting assembly



Explanation of lighting system

Chery S11series passenger car entire vehicle lighting fitting includes illumination

equipment and light signal equipment. It is used to guarantee the car’s normal running

and safe driving at night or in the fog. It includes: headlight (lower beam and upper

beam), front turning light (including small lamp), front foglight, combination taillight

(including backup lamp, turning light, braking/parking light, small lamp and so on),

license plate lamp, interior ceiling light, luggage compartment lamp and rear foglight.

Headlight apply half enclosed type lighting structure, it is convenient to examine and

repair; use halogen bulb to reduce bulb black and increase illuminating intensity and

extend the useful life of bulb.



Removal and installation of entire vehicle lighting assembly

1. Notice proceeding before removal:

a. Close control switch of corresponding lighting fitting, remove the wire connected to

battery;

b. Please don’t touch the bulb by your hands when replace the bulb, otherwise the

fingerprint on the bulb will be heated and volatilize after light up the bulb, and then it

will deposit on the lens surface, so the reflector will become dim.



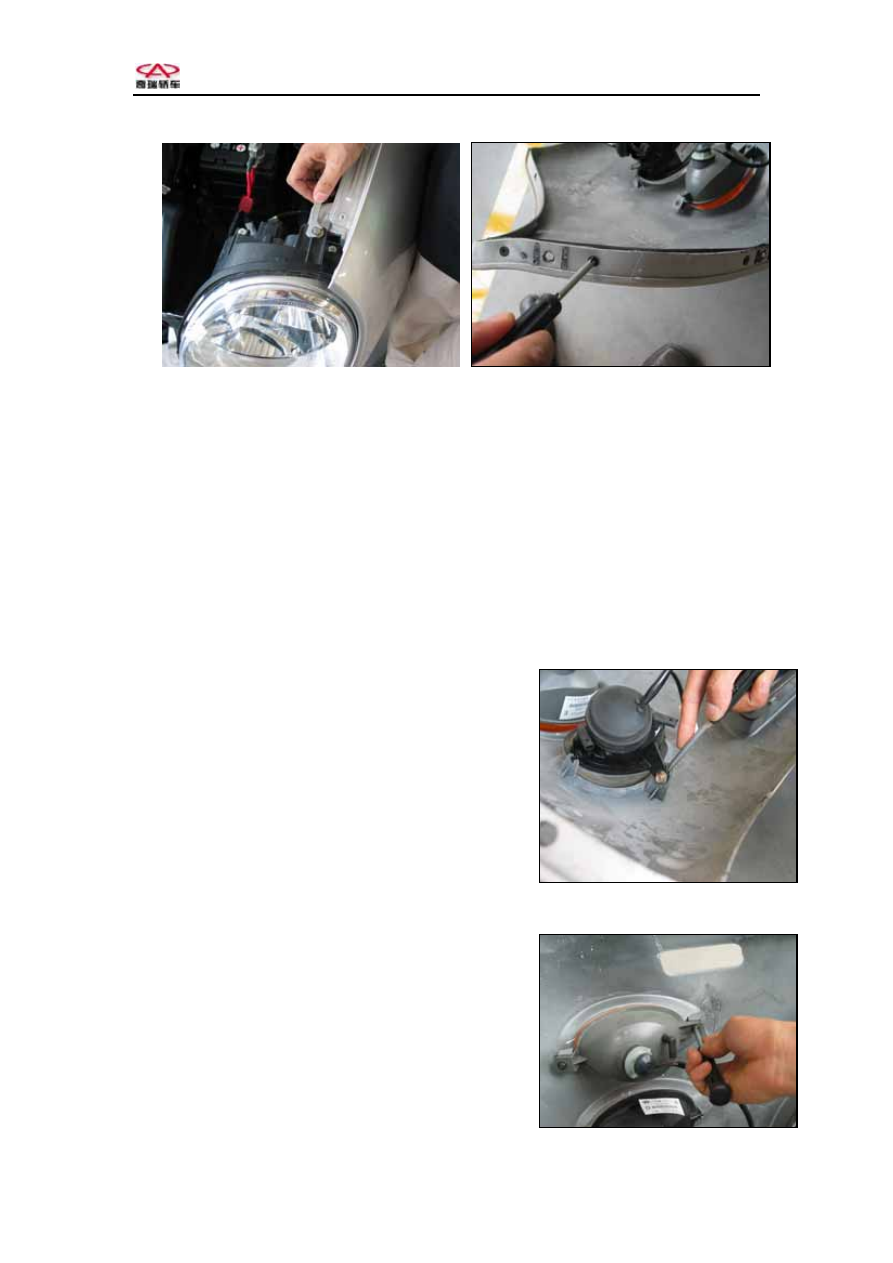

2. Removal and installation of headlight

Please calibrate the headlight after remove and

install the headlight every time.



Removal:

——Open the engine compartment hood;

——Pull out the harness plug ;

——Remove front bumper（see front bumper removal）;

——Loose three bolts (M6*10) fixed on the headlight cross member;

——remove headlight.

- 43 -



Chery QQ Service Manual





Installation:

light in corresponding position, ensure the bolt fixing hole and the

torque 1.6～2.0 N·m. Drop the

3. Removal and installation of front foglight

ou can raise the car first then remove

.

arness connect plug, take out the front

front bumper



stallation:

—First ensure left and right (left lamp sign“L”,

 “R”), then put the foglight into

a. Install head

headlight cross member welding nut are concentric;

b. Locate the headlight by three M6 bolts with the

engine compartment hood, verify and adjust the assembly position of headlight,

headlight should protrude from engine compartment hood a little, you can feel that

there is a radian between them by your hands, then tighten the fastener.



Removal:

If possible, y

form bottom

——

Loose the nut, take out the bolt

—

—Remove h

foglight from the location hole of the





In

—

right lamp sign

installation hole from front, insert two locating pin

into location notch and use bolt and nut to tighten it.

——Connect foglight harness butt joint;



- 44 -



Chery QQ Service Manual



4. Removal and installation of front turn signal lamp

emoval:

f possible.

——

screws the take out the turn signal lamp

e

—First you should distinguish left and right(“L” mark in the left lamp, “R” mark in

th

 then put the turn signal lamp into the install hole, at last tighten two

tion tail lamp（include

）

two tapping screw, then pull out the lamp;

——Connect the lamp seat harness;

R

——Raise the vehicle and then remove from the bottom of the vehicle i

Loose two

——Remove the harness connector, then take down the turn signal lamp from th

location hole of the front bumper



Installation:

—

e right lamp ),

tapping screw on the install hole;

——Connect the turn signal lamp harness connector;



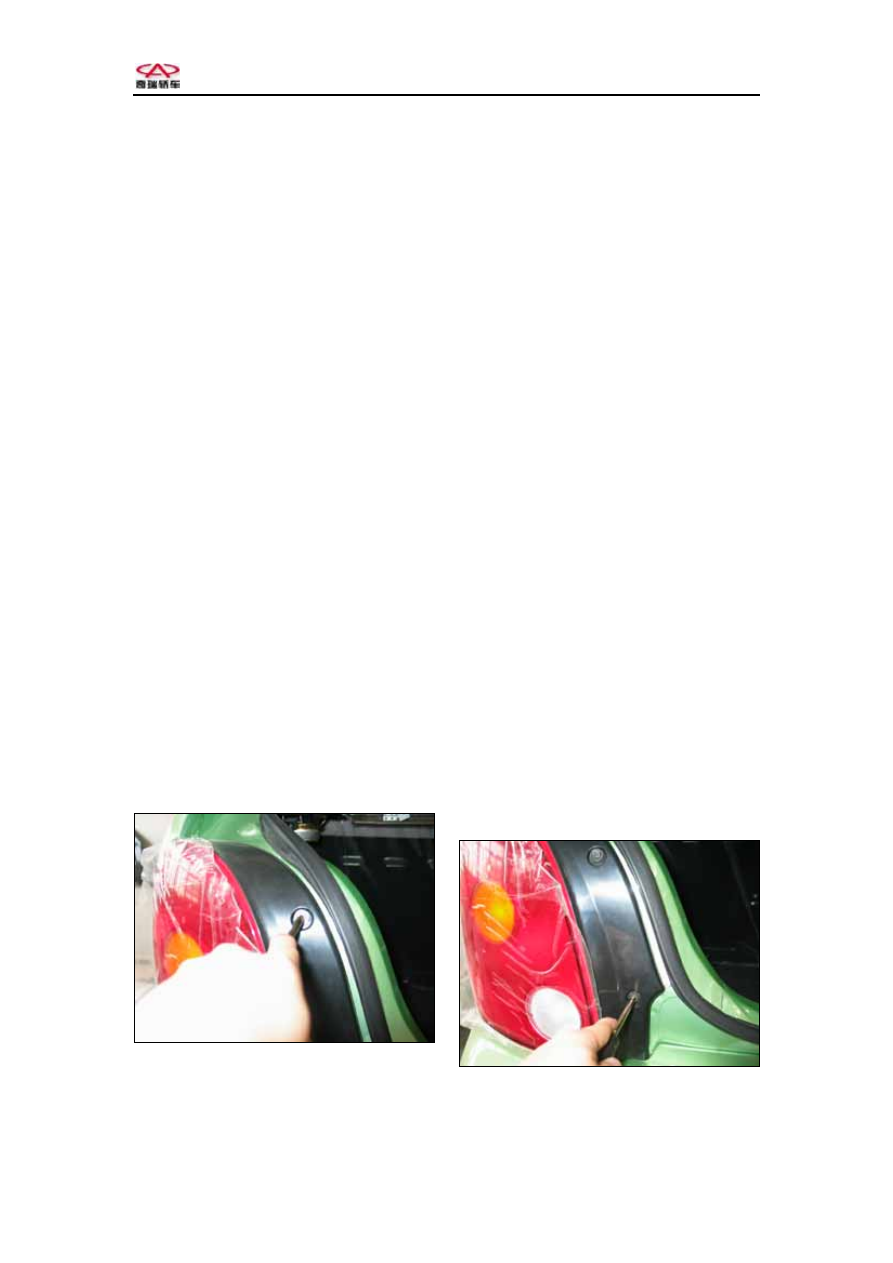

5. Removal and installation of combina

parking light/braking light, turn signal lamp, backup light

Removal:

——Open the luggage compartment lid;

——Loose

——Pull down the lamp seat harness.





Installation:
