Charging System

With assistant battery

Caution:

Avoid pushing or pulling the car to start, which may cause the damage of exhaust gas

purification system and/or other parts.

When the jumper cable is applied, carefully handle the assistant battery and the

discharged battery. Avoid spark, and observe the following steps.

Warning:

※

Any breach of the following conditions or steps may cause the following situations:

  (1) Serious damage to person (especially the eyes) or materials, which result from

the explosion of battery, combustion of acid liquor of battery and the electrified body.

  (2) Damage to the electronic parts of car.

Never place the battery in the place with electric spark, for the gas generated by

※

battery is inflammable and explosive.

Remove the jewelry, watch and other valuable goods, and wear protective glasses.

※



※

Prevent the liquid of battery from directly touching eye, skin, fiber and varnish,

because it is corrosive acid liquor. In case that it touches any parts, rinse them

immediately.

Take care that the metallic tools or jumper cable don't touch the positive t

※

erminal of

battery (or the metals connecting with it) and other metals in the car,  for it may

cause short circuit.

Keep the little children away from the battery.

※



1. Pull up the parking brake and put the gear shifter to the neutral position, switch off

the igniter, lights and all other electric loads.

2. Connect one end of a jumper cable to the positive terminal of assistant battery, and

the other end to the positive terminal of the discharged battery (jump-start the engine

with 12v battery only).

3. Connect one end of the negative cable to the negative terminal of assistant battery,

and the other end to the firm engine ground cable (e.g. in the exhaust manifold),

which is at least 45cm(18in) away from the battery which starts the car.

Warning: avoid directly connecting the negative cable to the positive terminal of the

- 16 -



Chery QQ Service Manual

Charging System

discharged battery.

4. Start the engine of the car preparing to jump-start, and switch off other electrical

equipments. And then start the engine of the car with low-battery battery.

5. The step of disconnecting jumper cable must be exactly contrary to that of

connecting. The first step is to disconnect the negative cable from the jump-started

engine.

With charging equipment

Note: As to the jump-started engine with charging equipment, the applied equipment

should be 12v, and the negative electrode should be connected to ground. Never adopt

the 24v charging equipment, for use of such equipment may cause serious damage to

the electrical system or electronic parts.



. Off

Ⅲ

-Vehicle Maintenance

Removal and Installation

1. Disconnect the negative cable.

2. Disconnect the positive cable.

3. Remove the clamper nut and clamper.

4. Remove the battery.

5. When installing, the sequence is the reverse procedure of removal,

6. Tight the fixing nut of the battery cable according to the set torque.

Note:  Check and ensure an enough distance between grounding cable and engine

cover beside terminal post.

Tightening torque: 6～10N·m

Charging the battery which voltage decrease greatly or which is fully discharged.

1. Measure the voltage of battery terminal post with the prepared voltmeter. If the

voltage is less than 10v, the charging current is very low. So there is a certain time

before the battery can accept the several-milliampere current. Such a low current

won’t be detected by the amperometer used on the spot.

2. Put the battery charger in a high pre-set place.

- 17 -



Chery QQ Service Manual

Charging System

3. With the polar protective circuits, some chargers won’t charge until the lead is

appropriately connected to the terminal post of the battery. The fully discharged

battery has not enough voltage to activate the whole circuit. Even though the lead is

correctly connected, the battery can’t accept charging current. So this circuit should be

bypassed according to the special regulations of the charger manufacturer so as to

switch on the charger and charge the low-voltage battery.

4. The voltages and current values provided by battery charger differ from each other.

With each voltage, the measurable charging current that can be accepted by battery

needs the following time:

Voltage：    A：over 16………………  4 hours

B：14-15.9………………  8 hours

C：less than 13.9……16 hours

After the above-mentioned charging time ends, if the charging current can’t be

detected yet, the battery should be replaced; if the charging current can be detected,

the battery is good, which can be charged in the normal way.

5. Always remember that only when the fully discharged battery is charged to enough

ampere hour (AH) can it be used again. According to experience, the charging ampere

hours basically equals the nominal AH plus an additional 30% of it, which is usually

used to charge the normal battery. For example, the required AH for the 45AH battery

fully charged is 45×1.3=58.5. So, you are recommended to charge with a low ampere

but for a long time. For example:

3 ampere×20 hours………………    60AH or

5 ampere×12 hour………………    60AH etc.

You are recommended to conduct load test to the battery recharged in this way so as

to check its operational capability.







- 18 -



Chery QQ Service Manual

Charging System



Section 2: Generator



. General Information

Ⅰ

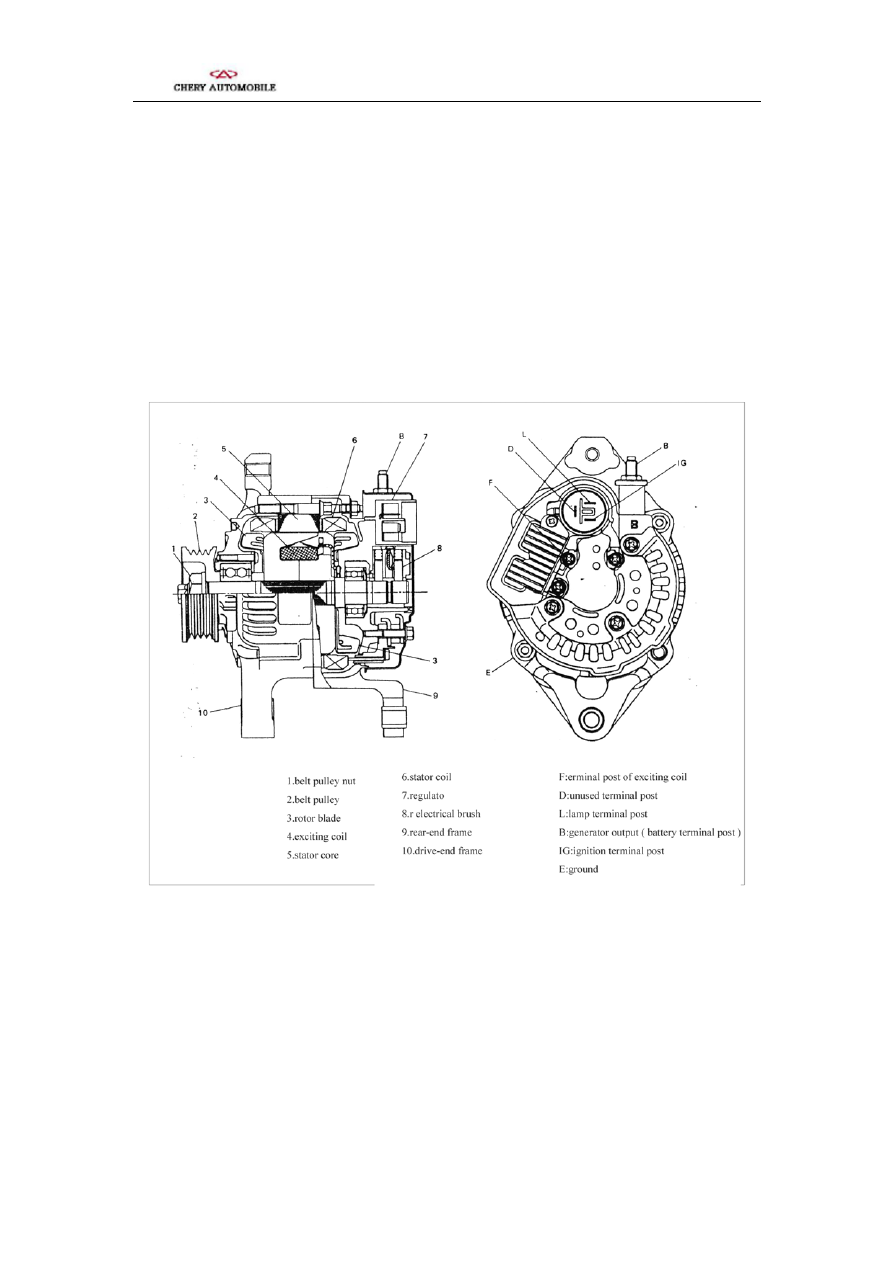

The main charging coefficient is just the charging coefficient of the regulator of

integrated circuit. The electric connection of its internal elements is shown in the

following figure.
