information record will be stored in memory after the identified failure disappears (after
troubleshooting).
When  a  failure  is  identified  for the  first  time,  Hz  will  be  set  as  its  initial  value  40.  If
failure status does not change, then this numerical value will maintain all along.
Once it is identified that this failure has disappeared and the state has held for a certain
time, whenever the engine starts with success (its engine speed has exceeded the  value
at end of starting) once, Hz will decrease by 1. At this point, ECU will believe that this
failure has disappeared, but the failure information record still exists.
If a failure (for example, as a result of poor contact) frequently appears and disappears,
then Hz will increase by 1, but will not exceed its given upper limit value 100.
If value of Hz has been decreased to zero, the failure information records in this failure
memory will be completely cleared.


5. Limp Home

For  some  identified  significant  failures,  when  duration  exceeds  the  given

stabilization  time,  ECU  will  take  appropriate  software  countermeasures,  for  example,
closing  some  control  functions  such  as  closed  loop  control  of  oxygen  sensor  etc.  and
setting  substituted  values  for  some data  that  are  considered  to be  suspect  and  so  forth.
At  this  point,  though  the  working  condition  of  the  engine  is  comparatively  poor,  the
auto can still run. The purpose to do  this  is to enable the  auto limply run  home or to a
service station for overhaul, so as to avoid the embarrassment that the auto breaks down
on  highway  or  afield.  Once  it  is  identified  that  the  failure  has  disappeared  and  Hz  has
fell to below 40, use of normal data will be resumed again.



6. Failure Alert

In  the  electric  control  system,  when  failure  take  places  in  any  of  such  important

parts  as  ECU,  absolute  pressure  sensor  in  intake  manifold,  throttle  position  sensor,
coolant  temperature  sensor,  knock  sensor,  oxygen  sensor,  phase  sensor,  injector,  two
driver stages of step motor of idle speed actuator, canister control valve, or fan relay at
corresponding  failure  location,  ECU  will  give  an  alarm  through  lightening  of  failure
indicator lamp until this failure location restores.

7. Readout of Failure

The  failure  information  records  can  be  called  out  of  ECU  through  a  trouble  diagnosis
tester.  If  the  failure  relates  to  the  function  of  mixed  air  (fuel  and  air)  proportional
regulator,  then  the  engine  must  at  least  run  for  4  minutes  before  reading  out  failure
information  records;  especially  for  failure  in  oxygen  sensor,  be  sure  not  to  detect  data
until the engine runs and warms up.
-    -





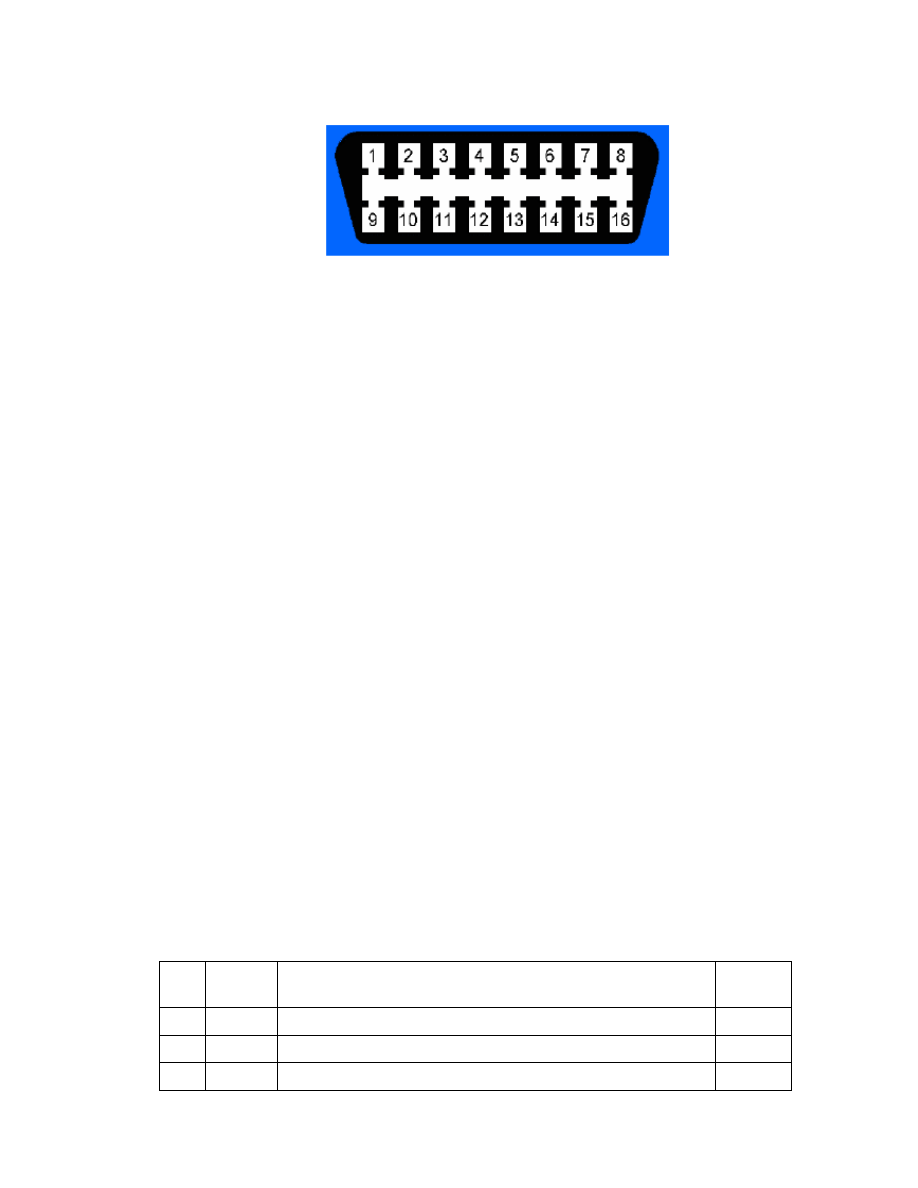

Figure 3-1 ISO 9141-2 Standard Diagnostic Connector

8. Clearing Failure Information Records



After  the  failure  is  removed,  the  failure  information  records  in  memory  should be

cleared. The diagnostic trouble code can be cleared through the following approaches:
When  the  numerical  value  of  frequency  counter  in  ECU  reaches  zero,  the  failure
information records in failure memory will be automatically cleared.
Employing fault diagnostic tester to clear records of failure with the instruction of “reset
memory for records of failure”.
Pulling  out  connectors  of  ECU  or  disconnecting  wires  of  battery  to  clear  records  of
failure in external ram.

9. Failure Locating

After  obtaining  failure  information  records  through  above  means,  only  rough

location  where  the  failure  takes  place  is  aware,  but  this  does  not  mean  that  the  failure
has  been  located; because  the  cause  that  triggers  a piece  of  failure  information  may  be
damage  of  electric  element  (such  as  sensor,  actuator  or  ECU  etc.),  lead  break,  lead
short-circuit to ground or anode of battery, even may be mechanical failure.



The failure is  intrinsic and the result of its  extrinsic representations is a  variety of

symptoms. After a symptom is found, first, check for failure information records with a
trouble  diagnosis  tester  or  based  on  the  flash  code,  after  that,  remove  the  correlated
failure  in  accordance  with  the  failure  information,  and  then  locate  the  failure  based on
symptom of the engine.



10. Failure Code Table



No.



DTC



  Explanation



Failure

class



P0016



Improper relative installation position between camshaft and crankshaft



class5



P0030

Failure in heating control circuit of upstream oxygen sensor



class31

P0031

Too low voltage in heating control circuit of upstream oxygen sensor



class31



P0032

Too high voltage in heating control circuit of upstream oxygen sensor



class31

P0105

Signal failure of intake air pressure sensor



class31

P0106

Improper signal from intake air pressure sensor



class31



P0107

Too low voltage in signal circuit of intake air pressure sensor



class31



P0108

Too high voltage in signal circuit of intake air pressure sensor



class31



P0112

Too low voltage in signal circuit of intake air temperature sensor



class5

10

P0113

Too high voltage in signal circuit of intake air temperature sensor



class5



11

P0117

Too low voltage in signal circuit of engine coolant temperature sensor



class31



12

P0118

Too high voltage in signal circuit of engine coolant temperature sensor



class31



13

P0121

Improper signal from electronic throttle position sensor 1



class34



14

P0122

Too low voltage in signal circuit of electronic throttle position sensor 1



class34



15

P0123

Too high voltage in signal circuit of electronic throttle position sensor 1



class34



16

P0130

Improper signal from upstream oxygen sensor



class31



17

P0131

Too low voltage in signal circuit of upstream oxygen sensor



class31



18

P0132

Too high voltage in signal circuit of upstream oxygen sensor



class31



19

P0134

Failure in signal circuit of upstream oxygen sensor



class31



20

P0201

Failure in 1# cylinder injector control circuit



class5



21

P0202

Failure in 2# cylinder injector control circuit



class5



22

P0203

Failure in 3# cylinder injector control circuit



class5



23

P0204

Failure in 4# cylinder injector control circuit



class5



24

P0219

Engine revolution exceeds the maximum revolution limit



class5



25

P0221

Improper signal from electronic throttle position sensor 2



class34



26

P0222

Too low voltage in signal circuit of electronic throttle position sensor 2



class34



27

P0223

Too high voltage in signal circuit of electronic throttle position sensor 2



class34



28

P0261

Too low voltage in 1# cylinder injector control circuit



class5



29

P0262

Too high voltage in 1# cylinder injector control circuit



class5



30

P0264

Too low voltage in 2# cylinder injector control circuit



class5



31

P0265

Too high voltage in 2# cylinder injector control circuit



class5



32

P0267

Too low voltage in 3# cylinder injector control circuit



class5



33

P0268

Too high voltage in 3# cylinder injector control circuit



class5



34

P0270

Too low voltage in 4# cylinder injector control circuit



class5



35

P0271

Too high voltage in 4# cylinder injector control circuit



class5



36

P0321

Improper signal of crankshaft top dead center



class33



37

P0322

Engine speed signal failure



class33



38

P0324

Failure in knock signal processing chip and its circuit



class5



39

P0327

Too low voltage in signal circuit of knock sensor



class31



40

P0328

Too high voltage in signal circuit of knock sensor



class31



41

P0340

Failure in signal circuit of phase sensor



class5



42

P0341

Improper signal from phase sensor



class5



43

P0342

Too low voltage in signal circuit of phase sensor



class5



44

P0343

Too high voltage in signal circuit of phase sensor



class5



45

P0444

Failure in control circuit of canister control valve



class31



46

P0458

Too low voltage in control circuit of canister control valve



class31



47

P0459

Too high voltage in control circuit of canister control valve



class31



48

P0480

Failure in relay control circuit of electronic cooling fan (low speed)



class5



49

P0481

Failure in relay control circuit of electronic cooling fan (high speed)



class5



50

P0501

Improper speed signal



class5



51

P0504

Improper signal of brake pedal A/B



class5



52

P0506

Engine speed under idle speed control is below the target idle speed



class5



53

P0507

Engine speed under idle speed control is above the target idle speed



class5



54

P0537

Too low voltage in signal circuit of evaporator temperature sensor



class5



55

P0538

Too high voltage in signal circuit of evaporator temperature sensor



class5



56

P0560

Improper system voltage signal



class33



57

P0562

Too low system voltage signal



class33



58

P0563

Too high system voltage signal



class33



59

P0571

Failure in signal circuit of brake pedal



class5



60

P0601

Failure in EEPROM of ECU



class33



61

P0602

Unprogrammed failure in ECU



class33



62

P0604

Failure in RAM of ECU



class34



63

P0605

Failure in ROM of ECU



class34



64

P0606

Safety monitoring function failure of electronic throttle



class34



65

P0627

Failure in control circuit of fuel pump relay



class33



66

P0628

Too low voltage in control circuit of fuel pump relay



class33



67

P0629

Too high voltage in control circuit of fuel pump relay



class33



68

P0645

Failure in control circuit of A/C compressor relay



class5



69

P0646

Too low voltage in control circuit of A/C compressor relay



class5



70

P0647

Too high voltage in control circuit of A/C compressor relay



class5



71

P0688

Improper output voltage of main relay



class33



72

P0689

Too low output voltage of main relay



class33



73

P0690

Too high output voltage of main relay



class33



74

P0691

Too low voltage in relay control circuit of electronic cooling fan (low speed)

  class5

75

P0692

Too  high  voltage  in  relay  control  circuit  of  electronic  cooling  fan  (low

speed)



class5



76

P0693

Too  low  voltage  in  relay  control  circuit  of  electronic  cooling  fan  (high

speed)



class5
