Chery B14. Manual - part 14







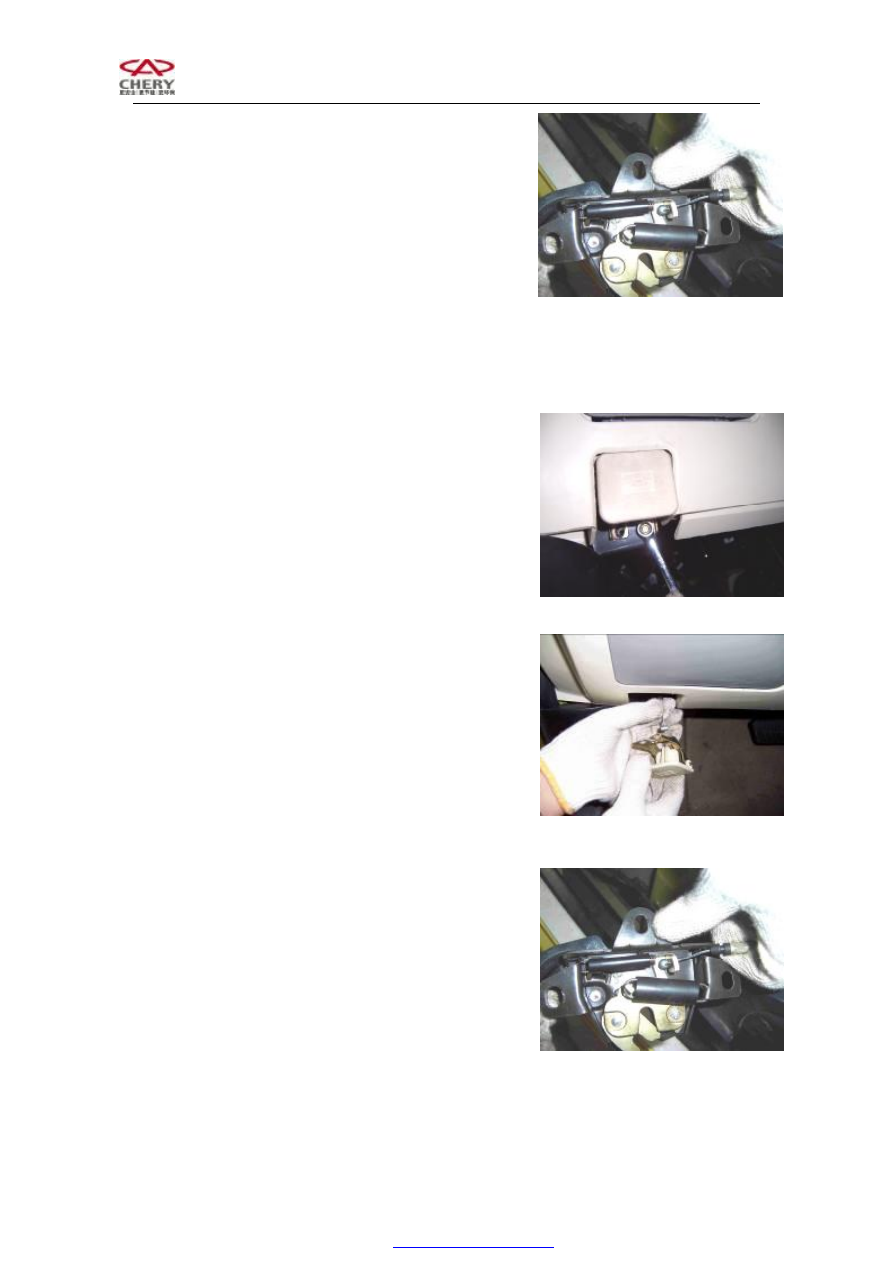

6.1.2    Take off the lock cable from engine hood.



6.2    Assembly of engine hood lock

The installing steps are reverse to those for removal.

Installation torque: 9±1Nm



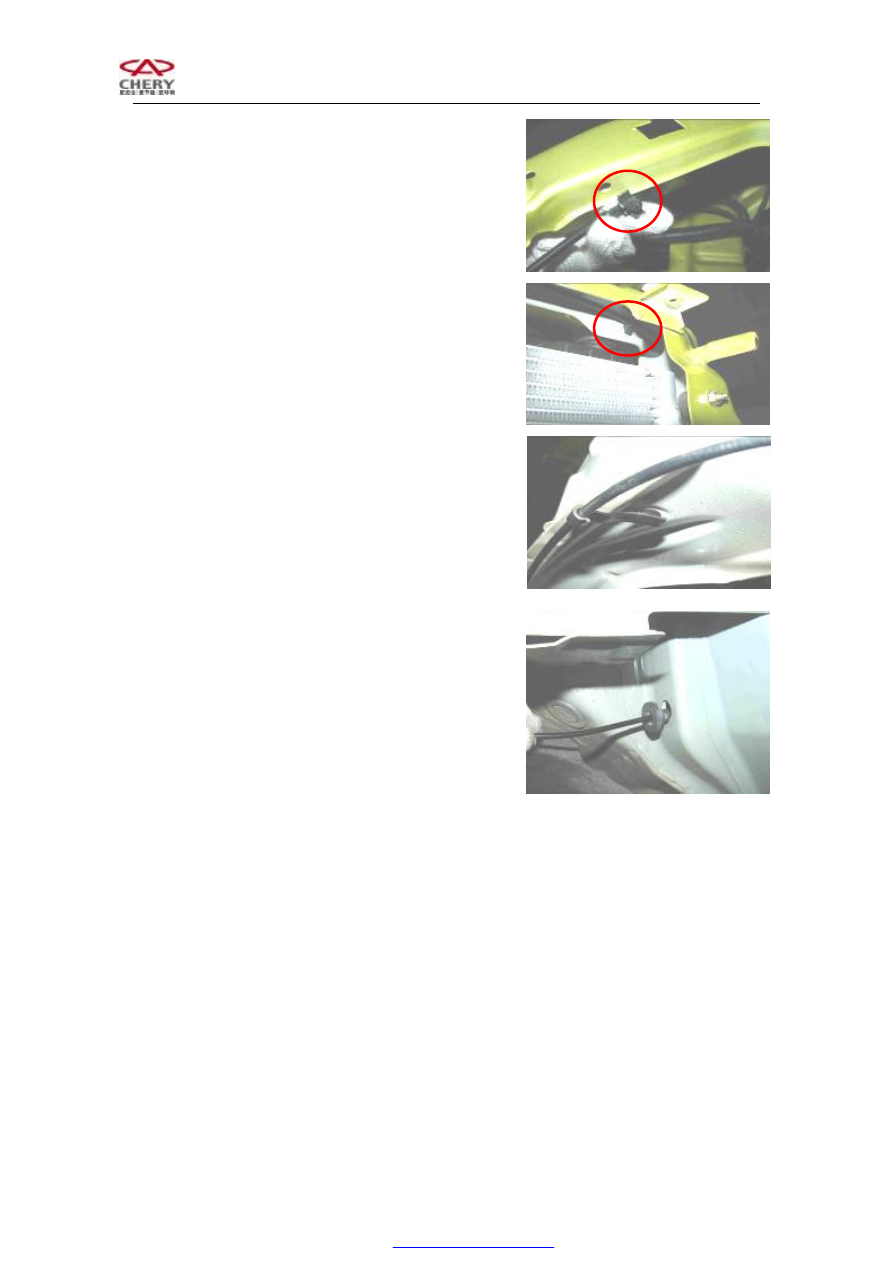

7    Disassembly of engine hood lock control cable

Tool: No. 8 spanner, No.10 spanner, flat head screwdriver

7.1    Disassembly steps

7.1.1    Disassemble two fixing bolts from engine hood opening handle inside of the cab.

Installation torque: 9±1Nm













7.1.2    Take off the front cover control cable from cover.



















7.1.3    Take  off  engine  hood  lock,  and  disassemble  the

cable from engine hood lock assembly.



















7.1.4    Unscrew  two  clips  from  fixing  cable  by  flat  head

screwdriver.







































7.1.5    Disassemble front bumper and driver’s side

fender (see fender disassembly)



7.1.6    Take out the plug where the cable go through

to cab.



7.1.7    Take out of the cable.

7.2    Assembly steps

The installing steps are reverse to those for removal.

Note: put the slot into pulling slot during cable installation.

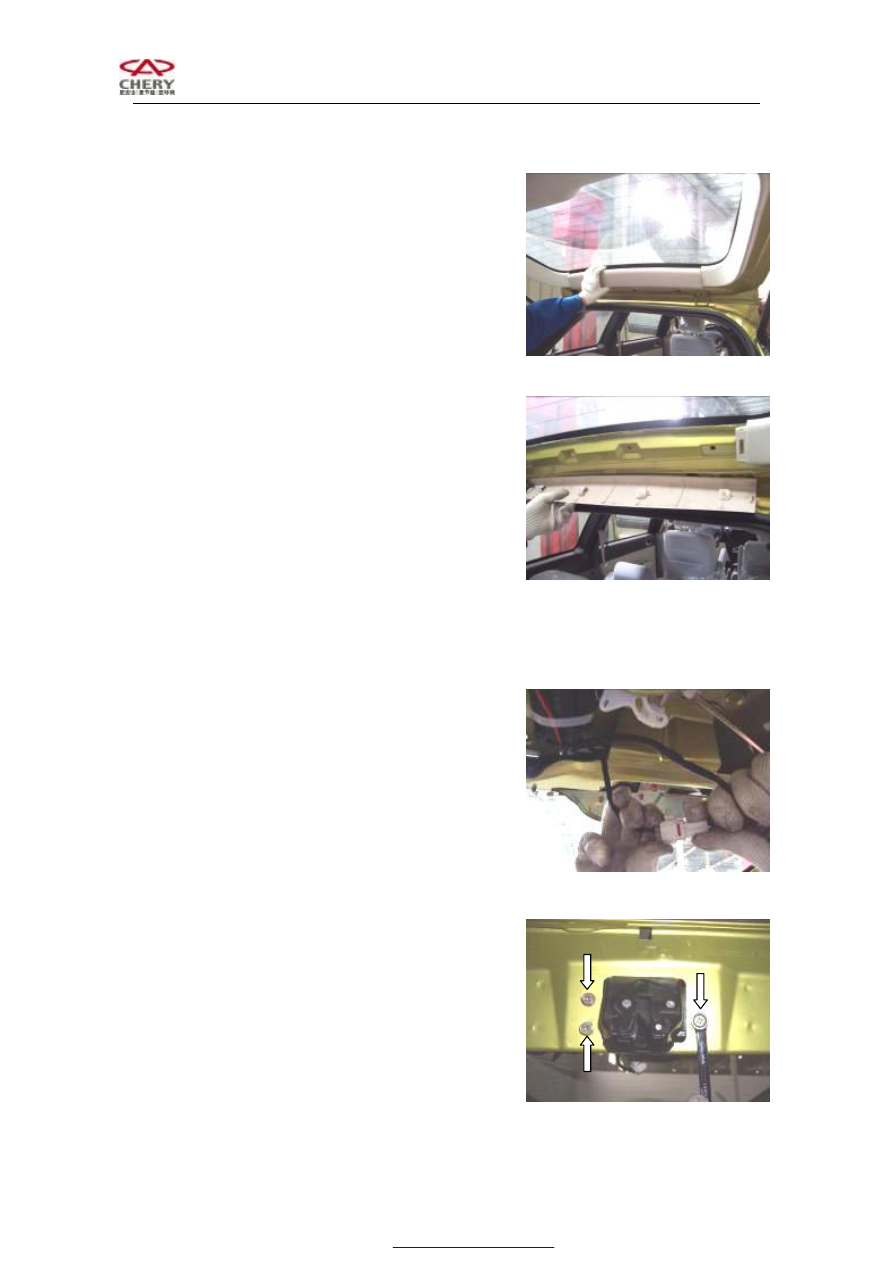

II.    Disassembly  and  assembly  of  rear

luggage compartment lid.

1    Preparation

Tool: flat head screwdriver, No. 13 socket spanner

Material: snap clip





2    Disassembly of rear lid trim panel

2.1    Disassembly steps

Tool: No. 13 spanner

2.1.1    Take away the luggage compartment inside panel.













2.1.2    The snap clips on the inside panel are one time

using and should be carefully disassembly.







2.2    Installation of rear lid trim panel

T

he installing steps are reverse to those for removal

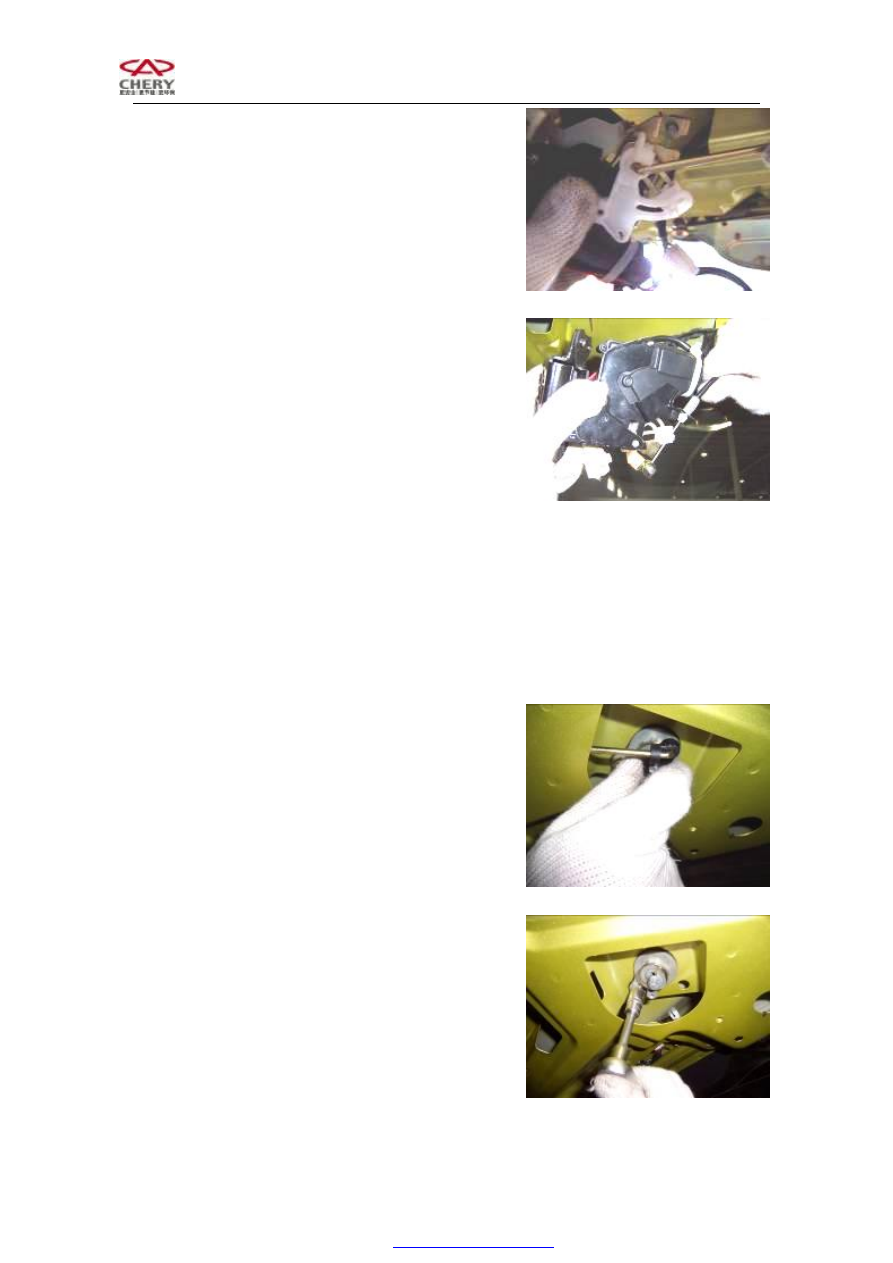

3    Disassembly/assembly of luggage compartment lock

3.1    Disassembly steps

Tool: No. 10 spanner

3.1.1    Separate the motor plug of upper lock

















3.1.2    Take away three positioning bolts from luggage

compartment lock. (Installation torque is 9±1Nm)

















3.1.3    Disassemble the pull rod















3.1.4    Take off control cable











3.1.5    Take off luggage compartment lock

3.2    Assembly steps

The installing steps are reverse to those for removal.

Note for installation:Observe the lock core for deformation,

the  welding is  correct or  not, if the lock bushing is  well, and

if the lock latch is flexible.



4    Disassembly of luggage compartment lock core

Tool: No. 10 socket spanner

4.1    Disassembly steps

4.1.1    Separate connect rod away from lock core













4.1.2    Loose the fixing bolt by socket spanner

(Torque is 9±1Nm)

,Take off the lock core.

Note: Do not throw away the washer of the lock core.

4.2    Assembly steps

The installing steps are reverse to those for removal.

Pay attention to assemble it to its correct position and joint

to door plate work.
