Resistance check between terminals


Terminal No.

Check Item

Normal Status

A01—A12

1st Cylinder Injector

A14—A12

2nd Cylinder Injector

A02—A12

3rd Cylinder Injector

A15—A12

4th Cylinder Injector

13－16kΩ(20℃)



A04—A12

Stepper Motor Coil A

A17—A12

Stepper Motor Coil B

A05—A12

Stepper Motor Coil C

A18—A12

Stepper Motor Coil D

28－33Ω(20℃)

13－Body Ground

Engine ECU Ground

26－Body Ground

Engine ECU Ground

Conductive (0Ω)

A06—A12

EGR Solenoid Valve

36－44Ω(20℃)

A09—A12

Purge Solenoid

36－44Ω(20℃)

5.1－6.5kΩ(Coolant Temperature is

0℃)

2.1－2.7kΩ(Coolant Temperature is

20℃)

0.9－1.3kΩ(Coolant Temperature is

40℃)

D13—D22

Coolant Temperature Sensor

0.26－0.36kΩ(Coolant Temperature

is 80℃)

5.3－6.7kΩ(Coolant Temperature is

0℃)

2.3－3.0kΩ(Coolant Temperature is

20℃)

1.0－1.5kΩ(Coolant Temperature is

40℃)

D02—D22

Intake Air Temperature Sensor

0.3－0.42kΩ(Coolant Temperature

is 80℃)

D05.D06—D22

Oxygen Sensor

About 12Ω

Conductible (Throttle is at ilde

speed postion)

D17—D22

Idle Position Switch

Non-conductible (Throttel is partial

open)







Chapter One Braking System

Section One Front-wheel Brake

1.1 Structure of brake caliper

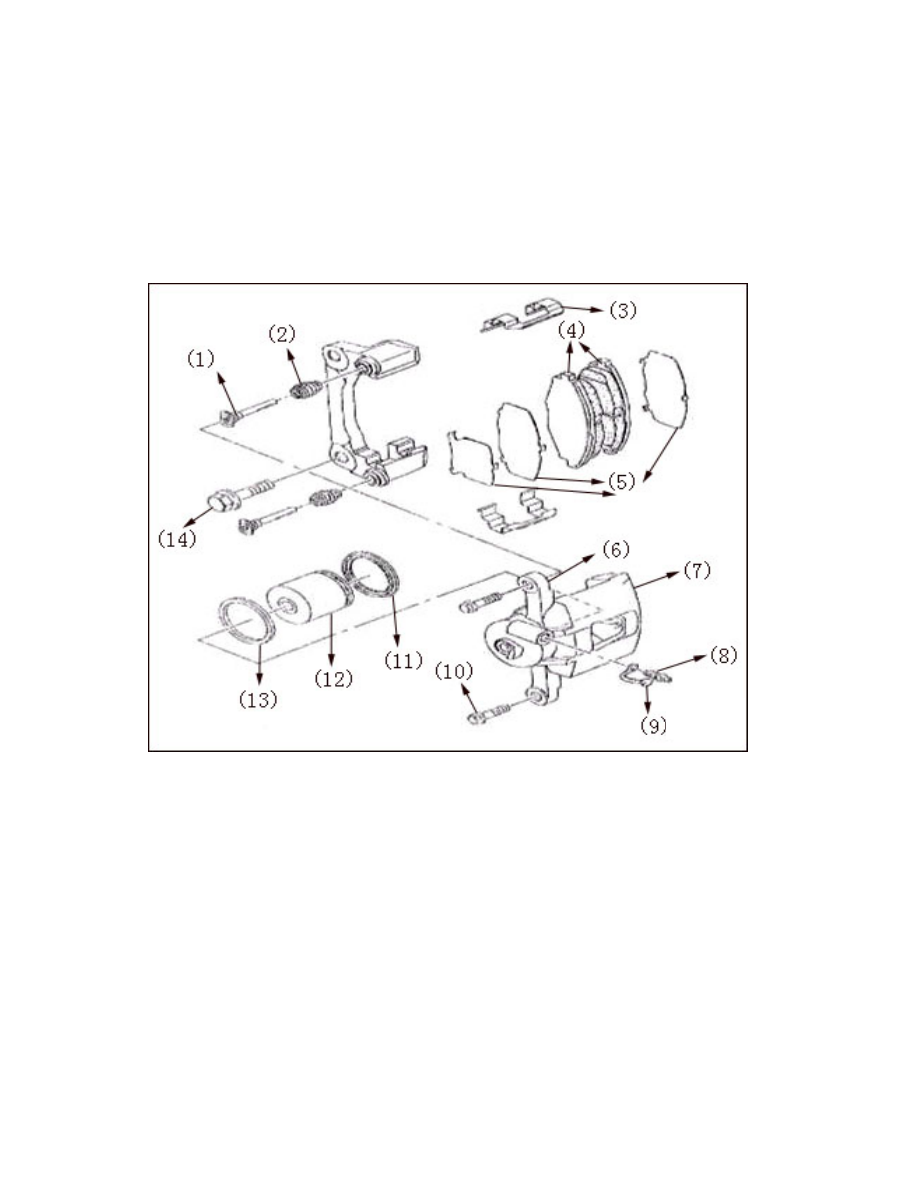

Structure of brake caliper assembly:
Brake caliper body, brake caliper bracket, bleeder, dust cover, piston, piston dust cover,
piston seal, guide rail washer, guide bolt, brake lining assembly, brake lining damper,
dust cover, bracket, etc


001
























(1) Guide bolt (2) Dust cover (3) Guide rail washer
(4) Brake lining assembly (5) Brake lining damper (6) Brake caliper bracket
(7) Brake caliper body (8) Bleeder (9) Dust cover
(10) Brake caliper attachment bolt  (11) Piston dust cover (12) Piston
(13) Piston seal (14) Brake caliper bracket set bolt

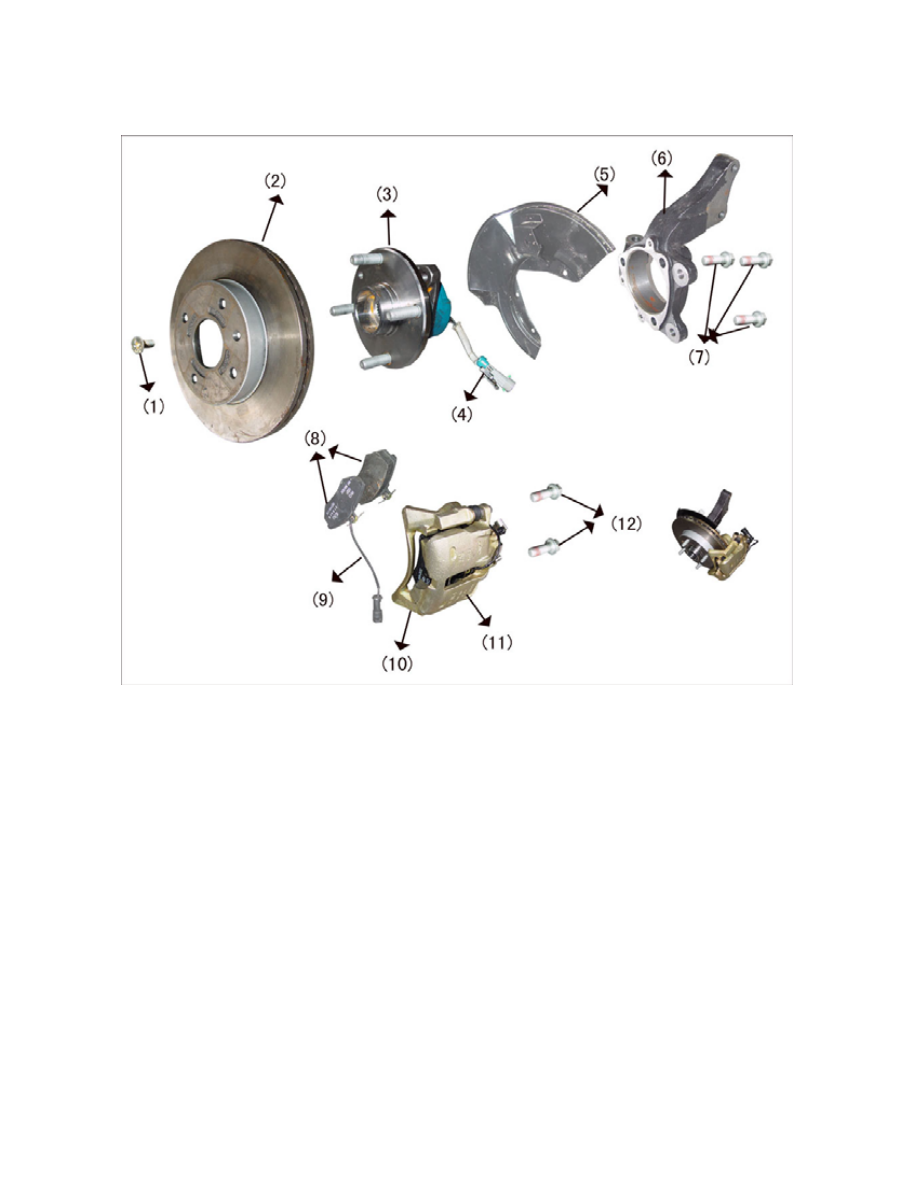

1.2 Front wheel brake assembly drawing



(1) Brake disc guide bolt





(2) Brake disc

(3) Front wheel hub bearing unit



(4) Wheel speed sensor joint

(5)

Dust

plate

    (6)

Steering

knuckle

(7)

Set

bolt

    (8)

Brake

lining

(9) Brake lining abrasion sensor



(10) Brake bracket

(11) Brake caliper assembly



(12) Set bolt













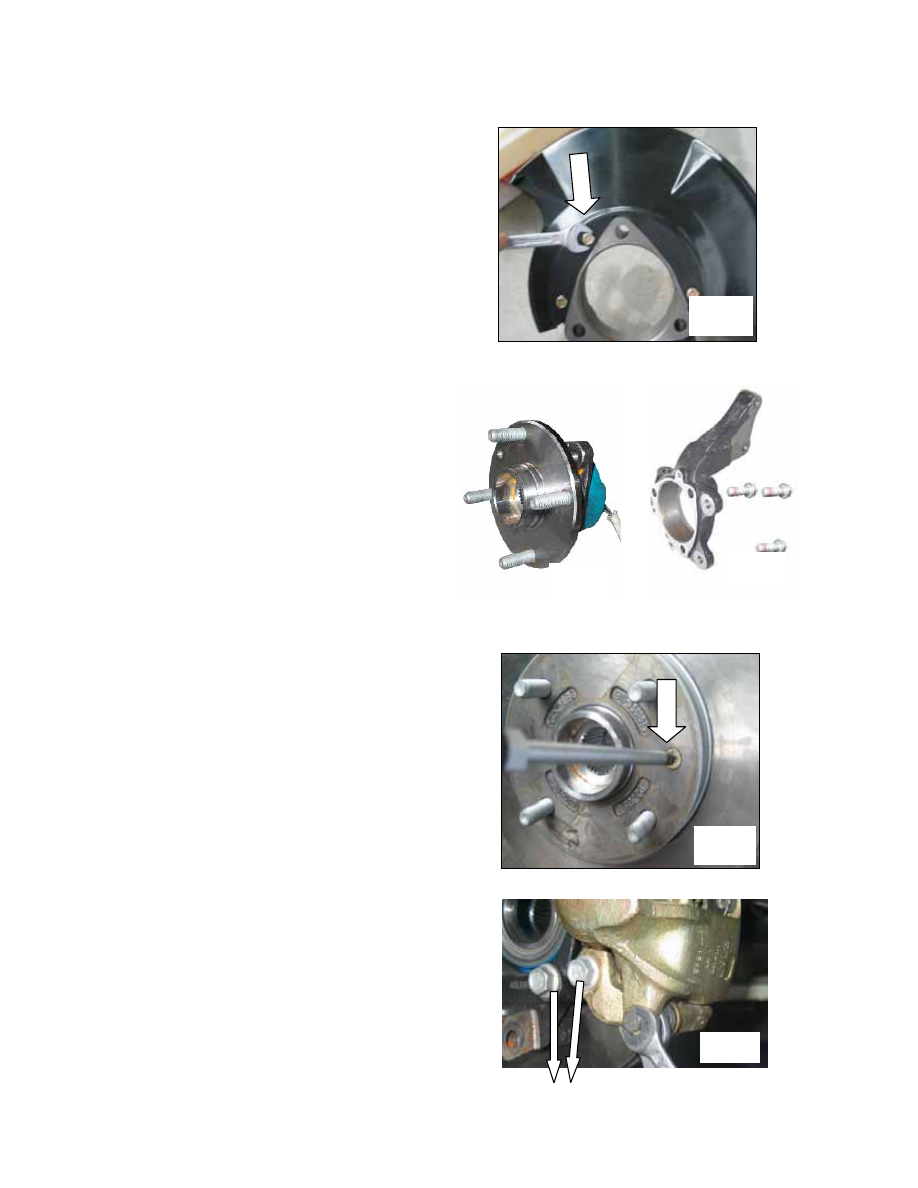

1.3 Fixing of front wheel disc brake assembly
1. Place the steering knuckle in the clamp and
fix the dust plate tightly onto the steering knuckle

003

with a bolt.
The screwing torque is 9-11N.m







2. Fix the front wheel hub bearing unit

005

004

tightly into the steering knuckle with three
set bolts.
The screwing torque is 120-128N.m







3. Fix the brake disc bolts onto the front wheel hub
unit.
The screwing torque is 7-9N.m







4. Connect the brake caliper assembly and steering

006

knuckle with two bolts; the brake disc shall be
located between the brake linings.
The screwing torque is 85±5N.m
Note: There shall be no grease on the

007

brake disc and brake linings







(1)
