Chery A15. Manual - part 177
Chery A15 Maintenance Manual

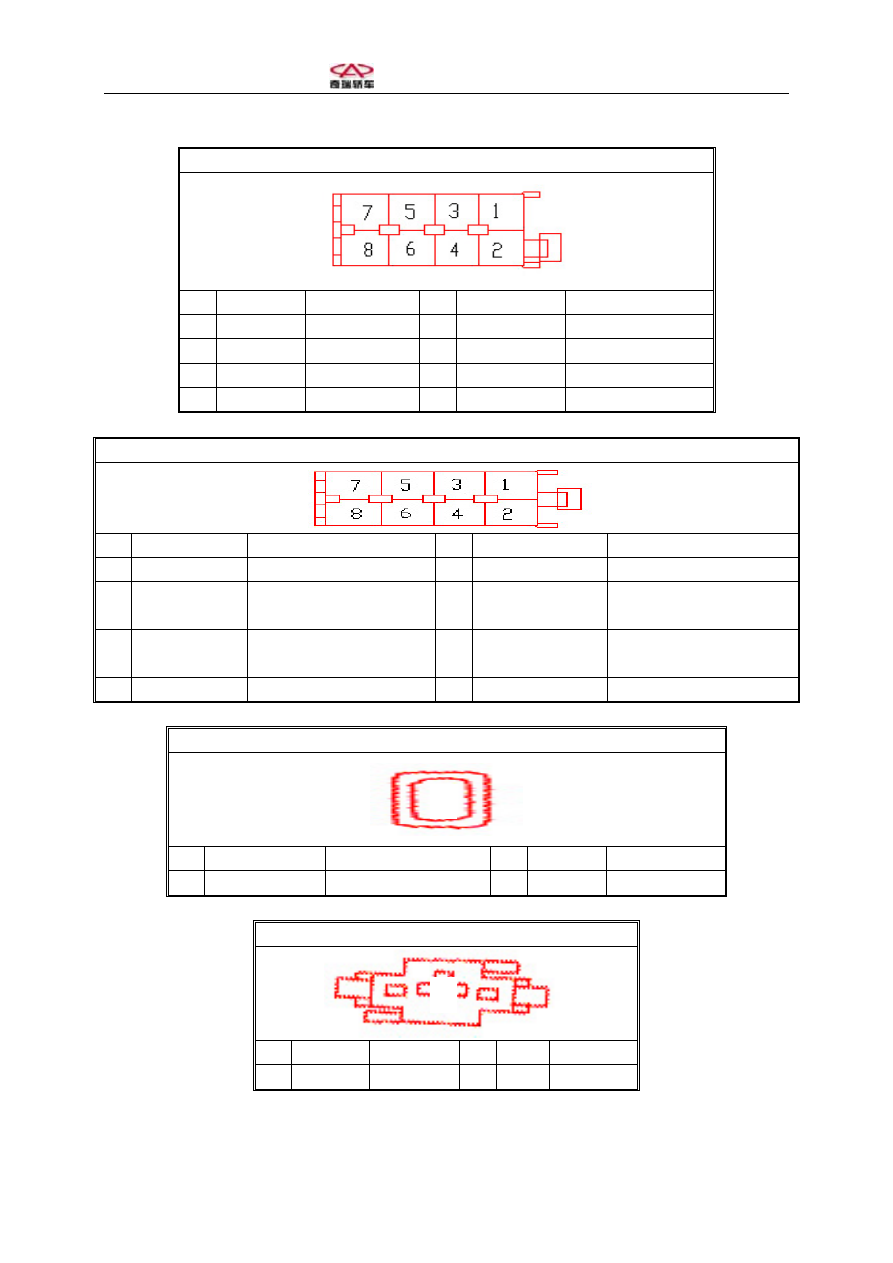

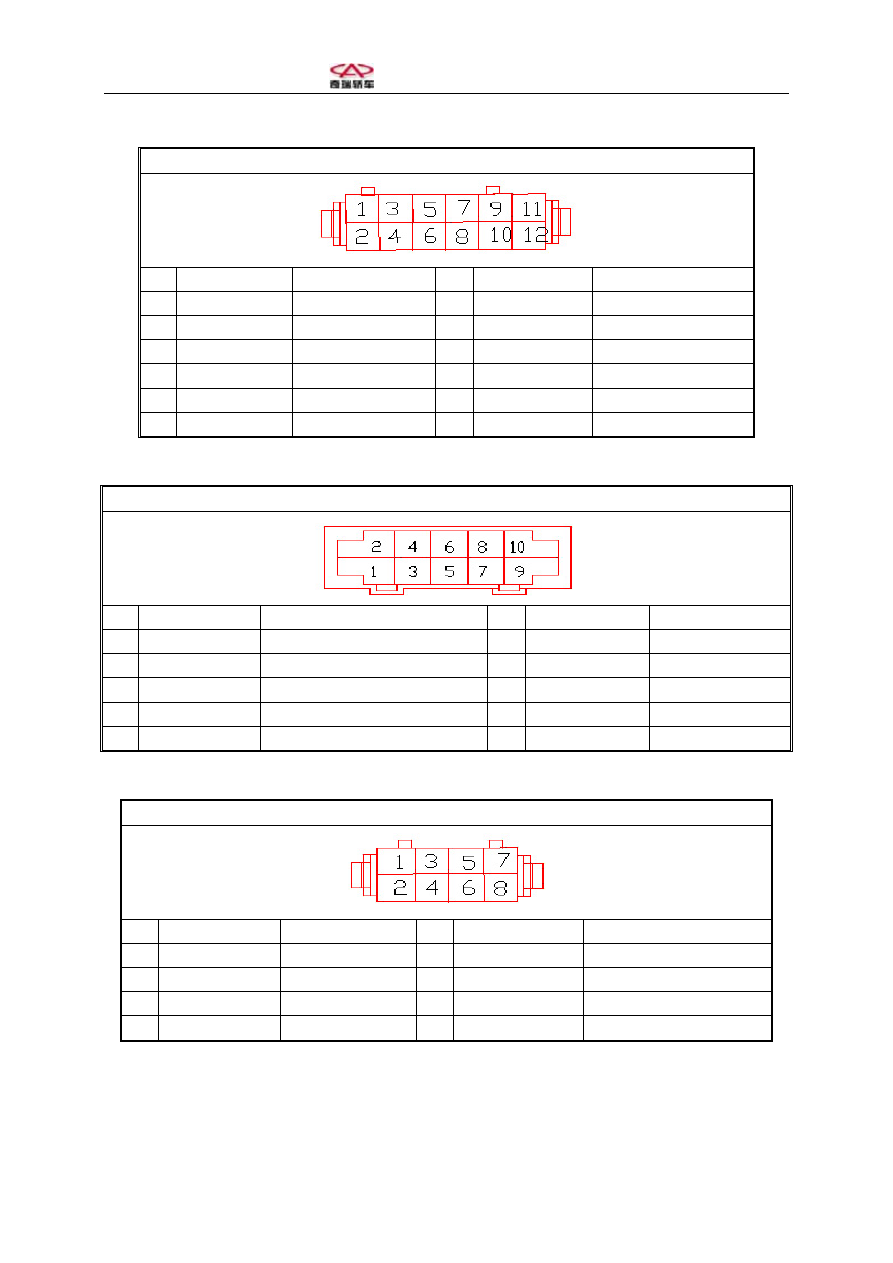

C437 Plug-in TS1
Pin Color
Description Pin
Color
Description
1
1.0 Red
Parking light switch
2
1.0 Black/green
Right taillight
3 1.0
Black/white Parking
light
switch
4
Empty
5
1.0 Gray/white
Rear fog light
6
1.5 Red/black
Rear windshield heater
7 1.0
Gray
8
9
1.5 Red
Trunk light
10
0.5 Purple/black
Oil level sensor
11
1.5 Black/blue
Rearview mirror
12
2.5 Red
Door lock

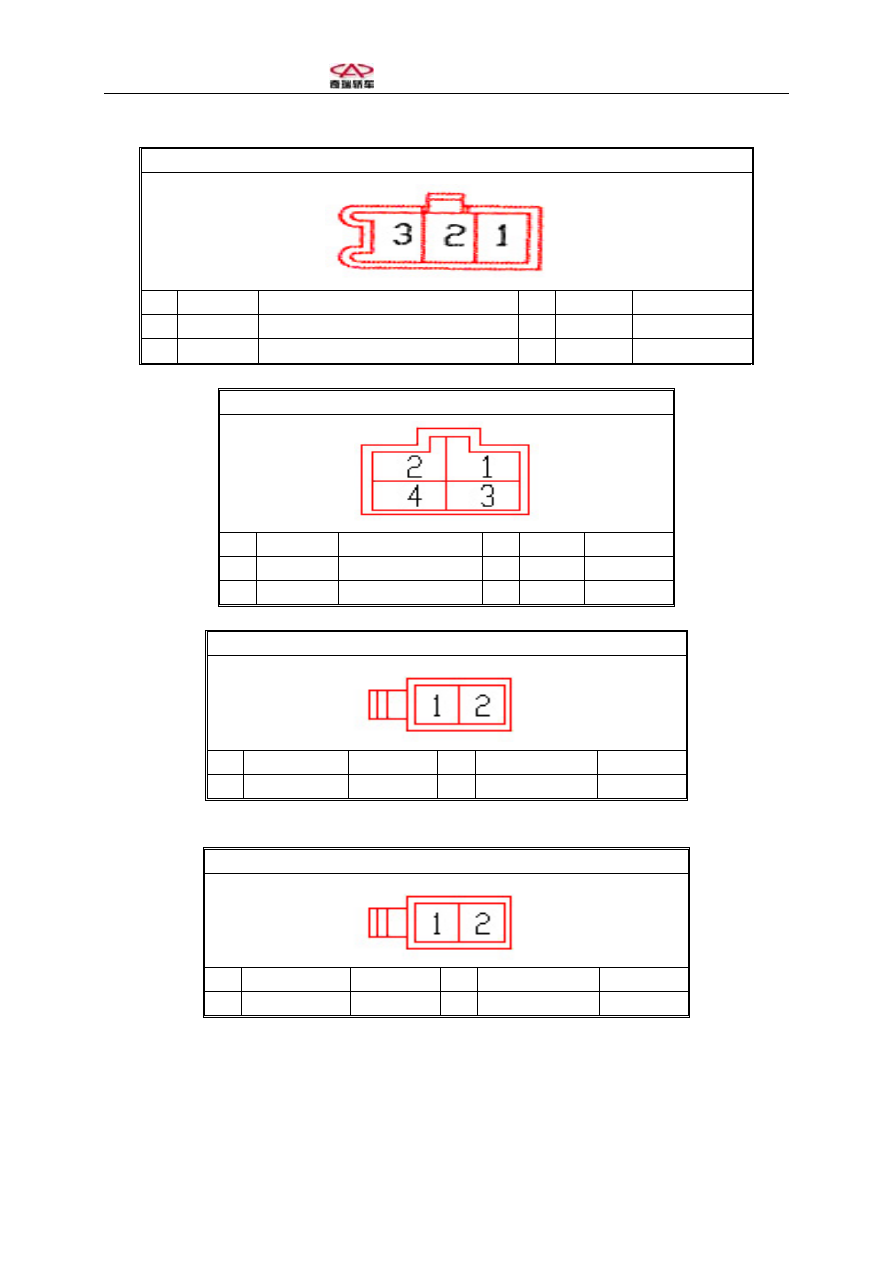

C438 Plug-in TS2
Pin Color
Description
Pin
Color
Description
1
1.5 Yellow/red
Front fog light switch
2
0.5 Gray/black
Rear turn lights
3
1.0 Black/white
Left side turn light
4
1.0 Black/green
Right side turn light
5
0.5 Gray/red
Right parking light fuse
6
1.0 Black/yellow
Reverse switch
7
0.5 Brown/green Hand brake indicator light switch
8
0.5 Gray/green
Parking light
9
Empty
10
Empty

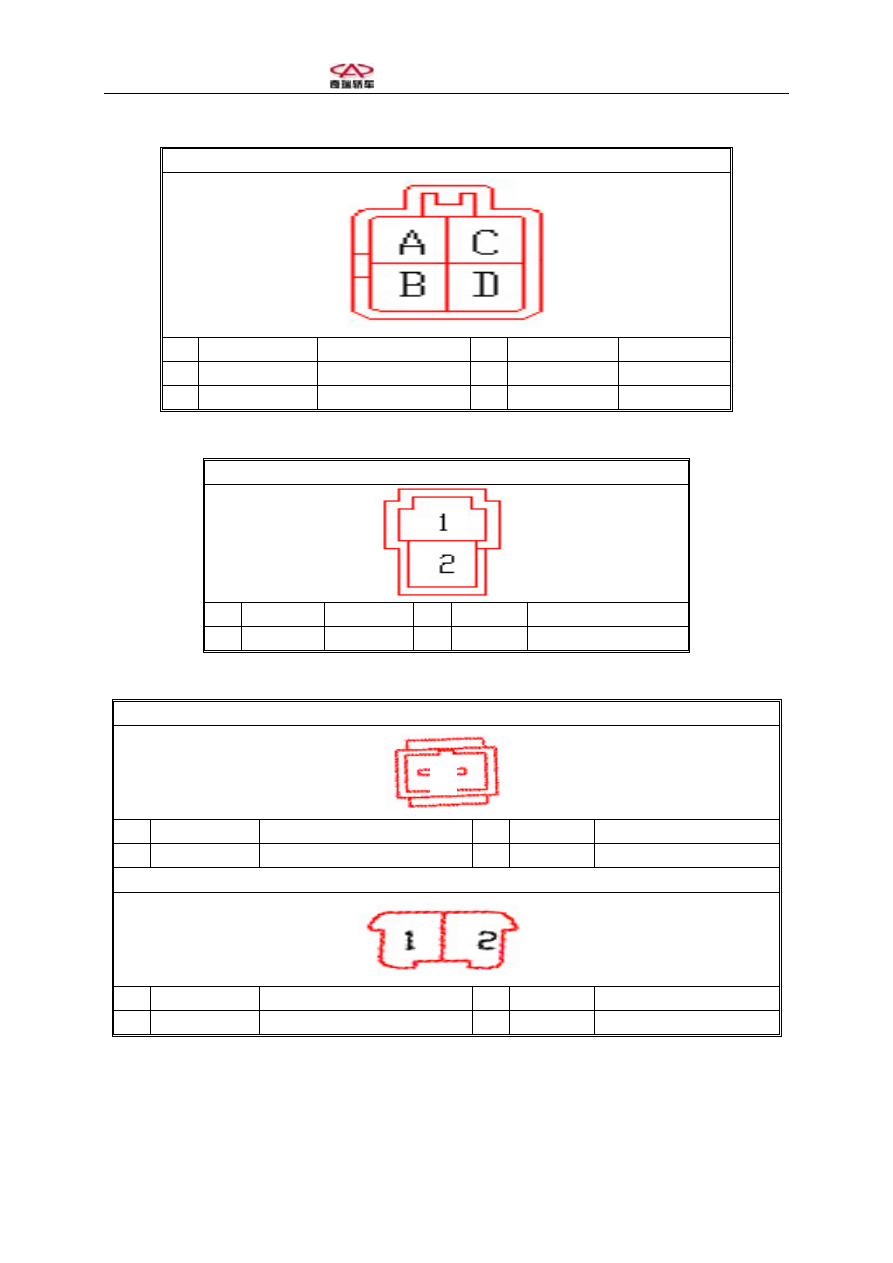

C439 Plug-in TS3
Pin Color
Description
Pin
Color
Description
1
0.5 Brown/blue
Front right speaker
2
0.5 Brown/yellow
Front right speaker
3
0.5 Brown/red
Front left speaker
4
0.5 Brown/black
Front left speaker
5
0.5 Brown/white
Hand braking light
6
1.5 Red
Electrical box D plug-in 9#
7 1.5
Red/gray
8
