9. Idle Speed Actuator Stepper Motor
DLA





Functions: there is a bypath air passage in
throttle valve casing, and engine speed can
be controlled by bypath airflow, while
bypath airflow is controlled by stepper
motor, which is located in bypath air
passage. ECU, according to signals sent by
sensors, is able to control engine speed
within the target speed range, which can be
calibrated in accordance with coolant
temperature.




Composition and principle: the nature of
stepper motor is a micro electrical machine,
which can rotate in different directions as
per its connecting with current of different
directions. The rotation axis of electrical
machine activates screw rod and indirectly
controls valve opening.







Failure diagnosis:
ECU can monitor short circuit, open circuit
status of two coils in idle speed stepper
motor, and lighten engine failure lamp when
such failure occurs, then engine enters
failure mode.
ECU is incapable of monitoring failure
caused by mechanical part of electrical
machine itself.










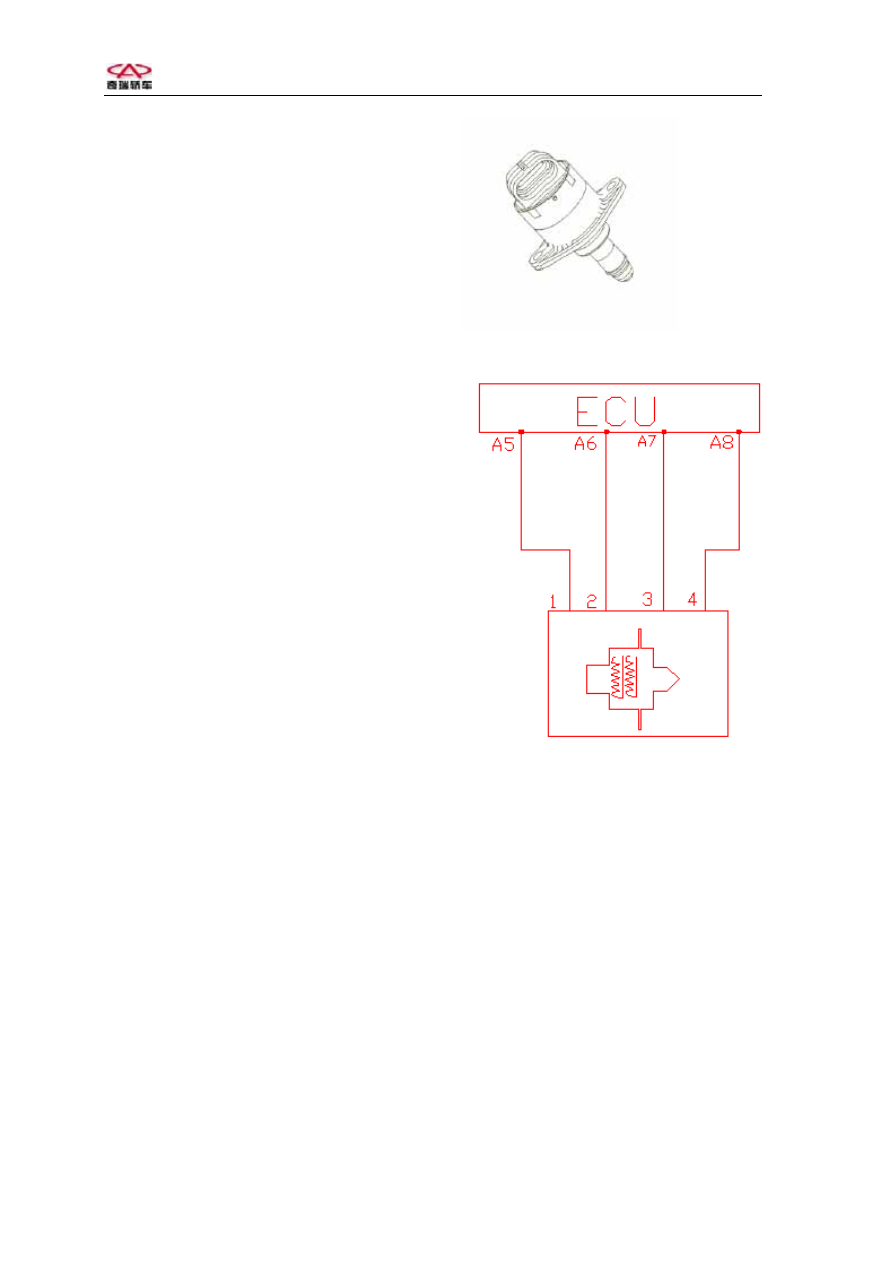

Idle speed actuator stepper motor



Idle speed stepper motor

Circuit diagram of idle speed actuator stepper motor

P



ins:

Pin 1 connecting with ECU’s A5# pin

Pin 2 connecting with ECU’s A6# pin

Pin 3 connecting with ECU’s A7# pin

Pin 4 connecting with ECU’s A8# pin





Troubleshooting: check if there is short

circuit or open circuit on the 4 lines

connecting stepper motor and ECU.

If there is clamping stagnation phenomenon

in stepper motor

If short circuit, open circuit occurs in

interior stepper motor.

Disassemble stepper motor, after electrification,
conduct electrical testing on stepper motor to see if
it has good flexibility.





10



Maintenance Manual for Chery·Windcloud

MOTOROLA EFI System



10. Ignition Coil

Function:  ignition coil transforms low
voltage of primary winding into high voltage
of secondary winding, spark is generated
through discharge of spark plug to ignite
fuel and air mixture in cylinder.






Composition and principle: utilizes the
principle that solenoid mutual induction can
generate high energy, and controls
electrification time of primary coil; when
power is cut off, uses high voltage generated
in secondary coil to disrupt spark plug
clearance, and generates intense spark so as
to lighten gas mixture.





Failure diagnosis: ECU can not function
failure diagnosis on ignition coil, so in case
any problem occurs in ignition coil, there is
no failure code, the only way is to check the
resistance of ignition coil to determine if the
said coil is in working order. Under normal
conditions, the thermal value of working
ignition coil is fairly big, however, excessive
temperature will lead to the increase of
resistance value of ignition coil, unsteady
performance and flameout of engine will
occur.







Caution: excessive temperature of ignition
coil may cause engine ignition system
defect.





















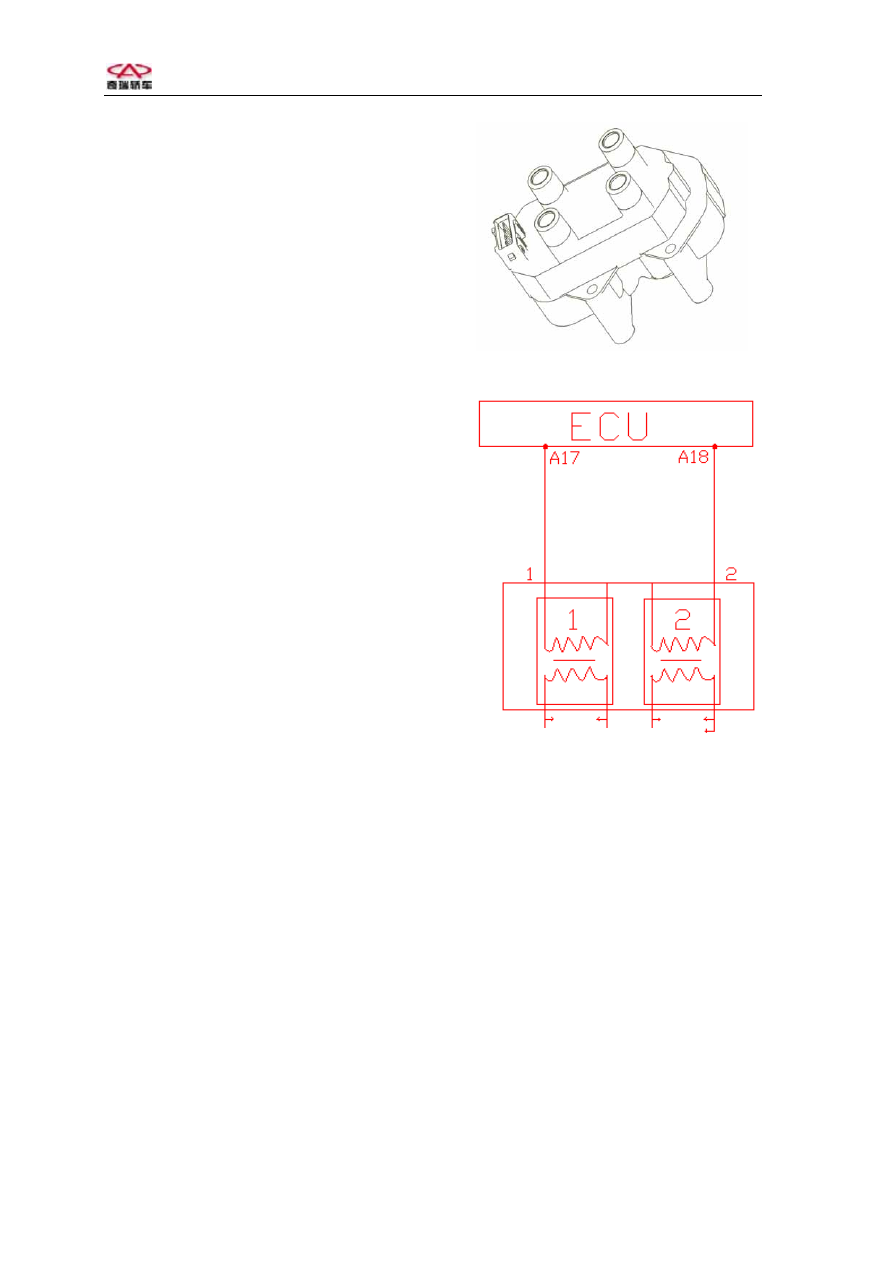

Ignition coil



Circuit diagram of ignition coil

Ignition system set



Pins:

Primary winding of 1# coil connecting with

A17# pin of ECU;

Primary winding of 2# coil connecting with

A18# pin of ECU;



High-voltage side:

Connect 1#, 2#, 3#, 4# pin respectively with

spark plug of corresponding cylinder

through sub live wire.



Troubleshooting:  short circuit or open

circuit occurs inside coil;

Coil creepage, housing crack;

Coil aging leads to insufficient electric

quantity of ignition.





11



Maintenance Manual for Chery·Windcloud

MOTOROLA EFI System



11. Assembly of Steely Fuel Distributing
Pipe



Purpose:  to store and distribute fuel from
fuel pump and control system fuel pressure
through fuel pressure regulator to provide
fuel injection system with a fairly stable
pressure environment, to achieve
counterbalance of supply pressure and fuel
feed of each cylinder as well as smooth
engine operation.









Composition: fuel distributing pipe
assembly is made up by fuel distributing
pipe and injector.









Installation requirement: connect fuel
inlet/outlet pipes with rubber pipes and
fasten them down wtih hoops. The size of
hoops used shall match that of rubber pipes
so as to ensure air-tight connection between
fuel inlet/outlet pipes and rubber pipes to
prevent fuel leakage.








Failure diagnosis: generally, the probability
for failure occurrence of fuel feeding header
pipe is slim. Mostly, failure is caused by
improper assembling, which leads to leakage
in fuel system, therefore, be careful when
assembling:    O-ring oil seal used can not be
reused; when assembling, apply some
lubrication oil as appropriate.





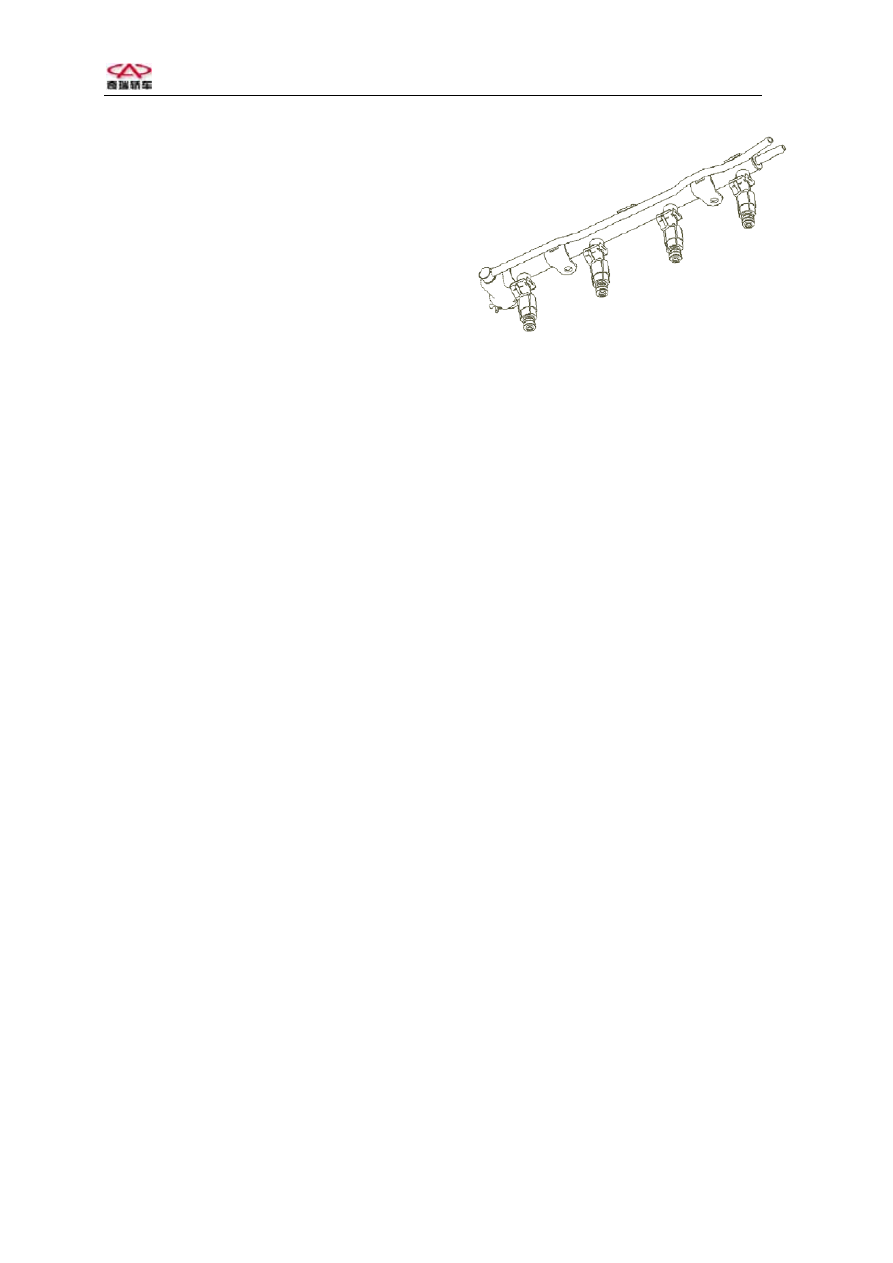

Fuel distributing pipe assembly























12



Maintenance Manual for Chery·Windcloud

MOTOROLA EFI System



12. Crankshaft Position Sensor
(Rotational Speed Sensor)

Purpose: crankshaft position sensor is
designed to provide ECU with signals of
engine speed, rotation angle and top dead
center to be used in engine ignition, fuel
injection and timing system.



Composition principle: MOTOROLA
system introduces rotational speed sensor of
magnetic induction coil type, and generates
alternating current/voltage signal by rotary
cutting line of magnetic force. The ECU,
after reshaping such alternating signal,
converts the said signal into digital signal
identifiable to engine ECU to be used in
engine system control.
