CHERY AUTOMOBILE CO., LTD Automatic Transmission Fault Diagnosis Manual
. Install the shuttle valve’s compression plate and fix it with bolts: The bolts’ tightening torque: 8Nm late assembly; . Install the valve plate assembly on the transmission; . Install the assembled transmission assembly on the vehicle; ransmission assembly ecial tools: A-002-008 differential regulator KA
A-001-483 gap detector A-001-655 main back output gear p detector ssembly procedure: Install the driven shaft bearing’s outer racer; Install the lock bolt on the driven shaft bearing’s outer racer; The bolts’ tightening torque: 20Nm;

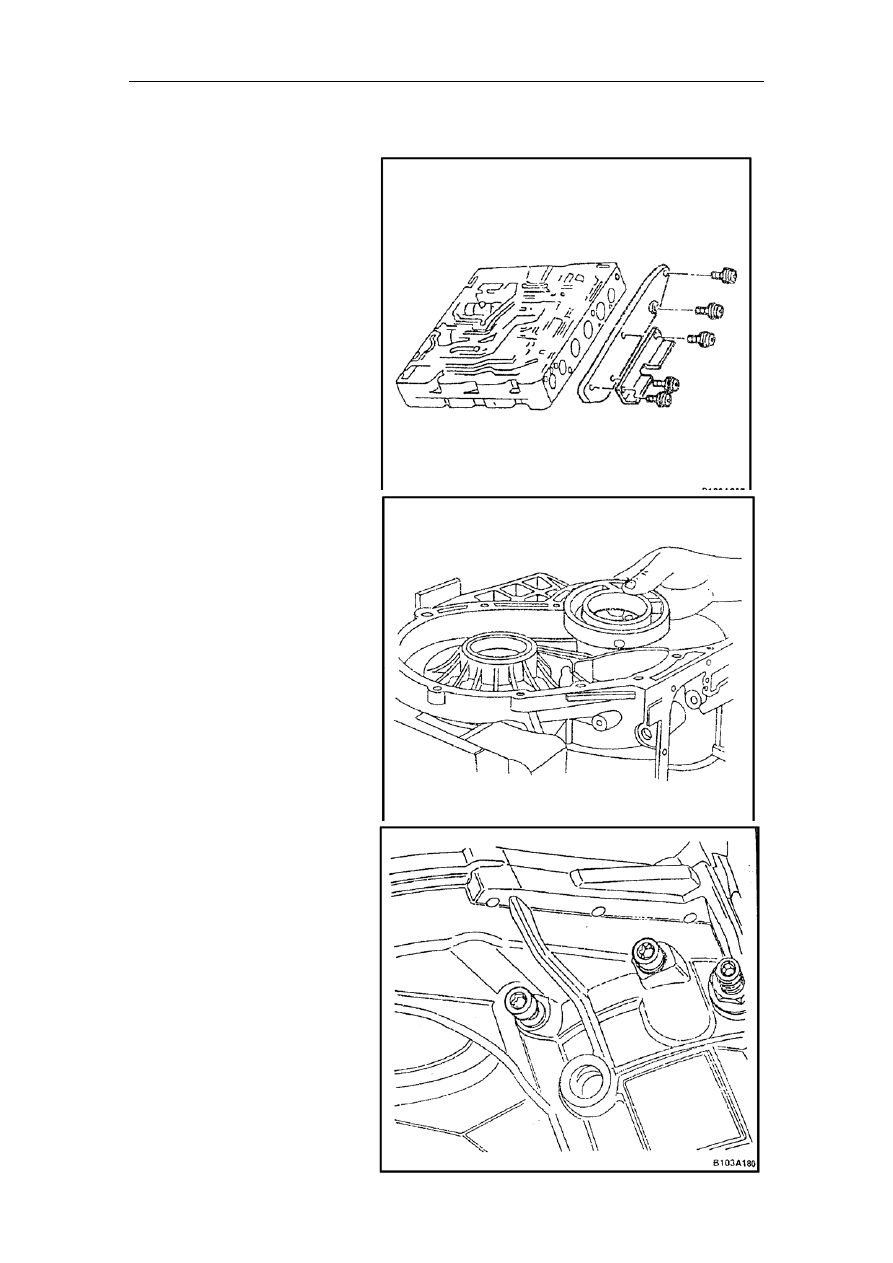

16 17. Assemble the valve p 18 19 T Sp K KA-000-155 grooved nut lock unit -000-288 driven shaft locator K K ga A 1. 2. 151 |
