The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

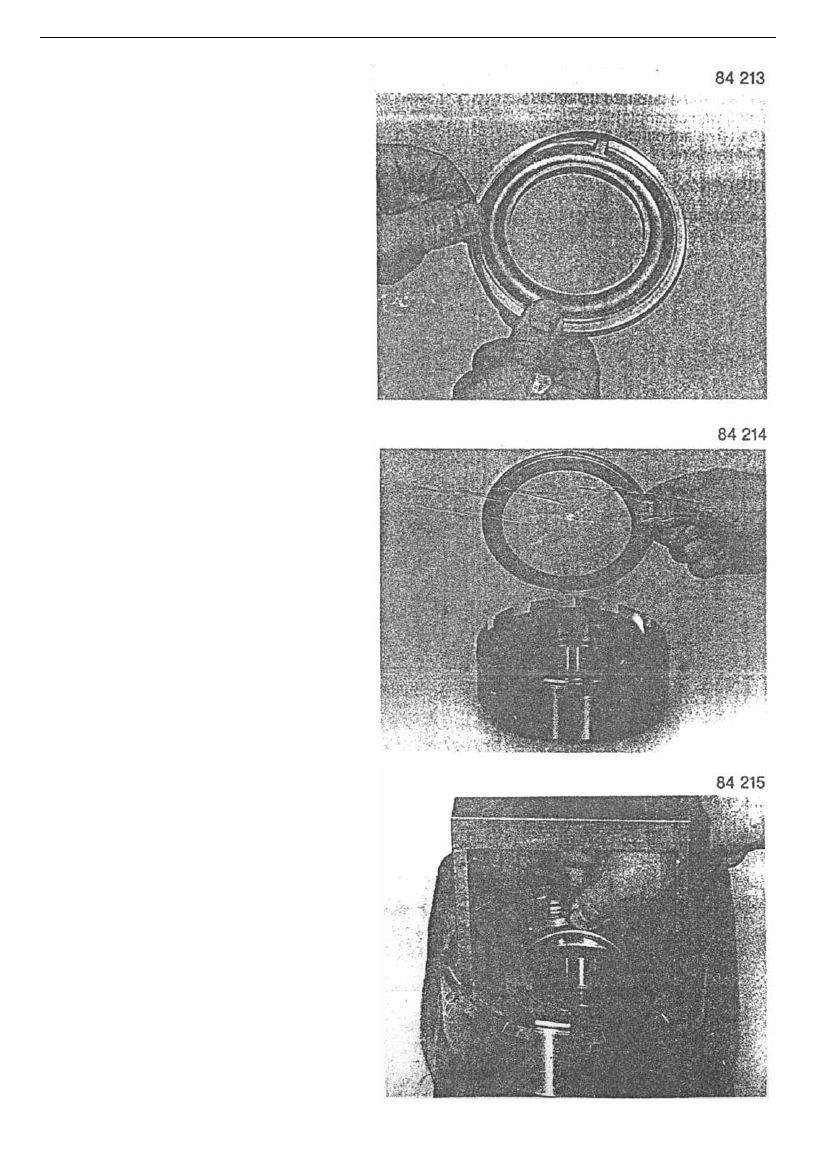

Install lubricated O-ring 31 230 into piston B 31

210.



























Install piston B into the clutch drum and install

one pressure ring on the piston.





















Install diaphragm spring 31 290 with special tool

and install thrust washer 31 302 and retainer ring

31 300.



-99-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

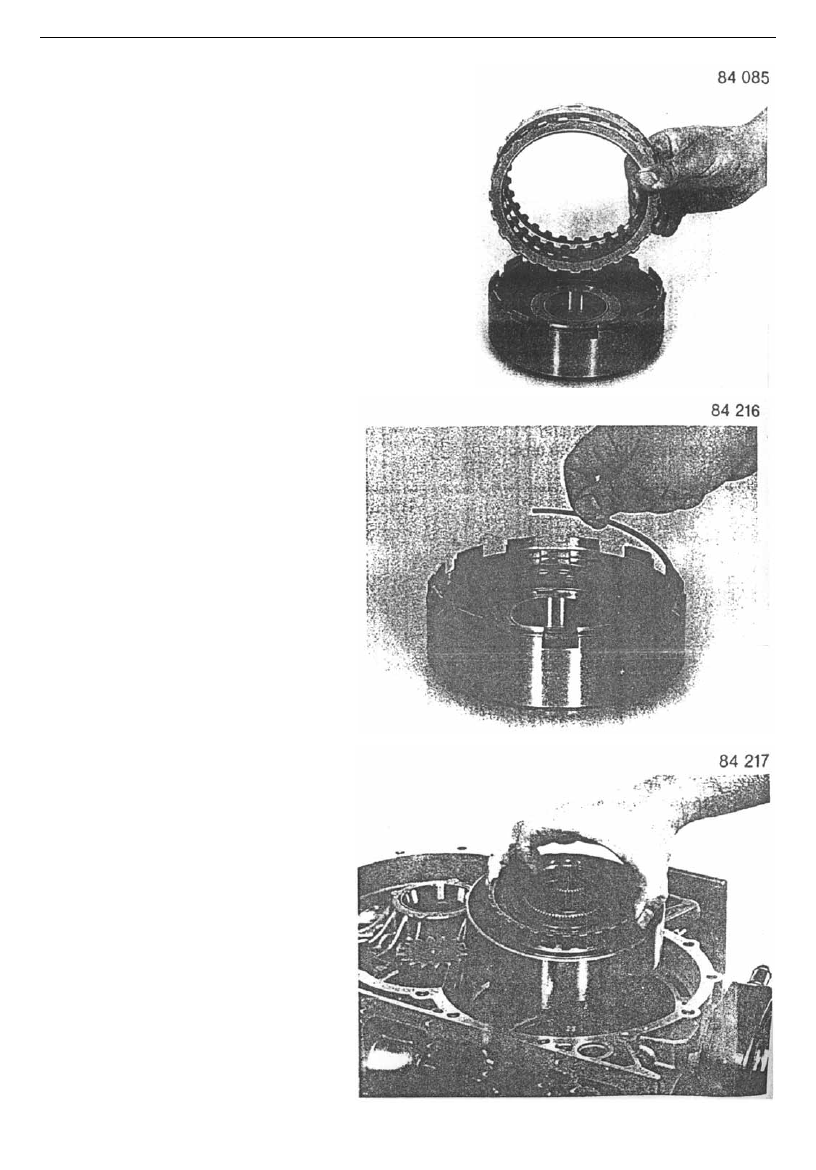

Install clutch B into the clutch drum. Install

retainer ring 21 250, and then install friction

plate 31 260 and outer teeth sheet steel 31 250

alternately.

























Install retainer ring 31 270 and snap ring 31

280 onto assembly top.



















Install clutch B assembly.

Shake clutch B to make its inner teeth properly

engaged with outer shell.

Clutch B drum outer teeth and clutch A drum

teeth shape engages. And there should be 1mm

clearance.













-100-

CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual

Index



4HP14 Automatic Transmission Technical Parameter

Transmission Technical Parameter

Fluid pressure

Fluid capacity

Automatic transmission shift control element working principle

Automatic transmission bolt tightening torque



4HP14 Automatic transmission special tool

Special tool list



4HP14 Automatic transmission control oil circuit workflow sketch

Position P-Parking

Position R-Back and idle

Position N-Neutral

Position D-1

st

 gear idle

Position D-1

st

 gear forced upshift

Position D-2

nd

 gear idle

Position D-2

nd

 gear forced upshift

Position D-3

rd

 gear idle

Position D-3

rd

 gear forced upshift

Position D-3

rd

 gear kickdown

Position D-4

th

 gear 4 idle

Position D-4

th

 gear forced upshift

Position D-4

th

 gear kickdown

Position 3-3

rd

 gear idle

Position 3-3

rd

 gear forced upshift

Position 3-3

rd

 gear kickdown

Position 2-2

nd

 gear idle

Position 2-2

nd

 gear forced upshift

Position 1-3

rd

 gear idle

Position 1-2

nd

 gear idle

Position 1-1

st

 gear forced upshift



4HP14 Automatic transmission assembly sketch

4HP14 Automatic transmission appearance view

4HP14 Automatic transmission assembly exploded view



1

CHERY AUTOMOBILE CO., LTD                   Automatic Transmission Fault Diagnosis Manual

4HP14 Automatic transmission fault diagnosis

Fault analysis when the control handle is at Position P

Fault analysis when the control handle is at Position R

Fault analysis when the control handle is at Position N

Fault analysis when the control handle is at Position D

Fault analysis when the control handle is at Position 2

Fault analysis when the control handle is at Position 1

Other common fault analysis

Oil leaking fault

Fluid pressure inspection procedure



Oil leaking position inspection

Common oil leaking



4HP14 Automatic transmission assembly’s service

Vehicle Service

Transmission fluid level inspection

Oil changing

Oil feed filter screen and gasket

Housing gap sealing

Gearshift cable adjustment

Air throttle cable removal and assembly

Air throttle cable adjustment

Air throttle cam

Neutral start switch

Control mechanism electromagnectic interlock

Oil feed pipe

Vehicle speed sensor

Oil pan and gasket

Side cover and gasket

Odometer drive gear case

Transmission shaft oil sealing

Oil cooling pipe

Left back suspension

Front suspension

Removal and assembly of the automatic transmission on the vehicle.



Interior disassembly of the automatic transmission.

Service of major parts inside the transmission

Band brake C’

Intermediate seat, brake C and oil pump assembly

Clutch B and gear 2 one-way overrun clutch

Clutch A
