Chery A11. Manual - part 45





The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

No. Figure

Code

and

Application

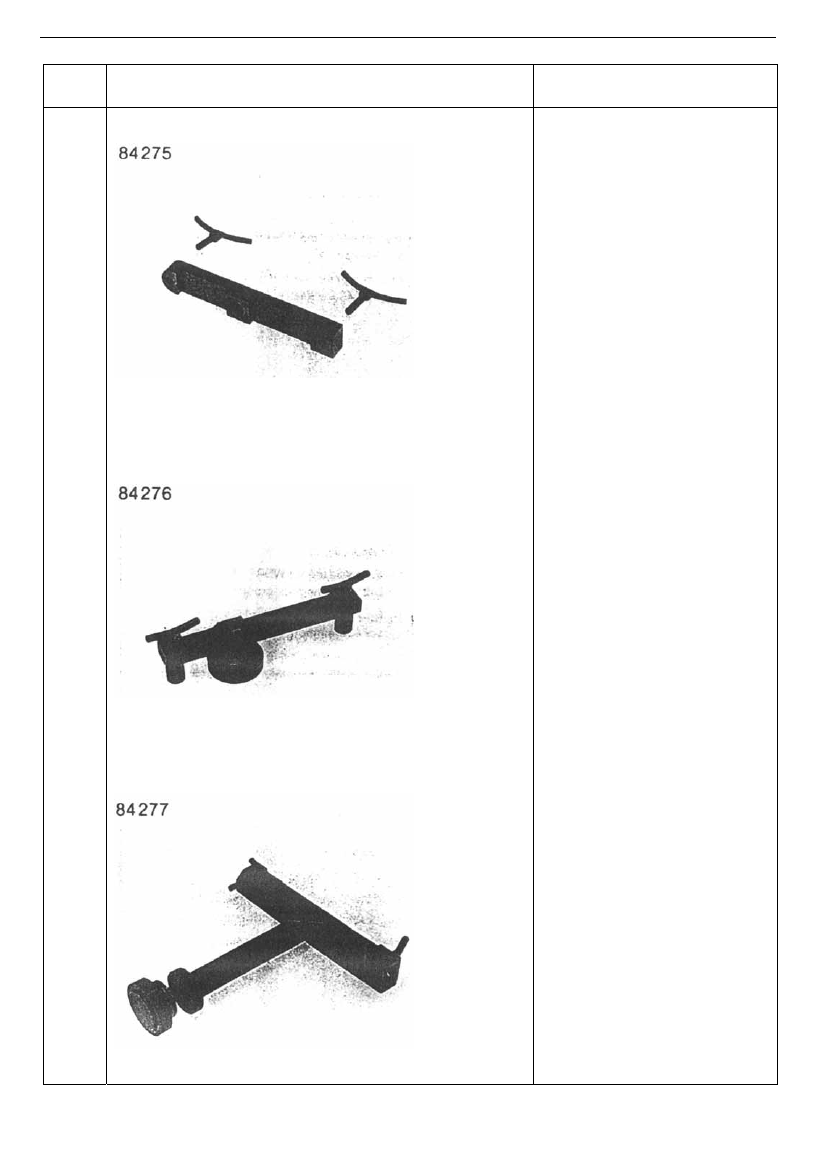

28



Shift shaft clearence adjuster

5P 95 001 287.

29



Input shaft mounting carrier

5P 95 000 288.

30



Output shaft mounting carrier

5P 95 000 289.



-27-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

No. Figure

Code

and

Application

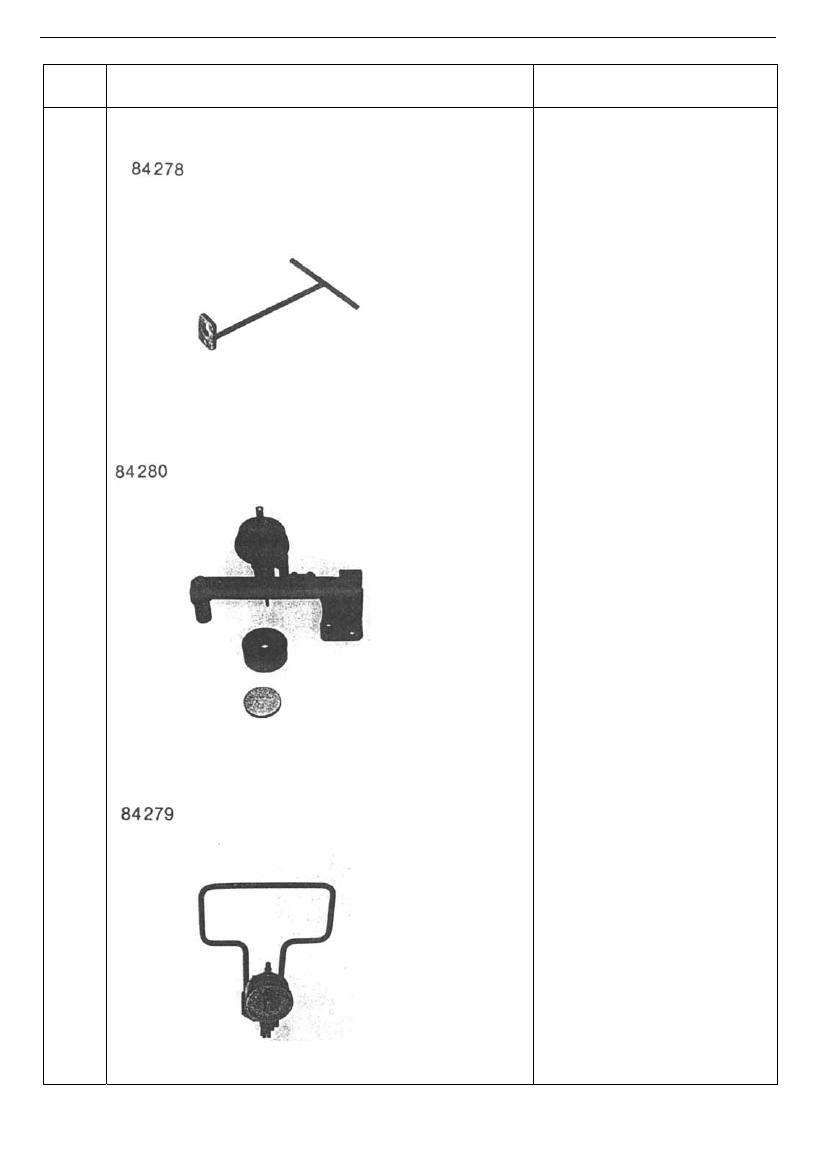

31



Shaft shaft position adjuster

5P 95 001 285.

32



Output gear clearence test tool

5P 01 001 518.

33



Middle seat clearence test tool

5P 01 001 415.



-28-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

No. Figure

Code

and

Application

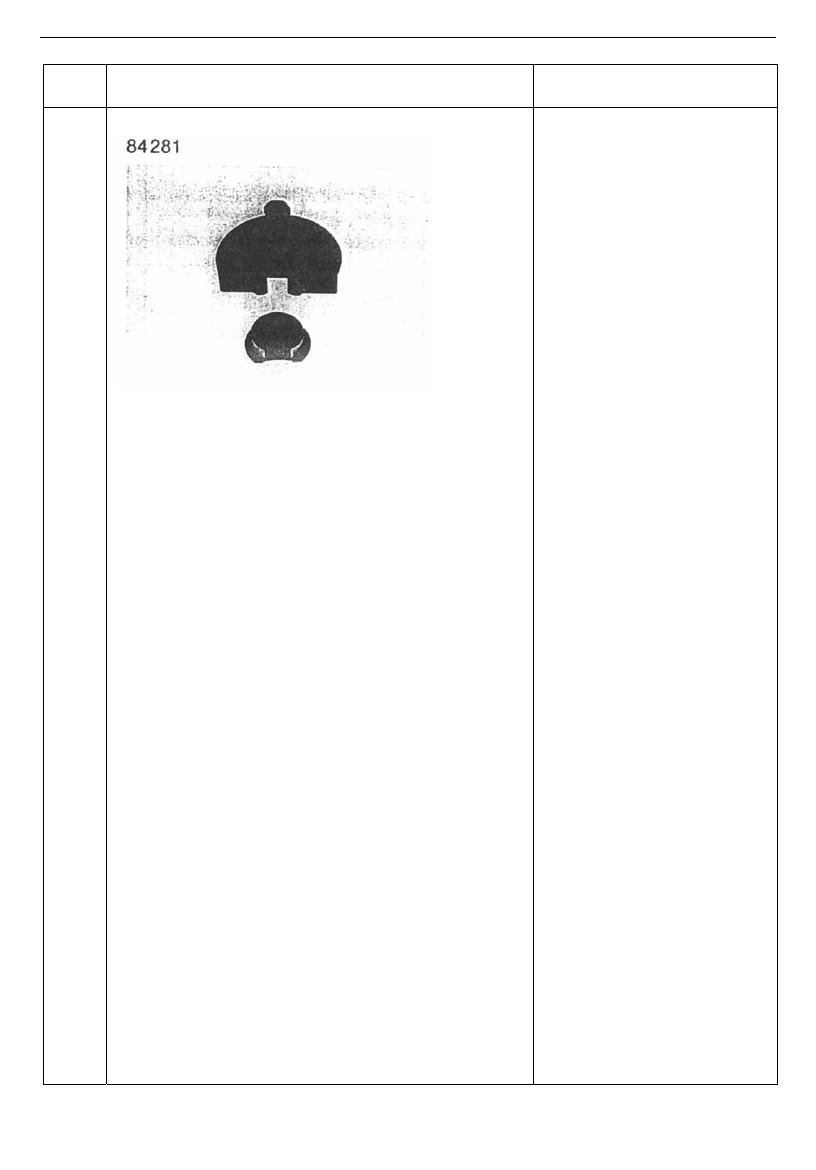

34



Differential adjuster

5P 95 000 286

















-29-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

Name Tool

Torque

(Nm)

Hex bolt (lug)

SW=13mm

23

Locking bolt M14 (housing)

SW=6mm

40

Locking bolt M10 (housing)

SW=5mm

15

Back light switch (housing)

SW=27mm

40

Mounting bolt (bearing)

Torx bix 45

20

Mounting bolt (pawl spring)

Torx bix 27

10

Mounting bolt

(Shift gear mechanism)

Torx bix 27

10

Groove nut (output gear)

SW=36mm

50

Mounting bolt (governor)

Torx bix 27

10

Connecting bolt (side cover and

transmission case)

Torx bix 27

10

Mounting bolt (oil pump body)

Torx bix 27

10

Connecting bolt (central seat and

transmission case)

Torx bix 27

10

Locking bolt  (converter housing)

SW=5mm 15

Hex bolt(converter housing and

transmission housing)

SW=13mm 23

Mounting bolt (sensing rotor of

sensing rotor)

SW=11mm 10

Connecting bolt (speedometer

drive gear housing)

SW=13mm 23

Connecting bolt (control valve)

Torx bix 27

Connecting bolt (oil pan)

Torx bix 27

10

Drain plug (oil pan)

SW=30mm

(Turn to 20 Nm, after being

installed to vehicle, turn further to

100 Nm.)





-30-
