The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

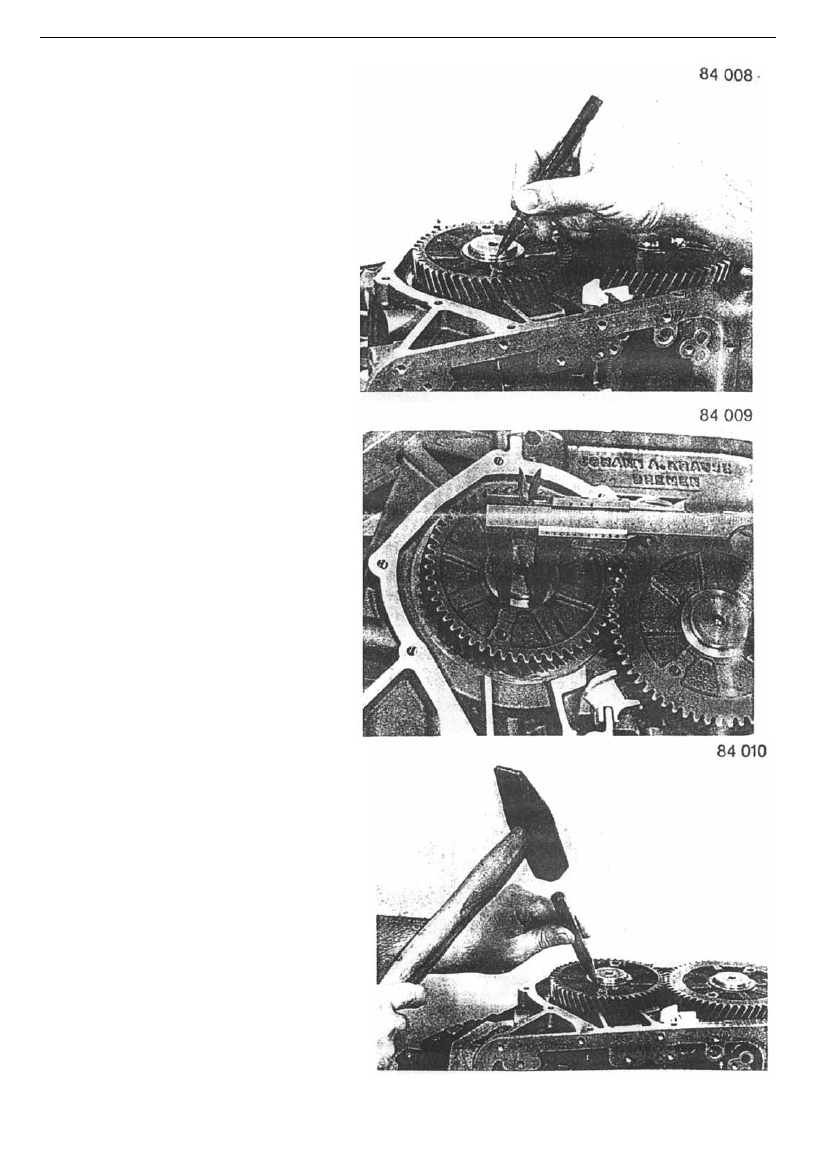

Making marks on bolts and gears as shown on

figure.























Turn screw 12 mm counterclockwise from

marking position.













Using appropriate tool tamp mounting bolt

flange edge to distortion.



-7-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

1.3.3.2、Driven shaft clearence adjustment



Assembling requirements:

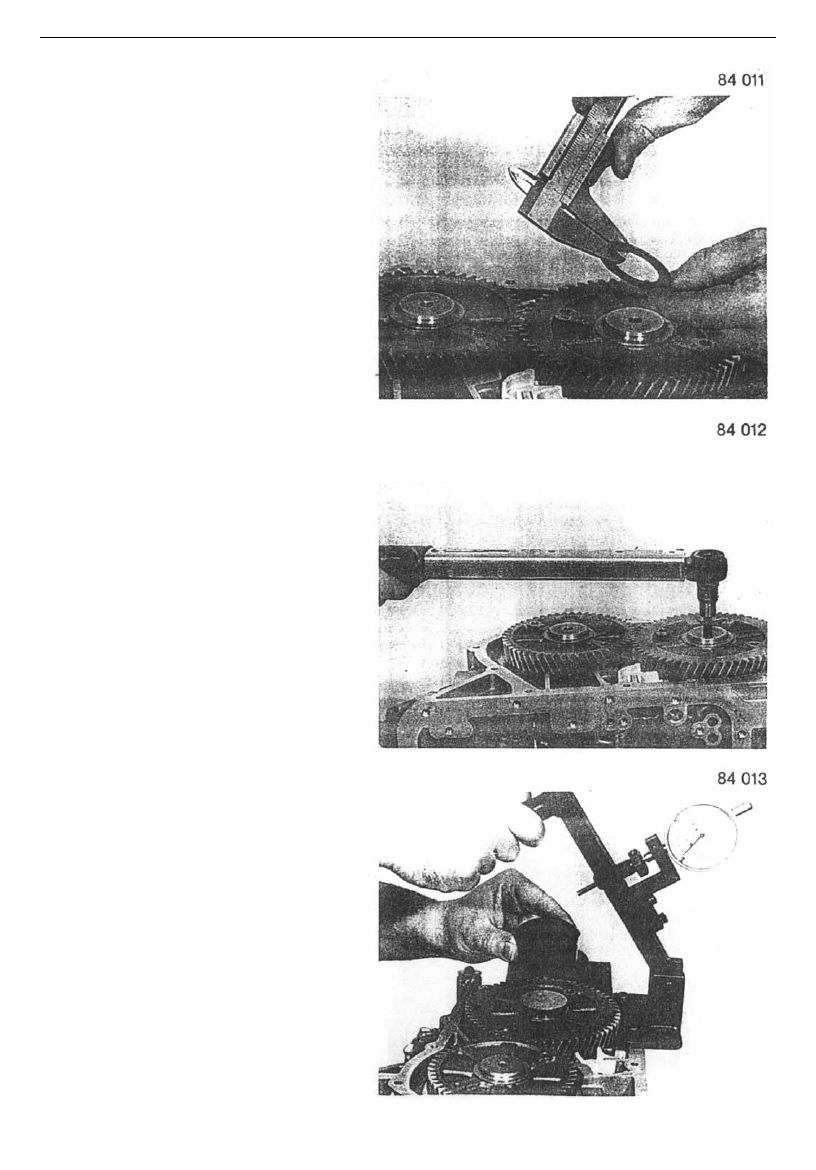

Install 1.75 mm thickness gasket and sub rear

output gear, and tighten bolt by hand.

To maintain the clearance, select the thickest

washer in alternative dimensions.













After Applying park gear, tighten sub rear



output

gear locking bolts. Tighten torque is 30Nm.

Release the stop gear and repeat the procedures.

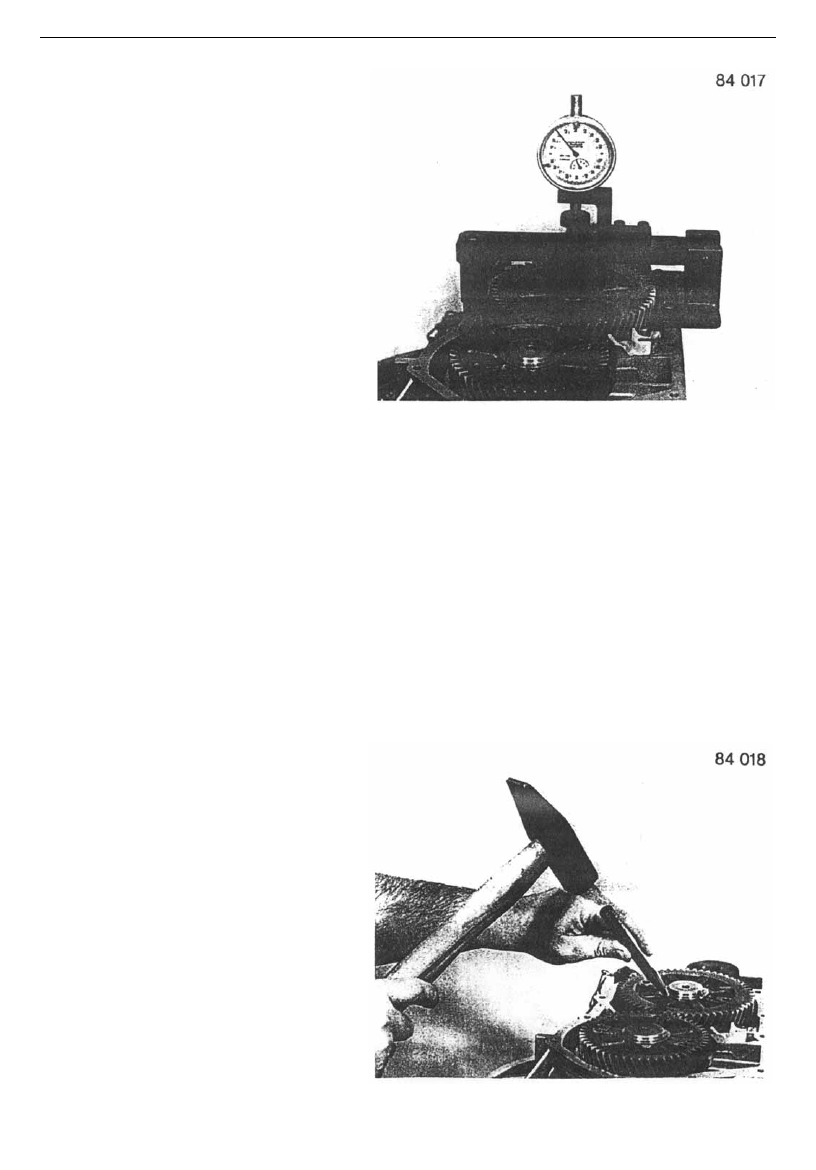

Install measuring instrument 5P 05 001 518 with

dial indicator as shown in fig.



-8-

The manual of 4HP14 A/T removing & installing                                                                CHERY AUTOMOBILE CO., LTD

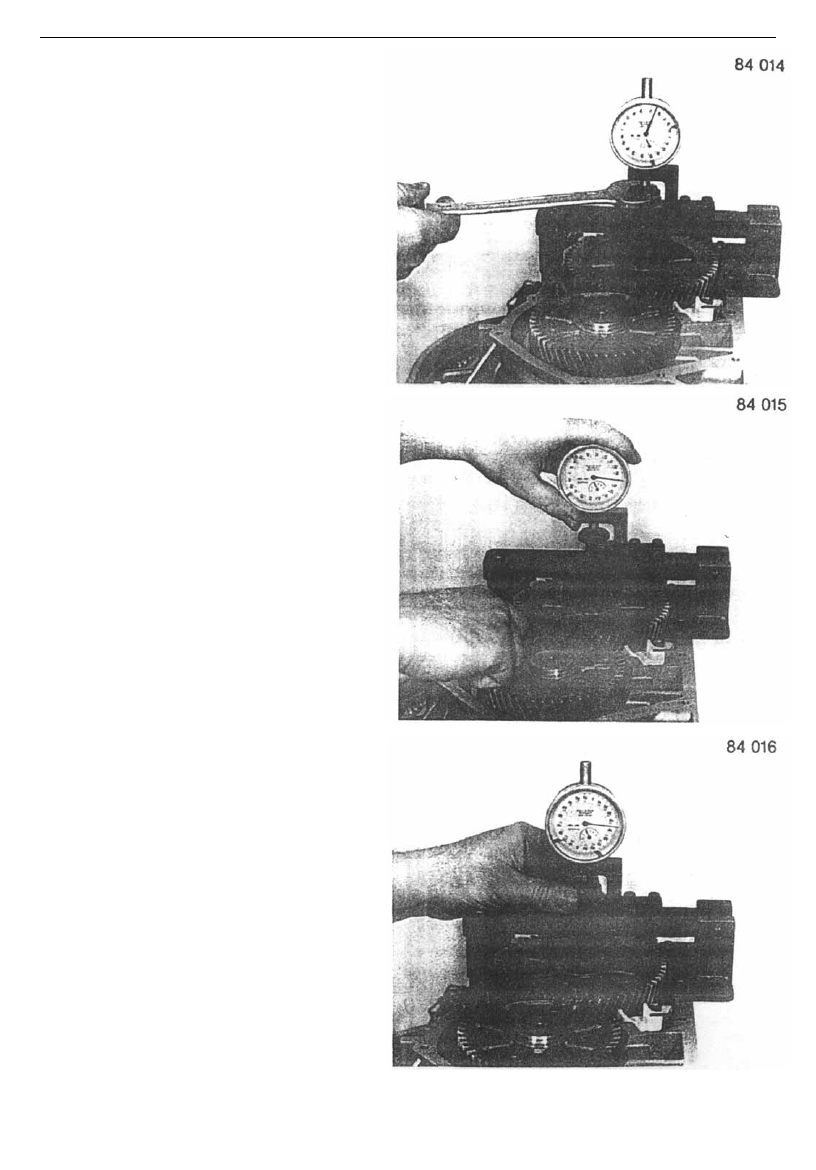

Set the indicator to zero.

1.Turn the screw until the needle moves.



















2.Turn the gear till needle to zero position.























Loosen transmisson lower mount carrier 5P 95 000

288, then turn counterclockwise screw 3/4 turn.



-9-

The manual of 4HP14    A/T removing and installing                                                        CHERY AUTOMOBILE CO., LTD

Turn the gear to determine indicator reading.

Reading X

For example, X=0.46mm















Washer thickness S is calculated by following

formula:

S = 1.75mm (Xmm – 0.06mm)



S = Required washer thickness

1.75 = Maximun washer thickness provided in table.

X = Measured reading.

0.06 = Selected clearance (select range is from 0.05 to 0.10)

For example

S = 1.75 (0.46 – 0.06)

S = 1.75 – 0.4

S=1.35mm



Measured readings X=0.46mm

Therefore, 1.35mm washer is needed or other washer to replace 1.75mm washer.

If 1.35mm or other thickness washer is installed, the tighten torque (30Nm) should be made    again.





Using appropriate tool, damp locking bolt flange

edge to distortion for locking.
