Loader Bobcat 853, 853H. Manual - part 2





P–3705

A

SAFETY INSTRUCTIONS (Cont’d)

Wear tight fitting clothing. Always wear safety glasses when maintaining or servicing loader. Safety glasses, hearing
protection or loader special applications kit are required for some work. See your dealer for Melroe Safety equipment.

Know where fire extinguisher and first aid kit are located and how to use them.

Do not use the Bobcat loader where exhaust, arcs, sparks or hot components can contact flammable material, explosive
dust or gases.

The engine compartment and engine cooling system must be inspected every day and cleaned if necessary to prevent
fire hazard and overheating.

Check all electrical wiring and connections for damage. Keep the battery terminals clean  and tight. Repair or replace any
damaged part.

Check fuel and hydraulic tubes, hoses and fittings for damage and leakage. Never use open flame or bare skin to check
for leaks. Tighten or replace any parts that show leakage. Always clean fluid spills. Do not use gasoline or diesel fuel for
cleaning parts. Use commercial nonflammable solvents.

Follow any environmental safety regulations when disposing of used fluids such as engine oil, grease or anti–freeze.

Do not use ether or starting fluids on engines which have glow plugs. These starting aids can cause explosion and injure
you or bystanders.

Always clean the loader and disconnect the battery before doing any welding. Cover rubber hoses, battery and all other
flammable parts. Keep a fire extinguisher near the loader when welding. Have good ventilation when grinding or welding
painted parts. Wear dust mask when grinding painted parts. Toxic dust or gas can be produced.


Stop the engine and let it cool before adding fuel. No smoking!

Use the procedure in the Operation & Maintenance or Service Manuals for connecting the battery.

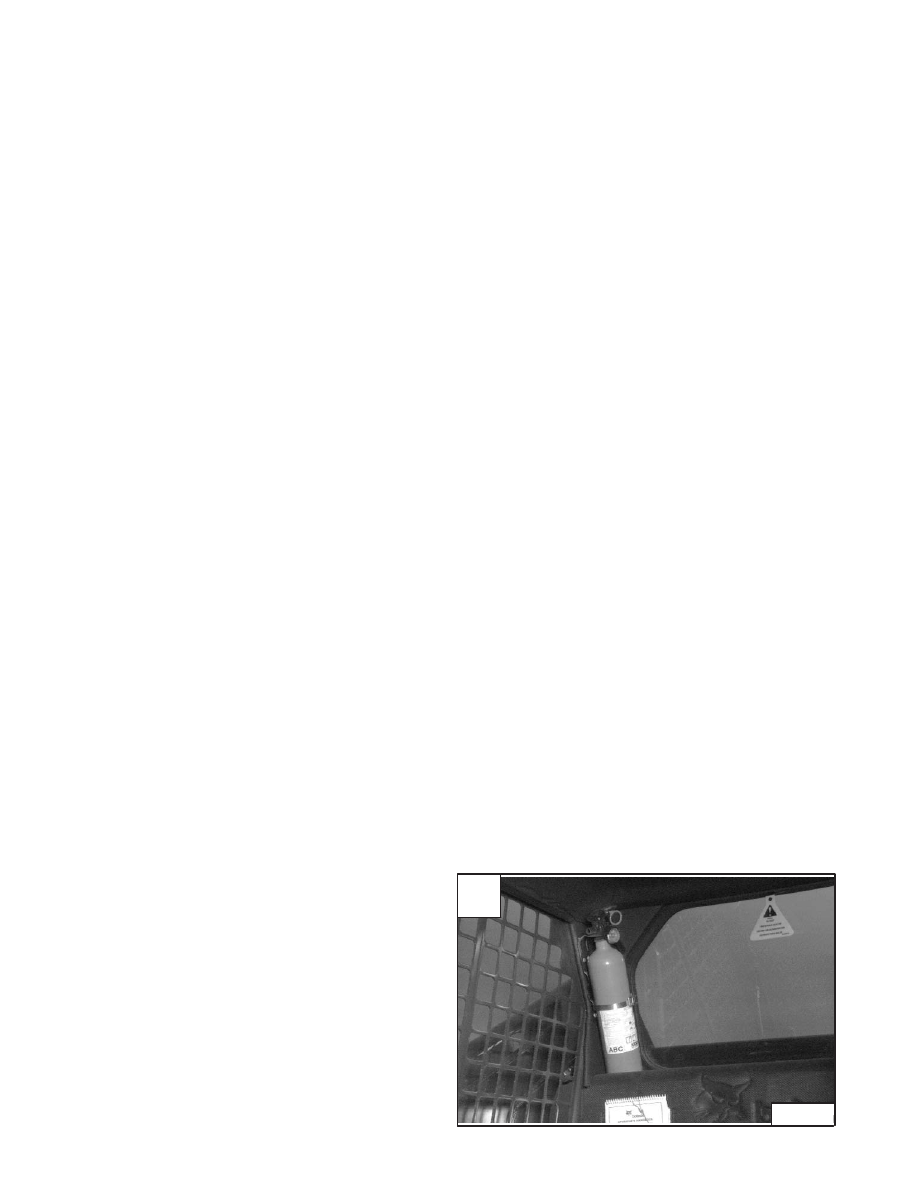

A fire extinguisher is available from your local dealer. The fire extinguisher can be installed in the location shown [A].

SI06–0398

vi

853, 853H Loader

Service Manual

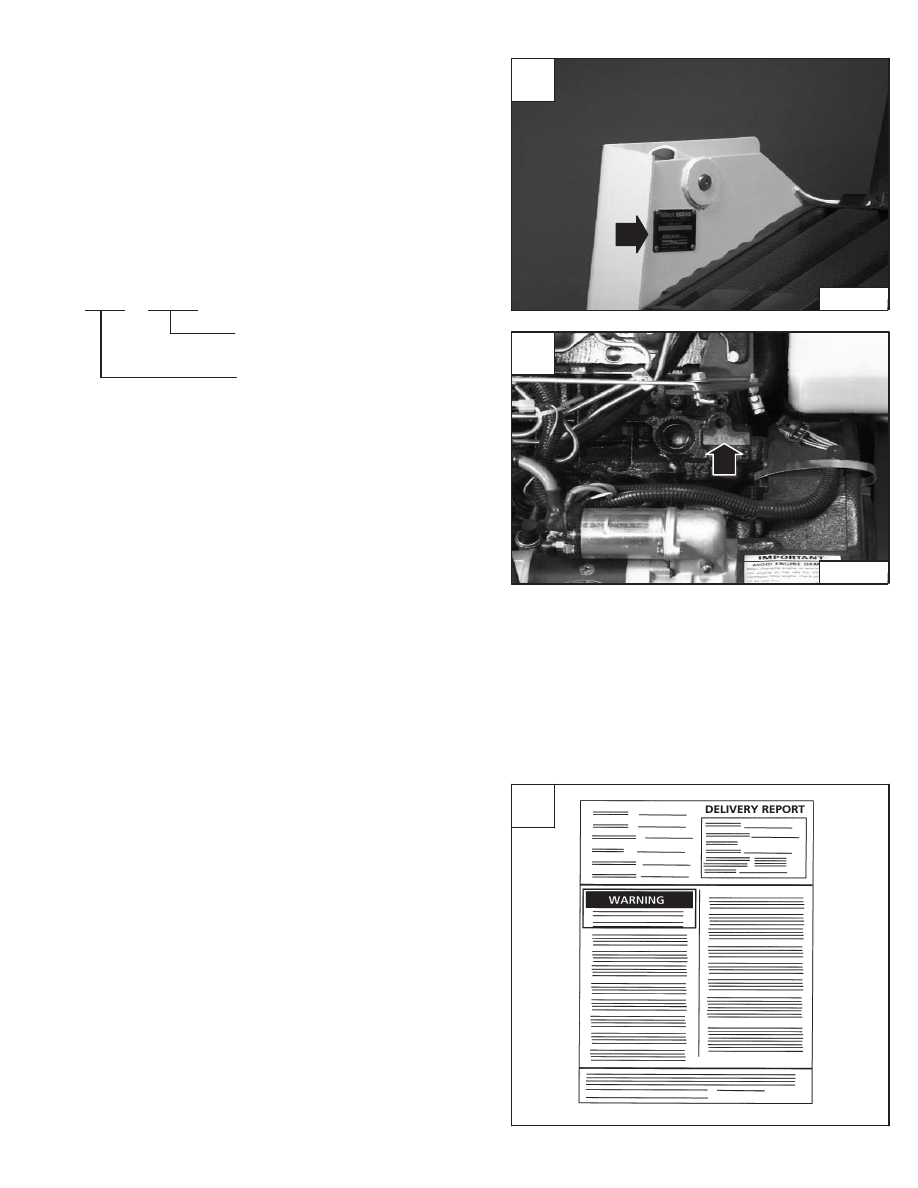

SERIAL NUMBER LOCATIONS

Always use the serial number of the loader when
requesting service information or when ordering parts.
Early or later models (identification made by serial
number) may use different parts, or it may be necessary
to use a different procedure in doing a specific service
operation.

LOADER SERIAL NUMBER

The loader serial number plate is located on the inside of
the left upright, above the grill [A].

Explanation of loader Serial Number:

XXXX

XXXXX

Module 2. – Production
Sequence (Series)

Module 1. – Model/Engine
Version

ENGINE SERIAL NUMBER

The serial number is located above the starter on the
engine block [B].

DELIVERY REPORT

The Delivery Report must be filled out by the dealer and
signed by the owner or operator when the Bobcat loader
is delivered. An explanation of the form must be given to
the owner. Make sure it is filled out completely [C].

The four digit Model/Engine Combination module number
identifies the model number and engine combination.
This number (in parenthesis beside the model number) is
used in the Service Manual to more easily identify the
standard, optional and field accessory equipment
included or available for each specific model.

The five digit Production Sequence Number identifies the
order which the loader is produced.

A

P–00369

C

853, 853H Loader

vii

Service Manual

B

P–00370

*

TIRES – Flotation tires are shown. The Bobcat loader is based–equipped with standard tires.

BUCKET – Several different buckets and other attachments are available for the Bobcat loader.
ROPS, FOPS – Roll  Over  Protective  Structure,  per  SAE  J1040  and  ISO  3471 and Falling Object Protective
Structure  per  SAE  J1043  and  ISO  3449  Level I. Level ll FOPS is available for protection from heavy falling
objects. The Bobcat loader is base–equipped with a standard operator cab as shown. Extra insulated cab is
available as an option (Reduced noise level).

B–12555

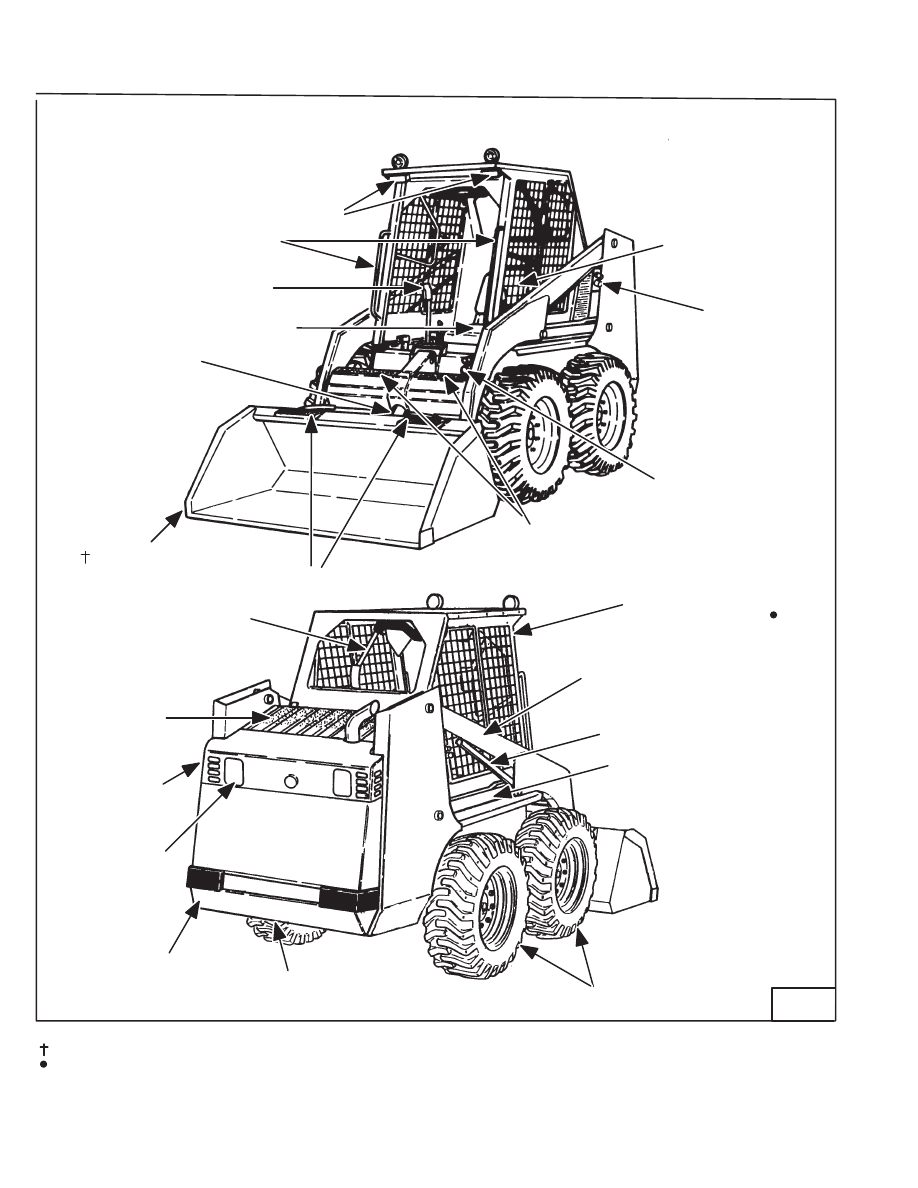

BOBCAT LOADER IDENTIFICATION

B–12556

OPERATOR SEAT

GRAB HANDLES

TILT CYLINDER

BUCKET

SAFETY TREAD

FRONT AUXILIARY
QUICK COUPLERS

BUCKET STEPS

SEAT BELT

REAR AUXILIARY

QUICK COUPLERS

STEERING LEVER

REAR GRILL

TAIL LIGHT

REAR LIGHT

REAR DOOR

OPERATOR CAB

(ROPS & FOPS)

SEAT BAR

LIFT ARM

SUPPORT DEVICE

LIFT CYLINDER

TIRES*

REAR

TIE DOWN

LIFT ARM

FRONT LIGHTS

viii

853, 853H Loader

Service Manual

PREVENTIVE
MAINTENANCE

853, 853H Loader

–1–1–

Service Manual

PREVENTIVE MAINTENANCE

AIR CLEANER SERVICE

Replacing Filter Element

1–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ALTERNATOR BELT

Adjusting The Alternator Belt

1–20

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ENGINE COOLING SYSTEM

Cleaning The Cooling System

1–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking The Coolant Level

1–18

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removing Coolant From The Cooling System

1–19

. . . . . . . . . . . . . . . . . . . . .

ENGINE LUBRICATION SYSTEM

Checking Engine Oil

1–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing Oil And Filter

1–16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FAN GEARBOX

Checking And Maintaining

1–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FINAL DRIVE TRANSMISSION (CHAINCASE)

Checking And Adding Oil

1–26

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

FUEL SYSTEM

Filling The Fuel Tank

1–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Filter

1–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel Specifications

1–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Removing Air From The Fuel System

1–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

HYDRAULIC/HYDROSTATIC SYSTEM

Checking And Adding Fluid

1–21

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing Hydraulic/Hydrostatic Filters

1–21

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Hydraulic Reservoir Breather Cap

1–23

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing Hydraulic Fluid

1–22

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIFT ARM SUPPORT DEVICE

Engaging The Lift Arm Support Device

1–7

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Disengaging The Lift Arm Support Device

1–8

. . . . . . . . . . . . . . . . . . . . . . . .

LIFTING AND BLOCKING THE LOADER

Procedure

1–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LIFTING THE LOADER

Four Point Lift

1–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Single Point Lift

1–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LUBRICATING THE LOADER

Procedure

1–27

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPERATOR CAB

Description

1–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lowering The Operator Cab

1–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Raising The Operator Cab

1–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Emergency Exit

1–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page
