- 97 -

F3DM Owner’s Manual

Operation Instructions for Vehicle CD
Player Panel
Power/Volume Regulating Knob: you
can tune the volume by turning the
knob; and power on/off by pressing this
knob.
Audio Adjusting/Manual Adjusting
Knob: press this knob to switch the
modes between “BAS – TRE – BAL -
FRD” circularly; turn the knob left or
right to adjust in a certain audio mode.
Auto Channel-Saving Button: in radio
mode, a short press previews the
saved channels, a long press searches
channels and saves the searched
channel automatically.
CD Switch Button: when playing in
non-CD mode, press this button to
switch to CD mode and play CD disk.
AM Radio Selection Button: when
playing in non-AM mode, press this

button to switch to “AM” mode, and
there are “AM1 and AM2” for your
selection.
FM Radio Selection Button: when
playing in non-FM mode, press this
button to switch to “FM” mode, and
there are “FM1, FM2 and FM3” for your
selection.
Audio Input Switch Button: insert one
end of audio wire into external audio
equipment  (such  as  MP3),  and  the
other end into AUX input hole, turn on
CD player, press AUX button and make
sure  the  external  audio  equipment
is turned on, and then the CD player
will play music in the external audio
equipment .
In other play modes, press AUX
button, and then the player will switch
to external audio equipment play mode
automatically. If no external audio
equipment at that moment, the player

will display “NO AUX” on its screen and
returns to the previous play mode.
If you insert an external audio
e q u i p m e n t   w h e n   C D   p l a y e r   i s
turned on, the system will switch to
external audio equipment play mode
automatically.

NOTICE



y

CD Mode: indicates that CD

player is playing CD.



y

Radio Mode: indicates that CD

player is in radio status.

Radio  Tuning/Disk  Track-selection
Button:
● CD Mode: You can select last or next
song by pressing this button, make a
long press to perform “Fast forward or
Fast Backward” and release it to return

使用手册小330.indd   97

2011-4-13   18:36:48

- 98 -

F3DM Owner’s Manual

to normal playing.
●Radio  Mode:  Press  this  button  for
about 0.5 seconds to perform a single-
step search upwards or downwards
for last/next channel where signal is
available.

Disk Play/Pause Button:
● CD Mode: Play/pause the disk.
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about 0.5
second to listen to the saved channel.

Repeat Button:
● CD Mode: Replay the track. Repress
this button to cancel the previous
operation.
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about 0.5
seconds to listen to the saved channel.

 Ten-second Disk Preview Button:
● CD Mode: Scan all tracks and play
the first ten-second contents of each
song in proper order.
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about 0.5
seconds to listen to the saved channel.

Random Play Button:
● CD Mode: Play tracks at random.
Repress this button to cancel the
previous operation.
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about 0.5
seconds to listen to the saved channel.

Previous-disk Button:
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about
0.5 seconds and you can listen to the
saved channel.

Next-disk Button:
● CD Mode: When playing CD, press
this button to stop playing and display
the number and total time of tracks
in the disk. Then press “Play/Pause”
button again to restart playing.
● Radio Mode: Long press this button
for more than 2 seconds to save the
current channel; press it for about 0.5
seconds to listen to the saved channel.
Mute Button: press this button to mute
and repress it to cancel mute settings.

使用手册小330.indd   98

2011-4-13   18:36:48

- 99 -

F3DM Owner’s Manual

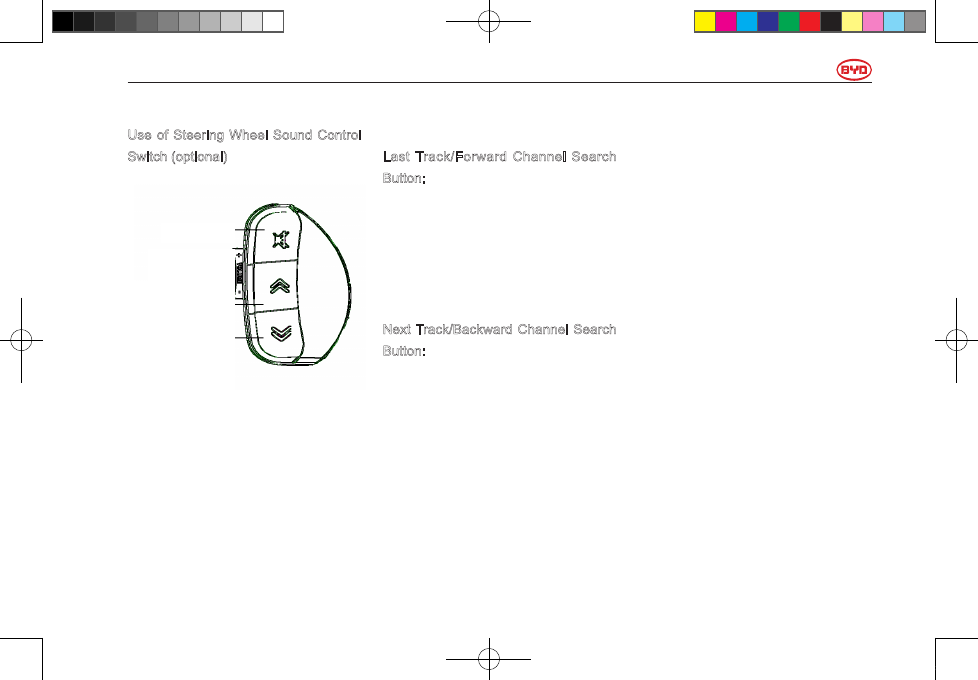

Use of Steering Wheel Sound Control
Switch (optional)

Mute Button

Volume
Control Button

Last Track/

Upwards Channel

Searching Button

Next Track/

Downwards

Channel

Searching Button

When  CD  player  is  working,  you
can control the playing of it through
steering wheel sound control switch.
Mute Button: Press this button to mute
and press it again to cancel mute
settings.
Volume  Control  Button:  Tune  the
volume.  Press  “+”  to  increase  the

volume. Press “-” to lower the volume.

Last Track/Forward Channel Search
Button:
● CD Mode: Press this button to select
track upwards.
● Radio Mode: Press this button to
forward search a channel where signal
is available.

Next Track/Backward Channel Search
Button:
● CD Mode: Press this button to select
track downwards.
●Radio  Mode:  Press  this  button  to
backward search a channel where
signal is available

使用手册小330.indd   99

2011-4-13   18:36:48

- 100 -

F3DM Owner’s Manual

Trouble Shooting Guide for Vehicle CD

Failure

Cause Analysis

Solutions

1

No power supply or no sound

1. Ignition switch of car is not
turned on.
2. Wires are not connected
properly

1. Please turn the key to “ACC” or
“ON”
2. Check if the wires are
connected properly

2

Disk has been loaded, but there is
no sound

1.  Disk is placed reversely
2. Disk is dirty or seriously
scratched

1. Place the disk properly
2. Clean the disk or replace it with
a new disk

3

There is jumping sound due to
vibration

1. Unstable installation
2. Disk is dirty or scratched

1. Fasten CD player with
installation components
2. Clean or replace the disk

4

Pre-selected channels disappear
and there is no memory

Battery cable is not connected
properly

Connect the battery cable to an
usual electriferous terminal

5

Loud noise from FM stereo and
mono channel broadcasting

Radio station is too far away or
signal is too weak

Select other radio stations with  a
higher signal frequency

使用手册小330.indd   100

2011-4-13   18:36:48

- 101 -

F3DM Owner’s Manual

Chapter 1

Section 1-8

—————————————————————————————

Operations of Instruments and Controllers

Air-conditioning System

Auto Air-conditioning System – Control Panel ………………… 102
Operation Gist ……………………………………………………… 106
Side Ventilation Opening ………………………………………… 108
Check and Replace Air-conditioner Filter ……………………… 108

使用手册小330.indd   101

2011-4-13   18:36:48

- 102 -

F3DM Owner’s Manual

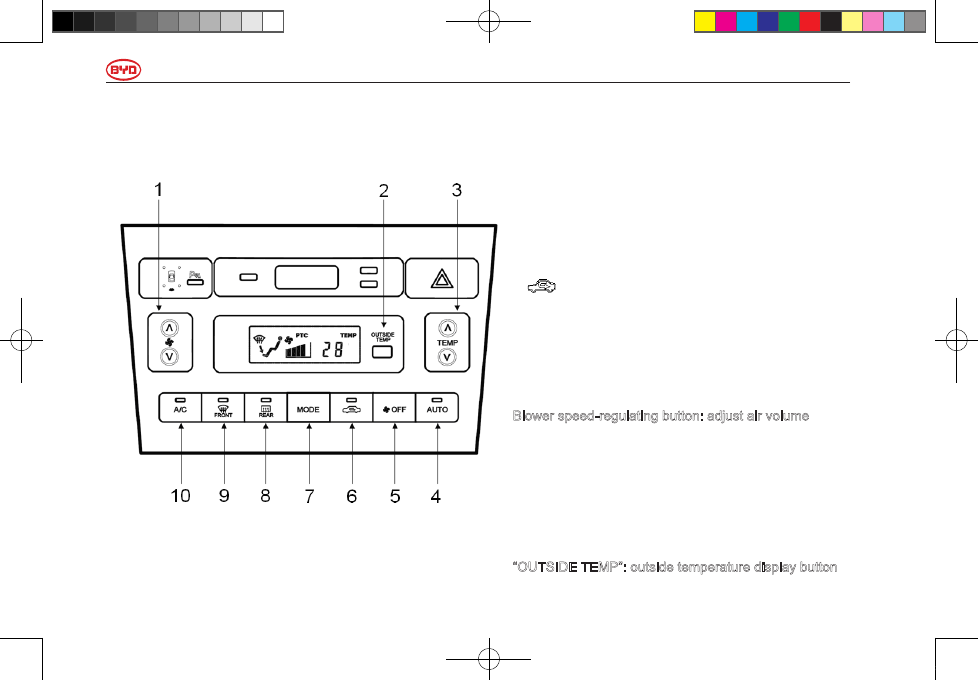

Auto Air-conditioning System – Control Panel



1. Blower speed-regulating button: adjusting air flow
button
2.  “OUTSIDE TEMP”:  outside  temperature  display
button
3. “TEMP”: air-conditioner temperature regulating button
4. “AUTO”: auto mode button
5. “OFF”: air-conditioner OFF button
6.

:Internal-external recycling mode selecting button

7. “MODE”: air outlet mode selecting button
8. “REAR”: rear defrost switch
9. “FRONT”: front defrost switch
10. “A/C”: compressor on/off button

Blower speed-regulating button: adjust air volume
Press “∧” (increase) or “∨” (decrease) button to adjust
the rotating speed of blower, that is, to adjust air flow
volume.
In auto operation, the rotating speed of blower is not
required to be adjusted, unless other speed is required.

“OUTSIDE TEMP”: outside temperature display button

使用手册小330.indd   102

2011-4-13   18:36:48

- 103 -

F3DM Owner’s Manual

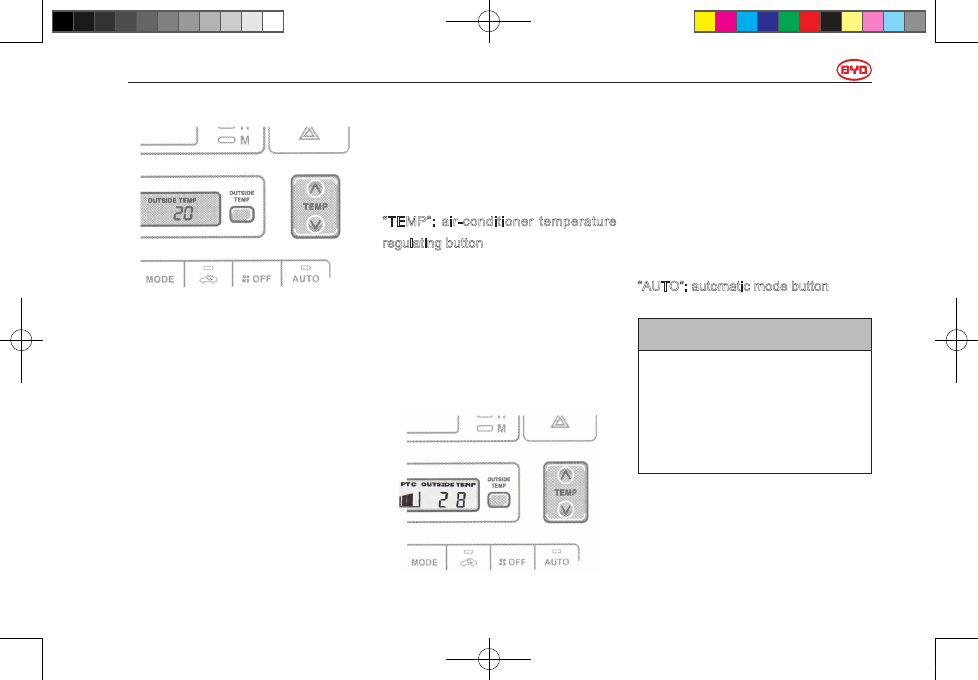

Press  “OUTSIDE  TEMP”  button
to switch the temperature display
between air-conditioning temperature
and outside temperature.
When  pressing  “OUTSIDE  TEMP”
button, outside temperature instrument
indicates the Celsius temperature of
outside air.
The key must be at “ON”.
Repress this button to turn off the
display.
When air-conditioning system is turned
on, press “OUTSIDE TEMP” button will

indicate the outside temperature and
press “OUTSIDE TEMP” or “TEMP”
button again will indicate the air-
conditioning temperature.

“TEMP”: air-conditioner temperature
regulating button
Press “∧” to increase the temperature
a n d   p r e s s   “ ∨ ”   t o   l o w e r   t h e
temperature.
When it is adjusted to the minimum
temperature, “COLD” displays; while
“HOT” displays when it is adjusted to
the maximum temperature.

In heating mode, “PTC” appears on
the display screen of air conditioner,
indicating PTC heater is working.
When PTC heater stops working, “PTC”
disappears from the screen.
The switch of PTC heater is controlled
automatically by the system.

“AUTO”: automatic mode button

NOTICE

To prevent the battery from being
discharged, do not leave the
air conditioning on longer than
necessary when the DM hybrid
system is not operating.

F o r   a u t o m a t i c   o p e r a t i o n   o f   a i r
conditioner, please press automatic
mode button. After the button is

使用手册小330.indd   103

2011-4-13   18:36:48

- 104 -

F3DM Owner’s Manual

pressed, the indicator goes on
indicating that automatic operation
status is selected.
In automatic operation status, air-
conditioning device will, according to
the set temperature, select a proper
rotating speed for fan and airflow
direction and automatically control the
rotating speed of compressor and PTC
power to get the temperature in car
reaching the set temperature rapidly.
To select your own setting, you can
control it manually.
To exit automatic operation, press
“OFF” button, blower speed-regulating
button,  “MODE”  button  or  front
defrosting switch.

5.“OFF”: air-conditioner OFF button
Press this button to turn off the air-
conditioning system.

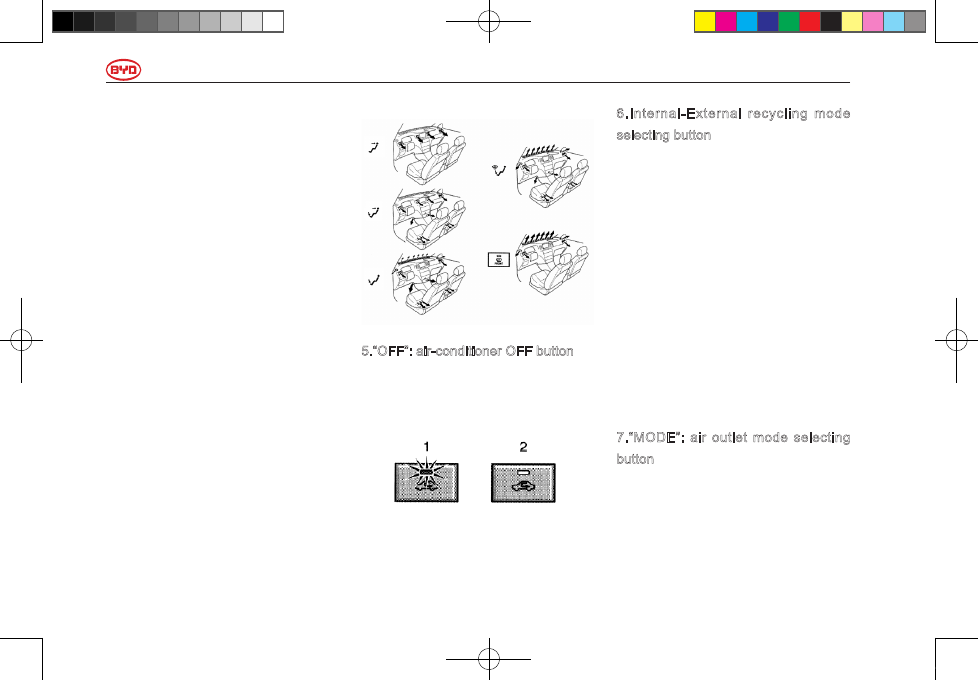

6.Internal-External  recycling  mode
selecting button
Press this button to select airflow
source of air-conditioning system.
1)  Internal  Recycling  –  press  this
button, the indicator will go on to
enable air circulation in the car, speed
up cooling or heating the inside and
prevent dirty air outside from entering
the car.
2) External Recycling – Repress this
button, the indicator will go off to
introduce fresh air outside into the car
for circulation.

7.“MODE”: air outlet mode selecting
button
To select airflow direction, please press
air outlet mode selecting button.
In automatic operation mode, the
airflow is not required to be adjusted,
unless other airflow modes are

使用手册小330.indd   104

2011-4-13   18:36:49

- 105 -

F3DM Owner’s Manual

required.
1) Instrument Panel – airflow mainly
comes from the ventilation opening of
instrument mounting panel.
2) Dual Source – airflow comes from
ventilation openings of floor and
instrument mounting panel.
3) Floor – airflow mainly comes from
the ventilation opening of floor.
4) Floor/Windshield – airflow mainly
comes from the ventilation openings of
floor and windshield.

8. “REAR”: rear defrost switch
Press this button, the indicator will
go on and the resistance wire of rear
windshield will start to heat up for
defrosting and defogging. Repress this
button, the indicator will go off and rear
defrosting function will be off.
To avoid power waste due to long-
time heating, the rear defroster has the

function of time delay for 15 minutes
before shut-off. In other words, if no
other operations on this button within
15 minutes after pressing it, the system
will shut off rear defrosting function
automatically.

NOTICE

When cleaning the inside of the rear
window, pay attention not to scratch
or break heating wire and connector.

Please be noted that the rear defroster
is not designed to dry the raindrop and
snow melt.

9. “FRONT”: front defrost switch
Press this button, the indicator will
go on, and airflow will mainly come
from the ventilation opening of front

windshield, used for defogging or
defrosting the front windshield for a
clear view. Repress this button, the
indicator will go off and airflow status
set last time will be restored.
For settings of air outlet mode selecting
button, please refer to “Settings of Air
Outlet Mode Selecting Button” below.

10. “A/C” Switch
Press “A/C” switch, the air-conditioning
device  can  be  turned  on  and  “A/C”
switch indicator will go on.
Press “OFF” button to turn off the
whole air-conditioning system.
Repress“A/C” switch, the indicator will
go off and cooling will be turned off. In
this case, the system cannot guarantee
that the temperature in car can be
adjusted to a proper set value.

使用手册小330.indd   105

2011-4-13   18:36:49

- 106 -

F3DM Owner’s Manual

NOTICE

In wet weather with high humidity,
please do not use defogging
function during cooling procedure.
Temperature difference between the
windshield and the outside air may
lead to the fog on windshield and
obstruct your view.

NOTICE

To prevent the battery from being
discharged, do not leave the air
conditioner, vehicle CD and lighting
system on longer than necessary
when the indicator “OK” on the
instruments is off.

Tips: Using Air Conditioner System

Operation Gist

● To quickly cool the car exposed in
the hot sun, please drive for several
minutes with windows opening.
● Make sure the air inlet grid in front
of windshield is not blocked by things
such as leaves or snow.
● In wet weather, do not let cooling
air blow onto the windshield. Due to
temperature difference between the
outside and inside of windshield, the
windshield will be fogged.
● Always keep clear under the front
seat so as to make the air fully
recycling in car.
● In cold weather, set the high rotating
speed of blower for one minute so as
to clear the snow or moisture in the
air inlet channel, as it will reduce the

possibility of fogging on the windows.
● If driving behind other cars on a road
which is not clean, or driving in the
wind and dust, you are recommended
to set internal-external recycling mode
selecting button to internal recycling
temporarily and         set the rotating
speed of blower to a proper speed.

Heating
To  acquire  a  better  effect,  set  the
controller to:
For automatic operation

Press automatic mode button.
Temperature – set to the suitable
temperature.
Air admission – external recycling
(outside air)
Air conditioner - OFF

使用手册小330.indd   106

2011-4-13   18:36:49

- 107 -

F3DM Owner’s Manual

For manual operation

Rotating speed of fan – set to the
suitable rotating speed.
Temperature – point at high
temperature
Air admission – external recycling
(outside air)
Airflow – floor
Air conditioner - OFF

●To  increase  temperature  rapidly,
select Internal Recycling for several
minutes. To avoid fogging on the
window, select External Recycling after
heating up the inside of the car.
● Select Floor/Windshield airflow to
heat up the inside of the car while
defogging or defrosting the windshield.

Air Conditioner
To  acquire  a  better  effect,  set  the
controller to:
For automatic operation

Press automatic mode button.
Temperature – set to the suitable
temperature
Air admission – external recycling
(outside air)

For manual operation

Rotating speed of fan – set to the
suitable rotating speed
Te m p e r a t u r e   –   p o i n t   a t   l o w
temperature
Air admission – external recycling
(outside air)
Airflow – instrument panel
Air conditioner - ON

●To lower the temperature rapidly, set
the internal-external recycling mode
selecting button to Internal Recycling
for several minutes’ circulation.

Ventilation
To  acquire  a  better  effect,  set  the
controller manually to:

Rotating speed of fan – set to the
suitable rotating speed
Temperature – point at low
temperature
Air a– external recycling (outside
air)
Airflow – instrument panel
Air conditioner - OFF

使用手册小330.indd   107

2011-4-13   18:36:49

- 108 -

F3DM Owner’s Manual

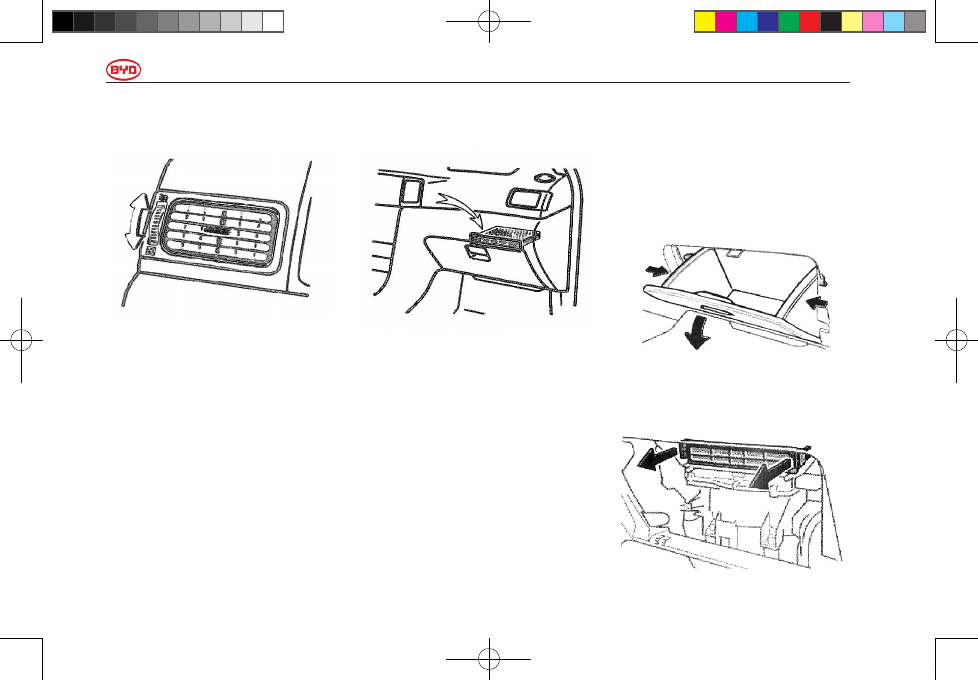

Side Ventilation Opening

If you are not satisfied with the airflow
control, check the side ventilation
opening which can be opened or
closed as shown in the figure.

Check and Replace Air-

conditioner Filter

Air conditioner filter lies in the rear side
of glove box as shown in the figure
above.
Air conditioner filter can prevent
dust from entering the car through
ventilation opening.
Air conditioner filter may be blocked
after being used for a long time. If you
find extremely low airflow efficiency in
air conditioning or heating or fogging
easily on the windows, please do

replace the filter.
To maintain the efficiency of air
conditioner, you must check and
r e p l a c e   i t s   f i l t e r   a c c o r d i n g   t o
maintenance schedule. (Please refer
to Maintenance Schedule in Chapter 6)

1.Press both sides of the right glove
box, unfasten the pothook and take
down the right glove box.

使用手册小330.indd   108

2011-4-13   18:36:49

- 109 -

F3DM Owner’s Manual

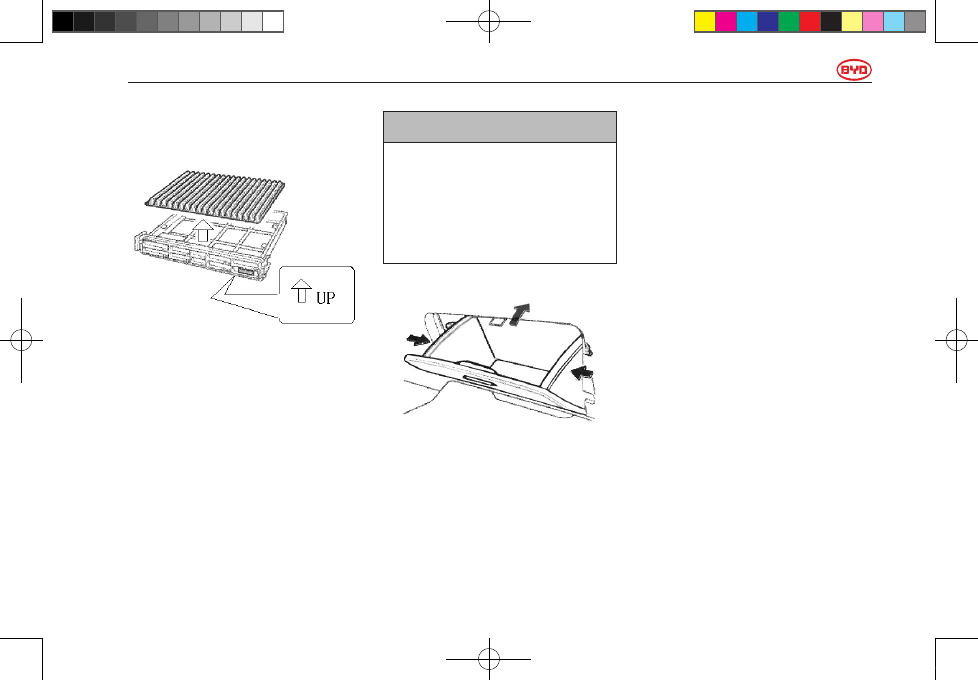

2.Remove the filter rack from the exit
of filter as shown in the figure above.

3. Take out the filter from filter rack.
4. Check the surface of filter.
If it is dirty, do replace it.
Keep the arrow upwards when
installing filter and filter rack.

NOTICE

Filter of air conditioner must be
installed into place properly. Using
air conditioner with its filter removed
will reduce its dust-proof effect and
also affect its performance.

Press both sides of right glove box
and close the glove box.

使用手册小330.indd   109

2011-4-13   18:36:49

- 110 -

F3DM Owner’s Manual

使用手册小330.indd   110

2011-4-13   18:36:49

- 111 -

F3DM Owner’s Manual

Chapter 1

Section 1-9

—————————————————————————————

Operation of Instruments and Controls

Charging System

Charging System ………………………………………………… 112
Power Battery ……………………………………………………… 114
Solar Panel ………………………………………………………… 114

使用手册小330.indd   111

2011-4-13   18:36:49

- 112 -

F3DM Owner’s Manual

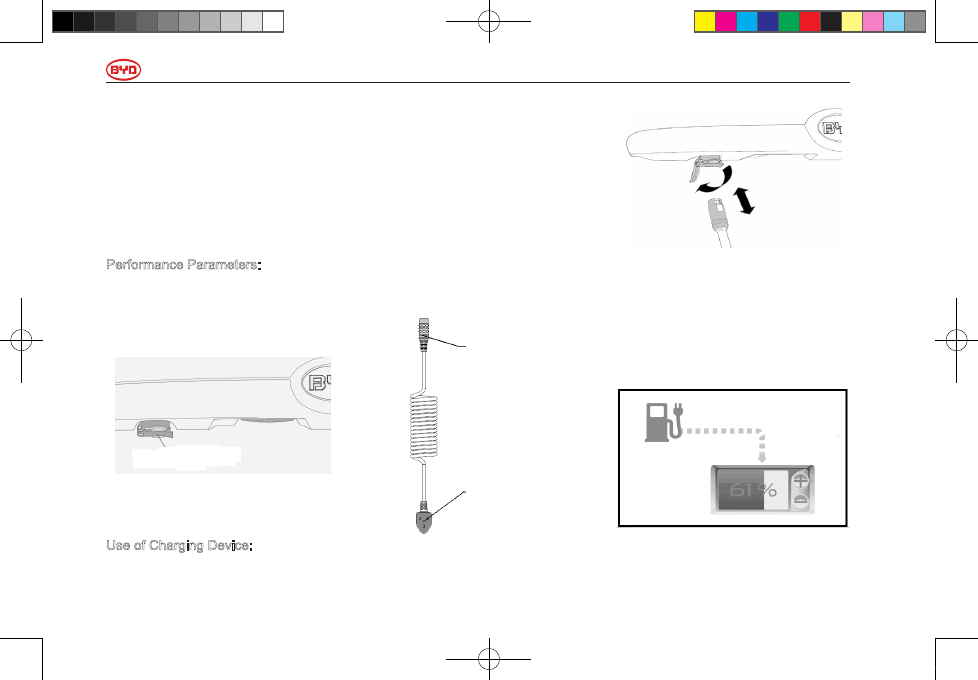

Charging System:

DM  system  has  unique  charging
function, which can provide power
for the vehicle by offering electrical
energy.

Performance Parameters:
Input Voltage: 180~240V  50Hz
Input Current: 9~13A
Charging Time: 7 hours

Charging Port

Charging Wire:

Use of Charging Device:
After parking the car properly, turn the

key to LOCK, take out the charging
wire, open the lid of the charging port,
insert the charging plug in the charging
port, then insert the power plug in
the socket of charging terminal post
or specified socket, turn the power
on after making sure the connection
is proper, and then the car will be in
charging status automatically.

Charging Plug
( C o n n e c t i n g
charging port)

Power Plug
(Connecting
power supply)

After charging begins, there will be
a slight voice made by the fan of
charger in the trunk; then please
observe the combination instrument; if
it is displayed as below, meaning it is
charging now.

After charged, please first turn the
power off, pull out the power plug, then

使用手册小330.indd   112

2011-4-13   18:36:49
