BYD F3, F3-R. Service Manual - part 1

BYDAUTO

F3 OWNER’S MANUAL

Technical Specifications and Vehicle Identification

Technical specifications of BYD F3

Type

QCJ7150A/A1

QCJ7160A

QCJ7160A1

QCJ7160A2

Overall length (mm)

4533

Dimensions

Overall width (mm)

1705

Vehicle height (mm)

1490

Wheel base (mm)

2600

Front (mm)

1480

Wheel track

Rear (mm)

1460

Curb weight (kg)

1200

Total weight (㎏)

1575

Tire

195/60 R15

Approach angle (°)

17.7

Departure angle (°)

18.9

Front overhang (mm)

933

Rear overhang (mm)

1000

Passengers

5

Max. speed (km/h)

180

Engine

DA4G15S

DA4G18

5

BYDAUTO

F3 OWNER’S MANUAL

Type

In line four cylinder; 16 valves; water cooling; OHC

1.6

Displacement (ml)

1.5

1488/1584

Max. power (kW)

78

73.5

Max. gradeability (%)

≥35

Constant-speed fuel consumption per 100km (90km/h)

4.7

4.9

Emission standard

EURO III / II

EURO III

EURO II

EURO III

* The actual fuel consumption depends on many factors, like vehicle condition, road condition, and driving habit.

Technical specifications of BYD F3-R

QCJ7151A/A1

Type

QCJ7361A

Overall length (mm)

4235

Dimensions

Overall width (mm)

1705

Vehicle height (mm)

1490

Wheel base (mm)

2600

Front (mm)

1480

Wheel track

Rear (mm)

1460

6

BYDAUTO

F3 OWNER’S MANUAL

Curb weight (kg)

1170

Total weight (㎏)

1545

Tire

195/60 R15

Approach angle (°)

17.7

Departure angle (°)

28.8

Front overhang(mm)

933

Rear overhang (mm)

792

Passengers

5

Max. speed (km/h)

180

engine

4G15S

Type

In line four cylinder; 16 valves; water cooling; OHC

Displacement (ml)

1.5

Max. power (kW)

78

Max. gradeability (%)

≥35

Constant-speed fuel consumption L/100km

4.7

(90km/h)

* The actual fuel consumption depends on many factors, like vehicle condition, road condition, and driving habit.

7

BYDAUTO

F3 OWNER’S MANUAL

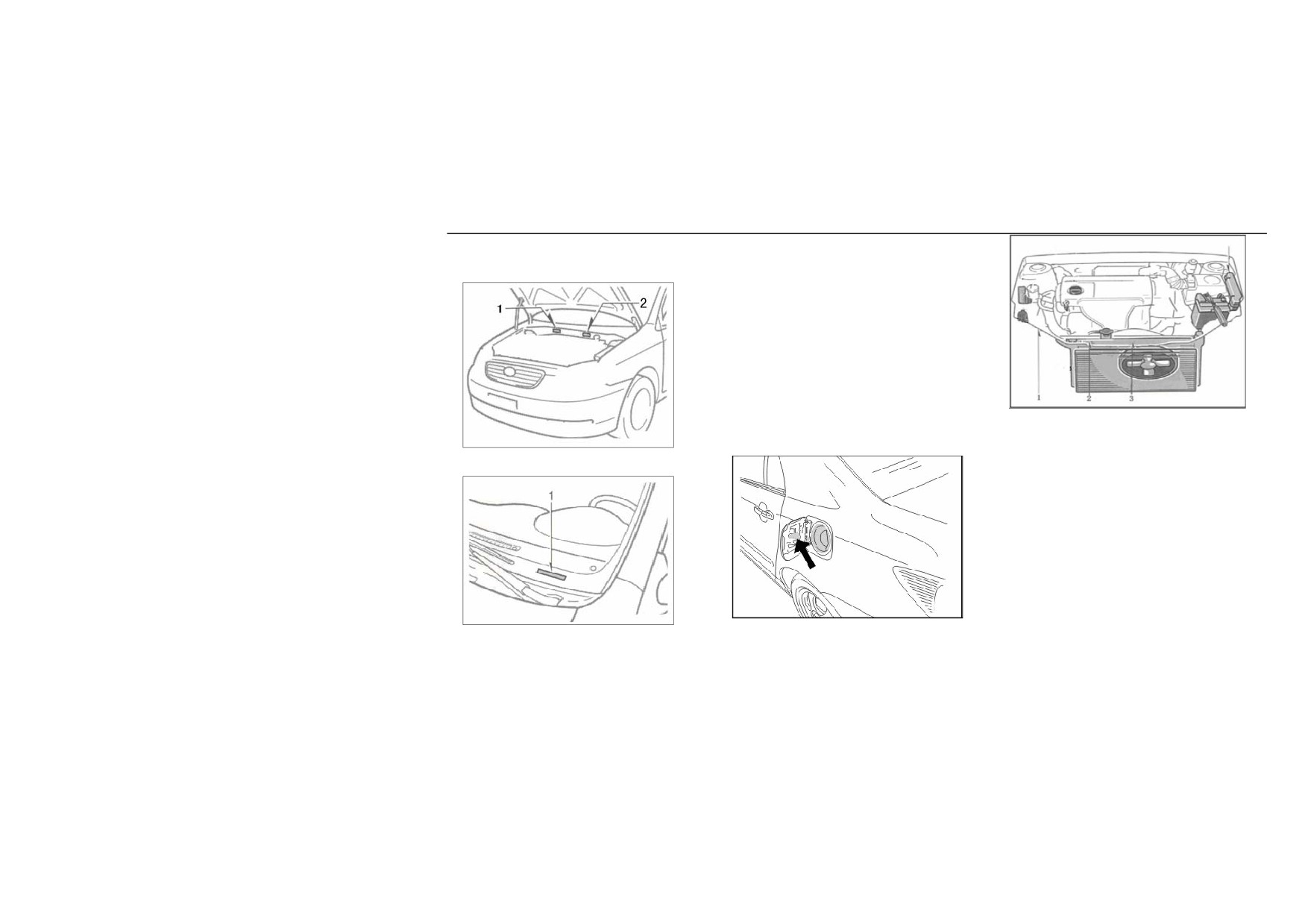

BYD F3 vehicle identification

VIN:

The VINs are set in the engine

cabin separately and on the upper

left of the panel, as shown in Figure

1. This is the VIN of BYD-F3 for

the car owner to register. The

Plate-2 shows the VIN as well.

1.

Cooling water indicating board

2.

A/C system alarm board

3.

Cooling fan alarm board

The above picture indicates

the fuel specification which is set

in the inner part of the cap.

8

BYDAUTO

F3 OWNER’S MANUAL

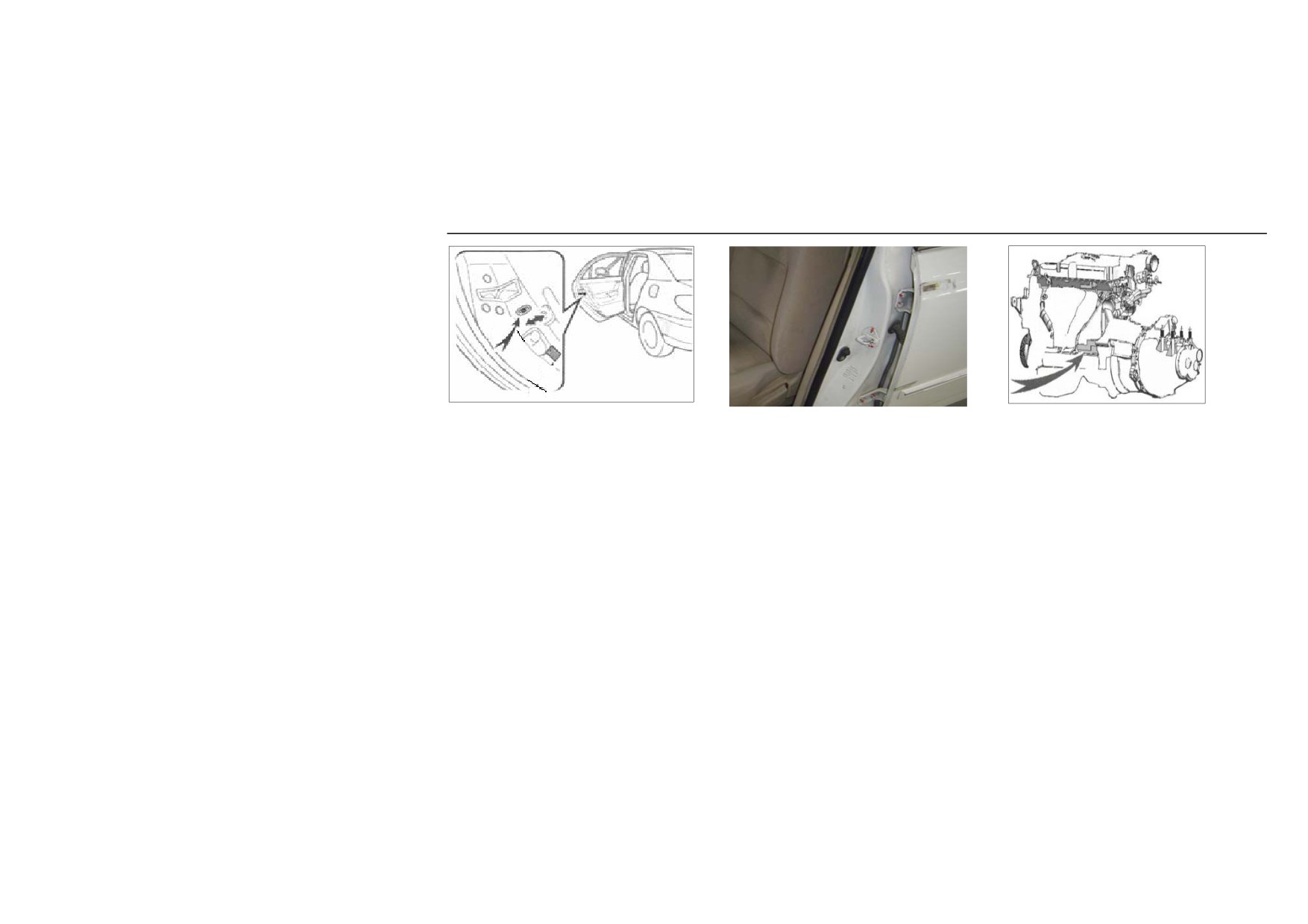

The picture above refers to children-

The picture above shows the tire

No. of engine

protection system indication which is

pressure indication which is set

As showed in the picture

downward to the children-protection

below the lock ring of left front

above, the number of Engine

lock on the inner side of the rear door.

door

is indicated on the cylinder.

9

BYDAUTO

F3 OWNER’S MANUAL

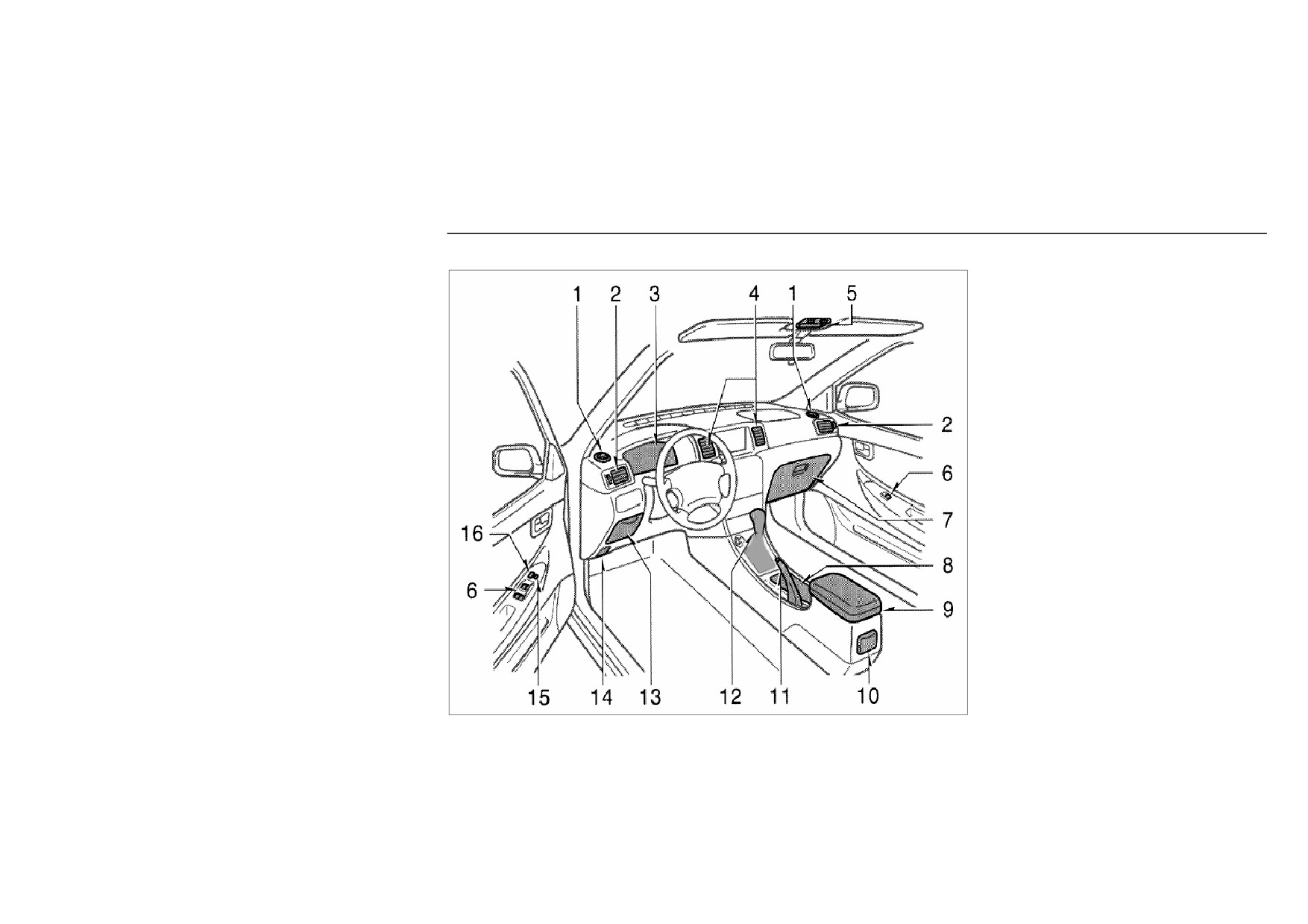

Instrument panel overview

1. Side defroster outlets

2. Side vents

3. Instrument cluster

4. Center vents

5. Front interior light and switch

(electric sun roof switches)

6. Power window switches

7. Glove box

8. Cup holder

9. Console box

10. Rear ashtray

11. Parking control assembly

12. Gear shift lever

13. Auxiliary box

14. Hook lock release lever

15. Window lock switch

(inside the

window lifter of the left front door)

16. Power door lock switch (inside the

window lifter of the left front door)

11

BYDAUTO

F3 OWNER’S MANUAL

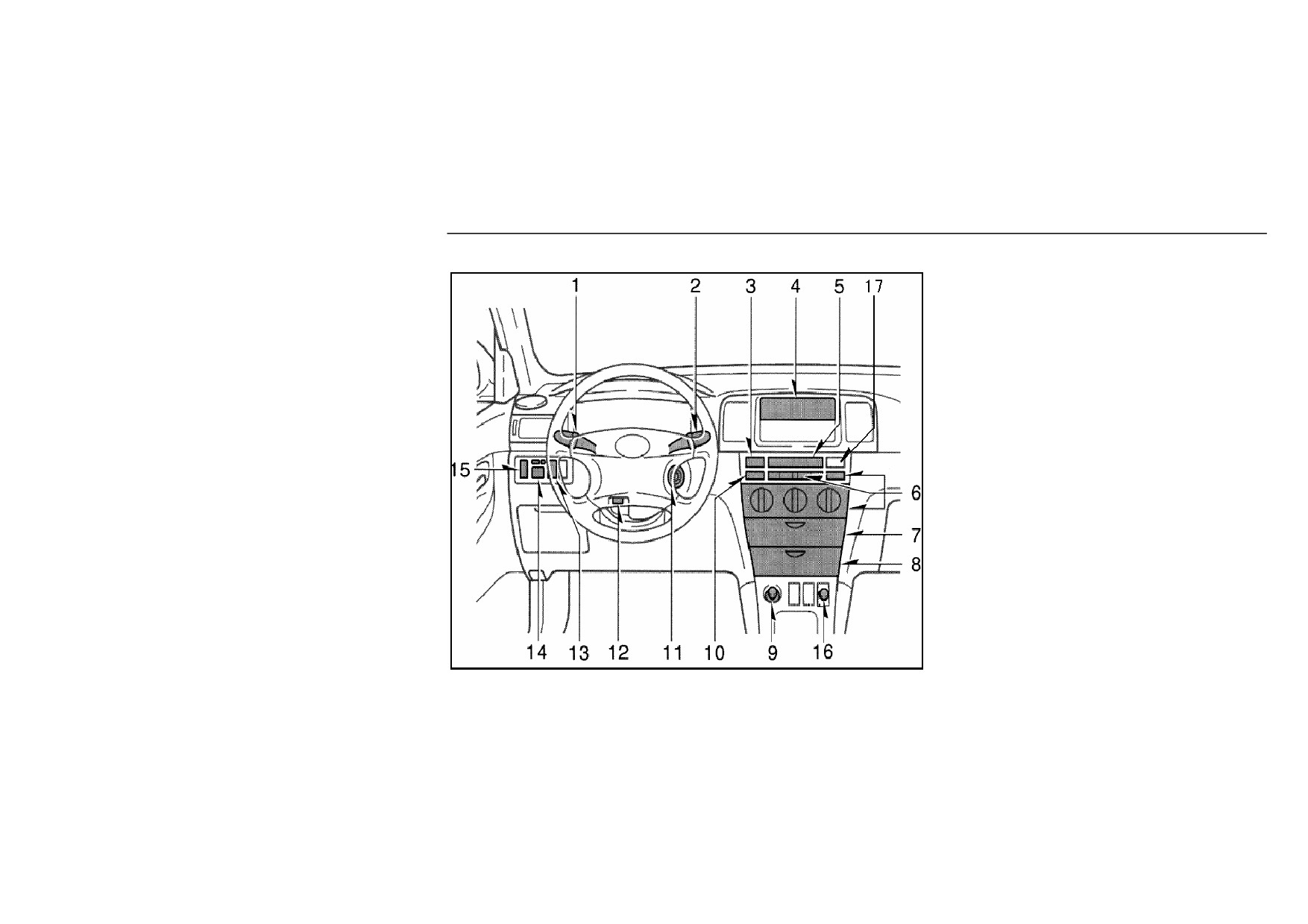

With manual air conditioning controls

1. Leftward combination switches (Light)

2. Rightward combination switches (Wiper and

washer)

3. Emergency flasher switch

4. Car audio

5. Electronic clock

6. A/C switch

7. Glove box

8. Front ashtray

9. Cigarette lighter assembly

10. Rear window defogger switch

11. Ignition switch unit

12. Tilt steering lock release lever

13. Burglar alarm indicator

14. Power rear view mirror control switches

15. Rear fog lamp switch

16. Vice-driver seat trump switch (When

equipped)

17. Backing radar switch (When equipped)

12

BYDAUTO

F3 OWNER’S MANUAL

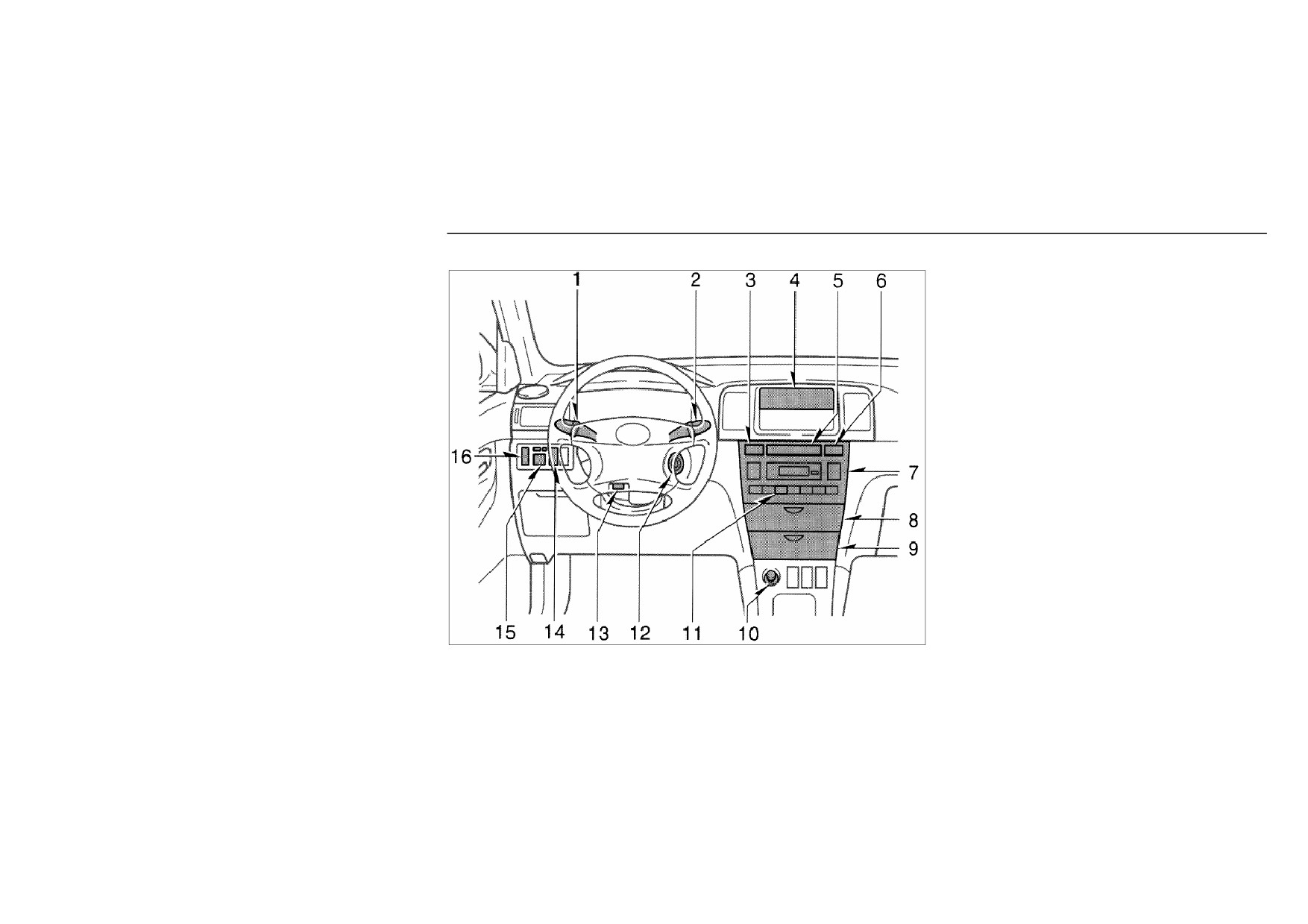

With automatic air conditioning controls

1. Leftward combination switches (Light)

2. Rightward combination switches (Wiper and

washer)

3. Backing indicator (Backing radar switch)

4. Car audio

5. Electronic clock

6. Emergency flasher switch

7. A/C controls

8. Auxiliary box

9. Front ashtray

10. Cigarette lighter assembly

11. Rear window defogger switch

12. Ignition switch

13. Tilt steering lock release lever

14. Burglar alarm indicator

15. External power rearview mirrors

16. Rear fog light switch

13

BYDAUTO

F3 OWNER’S MANUAL

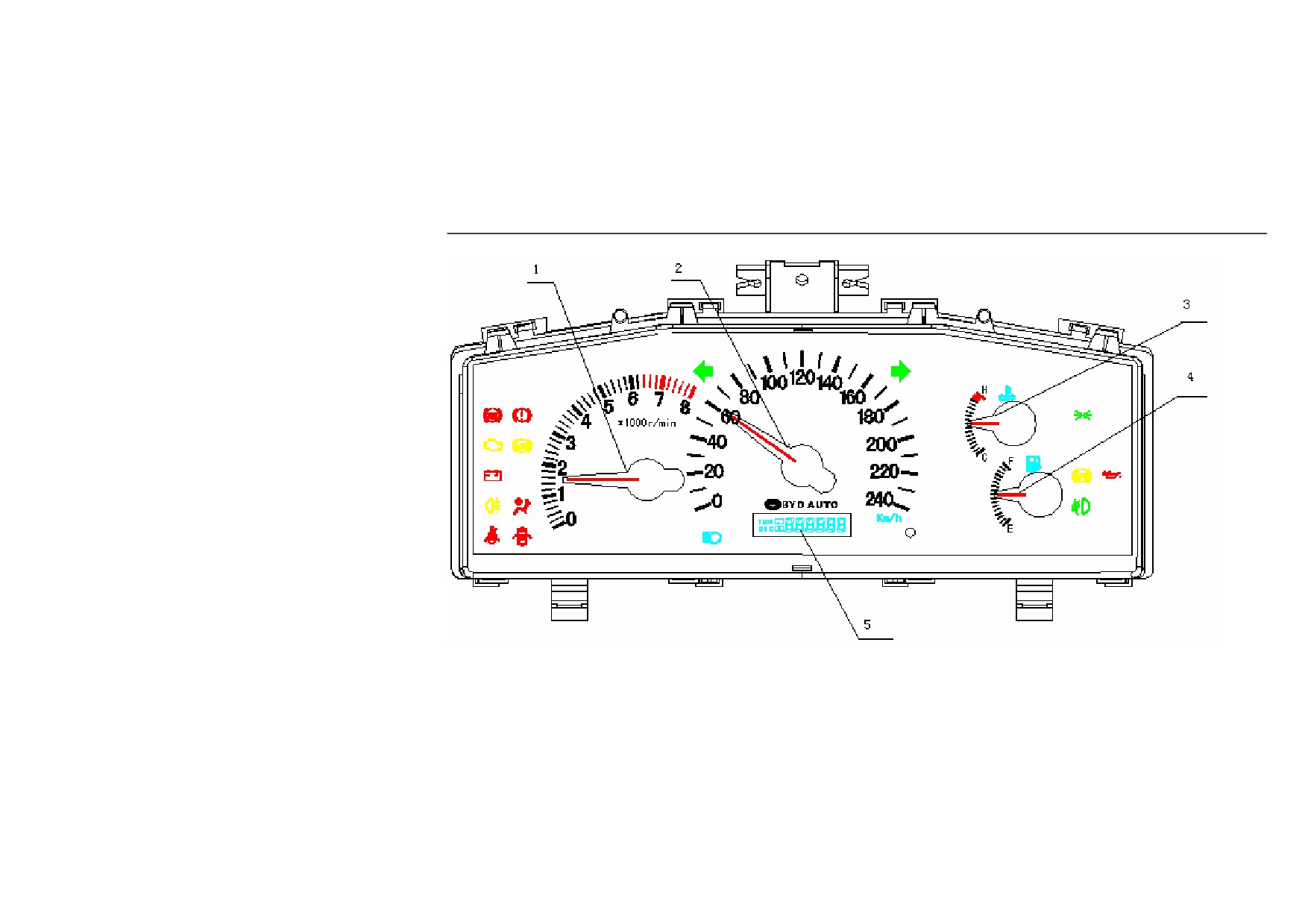

Combined Instrument overview

1. Tachometer

2. Speedometer

3. Water temperature indicator

4. Fuel gauge

5. Odometer

14

BYDAUTO

F3 OWNER’S MANUAL

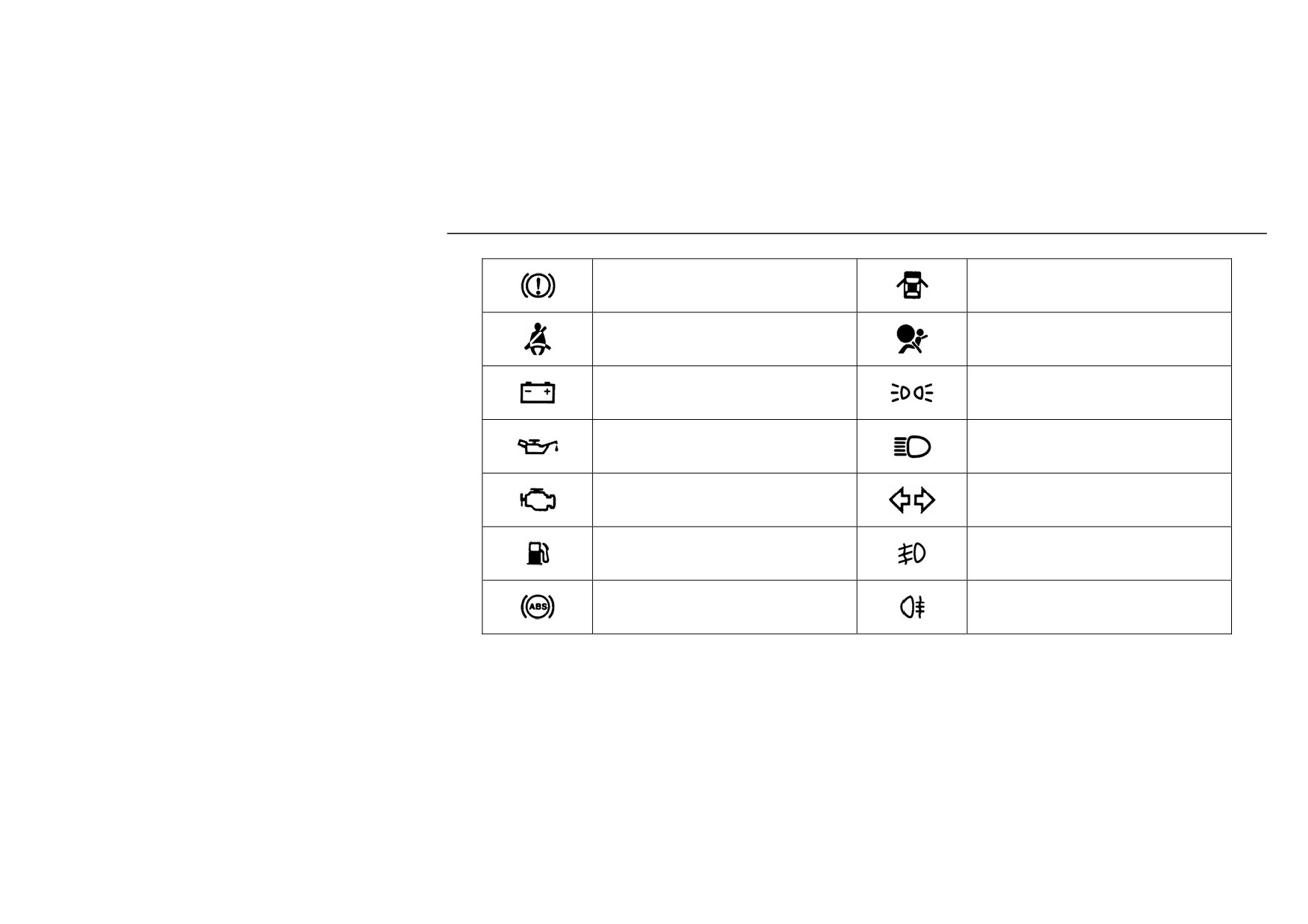

Indicator symbols on the combined instrument

Brake system warning indicator *

door opening warning indicator *

Driver’s seat belt reminder *

SRS warning indicator *

Discharge warning indicator *

Tail light indicator

Low engine oil pressure warning

Headlight high beam indicator

indicator*

Malfunction indicator *

Turn signal indicator

Low fuel level warning indicator *

Front fog light indicator

ABS warning indicator *

Rear fog light indicator

The indicators marked with * are service reminder indicators. For details, please see “Instrument and service reminder

indicators” in Section 1-5.

15

BYDAUTO

F3 OWNER’S MANUAL

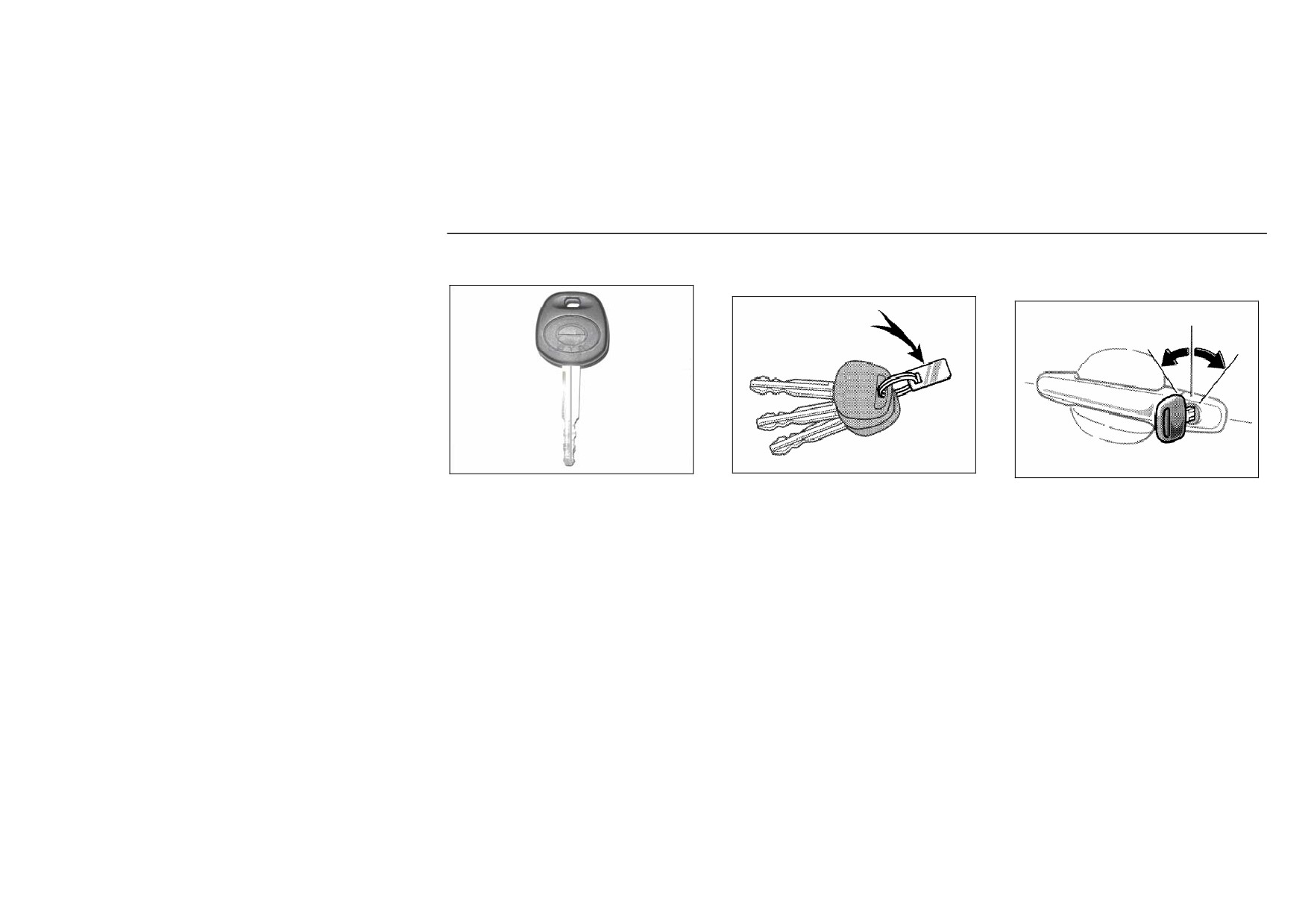

Keys

Side doors

Your vehicle is supplied with two

Key number plate

Unlocking and locking with key

kinds of keys

Your key number is shown on the

Insert the key into the keyhole and

1. Master keys: these keys work in

plate. Keep the plate in a safe place

turn it.

every lock. (2)

such as your bag, not in the vehicle.

To unlock: turn the key clockwise.

2. Sub key: this key will not work in

If you put the key in the vehicle, lock

To lock: turn the key anticlockwise.

the luggage compartment. (1)

the all of the doors, and there is not

Vehicles with the central door lock

Note: Your F3-R is equipped with 2

spare key, too, you should smash the

remote keys with no spare key.

system. All doors lock and unlock

smallest window and open the door.

As the key is not needed when

simultaneously with the driver’s door.

In this way, the cost will be very

locking the door, please take a master

key with yourself for spare use when

cheap. Pay attention to the cullet,

your keys are locked in the car

avoiding being injured.

accidentally

17

BYDAUTO

F3 OWNER’S MANUAL

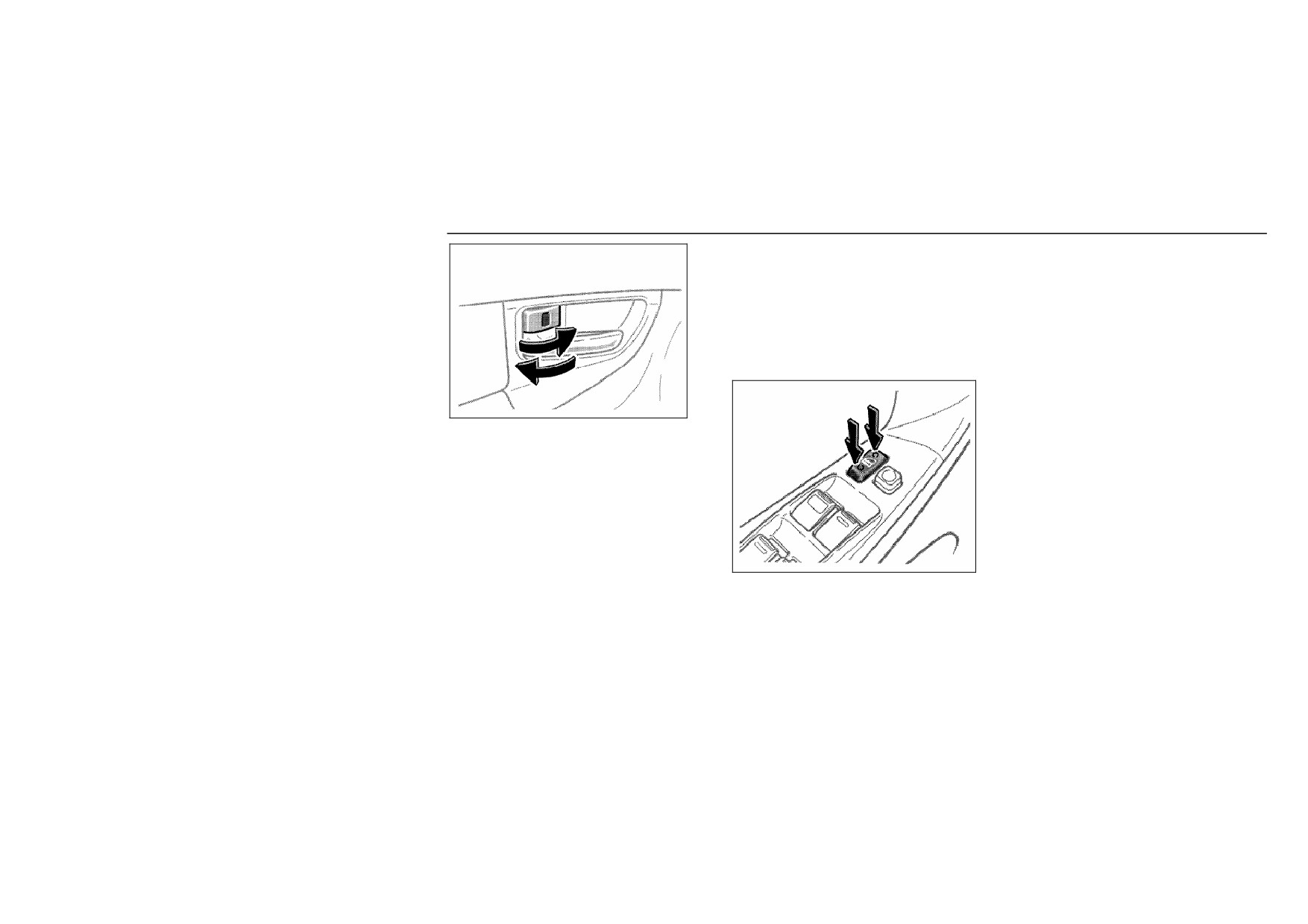

The driver’s side door can not be

To lock: push the rear of the switch

locked when the door is open and the

All the doors lock or unlock

key is in the ignition.

simultaneously.

The driver’s door can be opened from

Unlocking and locking the door

the inside even if the inside lock knob

automatically

is in the lock position.

When the speeds reach to 20km/h, all

doors will be locked automatically.

When you turn the ignition key from

Unlocking and locking with inside

“ON” to “ACC” or “LOCK”, all

lock knob

doors will be opened.

Move the lock knob.

You can cancel these functions. For

To unlock: pull the knob backward

details, see the section “Settings of

To lock: push the knob forward

optional functions”.

If you want to lock the door from the

outside, set the knob in the lock

Unlocking and locking with central

position before closing the door. The

door lock switch

outside door handle must be held up

Push the switch

while front doors are being closed.

To unlock: push the front of the

Do not lock your keys inside the car.

switch.

18

BYDAUTO

F3 OWNER’S MANUAL

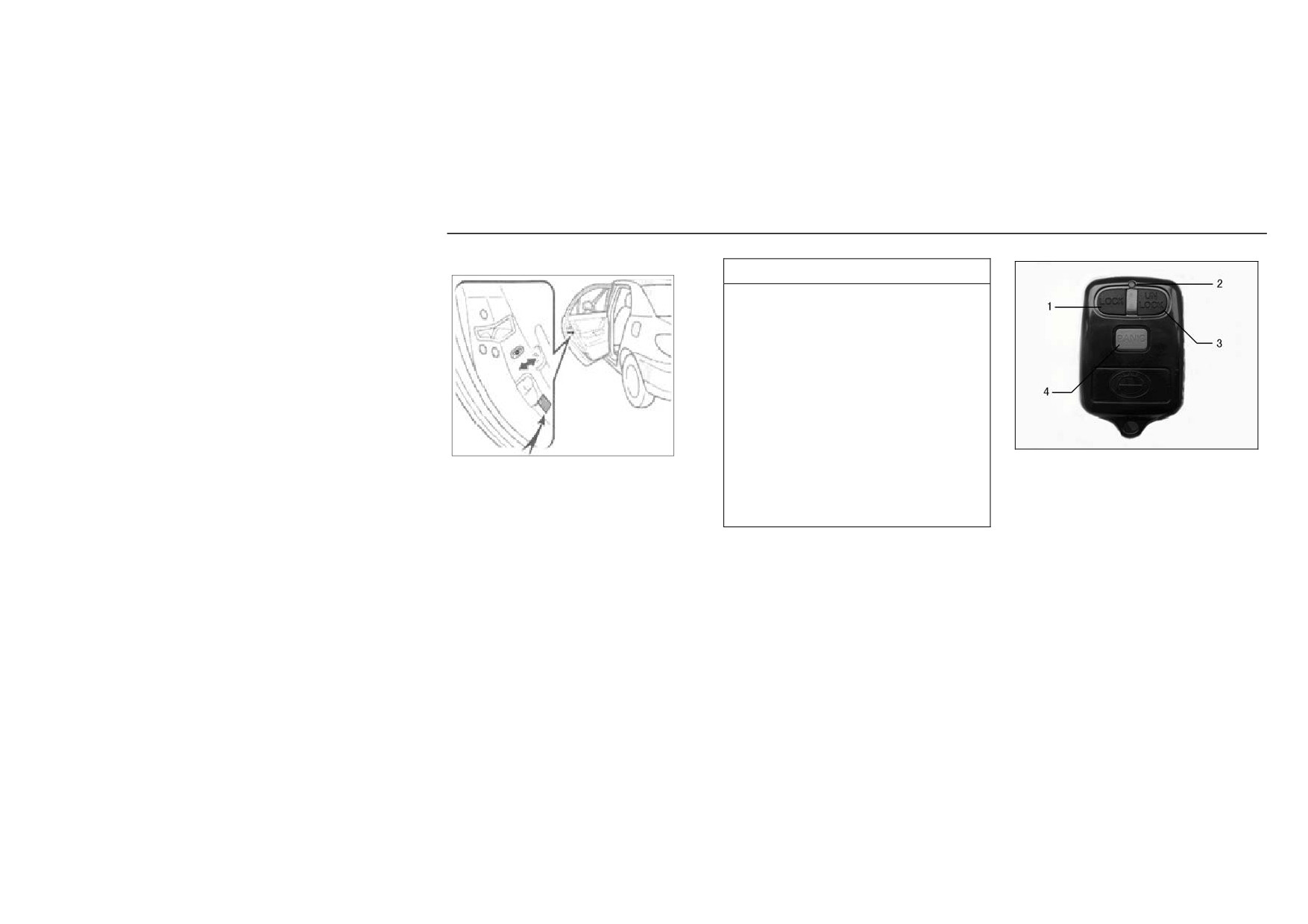

Rear door child protector

Wireless remote control

CAUTION

Before driving, be sure that the

doors are closed and locked,

especially when small children are

in the vehicle. Along with proper

use of seat belts, locking the doors

helps prevent the driver and

passengers from being thrown out

Move the lock lever to the “LOCK”

from the vehicle in an accident. It

1.

“LOCK” switch

position as shown in the figure.

also helps prevent the doors from

2.

Indicator

When the child-protector is locked,

being opened unintentionally.

3.

“UNLOCK” switch

you can not open the rear door via the

4.

“PANIC” switch

The wireless remote control system is

inside door handle. We recommend

using this feature when ever small

designed to lock or unlock all the side

child are in the vehicle.

doors and back door in the distance of

1 m or so.

To operate any switch, push it slowly

and securely. At this time, the

19
