Lamps and bulbs
133n
Tail lamps
Section of the right luggage compart-
Bulbs in the luggage compartment lid:
ment:
Tail lamps (4): 21/4 watt bulbs
1. Use a screwdriver to release the clip
Remaining bulbs: 21 watts
Bulbs in the fender:
1 Turn signal
yellow
All of the bulbs are integrated in a
central bulb holder.
2 Backup lamps
white
1. Unscrew the bulb holder (arrow in
3 Tail lamp
red
close-up view) and remove it
4 Tail lamp/brake lamp
red
2. Unplug the power supply plug. Set
the bulb holder aside (on the luggage
compartment floor, for example)
3. Applying light pressure, turn the bulb
to the left. Remove and replace the
bulb
4. Plug in the power supply fitting
5. Screw the bulb holder back on
(arrow in close-up view).
134nLamps and bulbs
2. Fold the trim panel down (1). Release
Center (high-mount) brake lamp
License plate lamps
the bulb holder (2) and remove it
LED strip on the rear window.
5 watt bulb
3. Applying light pressure, turn the bulb
to the left. Remove and exchange the
Please contact your BMW center in
1. Place a screwdriver in the slot and
case of a malfunction.
press toward the left (arrow) to
bulb
4. Press the bulb holder into place
release the lens
2. Replace the bulb.
continuing until you hear it engage
5. Reinstall the trim panel with the clip.
Changing a wheel
135n
Safety precautions for replacing
Do not place wooden blocks or similar
flat tires and all wheel changes:
objects under the jack. They could
Stop the vehicle as far as possible from
prevent the jack from extending to its
passing traffic. Park on a firm, flat,
full height and reduce its support
surface. Switch on the hazard warning
capacity.
flashers. Turn the steering wheel to the
Do not lie under the vehicle or start the
straight-ahead position and engage the
engine when the vehicle is supported
steering lock. Shift into 1st or reverse
by the jack - risk of fatal injury.<
(selector lever in Park with automatic
transmission) and engage the parking
Your BMW is equipped with a space-
brake.
saver spare tire designed for temporary
All passengers should be outside the
use in maintaining the vehicle's mobility
vehicle and well away from your imme-
in an emergency.
What you will need
diate working area (behind a guardrail,
for example).
To remove the space-saver spare
In order to avoid rattling noises later,
If a warning triangle or portable hazard
tire, lift the floor panel in the
note the position of the tools when you
warning lamp is available, set it up on
luggage compartment completely out,
remove them and return them to their
the roadside at an appropriate distance
refer to page 35.<
original position when you are through
from the rear of the vehicle. Comply
using them.
with all safety guidelines and regula-
> Jack 1
tions.
Raise the floor panel in the luggage
Change the wheel only on a level, firm
compartment, refer to page 35 and
surface which is not slippery. Avoid
undo the jack (arrow).
jacking the vehicle on a soft or slippery
When you have completed work, fold
support surface (snow, ice, loose
the handle back and insert it in its
gravel, etc.), as either the vehicle or the
holder
jack could slip sideways.
> Chock 2
Position the jack on a firm support
Located behind the jack on the wall
surface.
in the luggage compartment. Loosen
the wingnut to remove it
136nChanging a wheel
Procedure
1. Read and comply with the safety
precautions provided on the previous
page
2. Secure the vehicle to prevent it from
rolling:
Place the chock against the rear
surface of the front tire on the side
opposite the side being raised. If the
vehicle is parked on a downward
slope, place the chock securely in
front of the tire. If the wheel must be
> Space-saver spare tire
changed on a surface with a more
4. Loosen the lug bolts by rotating half
Located next to the jack.
severe slope, take additional precau-
a turn
Loosen the wing nut (arrow) by hand,
tions to secure the vehicle from
5. Position the jack at the jacking point
remove the storage shelf and take the
rolling
(arrows) closest to the flat tire with
wheel out
3. Wheels with full wheel covers*:
the jack base vertically below the
> Lug wrench - in the onboard tool kit
Reach into the ventilation openings
jacking point and the entire surface
on the underside of the luggage
and pull the cover off
of the head of the jack will move into
compartment lid, refer to page 130.
the square recess of the jacking
point (refer to the detail in the next
illustration) when the jack is cranked
6. Continue raising the vehicle up until
the wheel you are changing is raised
from the ground
7. Unscrew the lug bolts and remove
the wheel
Changing a wheel
137n
Only use original BMW full wheel
covers, otherwise, the trim piece
may not fit securely. The full wheel
cover may not be installed on the
space-saver spare tire, since this could
damage the cover.<
The vehicle jack is designed for
changing wheels only. Do not
attempt to raise another vehicle model
with it or to raise any load of any kind.
To do so could cause accidents and
personal injury.
8.
Remove accumulations of mud and
13. Wheels with full wheel covers*:
To ensure continued safety, have the
dirt from the mounting surfaces of
Place the wheel cover with the
tightness of the lug bolts checked with
the wheel and hub. Clean the lug
valve opening (arrow) over the
a calibrated lug wrench [torque specifi-
bolts
valve. Use both hands to press the
cation: 72 lb ft (72 100 Nm] at the
9.
Position the new wheel or the
cover securely onto the rim
earliest opportunity.<
space saver spare tire on the hub
14. Check and correct the tire inflation
and screw at least two lug bolts
pressure at the earliest opportunity.
When storing a wheel in the spare tire
finger-tight into opposite bolt holes
Vehicles with Tire Pressure Monitor
recess take care to avoid bending the
10. Screw in the remaining lug bolts
(RDC)/Flat Tire Monitor:
threaded rod.
and screw in all the bolts in a diag-
After mounting the spare tire or
onal pattern
correcting the tire inflation pres-
If light-alloy wheels other than original
11. Lower the jack and remove it from
sure, reactivate the system, refer to
BMW light-alloy wheels have been
beneath the vehicle
page 83 or 85.
mounted, it may be necessary to use
12. Tighten the lug bolts securely in a
different lug bolts for those wheels.
Protect valve stems and valves from dirt
diagonal pattern
using screw-on valve stem caps. Dirty
Replace the defective tire as soon as
valve stems frequently lead to slow
possible and have the new wheel/tire
pressure loss.
balanced.
138nChanging a wheel
Driving with the space-saver
Safety tires*
Safety tires are only possible in
spare tire
conjunction with Tire Pressure
Safety tires consist of self-supporting
Monitor (RDC) or Flat Tire Monitor.<
Drive cautiously. Do not exceed a
tires and special rims. The tire rein-
speed of 50 mph (80 km/h).
forcement ensures that the tire retains
If the defective wheel cannot be seen
some residual safety in the event of
You can anticipate changes in vehicle
as such immediately from the outside,
pressure drop and driving remains
handling such as delayed braking
check the tire inflation pressure at all
possible to a restricted degree. The
response, longer braking distances and
four wheels.
vehicle is equipped with Tire Pressure
sacrifices in roadholding.
Monitor (RDC) or Flat Tire Monitor,
The changes in handling characteristics
Have the tires changed by your
which indicate a flat tire.
will be even more pronounced in
BMW center. For safety reasons,
conjunction with winter tires.
do not have a safety tire repaired. Your
Flat tire
BMW center has the information
If there is a tire failure, the red warning
Only one space-saver spare tire
needed for working with safety tires
lamp symbol lights up. A supplemen-
may be mounted at one time.
and is equipped with the necessary
tary gong is also heard.
Reinstall wheels and tires of the same
special tools.<
For additional information on Tire Pres-
size and specification as soon as
sure Monitor (RDC) or Flat Tire Monitor
possible. Maintain correct tire pres-
If appropriate, please consult your
refer to page 83 or 85.
sures, refer to page 25.<
BMW center to reequip your
Reduce vehicle speed carefully to
vehicle from summer to winter tires - or
under 50 mph (80 km/h), avoiding hard
vice versa.<
brake applications and steering maneu-
vers.
With the safety tires, you can drive
another approx. 155 miles (250 km) to
reach a safe parking location, a service
station or the nearest BMW center.
With a low vehicle load, this can also be
considerably more than 155 miles
(250 km).
Battery
Fuses
139n
Battery care
Charging the battery
The battery is maintenance-free, that is,
When charging the battery in the
the original electrolyte will normally last
vehicle, leave the engine off at all times.
for the service life of the battery under
Connect the charge cables to the termi-
moderate climatic conditions.
nals in the engine compartment. For
terminal locations refer to Jump-
Please consult your BMW center
starting on page 140.
whenever you have any questions
concerning the battery. The battery is
Return used batteries to a recycling
completely maintenance-free; the
point or your BMW center. Maintain
following section is provided for your
the battery in an upright position for
information only.<
transport and storage. Secure the
battery against tilting during transport.<
The fuses are located in the glove
Never disconnect the battery
compartment behind a cover secured
when the engine is running; the
by two snap clips.
ensuing voltage surge would seriously
damage the vehicle's onboard elec-
Do not attempt to repair a blown
tronic systems.<
fuse or replace it with a fuse
having a different color or amperage
rating. To do this could cause a fire in
the vehicle resulting from a circuit over-
load.<
140n
Jump-starting
Do not use spray starter fluids to start
Always adhere to this sequence
the engine.
when connecting jumper cables;
failure to observe this procedure can
When your battery is discharged you
lead to sparks at the battery terminals
can used two jumper cables to start
and pose an injury hazard.<
your vehicle with power from the
battery in a second vehicle. You can
7. Start the support vehicle's engine
also use the same method to help start
and let it run at an increased idling
another vehicle. Always use jumper
speed for a few minutes. Start the
cables with fully insulated handles on
engine on the vehicle needing the
the terminal clamps.
jump-start, and allow it to run as
usual. If the first start attempt is not
Do not touch high-voltage wiring
successful, wait a few minutes
and cables on a running engine.
4. Start the engine on the support
before another attempt in order to
Contact with components carrying high
vehicle and allow it to run
allow the discharged battery to
voltage can be harmful or fatal. Care-
5. Use one jumper cable (+) to connect
recharge
fully observe the following instructions
the positive terminal of the battery in
8. Before disconnecting the jumper
to avoid personal injury and/or damage
the support vehicle with the auxiliary
cables let the engines run for a few
to one or both vehicles.<
positive terminal provided in the
minutes
engine compartment of your BMW
9. Then disconnect the jumper cables
1. Ensure that the battery in the support
(arrow 1). The cover on this auxiliary
in reverse sequence.
vehicle is also rated at 12 volts. This
terminal is identified by a "+" symbol.
information is provided on the top of
Remove by pulling the tab
Depending on the cause of the fault,
the battery casing
6. Next, connect one end of the other
have the battery recharged by your
2. Do not disconnect your battery from
jumper cable (-) to either the support
BMW center.
your vehicle's electrical system.
vehicle's negative battery terminal or
Switch off all electrical accessories in
a suitable ground on its engine or
both vehicles
bodywork. Connect the other end to
3. Make absolutely certain that there is
the negative battery terminal or a
no contact between the bodywork of
suitable ground on the vehicle being
the two vehicles - short circuit
started. There is a special nut on
hazard
your BMW (2)
Towing the vehicle
141n
Tow fitting
Rear:
Towing with a commercial tow
Press out the cover panel with a screw-
The screw-in tow fitting is stored in the
truck
driver inserted in the recess at the top.
onboard tool kit; be sure that it remains
> Do not tow with sling-type equipment
in the vehicle at all times. This fitting is
> Use wheel-lift or flatbed equipment
Screw the tow fitting all the way
designed for installation in the tow
> Please comply with applicable state
in. Failure to screw the fitting all
sockets located at the front and rear of
towing laws.
the way in can cause thread damage.
the vehicle, and is intended for towing
Never attach tie-down hooks, chains,
on paved road surfaces only. This fitting
Never allow passengers to ride in
straps, or tow hooks to tie rods, control
should not be used to pull a vehicle out
a towed vehicle for any reason.
arms, or any other part of the vehicle
of deep snow, mud, sand, etc.
Never attach tie-down hooks, chains,
suspension, as severe damage to these
Always comply with all applicable
straps, or tow hooks to tie rods, control
components will occur, leading to
towing laws and regulations.
arms, or any other part of the vehicle
possible accidents.<
suspension, as severe damage to these
Access to tow sockets
components will occur, leading to
possible accidents.c
Front:
Press out the cover panel with a screw-
driver inserted in the recess at the top.
142n
143n
Overview
Controls and features
Operation, maintenance
Owner service procedures
Technical data
Index
Index
144n
Engine data
BMW 325Ci
BMW 330Ci
Displacement
cu in (cmm)
152.2 (2,494)
181.8 (2,979)
Number of cylinders
6
6
Maximum power
hp (kW)
184 (135)
225 (165)
at engine speed
rpm
6,000
5,900
Maximum torque
lb ft (Nm)
175 (237)
214 (290)
at engine speed
rpm
3,500
3,500
Compression ratio
e
10.5
10.2
Stroke
in (mm)
2.95 (75)
3.53
(89.6)
Bore
in (mm)
3.31 (84)
3.31 (84)
Fuel-injection system
Digital electronic engine-management system (DME)

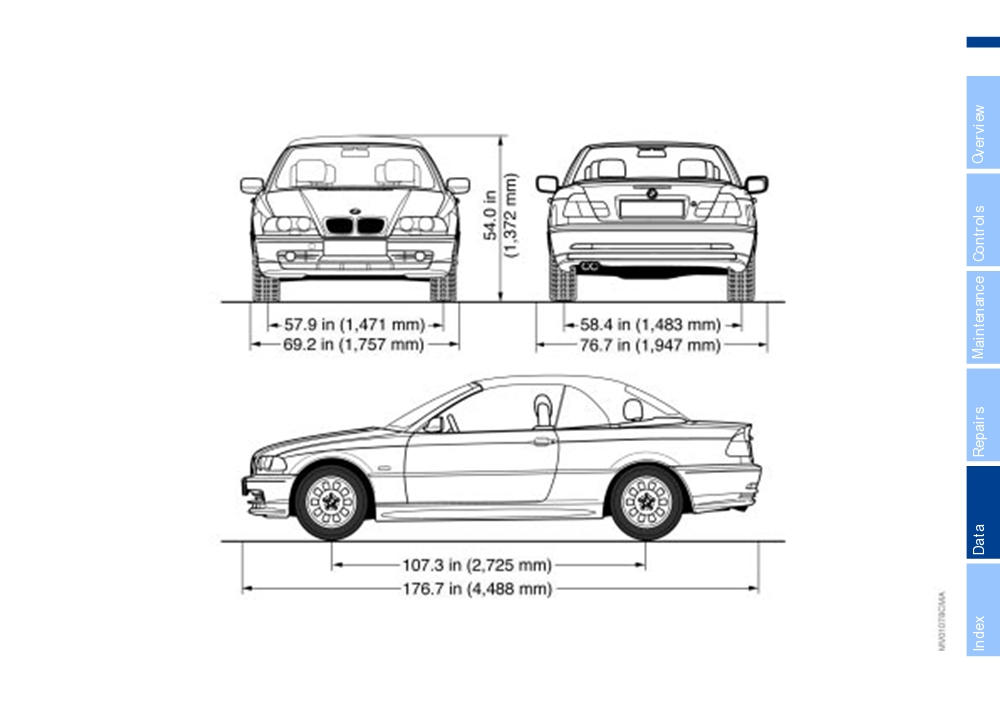

Dimensions
145n
Minimum turning circle dia. 34.4 feet (10.5 m).
146nWeights
BMW 325Ci
BMW 330Ci
Curb weight (with one person, ready for operation, full tank of fuel, options not included)
with manual transmission
lbs. (kg)
3,560 (1,615)
3,616 (1,640)
with automatic transmission
lbs (kg)
3,627 (1,645)
3,704 (1,675)
Approved gross vehicle weight
with manual transmission
lbs (kg)
4,442 (2,015)
4,497 (2,040)
with automatic transmission
lbs (kg)
4,509 (2,045)
4,575 (2,075)
Approved front axle loads
lbs (kg)
2,083 (945)
2,094 (950)
Approved rear axle loads
lbs (kg)
2,546 (1,155)
2,579 (1,170)
Approved maximum roof weight for the hardtop lbs (kg)
165 (75)
165 (75)
Luggage compartment capacity
cu ft (l)
9.2 (260)
9.2 (260)
with the convertible top compartment raised
cu ft (l)
10.6 (300)
10.6 (300)
Never exceed either the approved axle loads or the approved gross vehicle weight.
