Han

d

lin
g the U

n

expected

Fuses

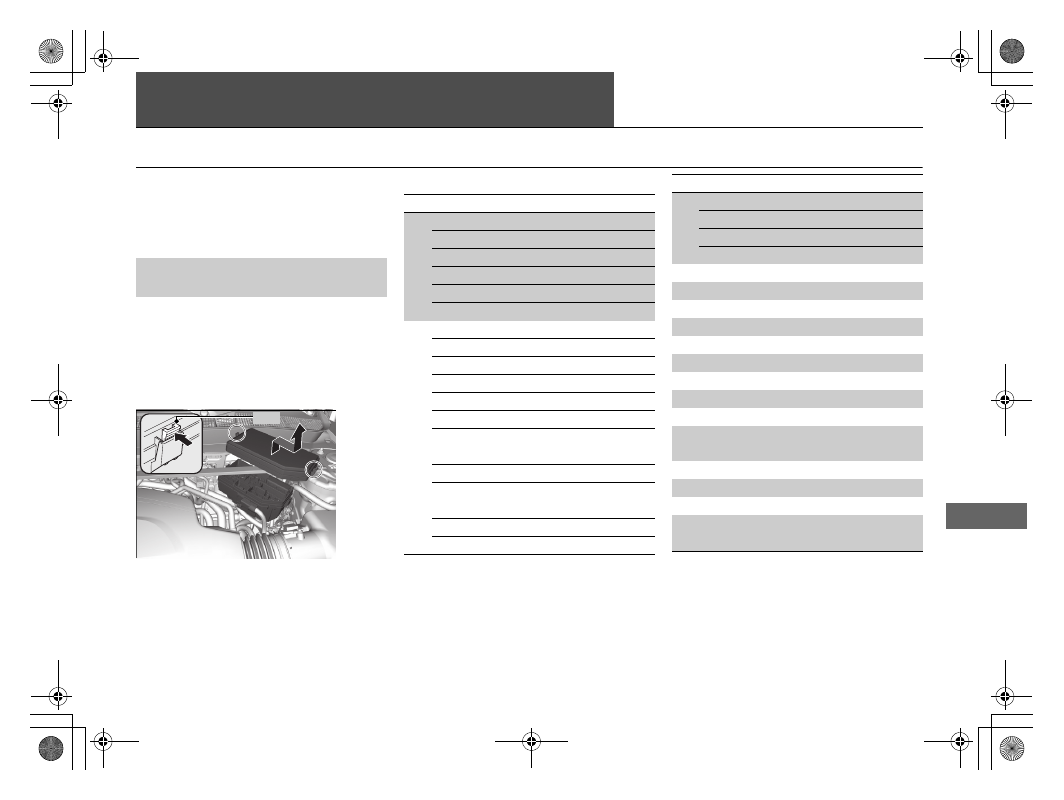

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

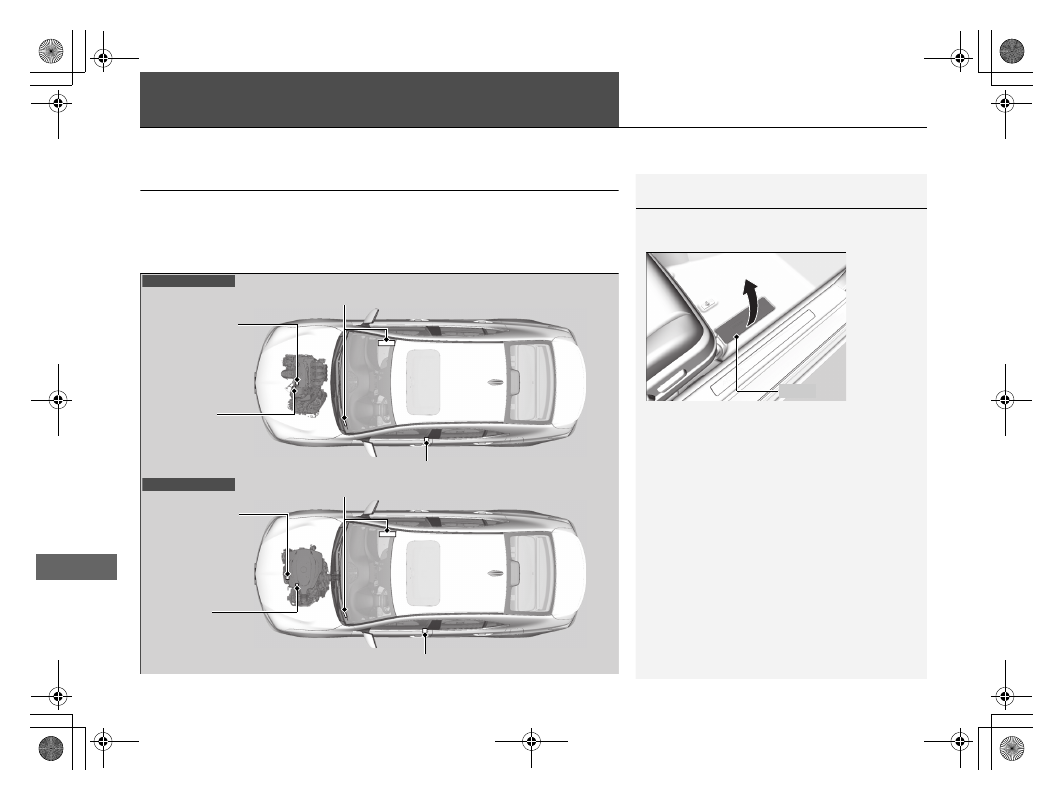

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse
Box Type A

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

EPS

70 A

Sub Fuse Box

60 A

ABS/VSA Motor

40 A

ABS/VSA FSR

20 A

Main Fan

*2, *3

30 A

Main Fuse

125 A

2

IG Main

30 A

F/B Main

60 A

F/B Main 2

60 A

Headlight Main

30 A

IG Main 2

30 A

Starter Cut 1

40 A

Injector

*2, *3

20 A

Sub Fan

*1

Rear Defroster

40 A

Main Fan

*1

30 A

Sub Fan

*2, *3

Wiper

30 A

Heater Motor

40 A

*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD

3

Headlight Washer

*2, *3

(30 A)

Left Electric Parking Brake

30 A

Right Electric Parking Brake

30 A

Driver Thigh Support

*

(30 A)

4

−

−

5

−

−

6

−

−

7

−

−

8

STRLD

*1, *2

7.5 A

9

Interior Lights

*1, *2

5 A

10

Headlight Low/High Main

20 A

11

Oil Level

7.5 A

12

Front Fog Lights

*

(7.5 A)

13

Passenger’s Power Seat

Reclining

20 A

14

Hazard

15 A

15

IGP2

15 A

16

IG Coil

15 A

17

Stop

*1, *2

10 A

SH-AWD

*3

20 A

Circuit Protected

Amps

* Not available on all models

19 ACURA TLX-31TZ36400.book  553 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

554

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

*1:4-cylinder models
*2:6-cylinder models with 2WD
*3:6-cylinder models with AWD

Circuit Protected

Amps

18

Horn

10 A

19

Audio

*1, *2

20 A

Interior Light

*3

5 A

20

ACM

*2, *3

20 A

Injector

*1

21

FI Main

15 A

22

DBW

15 A

23

TCU/SBW

*2, *3

10 A

24

Premium AMP

30 A

25

MG Clutch

7.5 A

26

Passenger’s Power Seat

Sliding

20 A

27

Parking Lights

*1, *2

15 A

28

BMS

7.5 A

29

Back Up

10 A

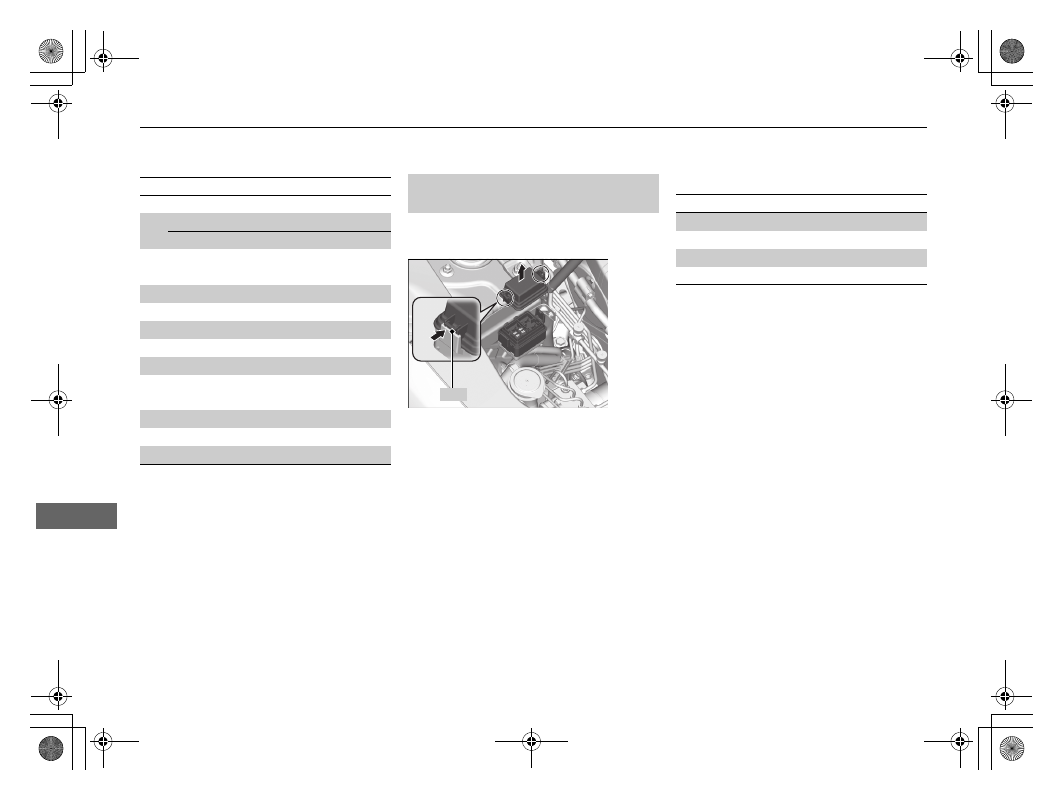

Located near the washer fluid cap. Push the
tabs to open the box.

■

Engine Compartment Fuse
Box Type B

Tab

■

Circuit protected and fuse rating

Circuit Protected

Amps

1

Left Headlight Low Beam

7.5 A

2

Right Headlight Low Beam

7.5 A

3

Right Headlight High Beam

7.5 A

4

Left Headlight High Beam

7.5 A

19 ACURA TLX-31TZ36400.book  554 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

555

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

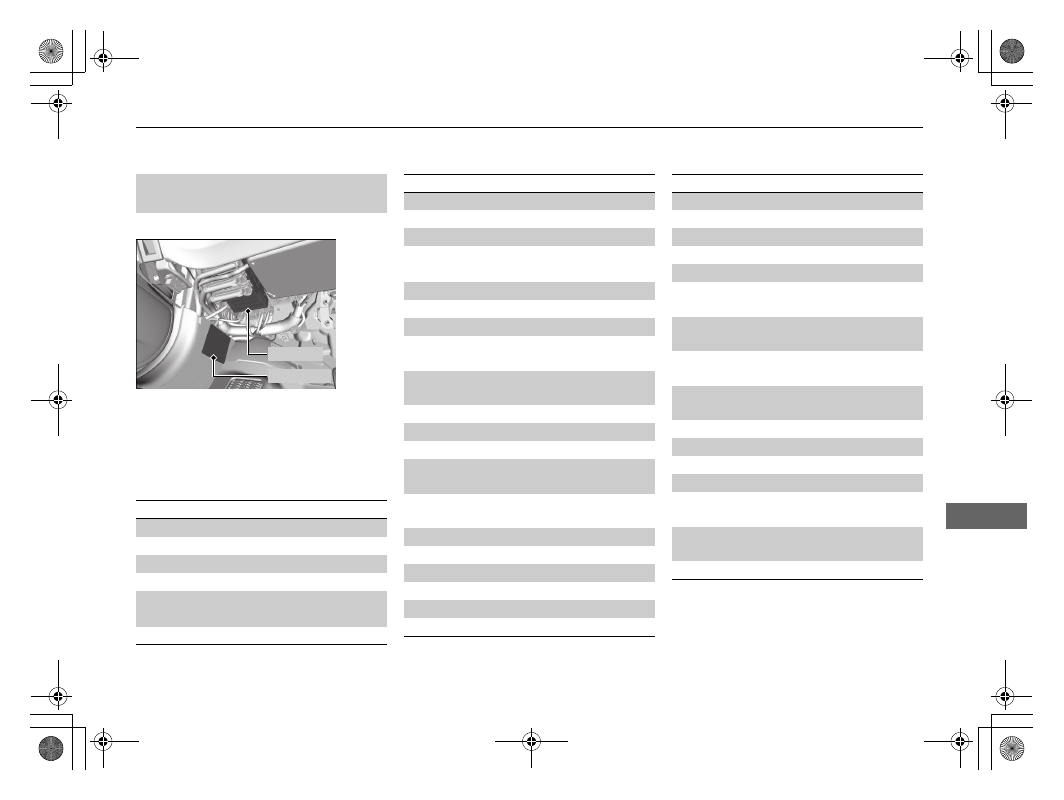

Located under the dashboard.

Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.

■

Circuit protected and fuse rating

■

Driver’s Side Interior Fuse Box
Type A

Fuse Label

Fuse Box

Circuit Protected

Amps

1

A/C

7.5 A

2

DRL

7.5 A

3

ST Motor

(7.5 A)

4

−

−

5

Meter

*1

7.5 A

Auto Dimming Mirror

*2

6

SRS

(7.5 A)

7

Option

7.5 A

8

MISS SOL

*3

(15 A)

9

Fuel Pump

20 A

10

ABS/VSA

*1

(7.5 A)

Smart

*2

11

Spare Fuse

30 A

12

Wiper

7.5 A

13

ACG

15 A

14

Accessory Power Socket

(Console Compartment)

20 A

15

Driver’s Power Seat

Reclining

20 A

16

Moonroof

20 A

17

AVS/Seat Heaters

20 A

18

−

−

19

Passenger’s Side Door

Unlock

10 A

20

Driver’s Side Rear Door

Unlock

10 A

21

Driver’s Side Door Lock

(10 A)

22 Passenger’s Side Door Lock

10 A

23

Driver’s Side Door Unlock

(10 A)

24

SRS

10 A

25

Instrument Panel Lights

7.5 A

26

ACC Key Lock

7.5 A

Circuit Protected

Amps

*1:2WD models
*2:AWD models
*3:4-cylinder models

27

Parking Lights

7.5 A

28

Lumbar Support

10 A

29

Right DRL

7.5 A

30

Washer

20 A

31

SMART

10 A

32

Driver’s Side Power

Window

20 A

33

Passenger’s Side Power

Window

20 A

34

Rear Driver’s Side Power

Window

20 A

35

Rear Passenger’s Side

Power Window

20 A

36 Driver’s Power Seat Sliding

20 A

37

ACCESSORY

7.5 A

38

−

−

39

Left DRL

7.5 A

40

Accessory Power Socket

(Center Pocket)

20 A

41

Rear Driver’s Side Door

Lock

10 A

42

Door Lock

20 A

Circuit Protected

Amps

19 ACURA TLX-31TZ36400.book  555 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

556

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

*1:2WD models
*2:AWD models
*3:Have a dealer replace the fuse.

Circuit Protected

Amps

A

−

−

B

−

−

C

Meter

*2

7.5 A

D

Back Up

*2

10 A

E

Stop

*2

7.5 A

F

Parking Lights

*2

15 A

G

Audio ACC

*2

7.5 A

Rear Seat Heater

*, *1, *2, *3

(15 A)

A

ABS/VSA

*2

7.5 A

B

MICU

*2

7.5 A

C

−

−

D

−

−

E

STRLD

*2

7.5 A

F

Audio

*2

20 A

G

ACM

*2

7.5 A

Heated Steering

Wheel

*, *1, *2, *3

(10 A)

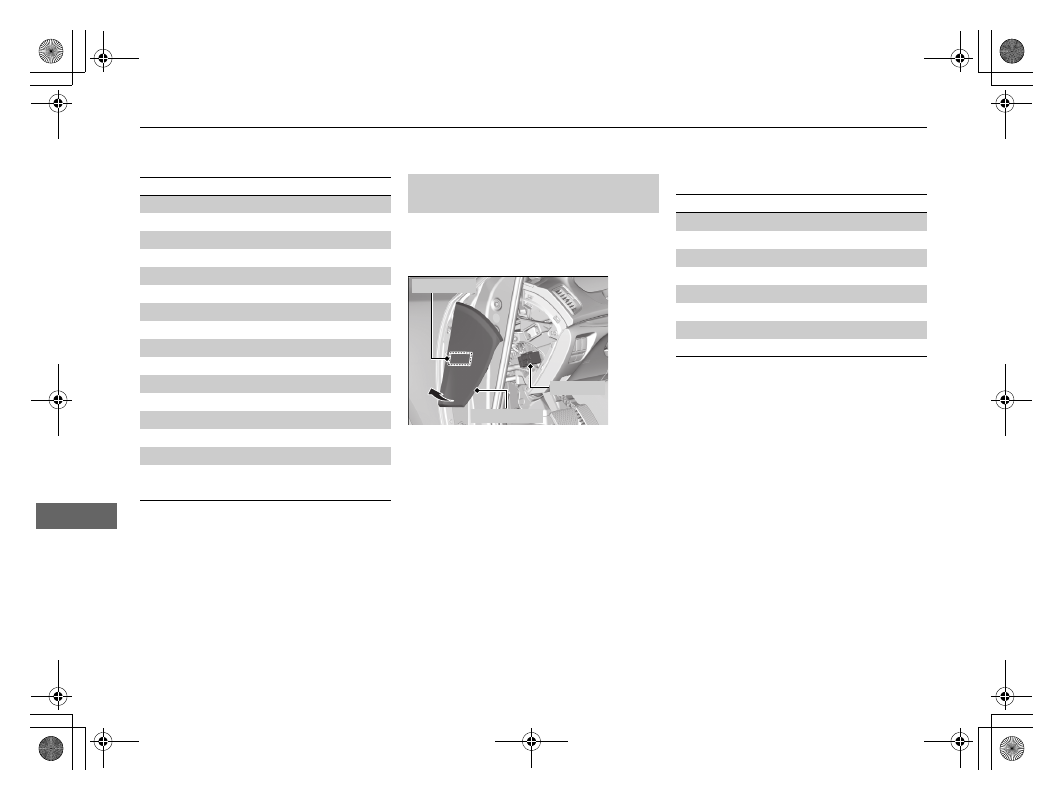

Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.

1. Grasp the bottom edge of the outer

panel.

2. Pull the panel towards you, then remove

it.

Fuse locations are shown on the outer
panel.

■

Driver’s Side Interior Fuse Box
Type B

Outer Panel

Fuse Box

Fuse Label

■

Circuit protected and fuse rating

*1:AWD models

Circuit Protected

Amps

1

P-AWS L

(40 A)

2

−

−

3

−

−

4

ACC Radar

(10 A)

5

Idle Stop

*1

(30 A)

6

P-AWS R

(40 A)

7

FR DE-ICE

*

(15 A)

8

Idle Stop

*1

(30 A)

* Not available on all models

19 ACURA TLX-31TZ36400.book  556 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

557

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF

(LOCK). Turn headlights and all accessories
off.

2. Remove the fuse box cover.

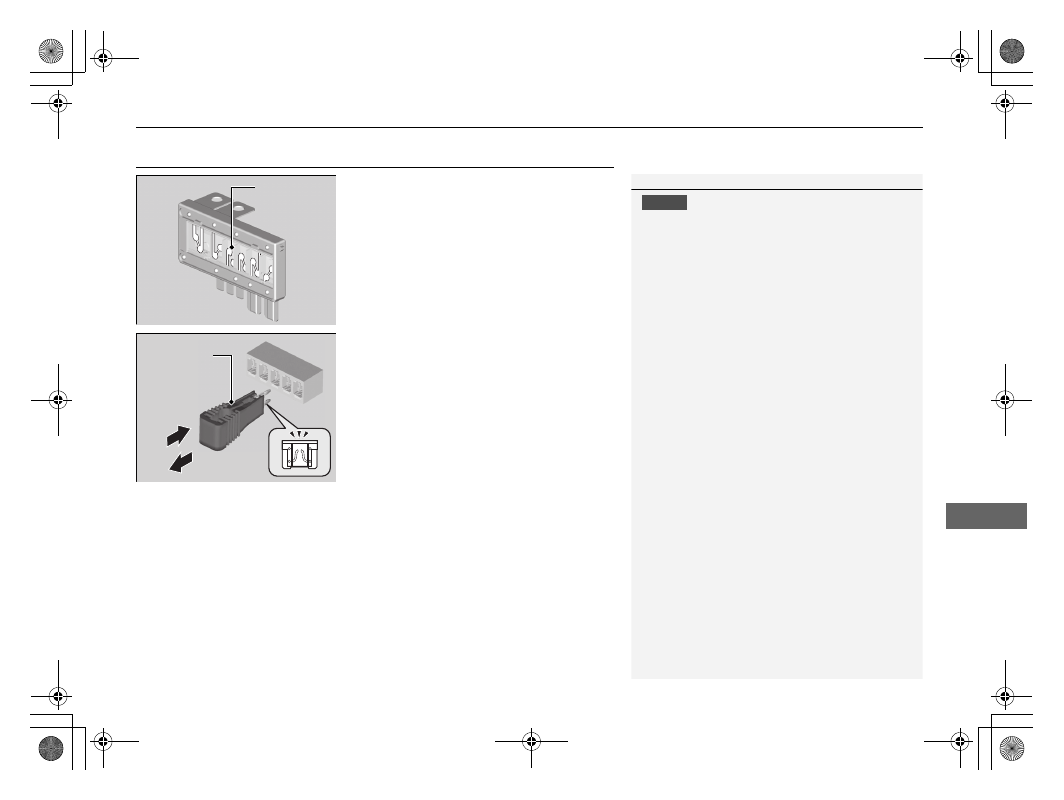

3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 553 to 556.

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined Fuse

Blown Fuse

Fuse Puller

19 ACURA TLX-31TZ36400.book  557 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

558

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way you can safely transport your vehicle.

■

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

All models

2WD models

19 ACURA TLX-31TZ36400.book  558 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

559

Han

d

lin
g the U

n

expected

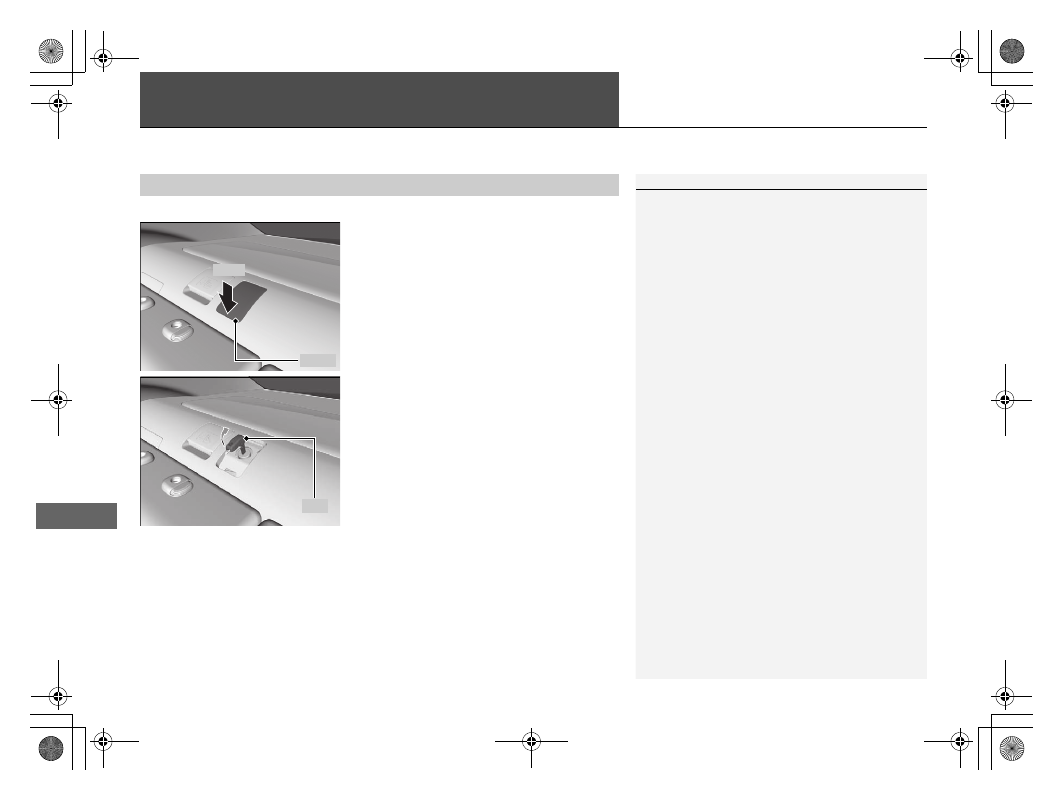

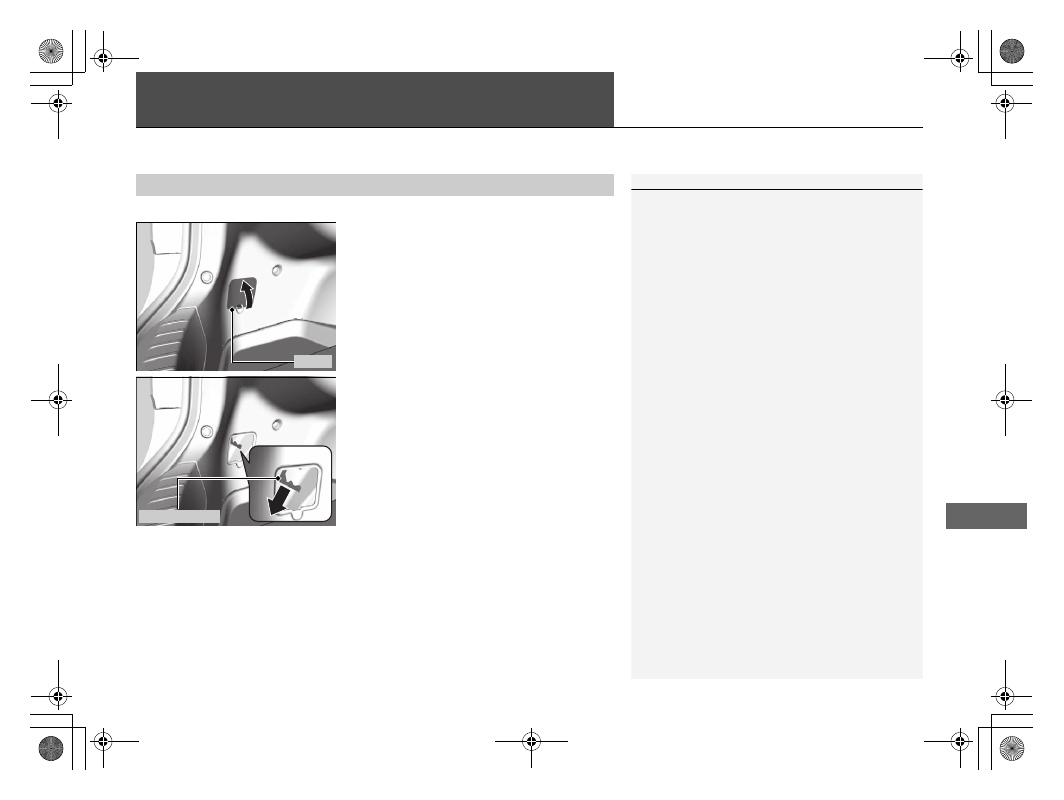

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure:

1. Open the trunk and remove the cover.

2. Pull the release lever toward you.

u

The release lever unlocks the fuel fill door
when it is pulled.

■

What to Do When Unable to Unlock the Fuel Fill Door

1

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Release Lever

19 ACURA TLX-31TZ36400.book  559 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

560

Han

d

lin
g the U

n

expected

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1. Remove the cover.

2. Insert the key into the cylinder and turn the

key to the right.

u

The trunk unlocks and opens.

■

What to Do When Unable to Open the Trunk

1

When You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

Cover

Push

Key

19 ACURA TLX-31TZ36400.book  560 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

561

Han

d

lin
g the U

n

expected

Refueling

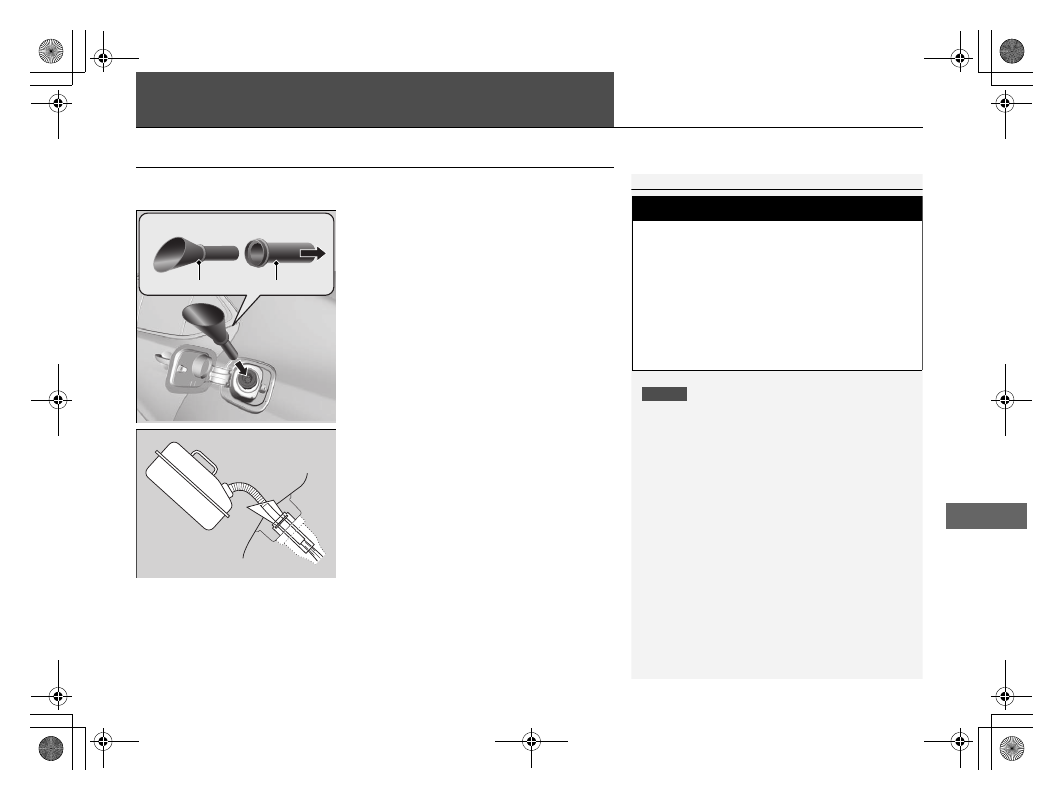

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press the fuel fill door release button.

u

The fuel fill door opens.

3. Take the funnel out of the tool case in the

trunk.

2 Types of Tools P. 516

4. Remove the funnel from the case.
5. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

6. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

7. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

8. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

Case

19 ACURA TLX-31TZ36400.book  561 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

564

Info

rm

ation

Specifications

■

Vehicle Specifications

*1: 4-cylinder models
*2: 6-cylinder models with 2WD
*3: 6-cylinder models with AWD

■

Air Conditioning

Model

Acura TLX

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

U.S.: 4,497 lbs (2,040 kg)

*1

U.S.: 4,619 lbs (2,095 kg)

*2

U.S.: 4,762 lbs (2,160 kg)

*3

Canada: 2,055 kg

*1

Canada: 2,170 kg

*3

Gross Axle Weight
Rating (Front)

U.S.: 2,370 lbs (1,075 kg)

*1

U.S.: 2,535 lbs (1,150 kg)

*2

U.S.: 2,579 lbs (1,170 kg)

*3

Canada: 1,120 kg

*1

Canada: 1,180 kg

*3

Gross Axle Weight
Rating (Rear)

U.S.: 2,161 lbs (980 kg)

*1, *2

U.S.: 2,227 lbs (1,010 kg)

*3

Canada: 980 kg

*1

Canada: 1,015 kg

*3

Refrigerant Type

HFC-134a (R-134a)

Charge Quantity

16.7 – 18.5 oz (475 – 525 g)

Lubricant Type

ND-OIL 8

Quantity

4.27 – 5.19 cu-in (70 – 85 cm

3

)

■

Engine Specifications

*1: 4-cylinder models
*2: 6-cylinder models

■

Fuel

■

Washer Fluid

Displacement

144 cu-in (2,356 cm

3

)

*1

212 cu-in (3,471 cm

3

)

*2

Spark Plugs

NGK

DILKAR7H11GS

*1

DILKAR7G11GS

*1

DILZKR7B11G

*2

DENSO

DXE22HQR-D11S

*1

Type

Unleaded premium gasoline, Pump octane
number of 91 or higher

Fuel Tank Capacity

17.2 US gal (65 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 5.7 US qt (5.4 L)

■

Light Bulbs

Headlights (High/Low Beam)

LED

Fog Lights

*

LED

Front Turn Signal/Parking Lights

LED

Front Side Marker Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

LED

Brake/Taillights/Rear Side Marker
Lights

LED

Brake/Taillights

LED

Back-Up Lights

21 W

Rear Turn Signal Lights

21 W

High-Mount Brake Light

LED

Rear License Plate Lights

LED

Puddle Lights

*

LED

Interior Lights

Front and Rear Map Lights

LED

Front and Rear Ambient Lights LED
Vanity Mirror Lights

1.4 W

Door Courtesy Lights

3.4 W

Console Compartment Light

1.4 W

Glove Box Light

1.4 W

Door Inner Handle Lights

LED

Trunk Light

5 W

* Not available on all models

19 ACURA TLX-31TZ36400.book  564 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

565

uu

Specifications

u

Info

rm

ation

■

Brake Fluid

■

Dual Clutch Transmission Fluid

*

■

Automatic Transmission Fluid

*

■

Rear Differential Fluid

*

■

Transfer Assembly Fluid

*

Specified

Acura Heavy Duty Brake Fluid DOT 3

Specified

Acura Automatic Transmission Fluid
ATF-TYPE 2

Capacity

Change

4.1 US qt (3.9 L)

Specified

Acura Automatic Transmission Fluid
ATF-TYPE 3

Capacity

Change

3.5 US qt (3.3 L)

Specified

Acura DPSF-II

Capacity

Change

1.92 US qt (1.82 L)

Specified

·Acura Hypoid Gear Oil HGO-1
·Hypoid gear oil SAE 75W-85 or SAE 90 (API
grade GL4 or GL5)

Capacity

Change

0.45 US qt (0.43 L)

■

Engine Oil

*1: 4-cylinder models
*2: 6-cylinder models

■

Engine Coolant

*1: 4-cylinder models
*2: 6-cylinder models

Recommended

·Genuine Acura Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.4 US qt (4.2 L)

*1

4.5 US qt (4.3 L)

*2

Specified

Acura Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.66 US gal (6.3 L)

*1

2.22 US gal (8.4 L)

*2



(change including the remaining
0.21 US gal (0.8 L) in the reserve tank)

■

Tire

*1: Models with 17 inch wheel
*2: Models with 18 inch wheel
*3: Models with 19 inch wheel
*4: Vehicles with optional spare tire

Regular

Size

225/55R17 97H

*1

225/50R18 95H

*2

245/40R19 94V

*3

Pressure
psi (kPa [kgf/cm

2

])

32 (220 [2.2])

Compact
Spare

*4

Size

T135/80D17 103M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7 1/2J

*1

18 x 7 1/2J

*2

19 x 8J

*3

Compact Spare

*4

17 x 4T

* Not available on all models

19 ACURA TLX-31TZ36400.book  565 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

566

Info

rm

ation

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows.

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Numbers

Engine Number

Dual Clutch
Transmission
Number

Certification Label/Vehicle Identification Number

Vehicle Identification Numbers

Engine Number

Automatic
Transmission
Number

Certification Label/Vehicle Identification Number

4-cylinder models

6-cylinder models

19 ACURA TLX-31TZ36400.book  566 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

567

Continued

Info

rm

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in operation.

Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

AcuraLink

*

Audio System
Blind Spot Information System

*

Bluetooth® Audio
Bluetooth® HandsFreeLink®
Collision Mitigation Braking System

TM

HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback

*

Wireless charger

*

* Not available on all models

19 ACURA TLX-31TZ36400.book  567 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

568

uu

Devices that Emit Radio Waves

u

Info

rm

ation

This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

19 ACURA TLX-31TZ36400.book  568 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

569

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety.

19 ACURA TLX-31TZ36400.book  569 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

570

Info

rm

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle has readiness code as part of the onboard self diagnostic system. Some
States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20

seconds.

5. Keep the vehicle in

(

P.

Increase the engine speed to 2,000 rpm, and hold it there for about 3 minutes.

6. Let the engine idle with your foot off the accelerator for 20 seconds.

1

Testing of Readiness Codes

The readiness codes are erased when the battery is
disconnected, and set again only after several days of
driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

19 ACURA TLX-31TZ36400.book  570 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分
