Acura TLX (2019 year). Manual - part 7

101

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Flashes when the system senses a likely collision with a
vehicle in front of you.

●

Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)

2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

P. 436

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when ACC with LSF has been automatically
canceled.

●

You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+/SET/– switch up.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

19 ACURA TLX-31TZ36400.book  101 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

102

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

*1:Models with electronic gear selector
*2:Models with shift lever

Message

Condition

Explanation

●

Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when pressing the RES/+/SET/– switch down
while the distance between your vehicle and the vehicle
ahead of you is too close.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when pressing the RES/+/SET/– switch down
while the transmission is not in

(

D.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

*1

*2

19 ACURA TLX-31TZ36400.book  102 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

103

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is stopped on a very steep
slope while ACC with LSF is in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when pressing the RES/+/SET/– switch down
while the vehicle is stopped on a very steep slope.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears when pressing the RES/+/SET/– switch down
while the parking brake is applied.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

2 Parking Brake P. 428

19 ACURA TLX-31TZ36400.book  103 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

104

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when pressing the RES/+/SET/– switch down
while the vehicle is moving and the brake pedal is
depressed.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 390

●

Appears if ACC with LSF is canceled while your vehicle
is automatically stopped by ACC with LSF.

●

Immediately depress the brake pedal.

19 ACURA TLX-31TZ36400.book  104 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

105

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the vehicle is driving out of a detected
lane. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

2 Lane Keeping Assist System (LKAS) P. 409

●

Appears when the vehicle is driving out of a detected
lane.

- The steering wheel vibrates rapidly when the vehicle is

drifting out of a detected lane.

- The steering wheel vibrates rapidly when the vehicle is

drifting out of a detected lane. The system also steers
the vehicle to help you remain within your driving lane.

●

Keep the vehicle within the lane you are driving.

2 Road Departure Mitigation (RDM) System P. 404

●

You can change the setting for the road departure
mitigation system. Normal, Wide, and Warning Only
can be selected.

2 Customized Features P. 120, 292

●

Blinks when you fail to steer the vehicle. The beeper
sounds simultaneously.

●

Operate the steering wheel to resume the LKAS.

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically.
The beeper sounds simultaneously.

●

If any other system indicators come on, such as the
VSA®, ABS and brake system, take appropriate action.

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Normal or Wide

19 ACURA TLX-31TZ36400.book  105 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

106

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when the LKAS is in operation, or the LKAS
button is pressed, but the temperature inside the front
sensor camera is too high. The LKAS cancels
automatically. The beeper sounds simultaneously.

●

Use the climate control system to cool down the
camera.

●

Goes off - The camera has been cooled down. Pressing
the LKAS button can resume the system.

2 Front Sensor Camera P. 388

●

Appears when the area around the camera is blocked by
dirt, mud, etc. Stop your vehicle in a safe place, and
wipe it off with a soft cloth.

●

May appear when driving in bad weather (rain, snow,
fog, etc.)

●

Have your vehicle checked by a dealer if the indicator
and message come back on after you cleaned the area
around the camera.

19 ACURA TLX-31TZ36400.book  106 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

107

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you turn the Auto Idle Stop system on.

2 Auto Idle Stop

*

 P. 382

●

Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.

2 Auto Idle Stop

*

 P. 382

●

Appears when Auto Idle Stop does not activate for
some reason.

●

Appears when the engine restarts automatically.

●

Appears when the battery temperature is around 14°F
(−10°C) or lower.

●

Appears when Auto Idle Stop does not activate because
the climate control system is in use, and the difference
between the set temperature and actual interior
temperature becomes significant.

●

Appears when Auto Idle Stop does not activate because
the engine coolant temperature is too low or high.

●

Appears when Auto Idle Stop does not activate because
the battery charge level is low.

Models with Auto Idle Stop

* Not available on all models

19 ACURA TLX-31TZ36400.book  107 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

108

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when Auto Idle Stop does not activate because
the pressure to the brake pedal is not enough.

●

Depress the brake pedal firmly.

●

Appears when Auto Idle Stop Guidance Screens ON
has been selected from the customization menu.

●

Appears when the system is under the following
conditions while Auto Idle Stop activates:
- The battery charge level is low.
- The battery temperature is around 14°F (−10°C) or

lower.

- The climate control system is in use, and the difference

between the set temperature and actual interior
temperature becomes significant.

- The humidity in the interior is high.

●

The engine restarts automatically in a few seconds.

2 Starting the Engine P. 362

19 ACURA TLX-31TZ36400.book  108 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

109

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears when you attempt to put the transmission into
another gear position with the transmission in

(

P and

the engine OFF.

●

To select another gear position while in

(

P, the engine

must be ON.

●

Appears when you try to change the gear position after
the position has automatically been changed to

(

P with

the driver’s door open and the driver’s seat belt
unfastened.

●

Press the

(

P button If you leave the vehicle.

●

Appears if you press the ENGINE START/STOP button
to turn the engine off without the transmission in

(

P.

●

Put the transmission into

(

P. The power mode changes

to VEHICLE OFF.

●

Press the ENGINE START/STOP button twice after
putting the transmission into

(

P.

●

Appears when the engine stops without the
transmission in

(

P, and does not restart automatically.

●

Appears if you open the hood while Auto Idle Stop
activates.

●

If you want to set the power mode to ON, put the
transmission into

(

P.

●

If you want to start the engine, follow the normal
procedure.

2 Starting the Engine P. 362

Models with electronic gear selector

U.S. models

Canadian models

Models with Auto Idle Stop

Models with Auto Idle Stop

19 ACURA TLX-31TZ36400.book  109 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

110

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears for a few seconds if you have not pressed the

(

N button long enough to initiate Neutral-Hold mode.

2 If you want to keep the transmission in

(

N



position [car wash mode] P. 374

●

Appears when you press and hold

(

N button for more

than 2 seconds.

●

Disappears when you set the gear position to other than

(

N.

2 If you want to keep the transmission in

(

N



position [car wash mode] P. 374

●

Appears when you press the

(

P button but it is not

engaged due to low ATF temperature.

●

Depress the brake pedal until this message disappear.

19 ACURA TLX-31TZ36400.book  110 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

111

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if you press the ENGINE START/STOP button
to turn the engine off without the shift lever in

(

P.

●

Move the shift lever to

(

P. The power mode changes to

VEHICLE OFF.

●

Press the ENGINE START/STOP button twice after
moving the shift lever to

(

P.

●

Appears if the driver’s door is open and you try to shift
to a position other than

(

P.

●

Moving the shift lever to

(

P If you leave the vehicle.

●

Appears when the transmission system temperature is
too high. The vehicle no longer moves.

●

Immediately stop in a safe place and shift to

(

P.

●

Let the engine idle until the message disappears.

Models with shift lever

U.S. models

Canadian models

19 ACURA TLX-31TZ36400.book  111 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

112

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Appears if there is a problem with the parking sensor
system.

●

Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on even
after you clean the area, have the system checked by a
dealer.

Message

Condition

Explanation

●

Appears when you unlock and open the driver’s door
while the engine is running by two-way keyless access
remote.

2 Remote Engine Start

*

 P. 365

Models with parking sensor system

Models with two-way keyless access remote

* Not available on all models

19 ACURA TLX-31TZ36400.book  112 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

113

In

strum

e

nt Pa

nel

Gauges and Multi-Information Display

Gauges

Gauges include the speedometer, tachometer, fuel gauge and related indicators.
They are displayed when the power mode is in ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

Displays the temperature of the engine coolant.

■

Speedometer

■

Tachometer

■

Fuel Gauge

■

Temperature Gauge

1

Fuel Gauge

NOTICE

You should refuel when the needle approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

1

Temperature Gauge

NOTICE

Driving with the temperature gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of the road and allow engine
temperature to return to normal.

2 Overheating P. 545

19 ACURA TLX-31TZ36400.book  113 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

114

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

Multi-Information Display

The multi-information display shows the odometer, trip meter, outside temperature
indicator, and other gauges. It also displays important messages such as warnings
and other helpful information.

19 ACURA TLX-31TZ36400.book  114 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

115

uu

Gauges and Multi-Information Display

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

■

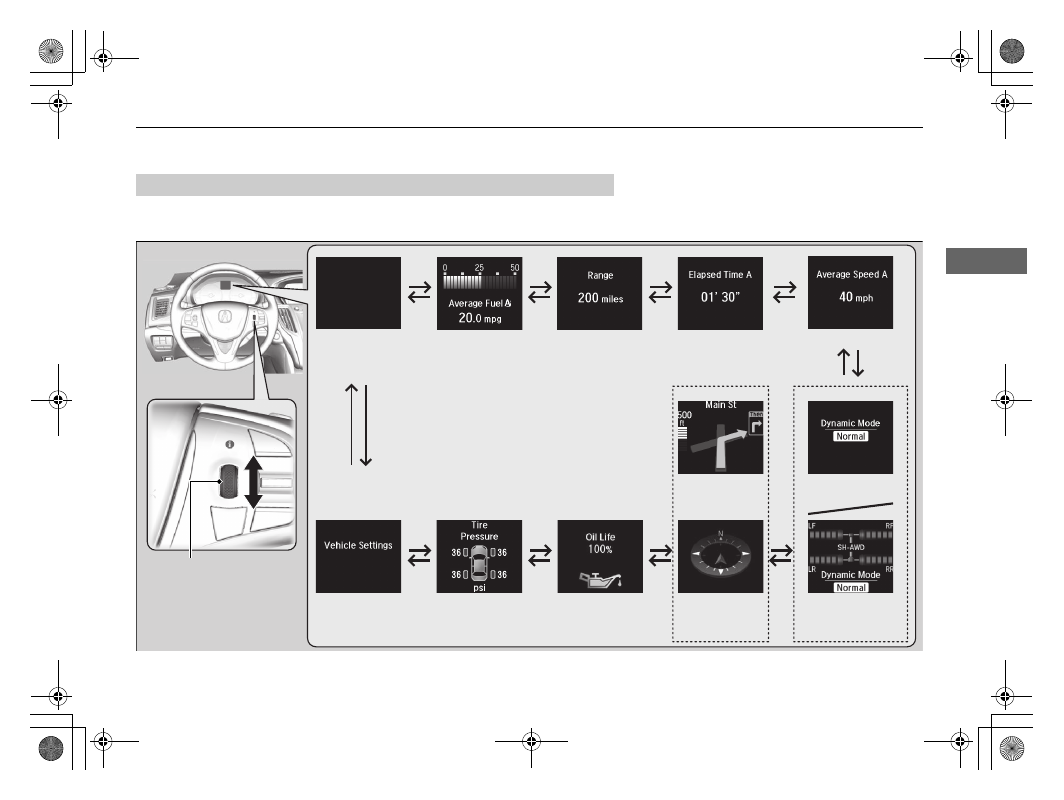

Main displays

Roll the right selector wheel to change the display.

■

Switching the Display

ᵑᵔ

Right Selector Wheel

Engine Oil Life

Vehicle Settings

Elapsed Time

OFF

Average Speed

Range

Instant Fuel Economy/
Average Fuel Economy

Compass

Tire Pressure for
Each Tire

Turn-by-Turn
Directions

*

Integrated
Dynamics System

Integrated
Dynamics System/
SH-AWD®

*

* Not available on all models

19 ACURA TLX-31TZ36400.book  115 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分

116

uu

Gauges and Multi-Information Display

u

Multi-Information Display

In

strum

e

nt Pa

nel

■

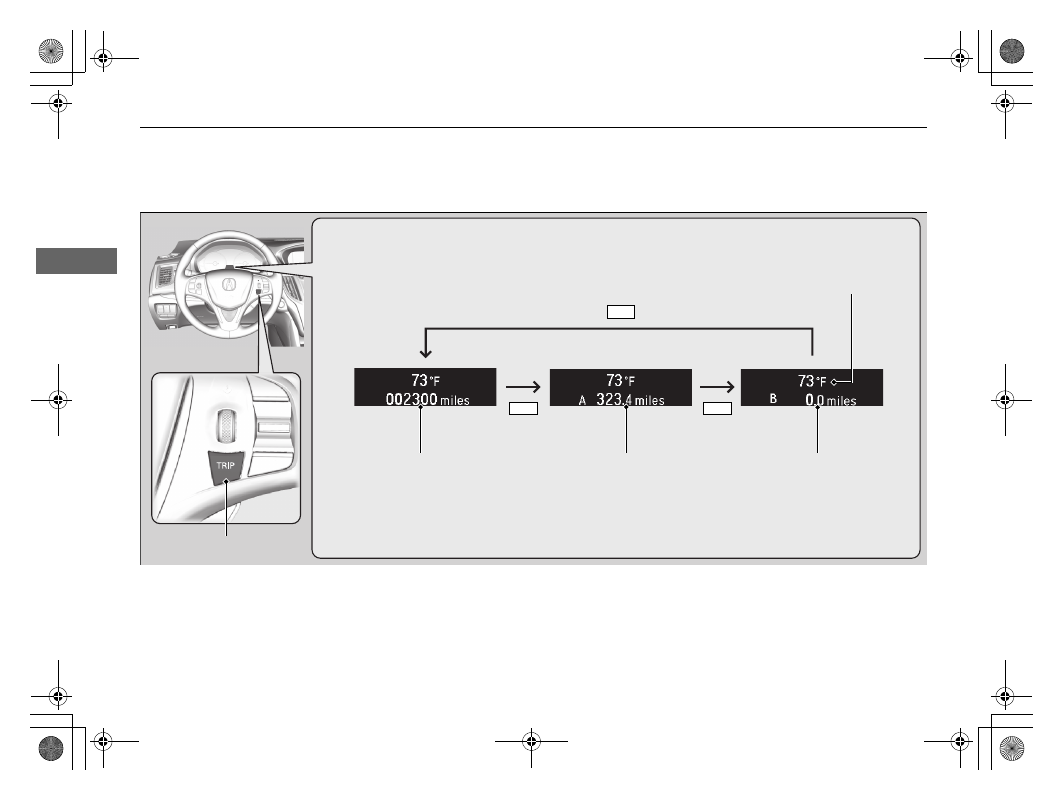

Lower displays

Press the TRIP button to change the display.

Odometer

Trip A

Trip B

Outside temperature

TRIP Button

TRIP

TRIP

TRIP

19 ACURA TLX-31TZ36400.book  116 ページ  ２０１８年２月１６日　金曜日　午後１２時２２分
