470

uu

When Driving

u

Precautions While Driving

Driving

Precautions While Driving

Utility vehicles have a significantly higher rollover rate than other types of vehicles.
To prevent rollovers or loss of control:
• Take corners at slower speeds than you would with a passenger vehicle.
• Avoid sharp turns and abrupt maneuvers whenever possible.
• Do not modify your vehicle in any way that you would raise the center of gravity.
• Do not carry heavy cargo on the roof.

Never carry more than 165 lbs (75 kg) of cargo on the roof rack (Acura accessory).

Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.

If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.

■

Driving Guidelines for Your Utility Vehicle

■

In Rain

■

Other Precautions

1

Precautions While Driving

NOTICE

Do not change the gear position while pressing the
accelerator pedal. You could damage the
transmission.

NOTICE

If you repeatedly turn the steering wheel at an
extremely low speed, or hold the steering wheel in
the full left or right position for a while, the system
heats up. The system goes into a protective mode,
and limits its performance. The steering wheel
becomes harder and harder to operate. Once the
system cools down, the EPS system is restored.
Repeated operation under these conditions can
eventually damage the system.

If the power mode is set to ACCESSORY while
driving, the engine will shut down and all steering
and brake power assist functions will stop, making it
difficult to control the vehicle.

Do not change the gear position to

(

N, as you will

lose engine braking (and acceleration) performance.

During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as not to damage the engine or powertrain.

Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.

18 ACURA MDX-31TZ56400.book  470 ページ  ２０１７年８月２３日　水曜日　午後４時１分

471

uu

When Driving

u

Automatic Transmission

Driving

Automatic Transmission

The engine runs at a higher idle speed and creeping increases.
Keep the brake pedal firmly depressed when stopped.

Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unexpectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especially on slippery roads and curves.

■

Creeping

■

Kickdown

1

Driving Guidelines for Your Utility Vehicle

Failure to operate your vehicle correctly might result
in a crash or a rollover.

2 Important Handling Information P. 30
2 Precautions While Driving P. 470

18 ACURA MDX-31TZ56400.book  471 ページ  ２０１７年８月２３日　水曜日　午後４時１分

472

uu

When Driving

u

Shifting

Driving

Shifting

Change the gear position in accordance with your driving needs.

■

Shift button positions

1

Shifting

To prevent malfunction and unintended
engagement:

•

Do not spill any liquids on or around shift buttons.

•

Do not place or drop any objects on or around shift
buttons.

•

Do not let passengers or children operate the shift
buttons.

The beeper sounds and the message appears on the
MID when you depress the accelerator pedal with the
gear position in

(

N.

Change the gear position to

(

D or

(

R with the brake

pedal depressed.

When shifting gears in extremely low temperatures
(−22°F/−30°C), there may be a short delay before the
shift is indicated in the display. Always confirm you
are in the correct gear before driving.

3

WARNING

The vehicle can roll away if left unattended
without confirming that Park is engaged.

A vehicle that rolls away could cause a crash
resulting in serious injury or death.

Always keep your foot on the brake pedal
until you have confirmed that

(

P

 is shown

on the gear position Indicator.

Park
Used when parking, before turning off or
starting the engine

Reverse
Used when reversing

Neutral
Transmission is not locked

Drive
Used for:

●

Normal driving (gears change between 1st
and 9th automatically)

●

Temporarily driving in the sequential
mode

Drive (S)
Used for:

●

Automatically changing gears between 1st
and 7th (7th gear is used only at high
speed)

●

Driving in the sequential mode

18 ACURA MDX-31TZ56400.book  472 ページ  ２０１７年８月２３日　水曜日　午後４時１分

473

uu

When Driving

u

Shifting

Continued

Driving

■

(

P (parking) button

The gear position changes to

(

P when you

press the

(

P button while the vehicle is

parked with the power mode in ON.
The indicators on the sides of the

(

P button

come on.

(

P Button

18 ACURA MDX-31TZ56400.book  473 ページ  ２０１７年８月２３日　水曜日　午後４時１分

uu

When Driving

u

Shifting

474

Driving

■

Shift Operation

1

Shift Operation

NOTICE

When you change

(

D to

(

R and vice versa, come to

a complete stop and keep the brake pedal depressed.
Operating the shift button before the vehicle has
come to a complete standstill can damage the
transmission.

Use the gear position indicator and the shift button
indicator to check the gear position before selecting
a shift button.

If the indicator of the currently selected gear position,
or all the gear position indicators are blinking
simultaneously, there is a problem with the
transmission.
Avoid sudden acceleration and have the transmission
checked by a dealer as soon as possible.

The fuel supply may be cut off if you drive at engine
speeds in or over the tachometer’s red zone (engine
speed limit). If this happens, you may experience a
slight jolt.

When the engine speed is increased while the
transmission is in

(

N,

(

P or

(

R, the fuel supply may

be cut off even without the engine speed entering
the tachometer’s red zone.

The beeper sounds once when you change to

(

R.

Gear Position Indicator

Tachometer’s red zone

Press the

(

P button.

Pull back the

(

R button.

Press the

(

N button.

Press the

 button.

D/S

Shift Button
Indicator

M (sequential mode)
Indicator

Sequential Mode Gear
Selection Indicator

Press the

 button twice.

If the gear position is in

(

D,

press the

 button again.

D/S

D/S

18 ACURA MDX-31TZ56400.book  474 ページ  ２０１７年８月２３日　水曜日　午後４時１分

Continued

475

uu

When Driving

u

Shifting

Driving

In freezing or sub-freezing conditions, the gear selection response may be slow.
Always depress the brake pedal before changing the gear position to

(

P, and

confirm that

(

P is shown on the gear position indicator before releasing the brake.

■

When opening the driver’s door

If you open the driver’s door under the following conditions, the gear position
automatically changes to

(

P.

• The vehicle is in stationary with the engine running, or moving at 1 mph (2 km/h)

or slower.

• The transmission is in other than

(

P.

• You have unfastened the driver side seat belt.

u

If you manually change the gear position from

(

P with the brake pedal

depressed, the gear position will automatically return to

(

P once you release

the brake pedal.

■

When turning off the power mode

If you turn the engine off while the vehicle is stationary, and the transmission is in
other than

(

P, the gear position automatically changes to

(

P.

1

When opening the driver’s door

While the system is designed to automatically change
the gear position to

(

P under the described

conditions, in the interest of safety you should always
select

(

P before opening the driver’s door.

Make sure to park the vehicle in a safe place.

2 When Stopped P. 545

If you want to drive the vehicle after the gear position
has automatically changed to

(

P under the described

conditions, close the door, fasten the seat belt,
depress the brake pedal, then change the gear
position.

If you leave the vehicle, turn off the engine and lock
the doors.

18 ACURA MDX-31TZ56400.book  475 ページ  ２０１７年８月２３日　水曜日　午後４時１分

uu

When Driving

u

Shifting

476

Driving

■

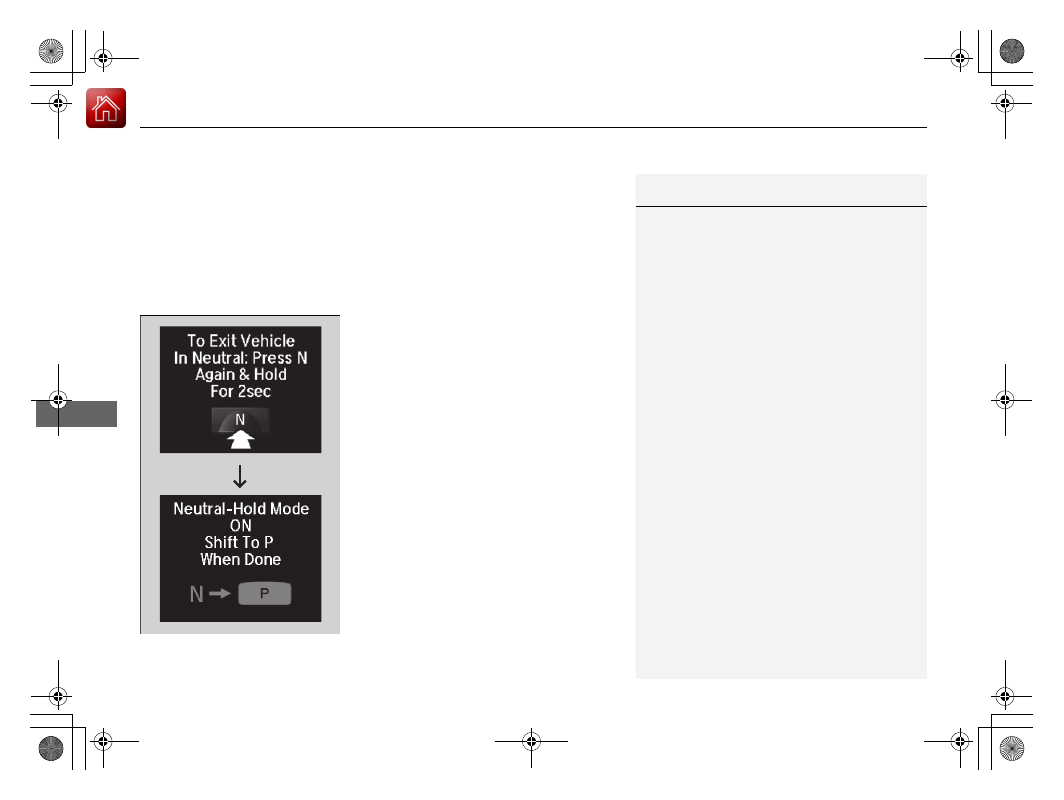

If you want to keep the transmission in

(

N position [car wash mode]

With the engine running:
1. Press and hold the brake pedal.
2. Select

(

N, then release the button to display

(

N (Neutral) hold mode on the MID.

3. Press and hold

(

N again for two seconds.

u

This puts the vehicle in car wash mode which must be used when your vehicle
is pulled through a conveyor type automatic car wash where you or an
attendant do not remain in the vehicle.

If the ENGINE STOP/START button is pressed
after car wash mode has been activated, the
power mode will change to ACCESSORY and
a message will be displayed on the multi-
information display.

u

The gear position remains in

(

N with the

power mode in ACCESSORY for 15
minutes, then, it automatically changes
to

(

P and the power mode changes to

OFF.

u

Manually changing to

(

P cancels

ACCESSORY mode. The

(

P indicator

comes on and the power mode changes
to OFF. You must always shift to

(

P

when car wash mode is no longer
needed.

1

If you want to keep the transmission in

(

N position [car wash

mode]

The transmission may not stay in

(

N position while

the following indicators are on or when the message
below appears:

•

Malfunction indicator lamp

•

Transmission system indicator

•

Charging system indicator

•

The Charging System Problem message on the
MID.

18 ACURA MDX-31TZ56400.book  476 ページ  ２０１７年８月２３日　水曜日　午後４時１分

477

uu

When Driving

u

Shifting

Continued

Driving

■

Restriction on selecting a gear position

You cannot select a gear position under certain circumstances that may lead to a crash.

When the
transmission is in:

1. Under the circumstances
of that:

2. You cannot select:

3. The gear position
remains in/changes to:

How to change the
gear position

(

P

The brake pedal is not
depressed.

Other gear position

(

P

Release the accelerator
pedal and depress the
brake pedal.

The accelerator pedal is
depressed.

(

N

The vehicle is moving at low
speed without the brake pedal
depressed.

(

N

The vehicle is moving at low
speed with the accelerator
pedal depressed.

(

N

, (

D

 or (

S

The vehicle is moving forward.

(

R

Stop your vehicle in a
safe place, depress the
brake pedal, and select
the appropriate gear
position.

(

R

 or (

N

The vehicle is moving backward.

(

D,

(

S

(

R

, (

N

, (

D

 or (

S

The vehicle is moving.

(

P

18 ACURA MDX-31TZ56400.book  477 ページ  ２０１７年８月２３日　水曜日　午後４時１分

478

uu

When Driving

u

Shifting

Driving

Use the paddle shifters to change between 1st and 9th gears without releasing your
hands from the steering wheel. The transmission will switch to the sequential mode.

■

When the transmission is in

(

D:

The vehicle will go into the sequential mode momentarily, and the sequential mode
gear selection indicator will come on.
Once you start traveling at a constant speed, the sequential mode will automatically
switch off, and the sequential mode gear selection indicator will go off.

Hold the

(

+ paddle shifter for two seconds or push the

 button to return to

normal drive.

■

When the transmission is in

(

S

The vehicle will go into the sequential mode, and the M (sequential mode) indicator
and sequential mode gear selection indicator will come on.
If the vehicle speed increases and the engine speed reaches near the tachometer’s
red zone, the transmission automatically shifts up to the next gear.
You can cancel this mode by holding the

(

+ paddle shifter for two seconds or push

the

 button. When the sequential mode is canceled, the sequential mode

indicator and sequential mode gear selection indicator will turn off.

■

Sequential Mode

D/S

D/S

18 ACURA MDX-31TZ56400.book  478 ページ  ２０１７年８月２３日　水曜日　午後４時１分

479

uu

When Driving

u

Shifting

Driving

■

Sequential Mode Operation

1

Sequential Mode Operation

Each paddle shift operation makes a single gear
change.
To change gears continuously, release the paddle
shifter before pulling it again for the next gear.

If the sequential mode gear selection indicator blinks
when you try to shift up or down, this means your
vehicle speed is not in its allowable gear range.
Slightly accelerate to shift up and decelerate to shift
down while the indicator is blinking.

Downshifting when pulling
the

 paddle shifter.

(Changes to a lower gear)

Upshifting when pulling
the

 paddle shifter.

(Changes to a higher gear)

Paddle Shifter
(Shift down)

Paddle Shifter
(Shift up)

18 ACURA MDX-31TZ56400.book  479 ページ  ２０１７年８月２３日　水曜日　午後４時１分

480

uu

When Driving

u

Auto Idle Stop

*

Driving

Auto Idle Stop

*

To help maximize fuel economy, the engine automatically stops when the vehicle
comes to a stop, depending on environmental and vehicle operating conditions. The
indicator (green) comes on.

The engine then restarts once the vehicle is
about to move again, or depending on
environmental and vehicle conditions, and the
indicator (green) goes off.

2 The Engine Automatically Restarts When:

P. 484

A message associated with Auto Idle Stop
appears on the MID.

2 Indicators P. 92
2 Customized Features P. 130

If the driver’s door is opened while the
indicator (green) comes on, a buzzer sounds
to notify you that the Auto Idle Stop function
is in operation.

1

Auto Idle Stop

*

The 12-volt battery installed in this vehicle is
specifically designed for a model with Auto Idle Stop.
Using a 12-volt battery other than this specified type
may shorten the battery life, and prevent Auto Idle
Stop from activating. If you need to replace the
battery, make sure to select the specified type. Ask a
dealer for more details.

Auto Idle Stop
Indicator (Green)

* Not available on all models

18 ACURA MDX-31TZ56400.book  480 ページ  ２０１７年８月２３日　水曜日　午後４時１分

Continued

481

uu

When Driving

u

Auto Idle Stop

*

Driving

To turn the Auto Idle Stop system off, press
this button. The Auto Idle Stop system stops.

u

Auto Idle Stop system will stop and the
indicator (amber) in meter will come on.

The Auto Idle Stop system is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.

■

Auto Idle Stop System ON/OFF

1

Auto Idle Stop System ON/OFF

Pressing the Auto Idle Stop OFF button restarts the
engine during the Auto Idle Stop activated.

Auto Idle Stop System
Indicator (Amber)

18 ACURA MDX-31TZ56400.book  481 ページ  ２０１７年８月２３日　水曜日　午後４時１分

uu

When Driving

u

Auto Idle Stop

*

482

Driving

The vehicle stops with the gear position in

(

D and the brake pedal depressed.

■

Auto Idle Stop does not activate when:

• The driver’s seat belt is not fastened.
• The engine coolant temperature is low or high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again before the vehicle speed reaches 3 mph (5

km/h) after the engine starts.

• Stopped on a steep incline.
• The transmission is in a position other than

(

D.

• The Auto Idle Stop OFF button is pressed.
• The engine is started with the hood open.

u

Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.

• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C). or less.
• The climate control system is in use, and the outside temperature is below −4°F

(−20°C) or over 104°F (40°C).

• The climate control system temperature is set to the Hi or Lo.
•

 is ON (indicator on).

• When the rear fan is set to maximum speed.

u

Auto Idle Stop may not activate under other conditions when the rear climate
control system is in use.

■

Auto Idle Stop Activates When:

1

Auto Idle Stop Activates When:

When ACC with LSF is in operation, the vehicle stops
without depressing the brake pedal and Auto Idle
Stop may activate.

Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not restart automatically.

In this case, restart the engine with the ENGINE
START/STOP button.

2 Starting the Engine P. 465

Pressing the ENGINE START/STOP button changes
the power mode to ACCESSORY even while Auto Idle
Stop is in operation. Once in ACCESSORY, the engine
no longer restarts automatically. Follow the standard
procedure to start the engine.

2 Starting the Engine P. 465

18 ACURA MDX-31TZ56400.book  482 ページ  ２０１７年８月２３日　水曜日　午後４時１分

483

uu

When Driving

u

Auto Idle Stop

*

Continued

Driving

■

Auto Idle Stop may not activate when:

• The vehicle is stopped by braking suddenly.
• The steering wheel is operated.
• The fan speed is high.
• Altitude is high.
• The vehicle is repeatedly accelerated and decelerated at a low speed.
• The climate control system is in use, and there is a significant difference between

the set temperature and the actual interior temperature.

• Humidity in the interior is high.
• The rear fan is set to maximum speed.

u

Auto Idle Stop may not activate under other conditions when the rear climate
control system is in use.

18 ACURA MDX-31TZ56400.book  483 ページ  ２０１７年８月２３日　水曜日　午後４時１分

uu

When Driving

u

Auto Idle Stop

*

484

Driving

• The brake pedal is released (without the automatic brake hold system activated).
• The accelerator pedal is depressed (with the automatic brake hold system

activated).

2 Automatic Brake Hold P. 532

■

The engine restarts even if the brake pedal is depressed

*1

 when:

• The Auto Idle Stop OFF button is pressed.
• The steering wheel is operated.
• The transmission is change to

(

R or

(

S, or when it is change from

(

N to

(

D.

• The pressure on the brake pedal is reduced and the vehicle starts moving while

stopped on an incline.

• The pressure on the brake pedal is repeatedly applied and released slightly during

a stop.

• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
•

 is ON (indicator on).

• The climate control system is in use, and the difference between the set

temperature and actual interior temperature becomes significant.

• The climate control system is being used to dehumidify the interior.
• The vehicle ahead of you starts again when your vehicle stops automatically with

ACC with LSF.

■

The Engine Automatically Restarts When:

1

The Engine Automatically Restarts When:

•

If you are using an electronic device during Auto
Idle Stop, the device may temporarily be turned off
when the engine restarts.

1

The engine restarts even if the brake pedal is depressed

*1

 when:

*1: With the automatic brake hold system activated,
you can release the brake pedal during Auto Idle Stop
is in operation.

18 ACURA MDX-31TZ56400.book  484 ページ  ２０１７年８月２３日　水曜日　午後４時１分

485

uu

When Driving

u

Auto Idle Stop

*

Driving

■

The engine restarts even if the automatic brake hold system is activated
when:

• The automatic brake hold system is canceled and the electric parking brake is

applied automatically.
The automatic brake hold system has a problem.

Briefly keeps the brake applied after releasing the brake pedal to restart the engine.
This can keep your vehicle from unexpectedly moving while on an incline.

■

Starting Assist Brake Function

18 ACURA MDX-31TZ56400.book  485 ページ  ２０１７年８月２３日　水曜日　午後４時１分
