Indicator, Coming On/Blinking

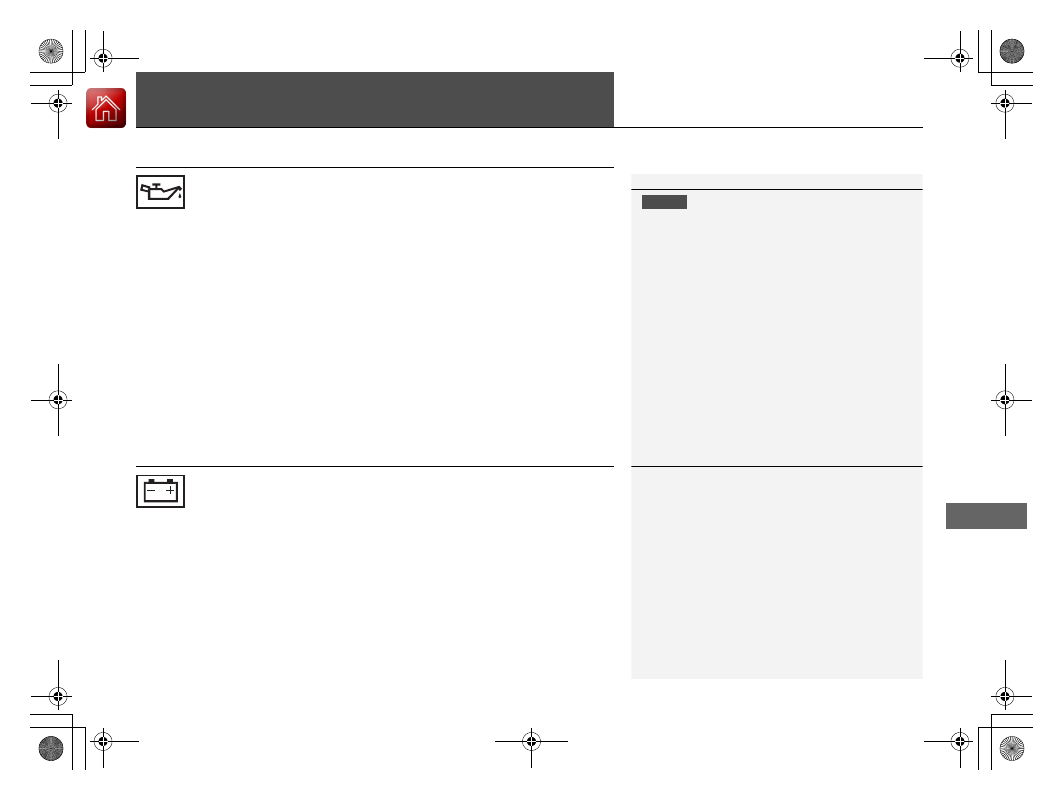

If the Low Oil Pressure Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the engine oil pressure is low.

■

What to do as soon as the indicator comes on

1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1. Turn the power system off and let it sit for about three minutes.
2. Open the hood and check the oil level.

2 Oil Check P. 472

3. Turn the power system on and check the low oil pressure indicator.

The indicator goes off: Start driving again.

The indicator does not go off within 10 seconds: Turn the power
system off and contact a dealer for repairs immediately.

If the 12-Volt Battery Charging System Indicator
Comes On

■

Reasons for the indicator to come on

Comes on when the 12-volt battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

If the Low Oil Pressure Indicator Comes On

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

If the 12-Volt Battery Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
power system. Restarting the power system may
rapidly discharge the battery.

17 ACURA RLX E-AWD-31TY36300.book 537 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

538

Indicator, Coming On/Blinking

If the Malfunction Indicator Lamp Comes On or Blinks

Han

lin
g the U

expected

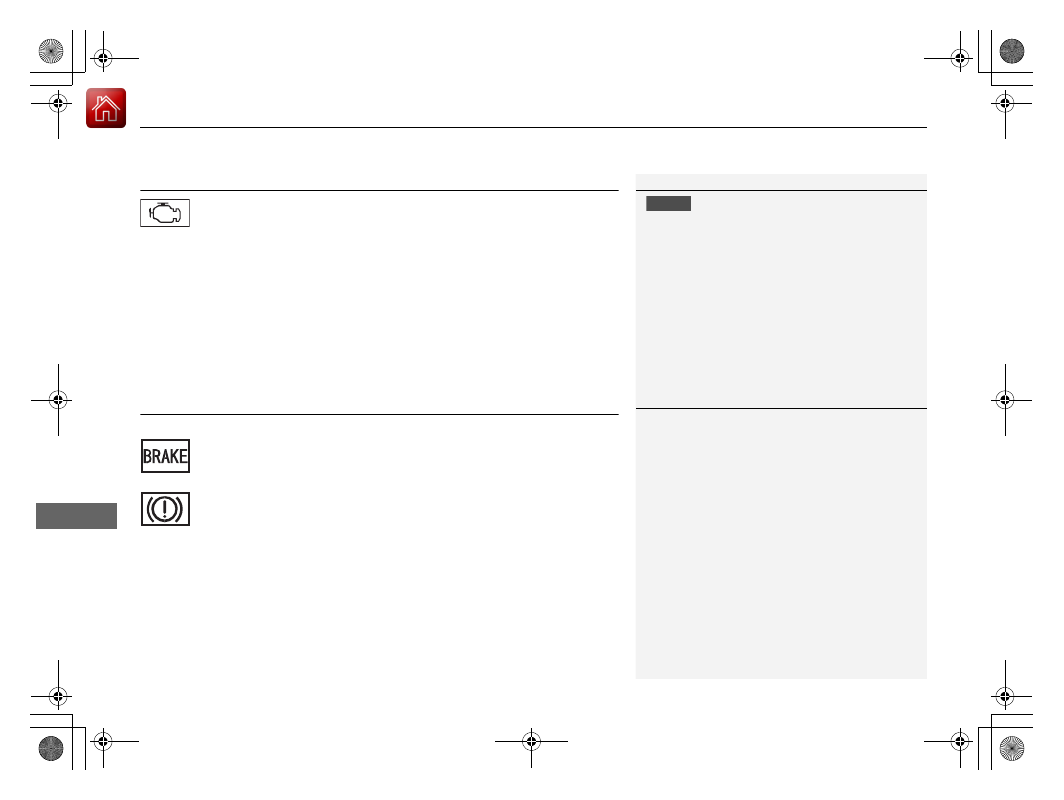

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

• Comes on if there is a problem with the engine emissions control

system.

• Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

If the Brake System Indicator (Red) Comes On

■

Reasons for the indicator to come on

• The brake fluid is low.
• There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the

transmission to slow the vehicle using regenerative braking.

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary, downshift
the gears.

If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

If both red and amber brake system indicators come
on, stop the vehicle in a safe place and have it
inspected by a dealer immediately.

U.S.

Canada

17 ACURA RLX E-AWD-31TY36300.book 538 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

539

Indicator, Coming On/Blinking

If the Electric Power Steering (EPS) System Indicator Comes On

Han

lin
g the U

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and turn on the power system again.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

If the Electric Parking Brake System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when there is a problem with the electric parking brake
system.

■

What to do when the indicator comes on

Avoid using the parking brake and immediately get your vehicle
inspected at a dealer.

■

What to do when the electric parking brake indicator comes on
or blinks at the same time.

• Release the parking brake. If you cannot release it, immediately stop

the vehicle in a safe place and call a dealer.

• If only the electric parking brake indicator goes off, immediately get

your vehicle inspected at a dealer.

• If the electric parking brake indicator remains on or blinks even after

releasing the parking brake, immediately stop the vehicle in a safe
place and call a dealer.

17 ACURA RLX E-AWD-31TY36300.book 539 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

540

Indicator, Coming On/Blinking

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

lin
g the U

expected

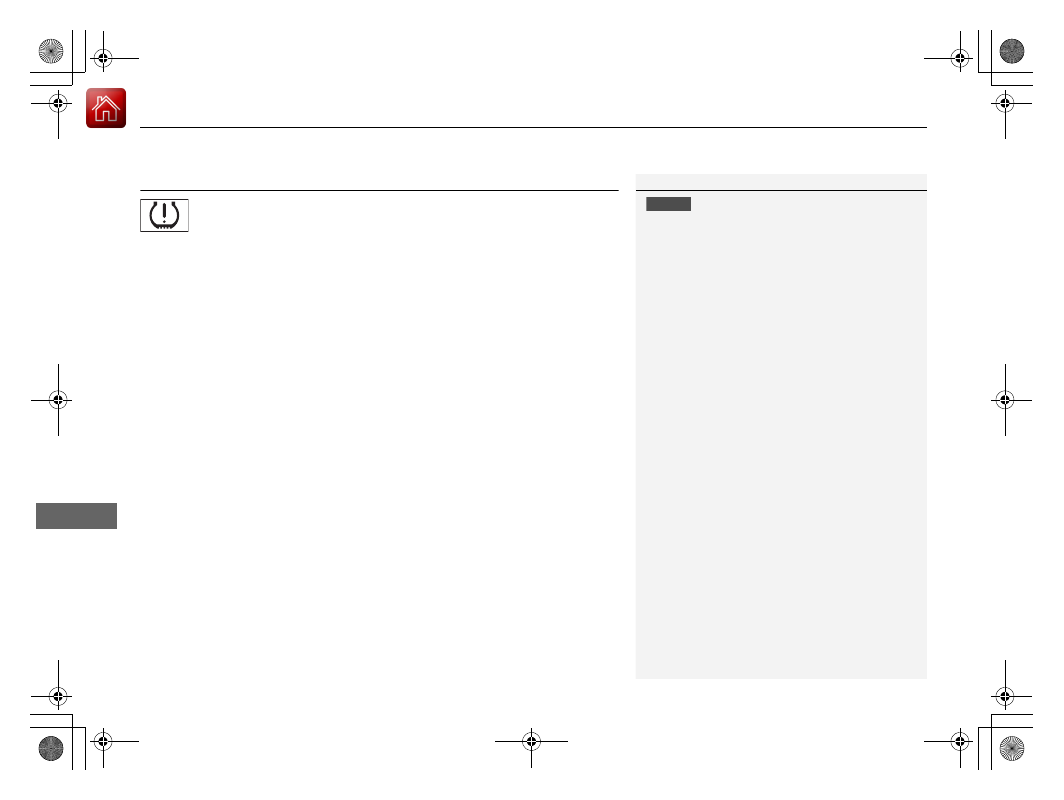

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

■

Reasons for the indicator to come on or blink

A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire

is installed, the indicator blinks for about one

minute, and then stays on.

■

What to do when the indicator comes on

Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver’s side doorjamb.

■

What to do when the indicator blinks

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

causes the indicator to blink, change the tire to a full-size tire.

The indicator goes off after driving for a few miles (kilometers).

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

17 ACURA RLX E-AWD-31TY36300.book 540 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

541

Indicator, Coming On/Blinking

If the Transmission Indicator Blinks along with the Warning Message

Han

lin
g the U

expected

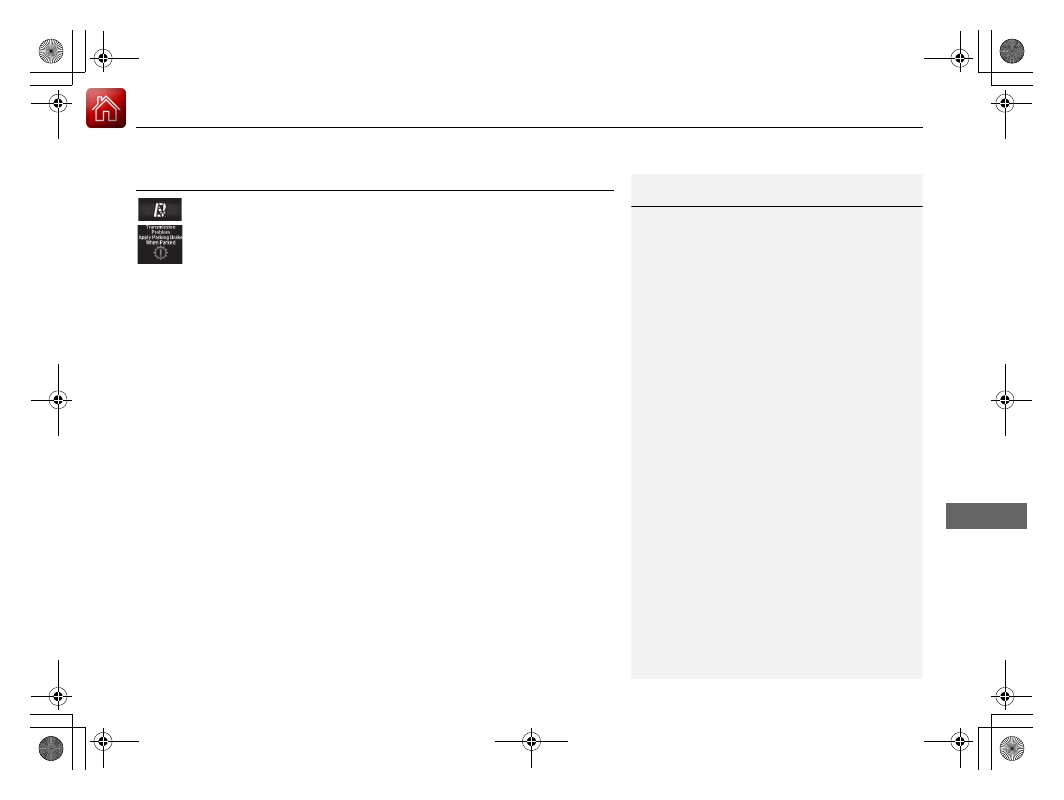

If the Transmission Indicator Blinks along with the
Warning Message

■

Reasons for the indicator to blink

The transmission is malfunctioned.

■

What to do when the indicator blinks

• Immediately have your vehicle inspected by a dealer.
• Change the gear position to

(

N when you turn the power system on.

Check if the

(

N position in the instrument panel and the indicator

on the

(

N button light/blink.

The power system cannot be turned on unless the parking brake is
set.

2 Turning on the Power P. 364

If the Transmission Indicator Blinks along with the Warning
Message

You may not be able to turn on the power system.

Make sure to set the parking brake when parking
your vehicle.

Call a professional towing service if you need to tow
your vehicle.

2 Emergency Towing P. 548

17 ACURA RLX E-AWD-31TY36300.book 541 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

542

Han

lin
g the U

expected

Fuses

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

There are four fuse boxes in the engine
compartment.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

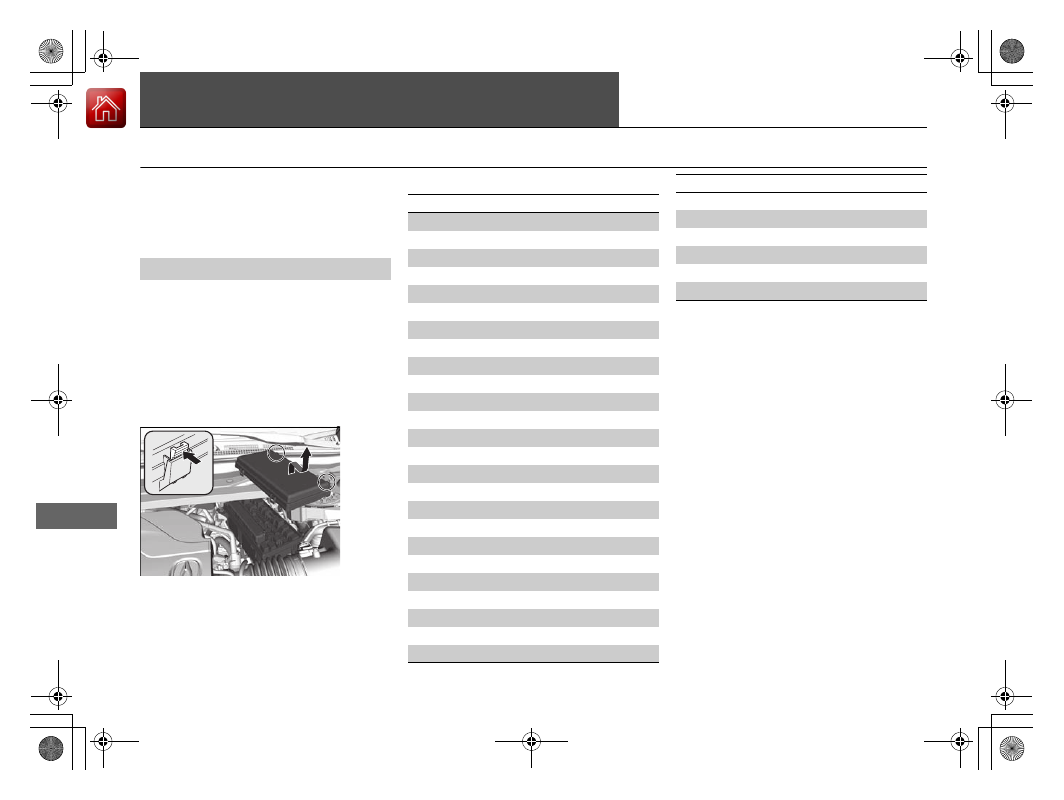

Located near the brake fluid reservoir. Push
the tabs to open the box.

■

Engine Compartment Fuse Box

■

Circuit protected and fuse rating

Circuit Protected

Amps

IG1A ACG FR

15 A

IG1A MISS SOL1

10 A

−

SMART

(7.5 A)

IG1B ECU FR

7.5 A

IG1B OP FR

7.5 A

IGP2

15 A

DBW

15 A

IGP

15 A

IG Coil

15 A

ACM

20 A

−

Interior Lights

10 A

Back Up Radio

10 A

Back Up

10 A

AFP

10 A

Front Washer

15 A

Stop

7.5 A

20 Right Headlight High Beam

10 A

Trunk

10 A

Small

15 A

Front Fog Lights

7.5 A

Left Headlight High Beam

10 A

IMA Motor

15 A

26 Right Headlight Low Beam

15 A

Left Headlight Low Beam

15 A

IGP2 Sub

7.5 A

Power Rear Sunshade

20 A

Headlight Washer

30 A

Wiper

30 A

Circuit Protected

Amps

* Not available on all models

17 ACURA RLX E-AWD-31TY36300.book 542 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

543

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

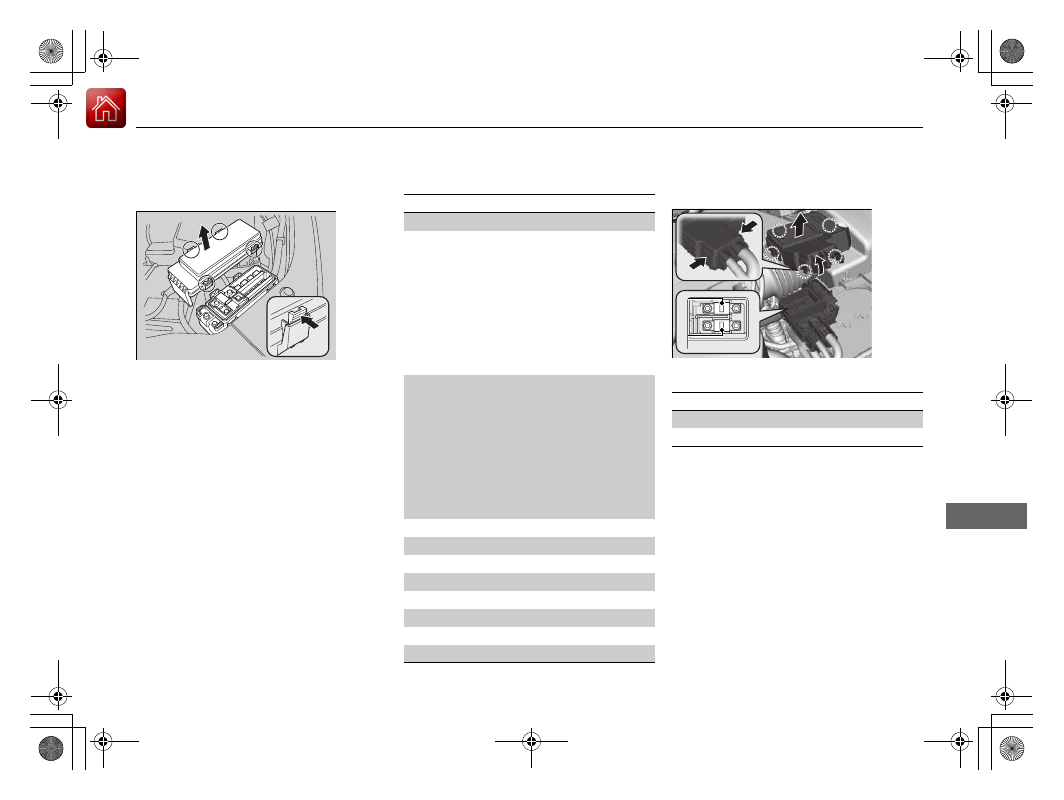

Located near the 12-volt battery. Push the
tabs to open the box.

■

Circuit protected and fuse rating

Circuit Protected

Amps

Main Fuse

200 A

−

(40 A)

Rear Defroster

40 A

DR F/B Main 1

60 A

AS F/B Main 1

60 A

R/B Main 3

50 A

AS F/B Main 2

60 A

ABS/VSA RLY

30 A

Heater Motor

40 A

R/B Main 1

60 A

ESB

40 A

IG Main

60 A

DR F/B Main 2

60 A

SBW

60 A

R/B Main 2

60 A

Horn & Hazard

20 A

ABS/VSA Motor

40 A

EOP

30 A

Left Electric Parking Brake

30 A

Right Electric Parking Brake

30 A

Injector

20 A

Hazard

15 A

−

Horn

10 A

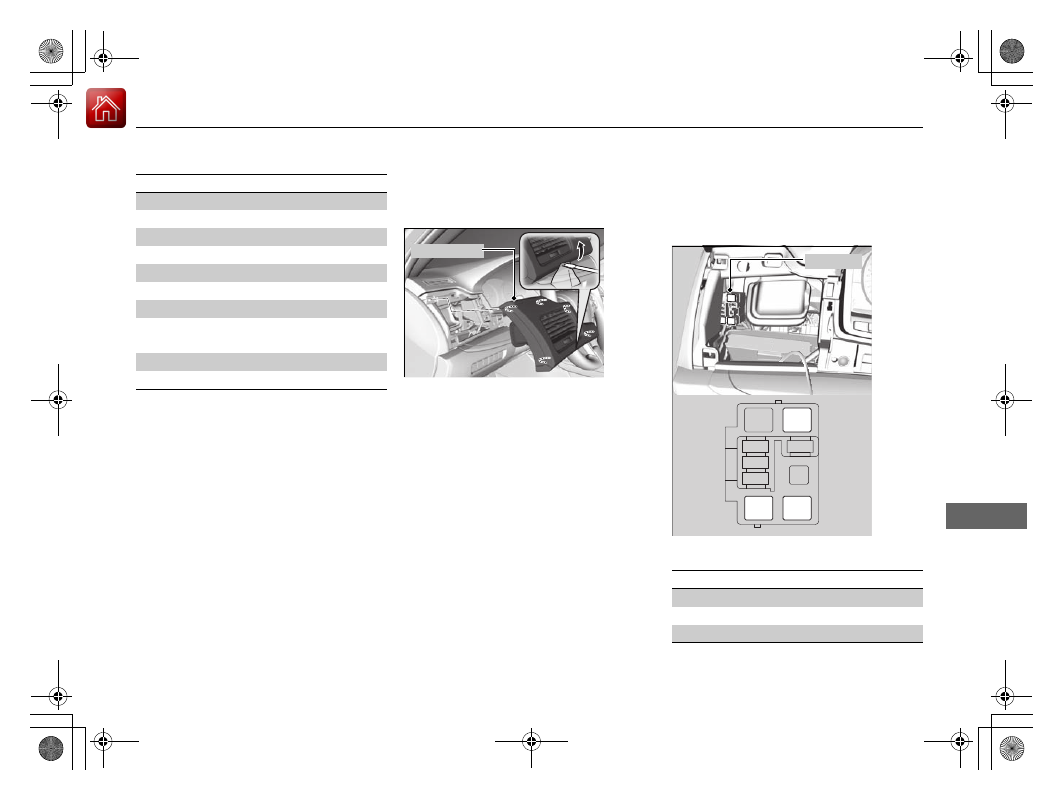

Located near the + terminal on the 12-volt
battery. Push the tabs to open the box.

■

Circuit protected and fuse rating

Circuit Protected

Amps

Radiator Fan

50 A

EPS

80 A

17 ACURA RLX E-AWD-31TY36300.book 543 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

544

Fuses

Fuse Locations

Han

lin
g the U

expected

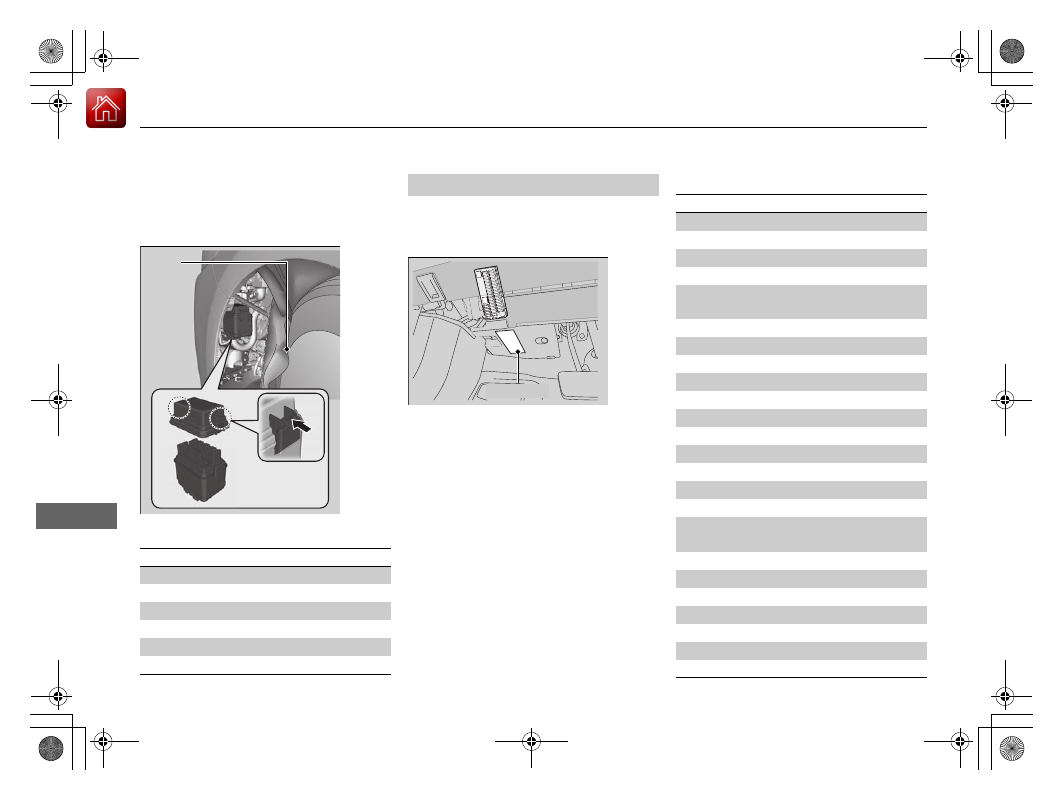

Located inside the left side of the front
bumper. Pull the inner fender back, then
push the tabs to open the box.

2 Front Side Marker Light Bulbs P. 481

■

Circuit protected and fuse rating

Inner
Fender

Circuit Protected

Amps

HCA 1

20 A

TCU

30 A

HCA 2

20 A

STRG MOVE 1

20 A

−

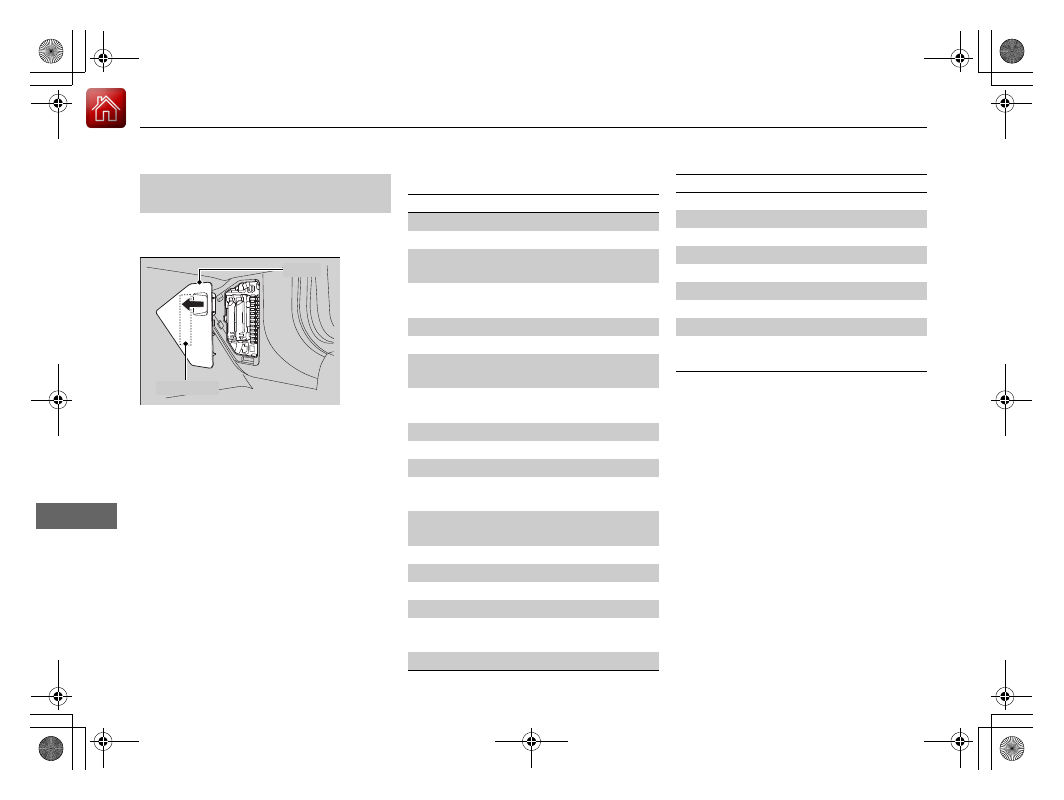

There are two fuse boxes in the driver's side.

Located under the dashboard.

Fuse locations are shown on the label on
the under panel.
Locate the fuse in question by the fuse
number and label number.

■

Driver’s Side Interior Fuse Box

Fuse Label

■

Circuit protected and fuse rating

Circuit Protected

Amps

Driver’s Side Door Lock

10 A

Passenger’s Side Door Lock

10 A

Driver’s Door Lock

10 A

Driver’s Side Door Unlock

10 A

Passenger’s Side Door

Unlock

10 A

Driver’s Door Unlock

10 A

Door Lock

20 A

−

Power System 1

10 A

IG1 DR1

7.5 A

Meter

10 A

Passenger’s Side Fuse Box

20 A

ACCESSORY

7.5 A

−

15 Driver’s Power Seat Sliding

20 A

Moonroof

20 A

Rear Driver’s Side Power

Window

20 A

STRG MOVE 2

20 A

Driver’s Power Window

20 A

Power System 2

15 A

Fuel Pump

20 A

Power System 2

7.5 A

Starter Cut

7.5 A

IG1 DR2

7.5 A

17 ACURA RLX E-AWD-31TY36300.book 544 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

545

Fuses

Fuse Locations

Continued

Han

lin
g the U

expected

Start DIAG

7.5 A

Air Conditioning

7.5 A

Daytime Running Lights

7.5 A

ACC Key Lock

7.5 A

Driver’s Lumbar Support

7.5 A

SMART

10 A

−

Driver’s Power Seat

Reclining

20 A

Left e-pretensioner

(20 A)

IG1 Box

30 A

Circuit Protected

Amps

Located inside the driver’s side outer panel.
When you remove the outer panel, use the
following procedure.

1. Pry on the lower edge of the panel using

a flat-tip screwdriver.

Wrap the flat-tip screwdriver with a
cloth to prevent scratches.

2. Pull the outer panel towards you, then

remove it.

Outer Panel

Fuse locations are shown on the image
below.
Locate the fuse in question by the fuse
number in the image and chart.

■

Circuit protected and fuse rating

Fuse Box

Circuit Protected

Amps

IG Main 1

30 A

ST MG

30 A

IG Main 2

30 A

17 ACURA RLX E-AWD-31TY36300.book 545 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

546

Fuses

Fuse Locations

Han

lin
g the U

expected

Located on the lower side panel. Take off
the cover to open.

Fuse locations are shown on the cover.

■

Passenger’s Side Interior Fuse
Box

Fuse Label

Cover

■

Circuit protected and fuse rating

Circuit Protected

Amps

−

Front Seat Heaters/AVS

20 A

Rear Passenger’s Side

Power Window

20 A

Front Passenger’s Lumbar

Support

7.5 A

−

A/C Water Pump

10 A

Passenger’s Power Seat

Sliding

20 A

Passenger’s Power Seat

Reclining

20 A

Rear Seat Heaters

(20 A)

−

Fly Start

15 A

Accessory Power Socket
(Console Compartment)

20 A

Accessory Power Socket

(Center Pocket)

20 A

AS ECU

7.5 A

Glove Box

7.5 A

−

Front Passenger’s Power

Window

20 A

SRS1

10 A

*1:Models without surround view camera

system

*2:Models with surround view camera

system

ABS/VSA

7.5 A

−

e-pretensioner

(7.5 A)

−

SRS2

7.5 A

Illumination

7.5 A

Right e-pretensioner

(20 A)

Heated Steering Wheel

(10 A)

Audio AMP

30 A

40 A

Circuit Protected

Amps

* Not available on all models

17 ACURA RLX E-AWD-31TY36300.book 546 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

547

Fuses

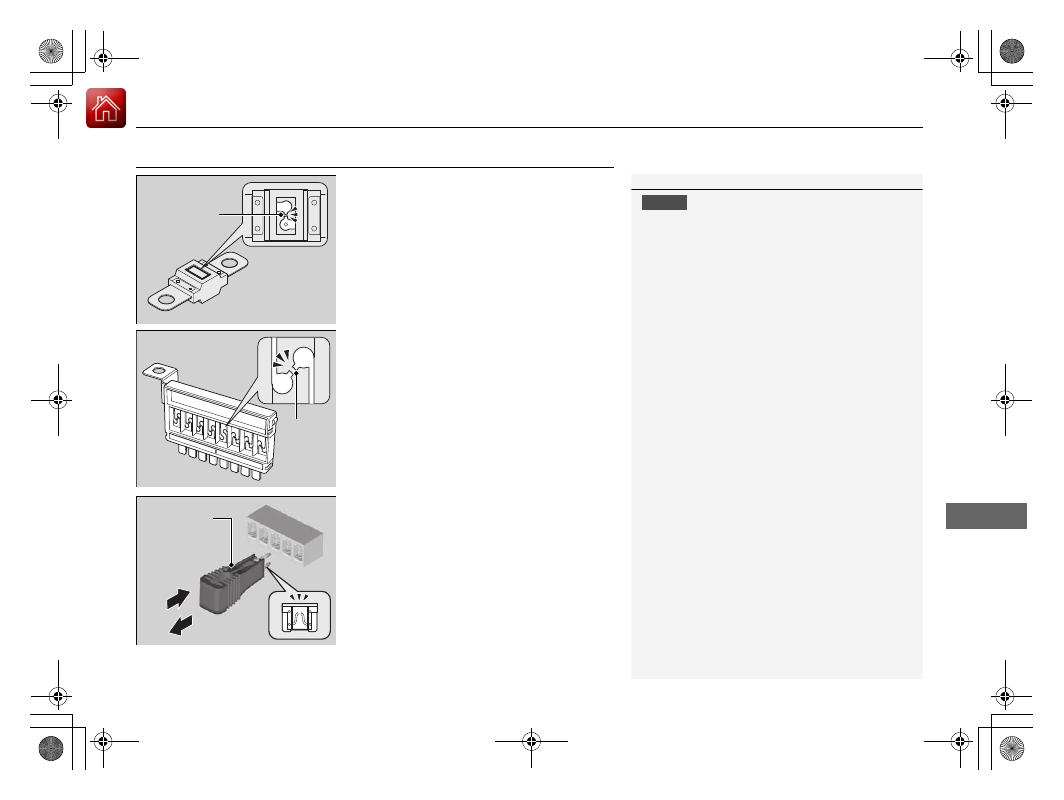

Inspecting and Changing Fuses

Han

lin
g the U

expected

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF

(LOCK). Turn headlights and all accessories
off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 542 to 5 46.

There is a fuse puller in the engine compartment fuse
box located near the brake fluid reservoir.

Blown Fuse

Combined Fuse

Blown
Fuse

Fuse Puller

17 ACURA RLX E-AWD-31TY36300.book 547 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

548

Han

lin
g the U

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

■

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the only way you can safely transport your vehicle.
Any other towing method will damage the vehicle’s drive system.

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

17 ACURA RLX E-AWD-31TY36300.book 548 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

550

Han

lin
g the U

expected

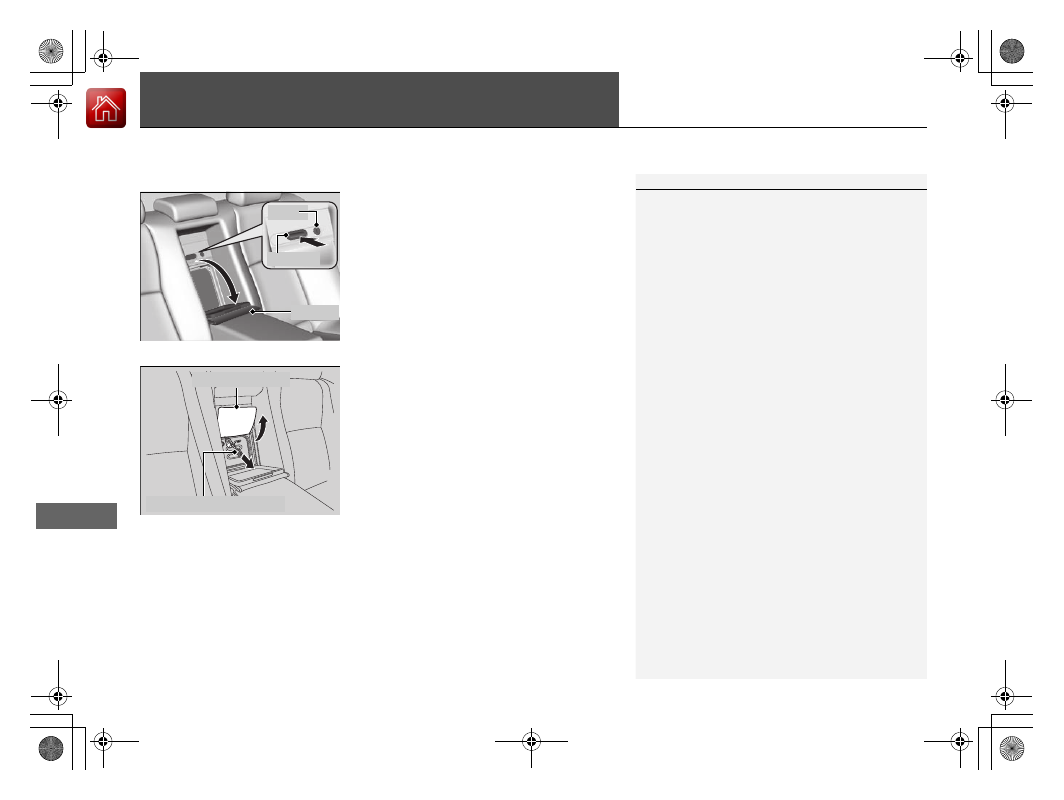

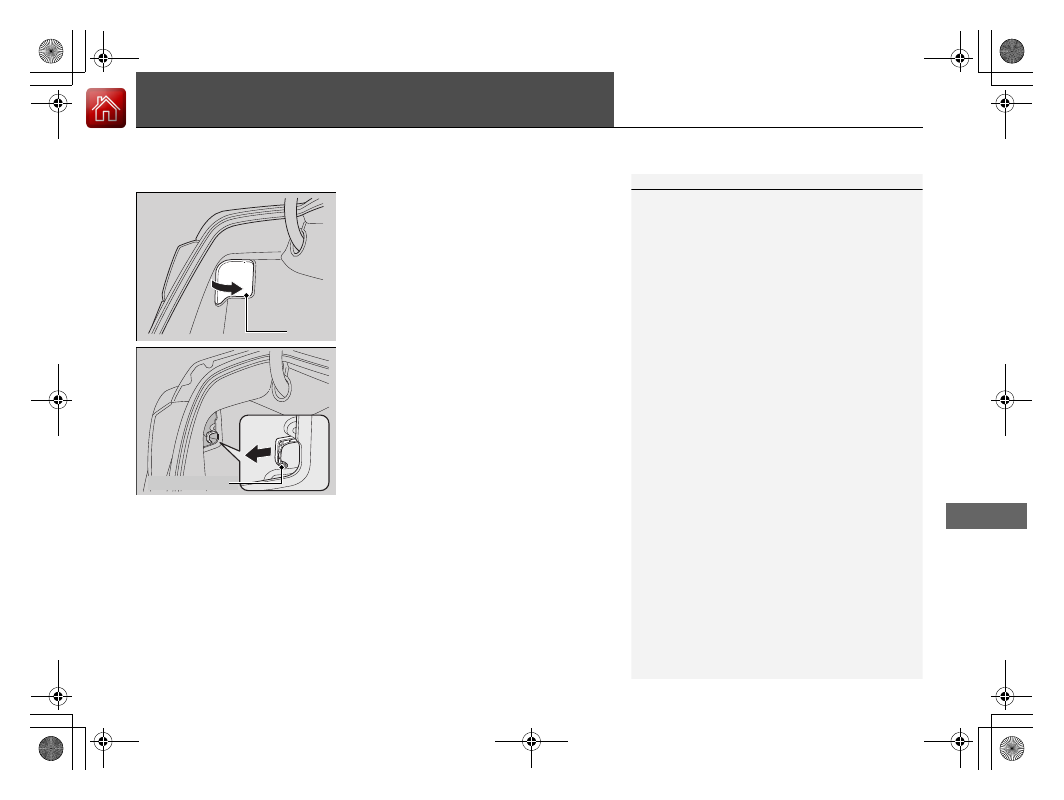

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1. Pull the rear seat armrest down.
2. Push the button to open the cover.

The cover latches when you push it back
to the original position.

You can lock and unlock this cover using
the built-in key.
To lock the cover: Insert the key to the
lock, then turn it the right.
To unlock the cover: Insert the key to
the lock, then turn it the left.

3. With pulling the inner partition up, pull the

trunk release handle down to the direction
of the arrow in the image.

When You Cannot Open the Trunk

What to do-following up
After taking these steps, contact a dealer to have
your vehicle checked.

Lock

Button

Cover

Trunk Release Handle

Inner Partition

17 ACURA RLX E-AWD-31TY36300.book 550 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

551

Han

lin
g the U

expected

Refueling

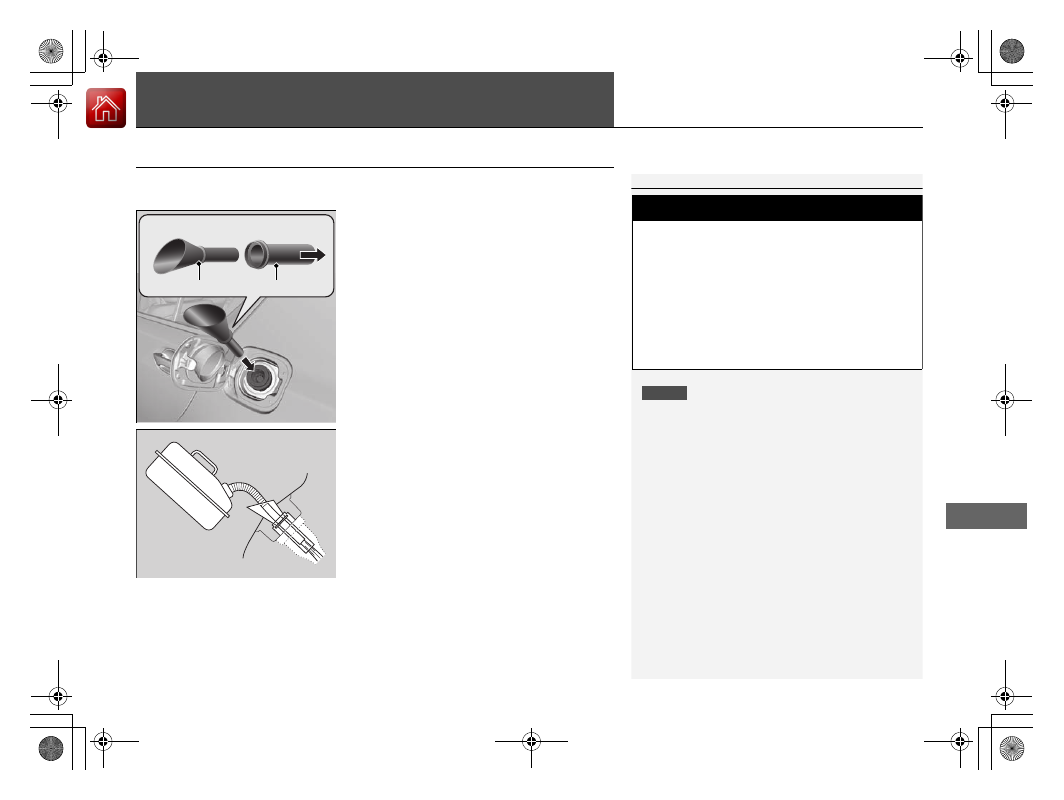

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the power system.
2. Press the fuel fill door release button.

The fuel fill door opens.

3. Take the funnel out of the tool case in the

trunk.

2 Types of Tools P. 510

4. Remove the funnel from the case.
5. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

Make sure that the end of the funnel
goes down along with the filler pipe.

6. Fill the tank with fuel from the portable fuel

container.

Pour fuel carefully so you do not spill any.

7. Remove the funnel from the filler neck.

Wipe up any fuel from the funnel before
storing it.

8. Shut the fuel fill door by hand.

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Turn the power system off, and keep

heat, sparks, and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

Case

17 ACURA RLX E-AWD-31TY36300.book 551 ページ２０１６年６月１７日　金曜日　午前８時２９分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Acura RLX Hybrid (2017 year). Manual - part 34
